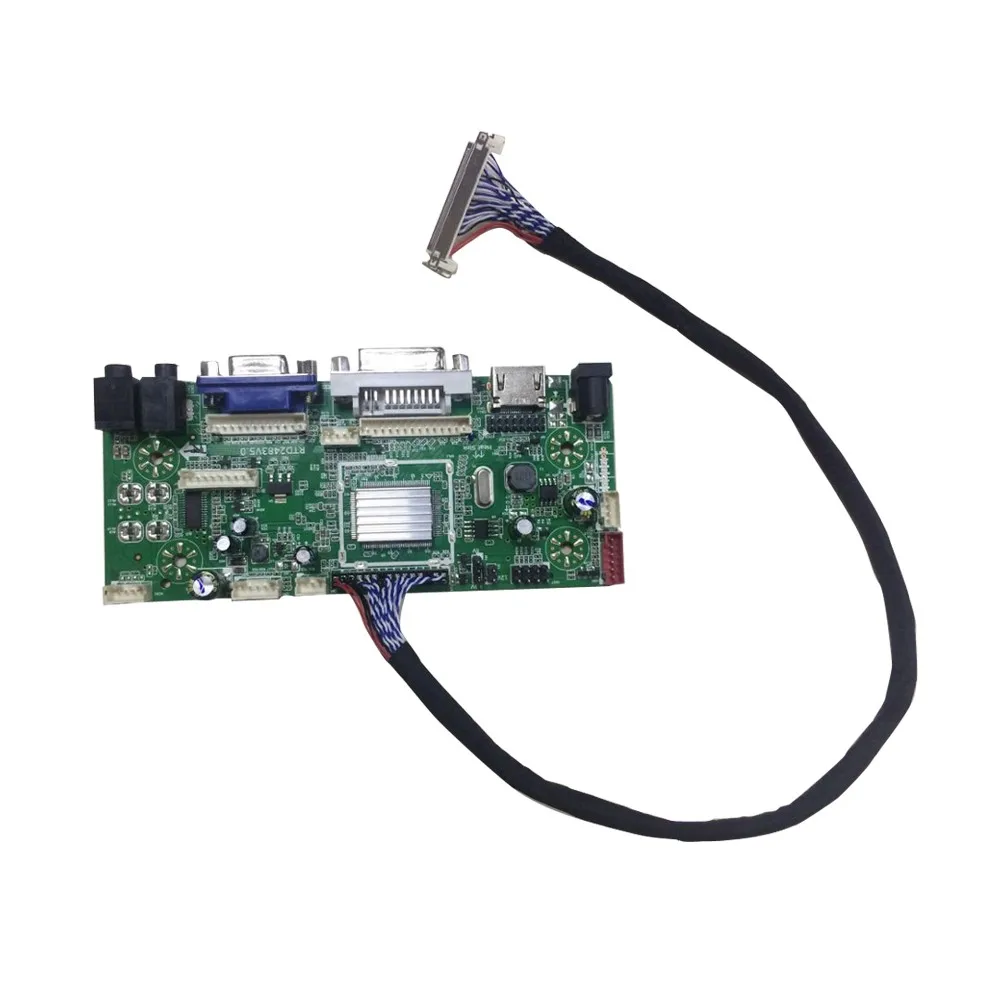

This RTD2483V5.0 HDMI/VGA/DVI to LVDS driver board could support most 10-65 inch LVDS interface LCD screens, it could be widely used at car, advertising monitor, and monitoring displays.
Product Details

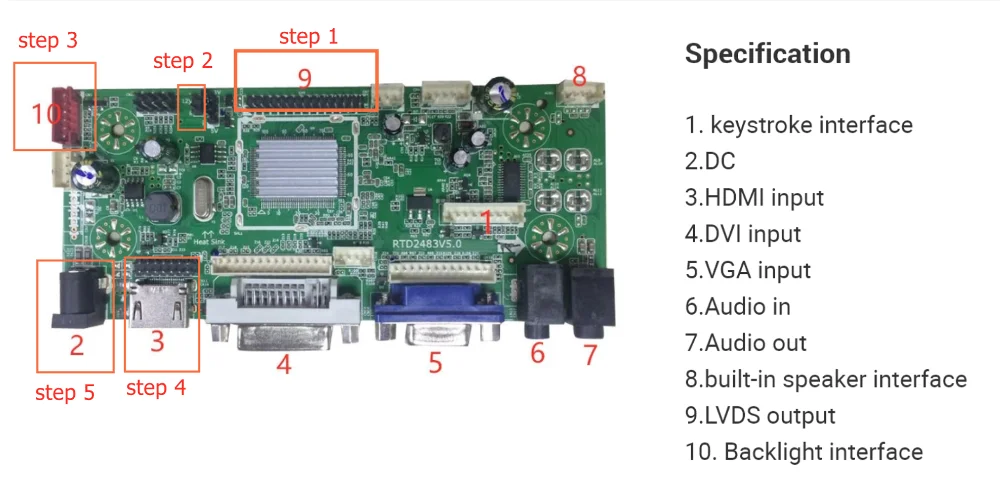

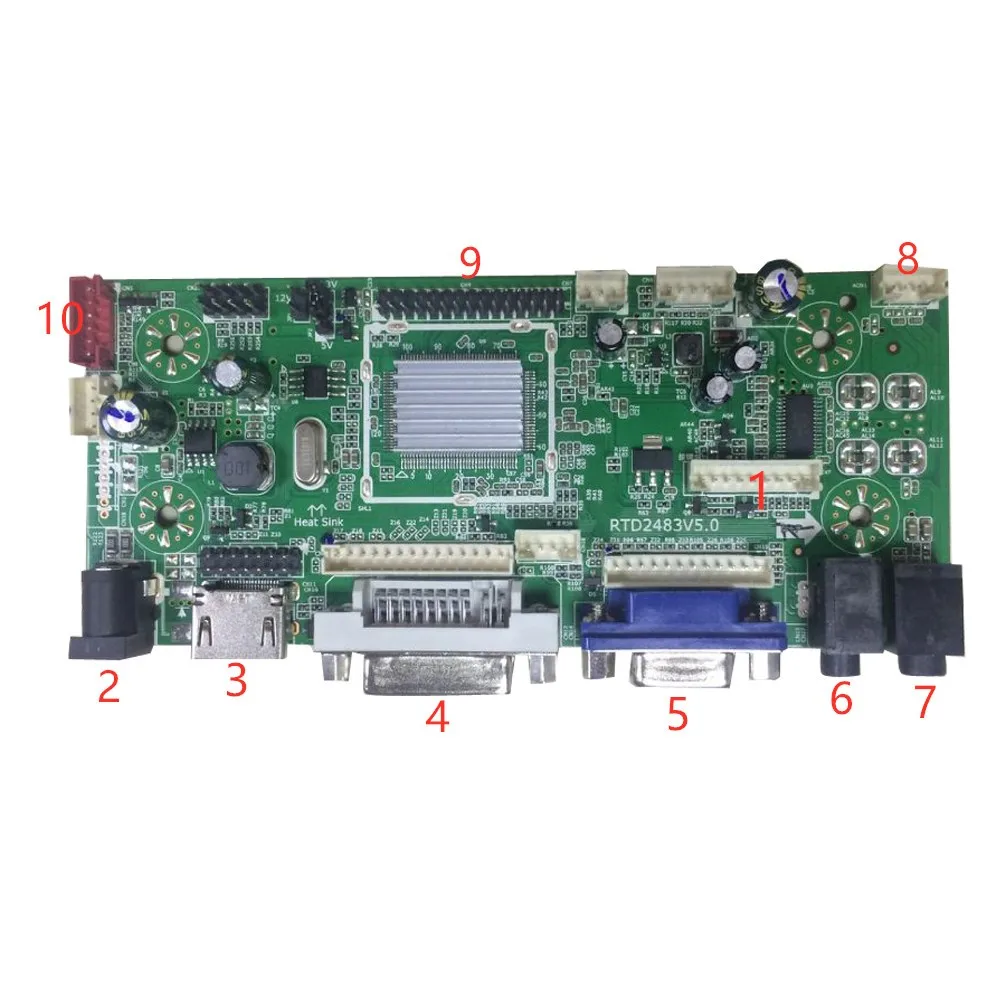

Specification

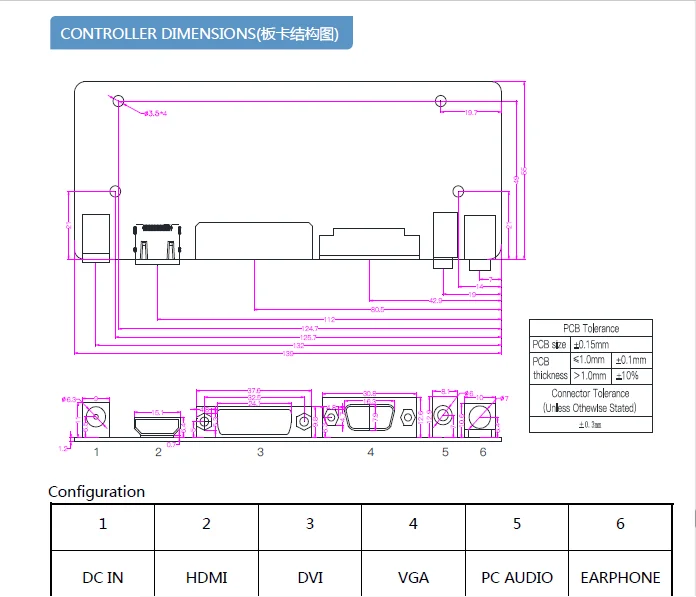

1. Keypad interface
2.DC power port
3.HD-MI input
4.DVI input
5.VGA input
6.Audio in
7.Audio out
8.built-in speaker interface
9.LVDS output
10. Backlight interface
How to use?
Step 1, connected the LVDS cable with LCD screen
Step 2,according to your screen voltage 3V, 5V or 12V (eg, if 12V as shown in specification sheet),choose to put the cap to position 12V(very important).
Step 3, connected the backlight interace with LCD screen backlight cable
Step 4, connected HD' MI input
Step 5, connected 12V/1A DC power
Notice: If you want to take off the driver board, please firstly disconnect DC power and then remove other parts
Package included
1x HDMI/VGA/DVI to LVDS driver board
1x board to screen cable
1x5 key keypad
OEM and ODM requirements
Our company could offer all different driver boards' design and R&D program，rich experience in this field for years. Please do not contact us freely if you have any requirements！
