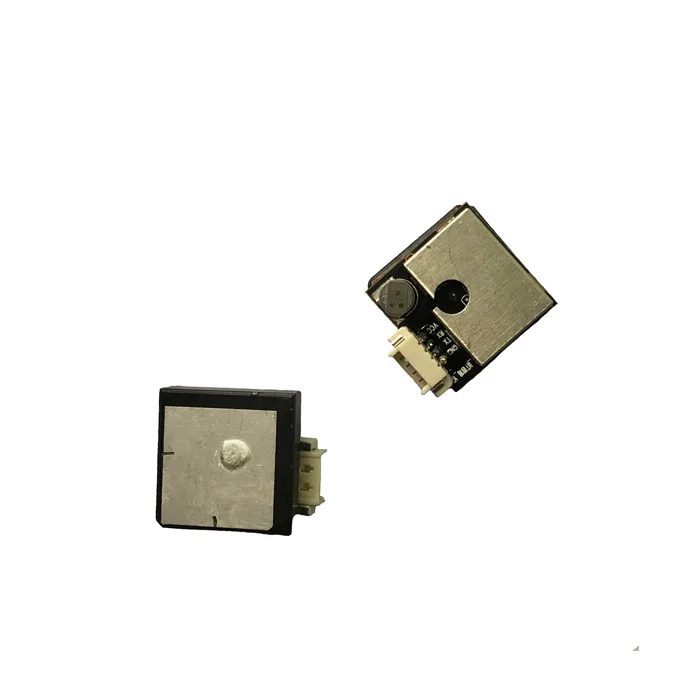

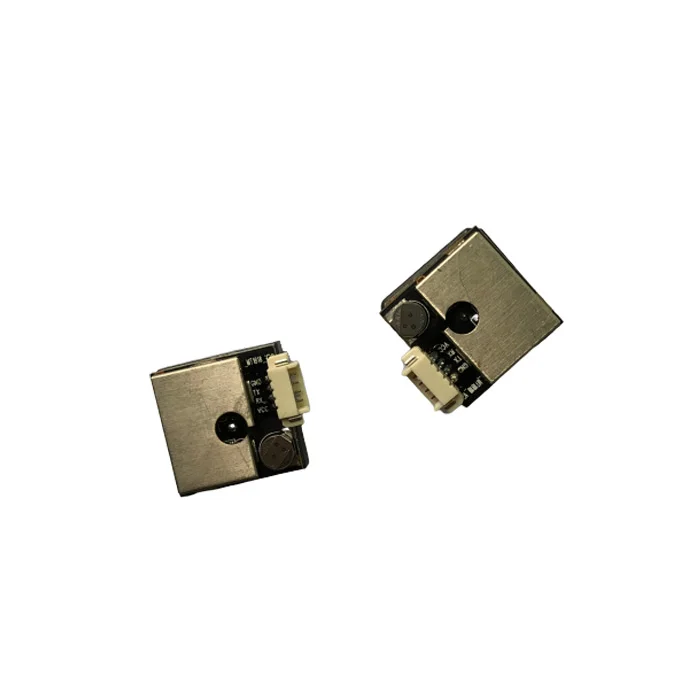

Industrial Application GPS Chip mini size module 18*18 GPS UBX Chip 7020 With Integrated antenna GPS module
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (62521457387):
Product Overview
Description
Products Description
This product GPS receiver GPS module GPS antenna can be customized according to customer requirements.
Please contact sales befor order! Thank you!

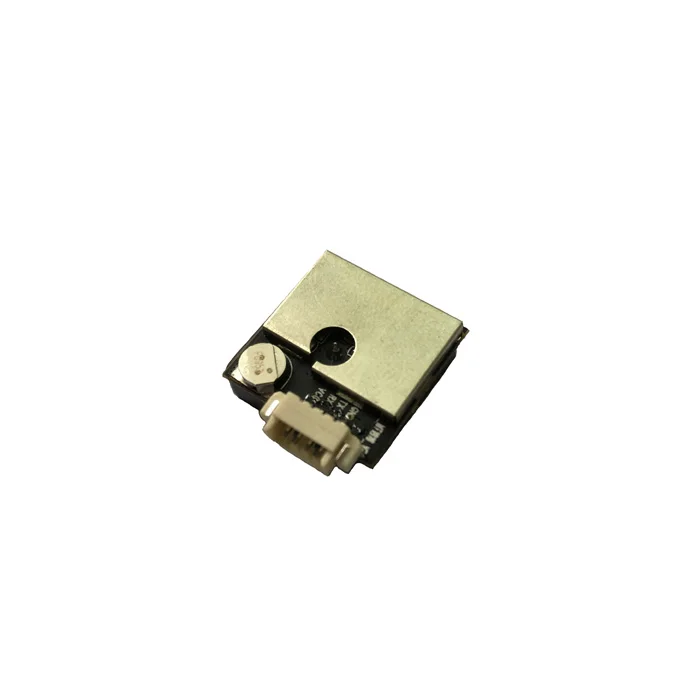

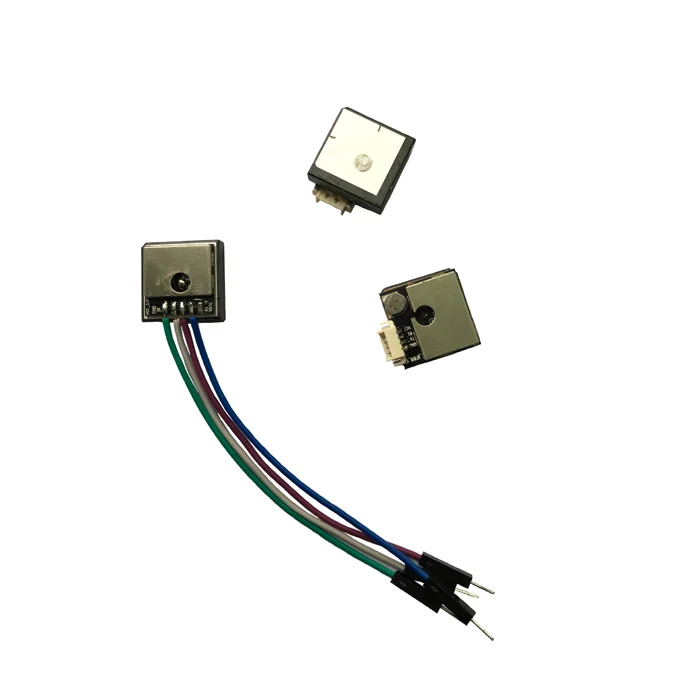

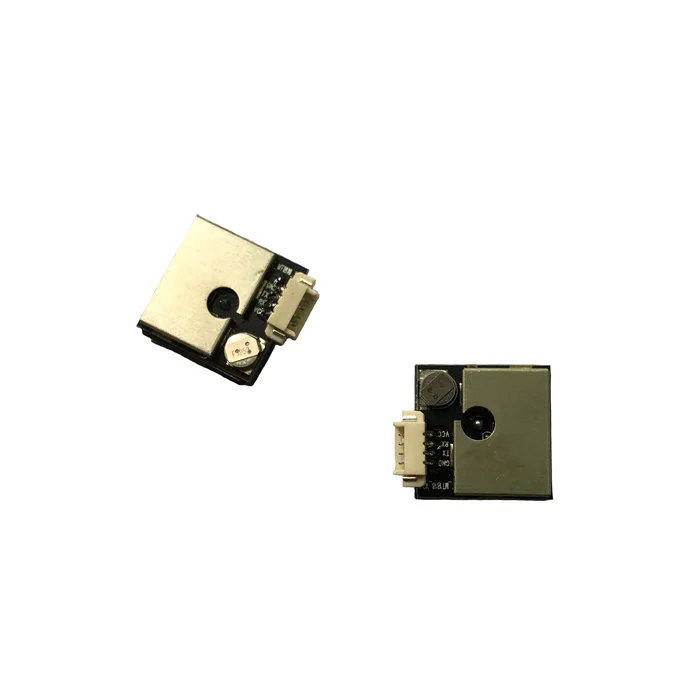

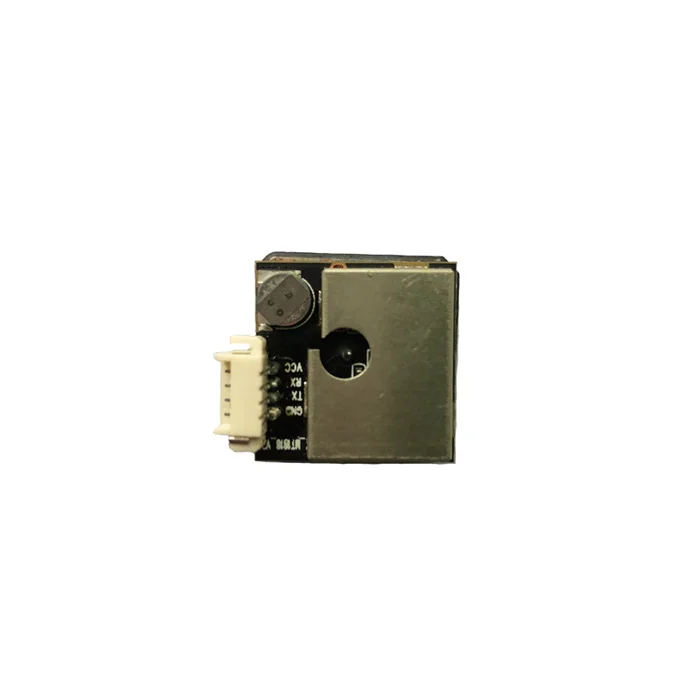

Yh-1616-u USES ubx-g7020 chip yh-1616-u module to expand the tracking sensitivity of positioning coverage, such as urban canyons and leafy environment GPS, in the past is impossible to set in place, but now it is completely possible to achieve positioning.The compact shape and low power consumption make the module easy to be integrated into portable equipment, which is mainly used in vehicle, vehicle navigation, personal positioning, monitoring, navigation equipment, flight control model, dashcam, etc.
Spec | ||
Sensitivity | Tracking | -162dBm |
Acquisition | -148dBm | |
TTFF | Hot Start | 1s |
Cold Start | 29s | |
Warm Start | 1s | |
56-channel U-blox7 engine | ||
Freq GPS L1 C/A,GLONASS L1 FDMA QZSS L1 C/A | ||
Support WAAS,EGNOS,MSAS, | ||
2.5m | CEP50 without SA | |
2.0m | SBAS | |
velocity | 0.1m/s | |
Maximum renewal rate | 1HZ--10 HZ | |
Time pulse (configurable) | 100m/s(default) | |
PPS | 10ns | |
altitude | Max <18000m | |
speed | Max <515m/s | |
accelerated speed | <4g | |
data format | NMEA 0183 | |
power supply | 2.7V to 3.6V | |
consumption | 50mW | |
VBAT | 7uA | |
package | 18*18*6.2mm | |
oscillator | TCXO | |
Antenna | Passive ceramic antenna | |
Temperature | operating temperature | -40℃ to +85℃ |
storage temperature | -40℃ to +85℃ | |
Standard | RoHs | |
Default output protocol | GPRMC, GPVTG, GPGGA, GPGSA, GPGSV, GPGLL | |
