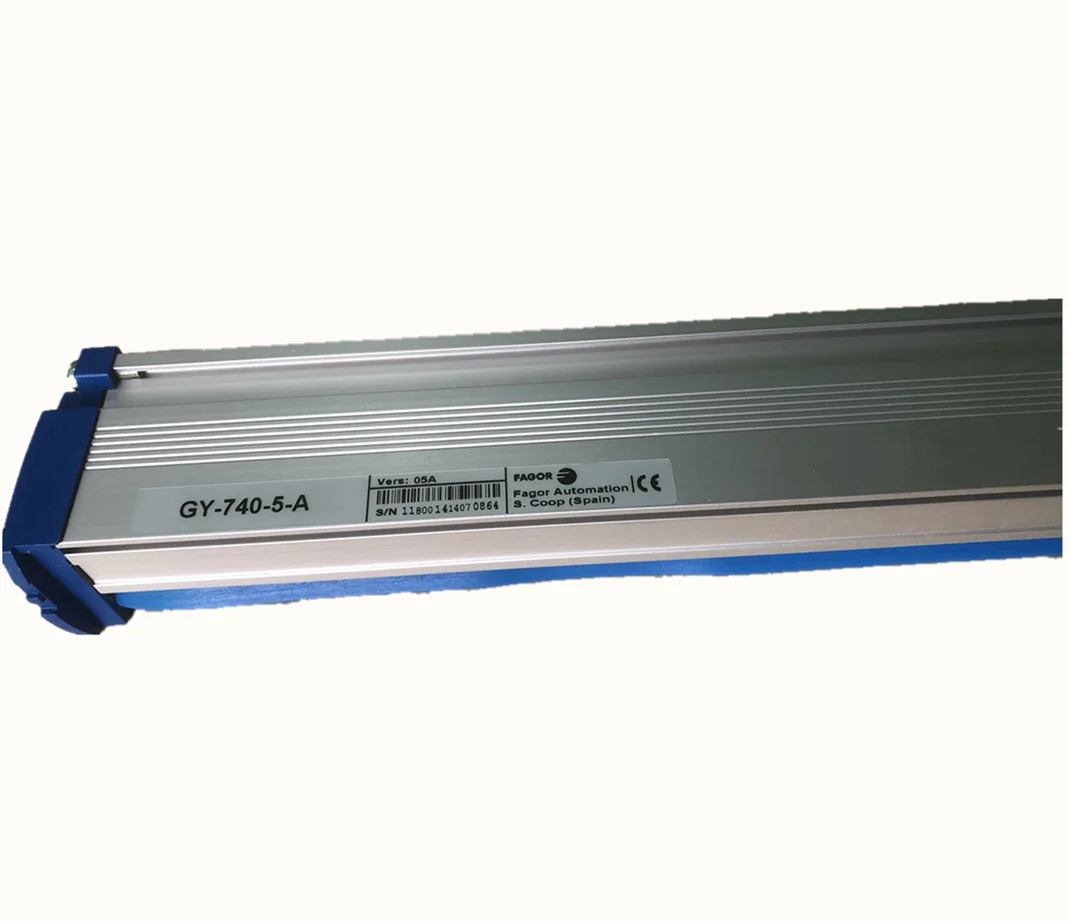

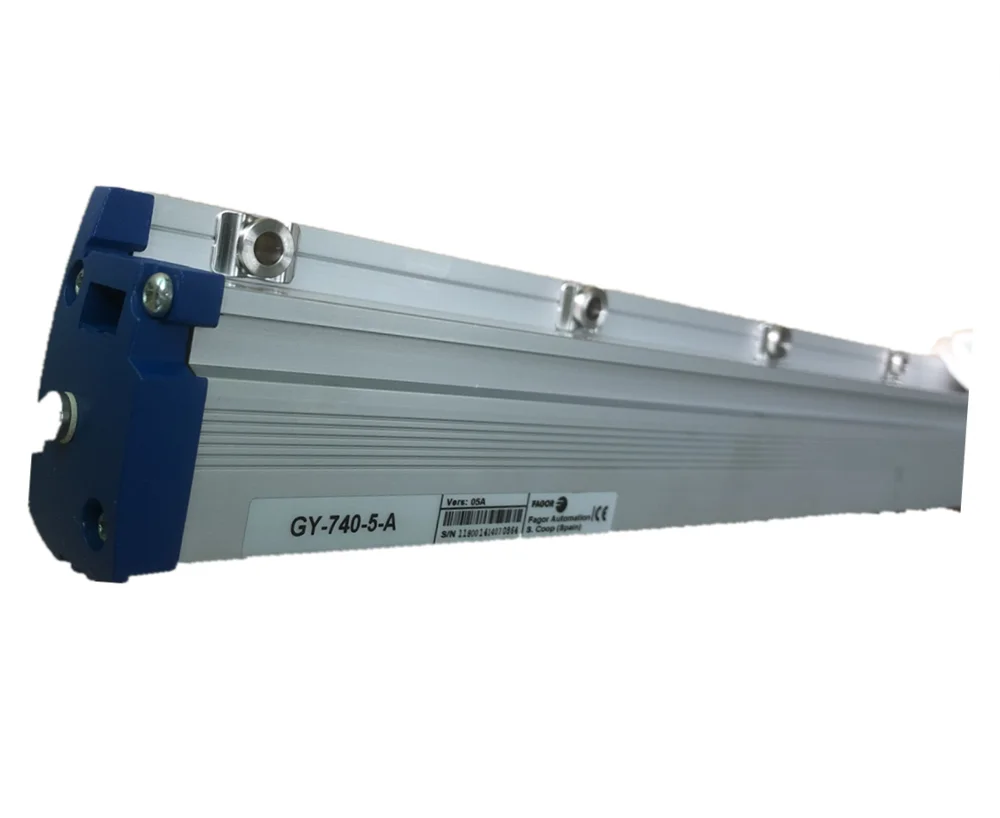

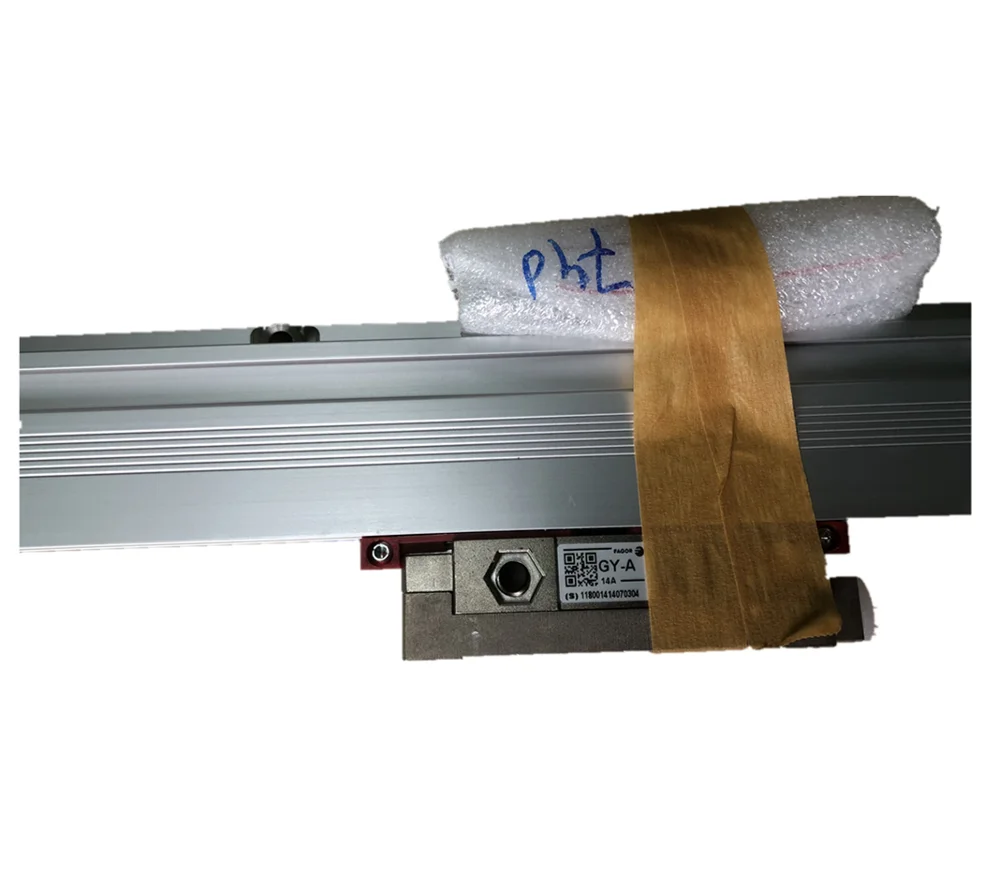

Fager linear scale GY 740 5 A dro linear scale measut

Product Overview

Description

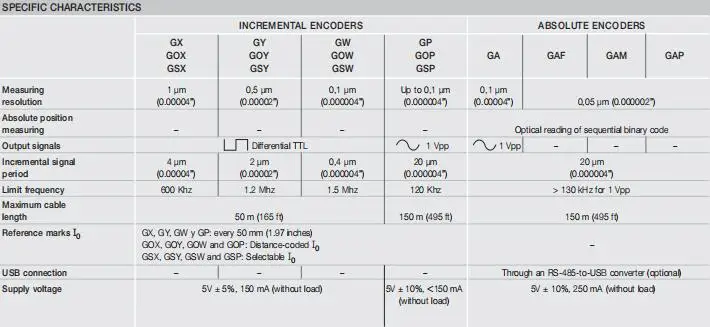

General Characteristics
Measurement	By means of a 20 um-pitch (0.0008 inch)graduated glass.
Glass thermal expansion coefficient	8 ppm/K
Accuracy	±5 um (±0.0002") ±3 um (±0.00012")
Maximum speed	120m/min
Maximum vibration	20g
Moving thrust	<5N
Operating temperature	0°...50℃
Storage temperature	`-20°...70℃
Weight	0.25KG+2.25KG/M
Relative humidity	20...70℃
Protection	IP 53(Standard) IP 64(DIN 40050)using pressurized
