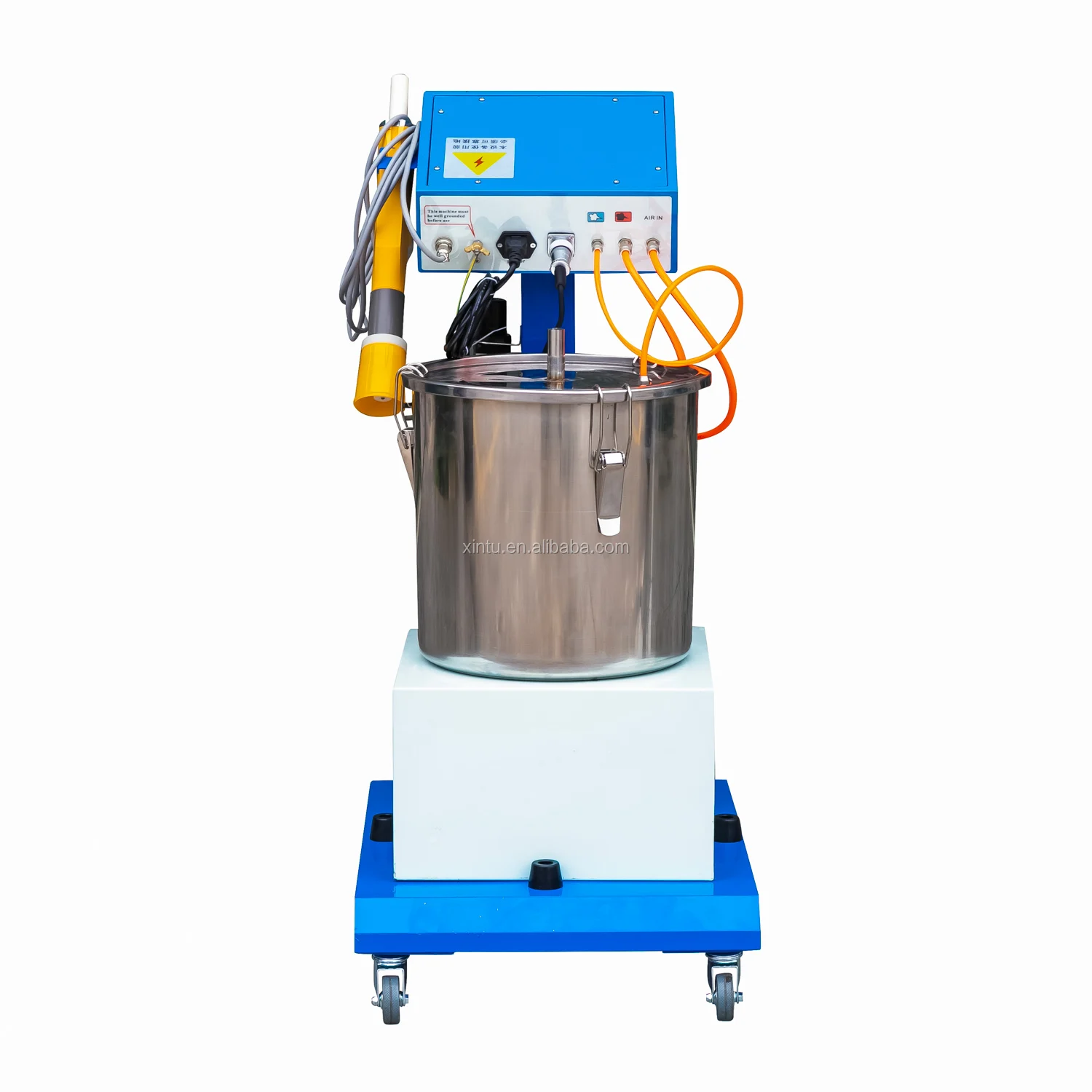

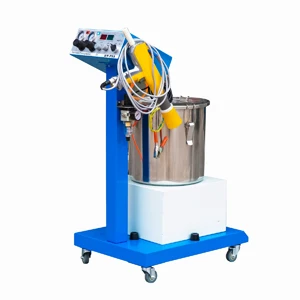

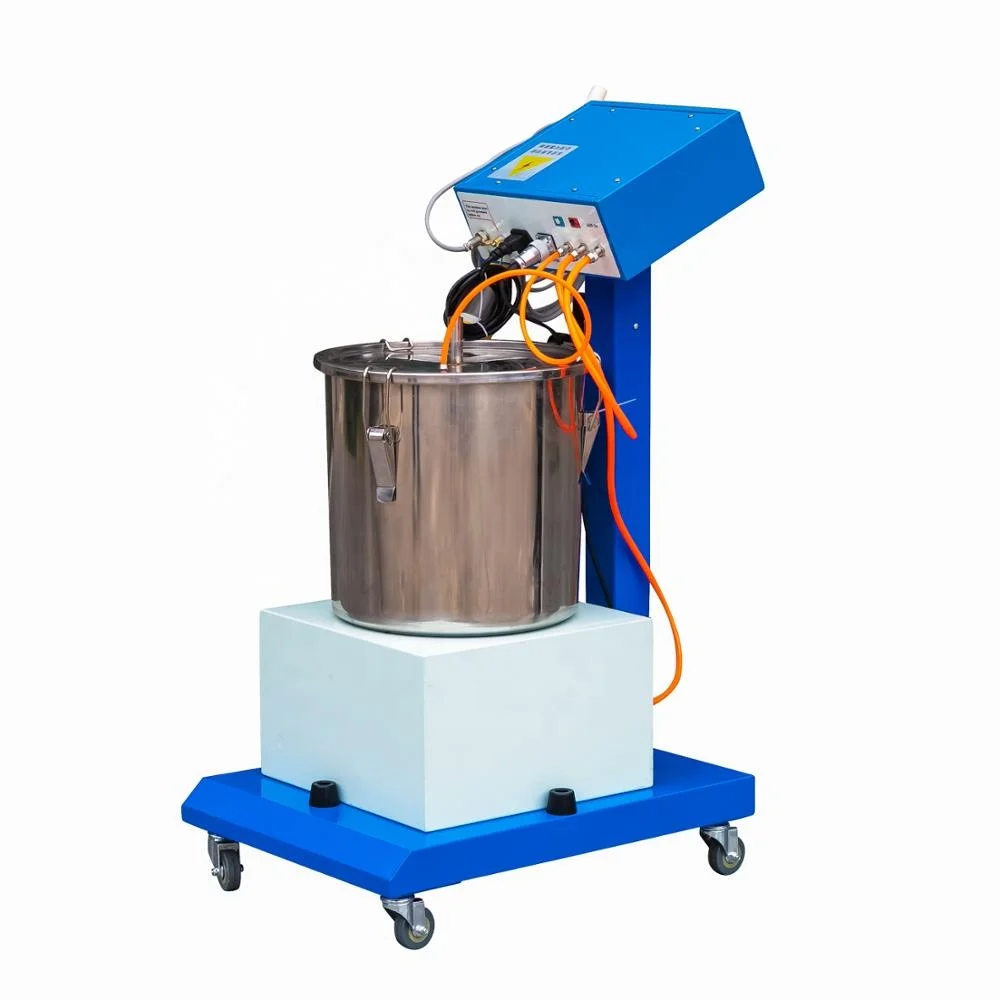

XT F03 pharyngo swab making by Electrostatic Flocking Machine With Spraying Gun

Product Overview

Description



pharyngo swab making by  Electrostatic Flocking Machine With Spraying Gun





1. SPECIFICATION

Commodity	Electrostatic Flocking Machine
Model	XT-F03
G.W.	26KG
Carton	49x47x59CM
Operation Way	Manual Flock Spray Gun
Application	paper/clothes/T-shirt/wood--simple structure workpiece
Delivery Way	DHL/TNT/FedEx





2.PRODUCT SHOW

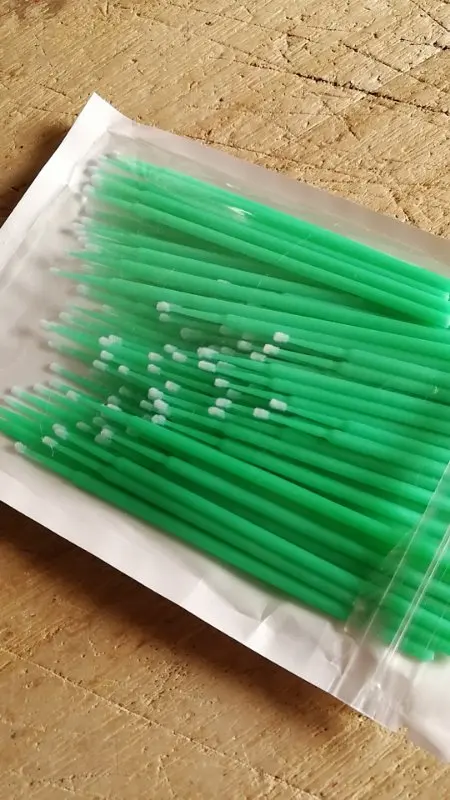

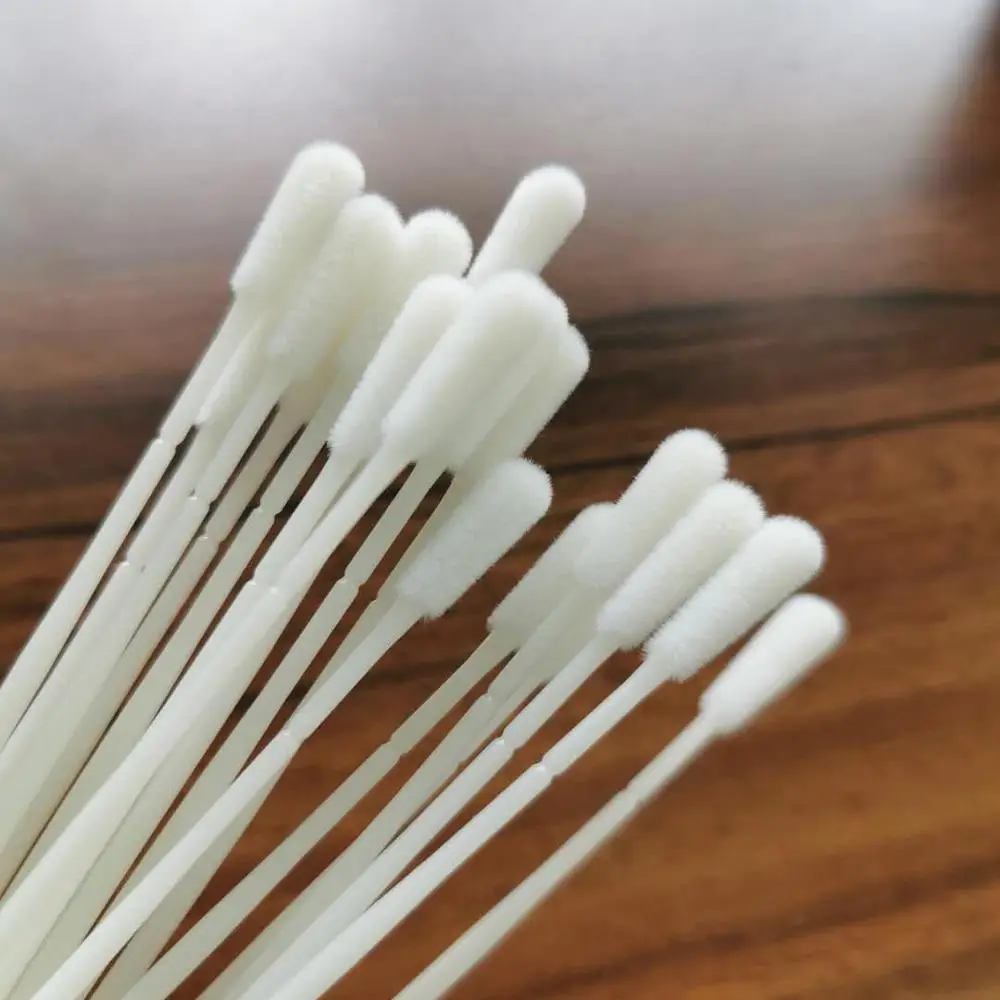

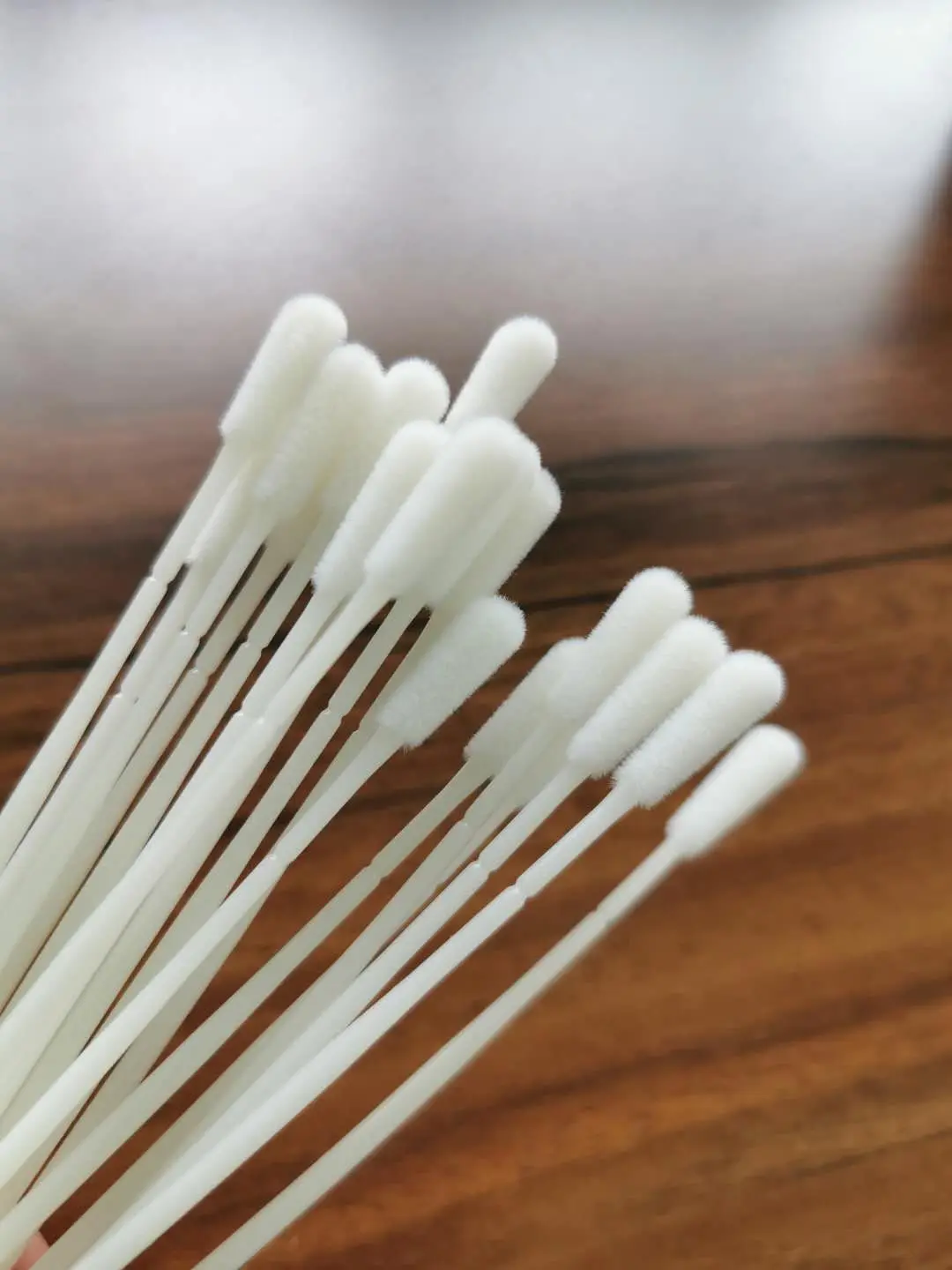

 workpiece pic.

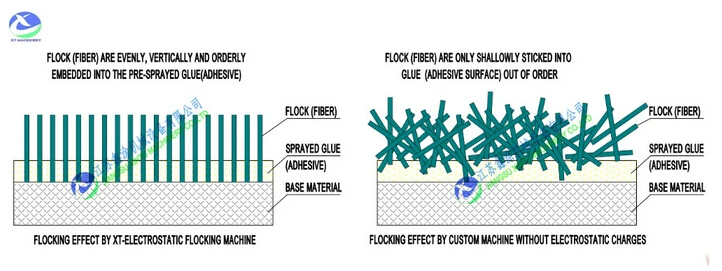

3. WORKING PRINCIPLE

Flocking is defined as the application of fine particles to adhesive coated surfaces. Nowadays, this is usually done by the application of a high-voltage electric field. In a flocking machine the "flock" is given a negative charge whilst the substrate is earthed. Flock material flies vertically onto the substrate attaching to previously applied glue.



4. HOW TO WORK IT

Step 01: The grounding line must be connected with metal rack or clean ground.

Step 02: Put flock into the Hopper.

Step 03: Turn on the voltage(kv) and current(uA) .

Step 04: Turn on the Powder Gun. Flocking the pharyngo swab

Only four steps, east to control and operate this manual flocking machine.



5. FEATURES&ADVANTAGES

5.1 Portable flocking machine, Movable Trolley, convenient to move it around.

5.2 Hand-held spray gun design, flexible operation, can be all-round flocking of  pharyngo swab. There’s no restriction of flocking area and shape.

5.3 The amount of the pile can be adjusted.











When I order the flocking machine, do you also offer the flock?

Yes, we can offer you flock.











If you have any other question, plz freely contact with me:
