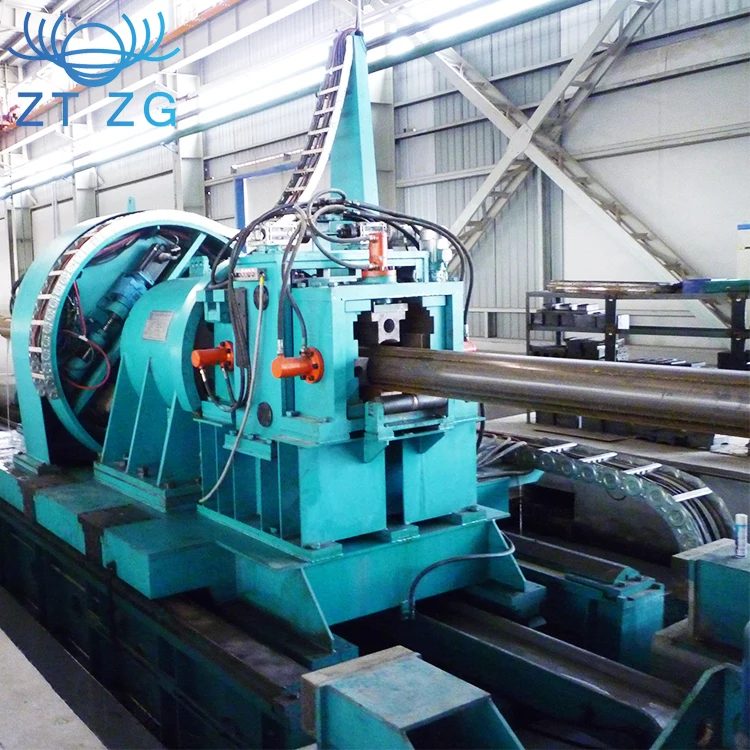

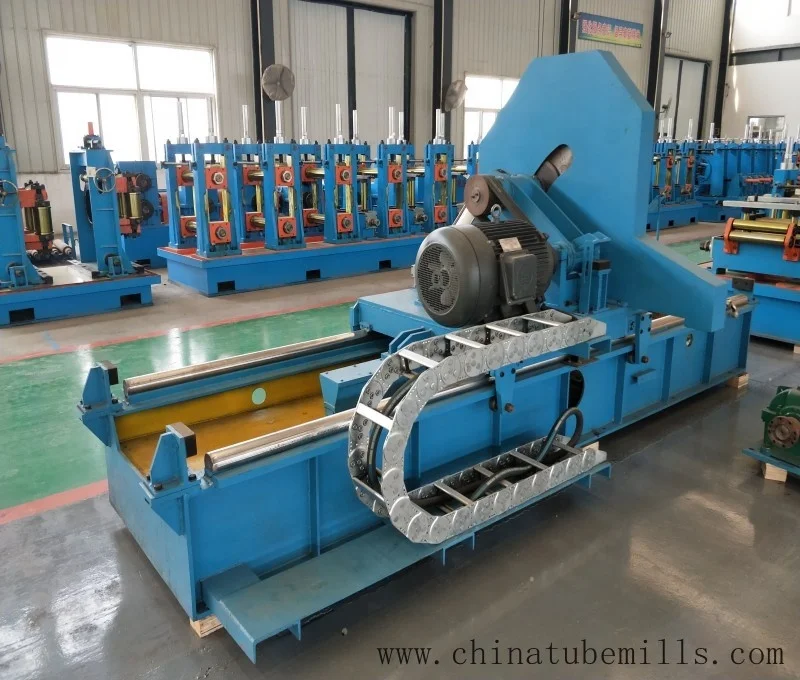

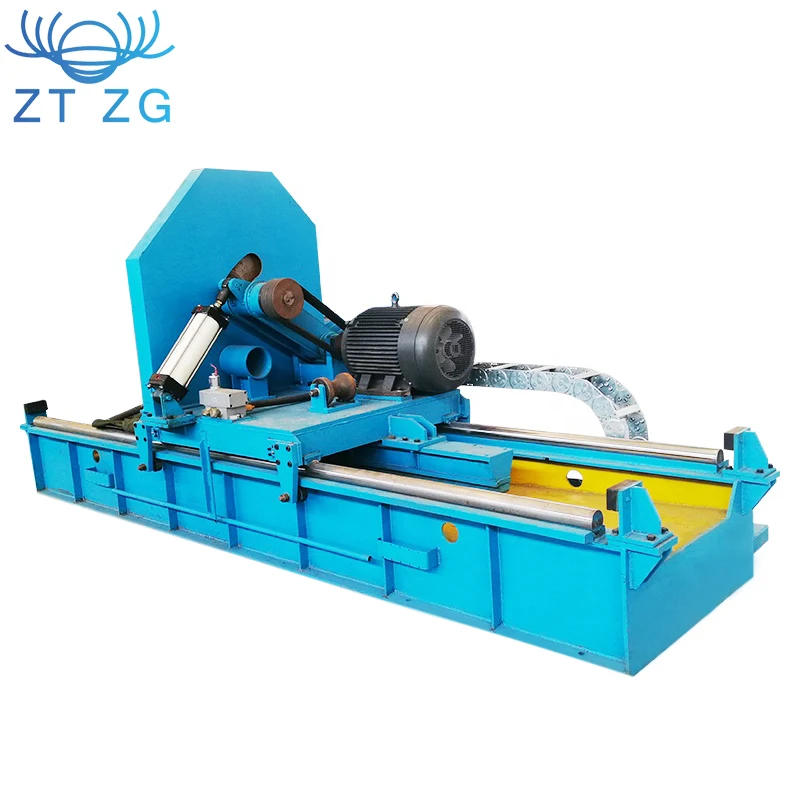

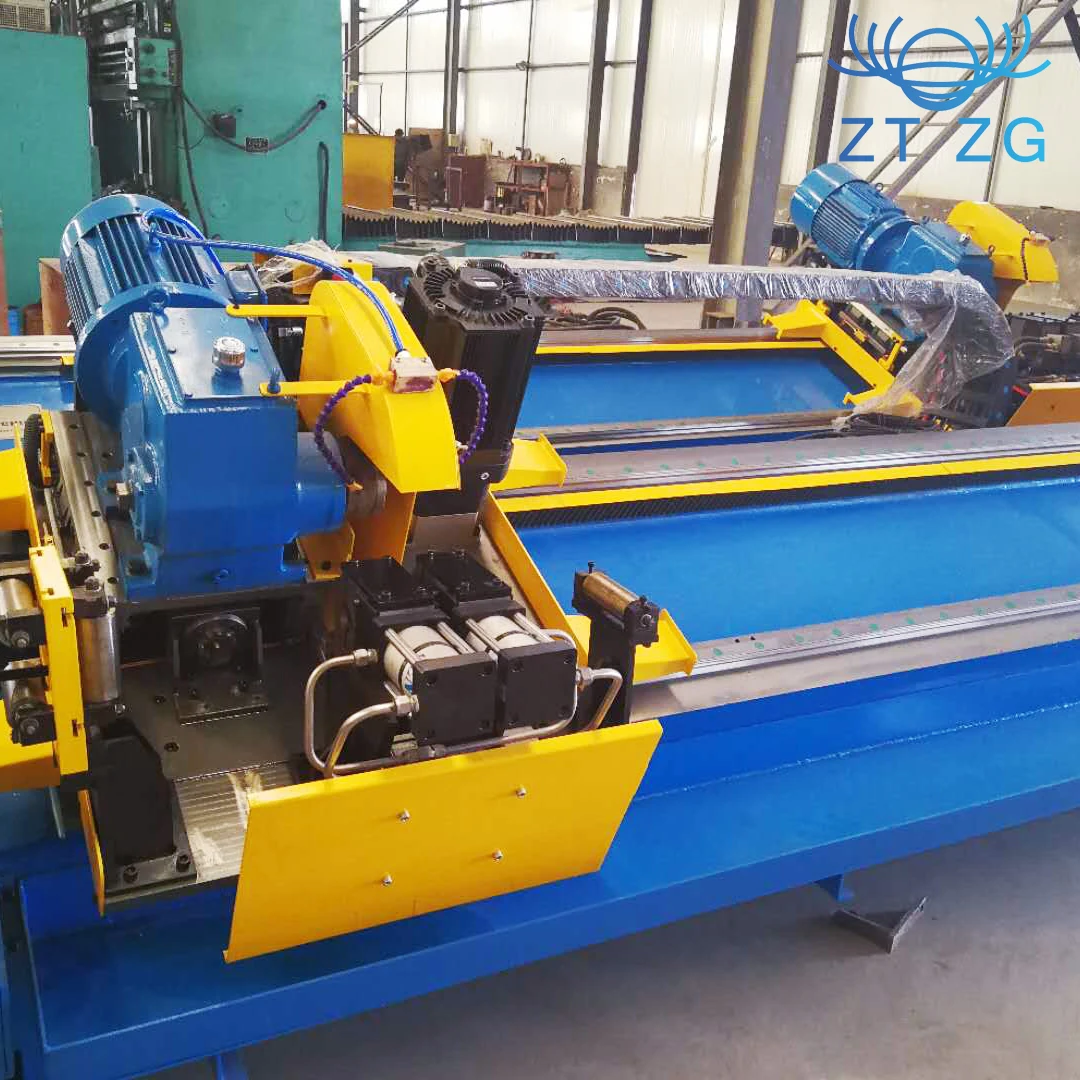

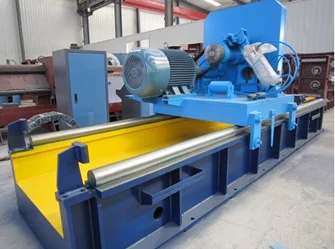

China Steel Galvanized Iron Welded Pipe High Speed Hydraulic/ Pneumatic Cutting Machine Computer Flying Saw
- Category: >>>
- Supplier: Shijiazhuang Zhongtai Pipe Technology Development Co. Ltd.
Share on (62521994618):
Product Overview
Description
Company Profile
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd. was established in 2000 locating in Shijiazhuang, the capital city of Hebei Province. ZTZG is mainly engaged in High Frequency Straight Welded Pipe Production Line, Multi-functional Pipe Production Line, Stainless Steel Pipe Production Line, Slitting Line, and other Auxiliary Equipment. We are a high-tech enterprise integrating design, production, manufacturing, technical consultation and trade. With more then 22 years of sales and R&D, We have made deals and formed stable partnership with many large scale enterprises. Our products are sold at home and abroad, and have an excellent reputation in the field of pipe mill production during the past decades.
ZTZG will sincerely provide you with a solution of: more durable, more efficient, more precise pipe making machinery!
Products Description
Hot Saw Parameter Configuration | ||||
Technical requirement | Steel pipe material: | Q195,Q235, or higher | ||
Round pipe: | Φ19-Φ720 | |||
Thickness: | 0.7-22.0mm | |||
Production speed: | Max. 80m/min | |||
Fixed length: | 6~12m + 3mm | |||
Basic mechanical parameters | Transmission motor: | Z4, 22KW | ||
Sawing motor: | 22-800KW | |||
Saw blade: | Hot/Cold cut blade | |||
Basic electrical parameters | EUROTHERM 590 DC governor | Carbon steel coil Q235B(ASTM GR·D,σs 230) | ||
ST-XF570 flying saw computer | 240mm-520mm Thickness: 2.0mm-6.0mm | |||
Delta color touch screen | ||||
Flexible control (avoid mechanical shock) | Max 1800mm | |||
Successful Cases
Recommend Products
Certifications
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
Model List | ||||||||
Model | Round pipe mm | Square pipe mm | Thickness mm | Working spead m/min | ||||
FS20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 | 180 | ||||
FS32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 | 180 | ||||
FS50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 | 180 | ||||
FS76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 | 180 | ||||
FS89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 | 180 | ||||
FS114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 | 120 | ||||
FS140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 | 120 | ||||
FS165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 | 120 | ||||
FS219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 | 90 | ||||
FS273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 | 90 | ||||
FS325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 | 90 | ||||
FS377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 | 90 | ||||
FS406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 | 90 | ||||
FS508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 | 70 | ||||
FS660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 | 70 | ||||
FS720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 | 70 | ||||
