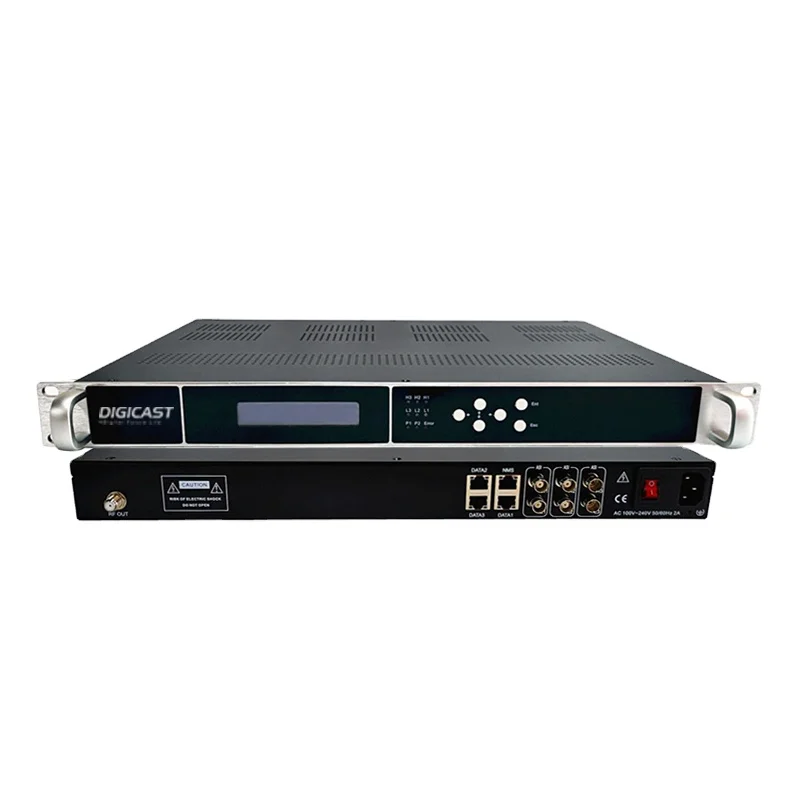

Multi Channels IPTV DVB C QAM Modulator with IP to RF DVB T Modulator for Hotel System
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (62522007131):
Product Overview
Description
Products Description
Overview
DMB-24E Series IP To RF Modulator is a simple all-in-one utility device gathering IP Transport Streams 128 *MPTS /SPTS UDP/IP input, 2*ASI input, then modulate IP and ASI into ISDB-T/DVB-T/ATSC/DVB-C Non-adjacent RF output. Max support 4 or 8 adjacent frequencies output from RF port in front panel.

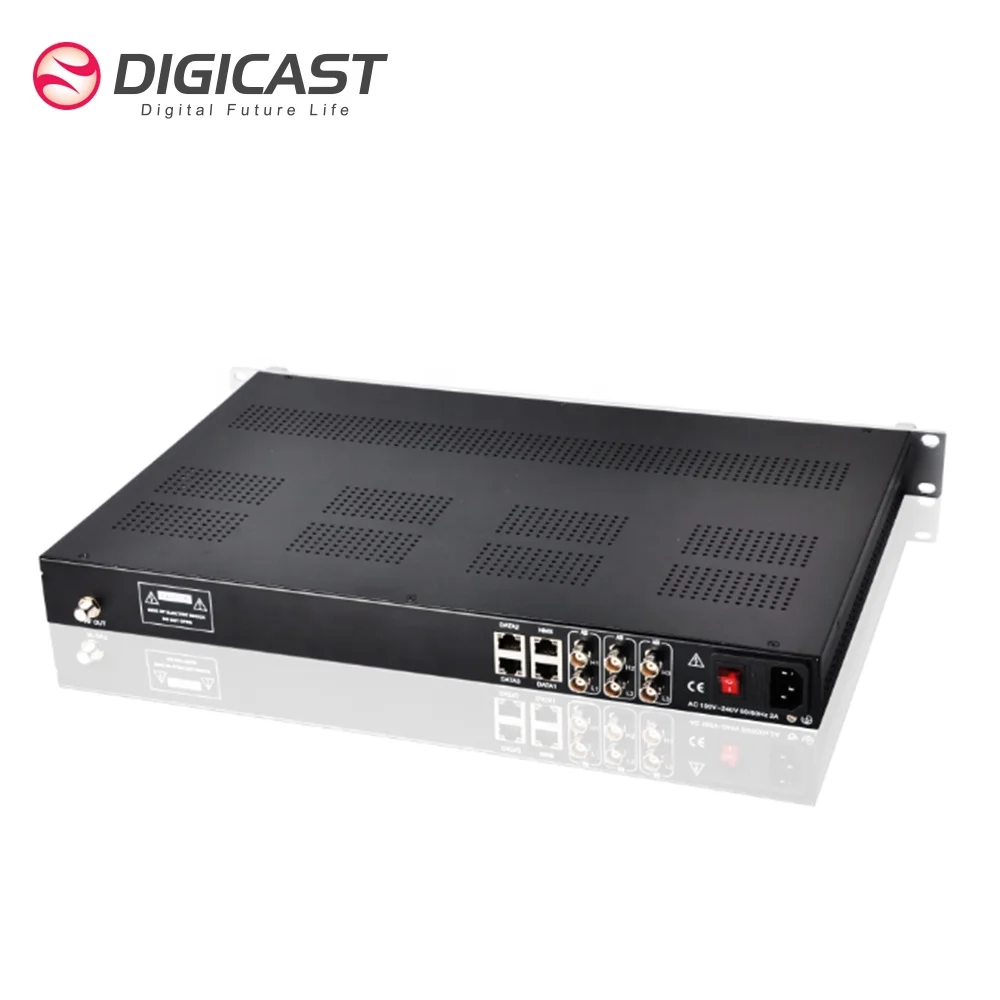

This product includes a 1RU chassis supporting one individual Ethernet DATA port inputs injecting up to 800 Mbps on Ethernet RJ45 connector,outputs all programming from a single RF F-Type connector for easy into your RF coax infrastructure.
DMB-24E be used for create your own IPTV Programs to RF headend, it is the perfect solution for any DTV Broadcasting Application.
This product includes a 1RU chassis supporting one individual Ethernet DATA port inputs injecting up to 800 Mbps on Ethernet RJ45 connector,outputs all programming from a single RF F-Type connector for easy into your RF coax infrastructure.
DMB-24E be used for create your own IPTV Programs to RF headend, it is the perfect solution for any DTV Broadcasting Application.
Features

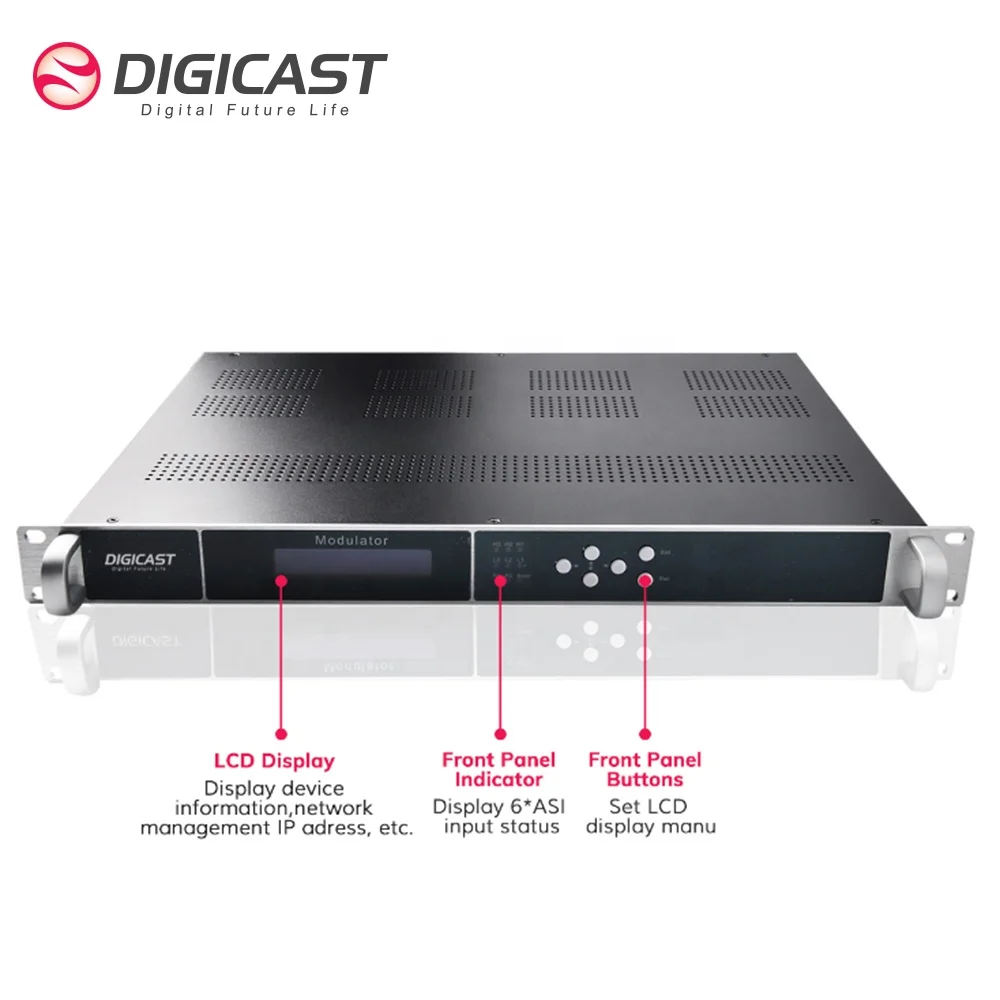

* Front panel with 2*ASI independent input, 2*ASI independent output+4/8*RF output (when ISDB-T output, there is only 1*ASI input and 1*ASI output in front panel )
* IP Modulator includes 1x Gigabit Ethernet input interfaces
* Maximum 128 IP MPTS/SPTS TS over UDP, RTP & Unicast / Multicast
* Output Of RF on 4/8 DVB-C/DVBT/ATSC/ISDB-T Carriers - Non-Adjacent
* Supports Unicast and Multicast, supports IGMP v2 / v3
* Supports up to 180 PIDs per channel with PID remapping (manual or auto)
* Web Management for easy online access and management
* Low cost solution for hotel TV system, quality MER
* MTBF(Mean Time Between Failure) ≥ 50000 Hours
* Highly compact, High-Integrate
* IP Modulator includes 1x Gigabit Ethernet input interfaces
* Maximum 128 IP MPTS/SPTS TS over UDP, RTP & Unicast / Multicast
* Output Of RF on 4/8 DVB-C/DVBT/ATSC/ISDB-T Carriers - Non-Adjacent
* Supports Unicast and Multicast, supports IGMP v2 / v3
* Supports up to 180 PIDs per channel with PID remapping (manual or auto)
* Web Management for easy online access and management
* Low cost solution for hotel TV system, quality MER
* MTBF(Mean Time Between Failure) ≥ 50000 Hours
* Highly compact, High-Integrate
Specification
SPECIFICATIONS | ||
ISDB-T MODULATION | * ISDB-T RF out: 4/8 *ISDB-T adjacent frequencies out * ISDB-T standard: ARIB STD-B31 * Frequency range: 96~864MHz,1Khz one step * Constellation: DQPSK, QPSK, 16QAM, 64QAM * Guard Interval: 1/32, 1/16, 1/8, 1/4 * Transmission Mode: 2K, 4K, 8K (when use 8K, only 4*ISDB-T output ) * Code rate: 1/2, 3/4, 5/6, 7/8 * BandWidth: 6Mhz * TS bit rate: ＜21 Mbit/s * MER: ≥40 dB * Total output level adjustment: RF output level: -20 ~ 0dbm, 0.1db step | |
DVB-T MODULATION | * Channel: 4/8*DVB-T adjacent frequencies * Modulation standard: EN300744 * Frequency range: 96~864MHz,1Khz one step * Bandwidth: 6M, 7M, 8M * FFT mode: 2K, 8K * Constellation QPSK, 16QAM, 64QAM * Guard Interval 1/4, 1/8, 1/16, 1/32 * FEC 1/2, 2/3, 3/4, 5/6, 7/8 * TS bit rate ＜ 31 Mbit/s * MER ≥ 40 dB * Total output level adjustment: RF output level: -20 ~ 0dbm, 0.1db step | |
ATSC-T MODULATION | * Channel: 8VSB*4/8 adjacent frequencies * Frequency range: 96~864MHz,1Khz one step * Constellation: 8VSB * TS bit rate ＜ 19 Mbit/s * MER ≥ 40 dB * Total output level adjustment: RF output level: -20 ~ 0dbm, 0.1db step | |
DVB-C MODULATION | * Channel: 4/8*DVB-C adjacent frequencies * Frequency range: 96~864MHz,1Khz one step * MER ≥ 40 dB * Symbol rate: 5~7Mbaud * Total output level adjustment: RF output level: -20 ~ 0dbm, 0.1db step * DVB-C Standard J83.A (DVB-C, J83.B, J83.C) | |
IP STREAM INPUT | * Support 128* IP streaming input SPTS/MPTS UDP RTP | |
MULTIPLEXING | * Maximum PID remapping 180 input per channel PID remapping by automatically or manually * Accurate PCR adjusting * PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert | |
GENERAL OPTIONS | ||
CONTROL AND MONITORING | * Configuration Interface: Web-based * Remote: upgrade via network * Connector: RJ45, 100M/1000M Ethernet interface | |
PHYSICAL AND POWER | * Voltage110~220V * Consumption: 18~20W * Operating temperature: 0~50°C * Dimensions: 483mm(W)*360mm(D)*44.5mm(H) * Weight: 5KG/pc | |

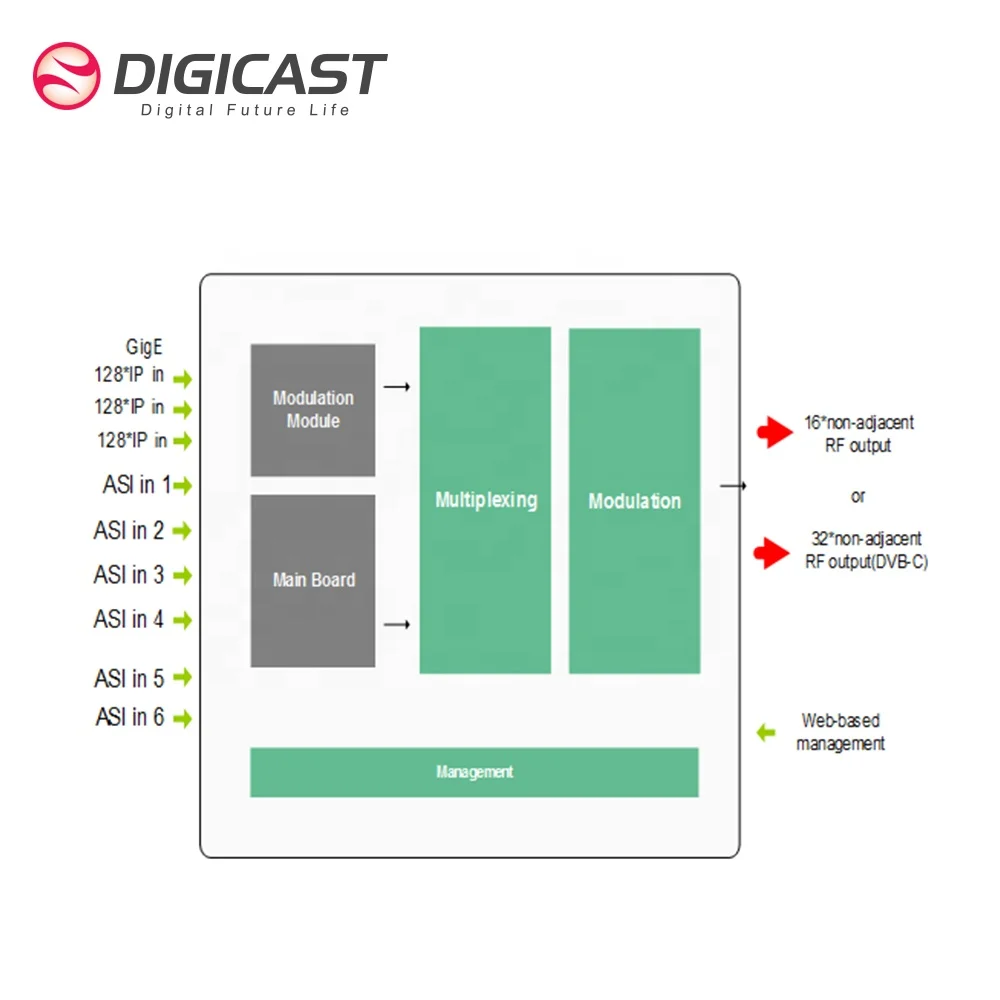

Application & Diagram
Insert More programs to existing coaxial system
DIGICAST as leader manufacturer of Digital TV headend equipment, provide different products to meet various project application
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
DMB-24E FTA Tuner to RF Remodulator
Input: FTA 24 tuners+2*ASI input +128*MPTS/SPTS UDP/IP input
Output: 4/8 RF output (DVB-C /ATSC /DVB-T/ISDB-T)+1*MPTS & 127* SPTS UDP/RTP IP Output+2*ASI
DMB-24E IP 16 or 32 RF Modulator
Input: 3 IP 1000M port,each port 128*MPTS/SPTS UDP/IP input+6*ASI Output : 16 or 8* DVB-T/ATSC/ISDB-T 32 or 16 DVB-C QAM out + 8*MPTS/SPTS out DMB-9580 MPEG2 SD RF Modulator
Input: 24*CVBS input +128*MPTS/SPTS+2*ASI input Output: 4 or 8 RF output +1*MPTS/127*SPTS out+2*ASI
DIGICAST Modulator series widely used as the headend equipment for FTTH system
Fiber Transmitter
Fiber store’s Optical transmitters are special optical transmitting equipment in HFC broadband transmitting network. The product which use direct optical intension, low RF-signal input level, excellent air proof and fast-heating capability, make it possiblework at any kind of bad environment. It can transmit analog TV signal, digital TV signal by optical fiber
EDFA
DIGICAST EDFA series with 8,16,32,64 ports option,20,21,22,23dbm,+WDM optionAs optical amplifier, EDFA is the most widely deployedone in the WDM system.
ONU (Optical Network Unit)
DIGICAST ONU series widely used in GPON EPON System
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
