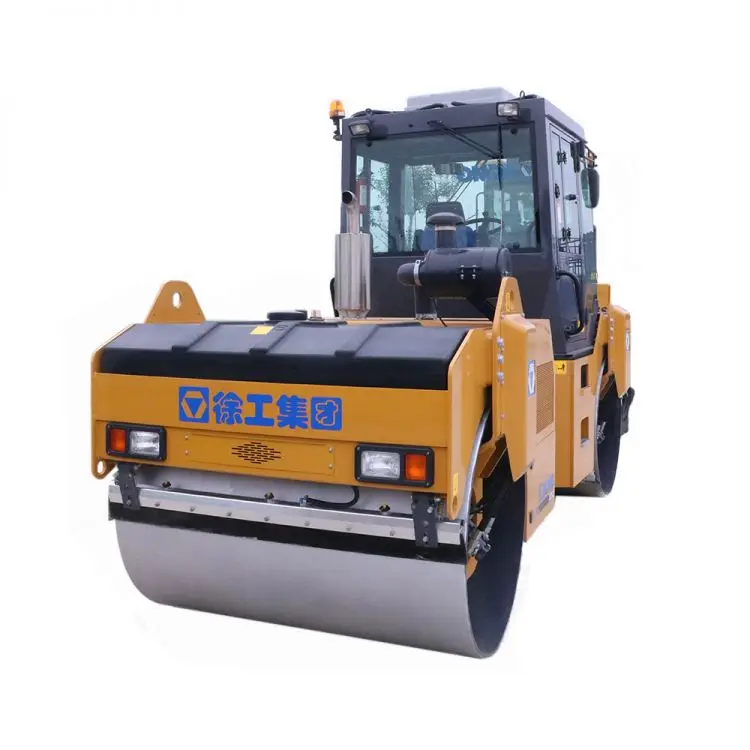

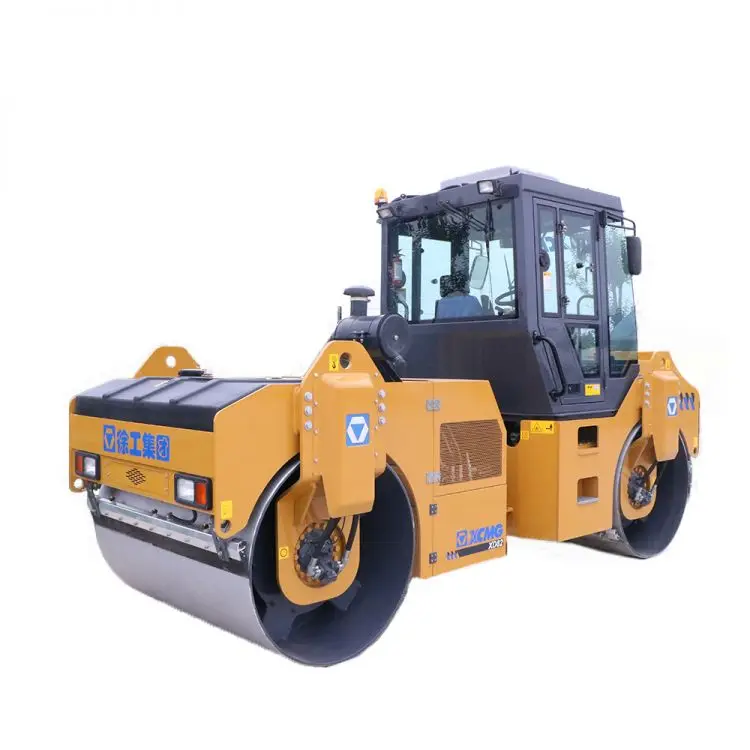

Vibrator Roller Types XD82 8 ton Double Drum Compactor for Sale

Product Overview

Description



Tandem Vibratory Road Roller  XD82E

Main parameters:

Operating weight :8 tons ,

Vibration frequency :45/48 Hz,

Drum width:1680 mm,



Detailed configuration

* Deutz BF4M2012 engine,

* Saul hydraulic system ,

* Sunshade,



Advantages

Nice sunshade ,comfortable adjustable chair ,

Equip headlamp at the top of the sunshade ,have good working performance even in the night.

Adopt top brand engine , pump ,vibratory bearing .Great working performance .



Optional parts

* Air conditioner driving cabin.

Performance Parameter	Unit	XCMG XD82E
Operating weight	kg	8000
Load on front drum	kg	4000
Load on rear wheels	kg	4000
Main.Working Parameter
Static linear load(F)	N/cm	233
Static linear load(R)	N/cm	233
Vibration frequency	Hz	48/45
Nominal amplitude	mm	0.35/0.7
Min.ground clearance	mm	310
Centrifugal force	kN	40/80
Driving
Speed range
Ⅰ	km/h	0-9.3
Ⅱ	km/h	-
Ⅲ	km/h	-
Wheel base	mm	3400
Drum width	mm	1680
Theoretical gradeability	%	30
Min.turning radius	mm	3830/5510
Engine
Brand		Deutz
Model		BF4M2012
Rated rotating speed	r/min	2400
