New Automatic Liquor / Red Wine / Alcohol / Glass Bottle Filling Line / Bottling Machine

Product Overview

Description

small bottle water bottling machine 0.5L/1L/drinking water filling plant

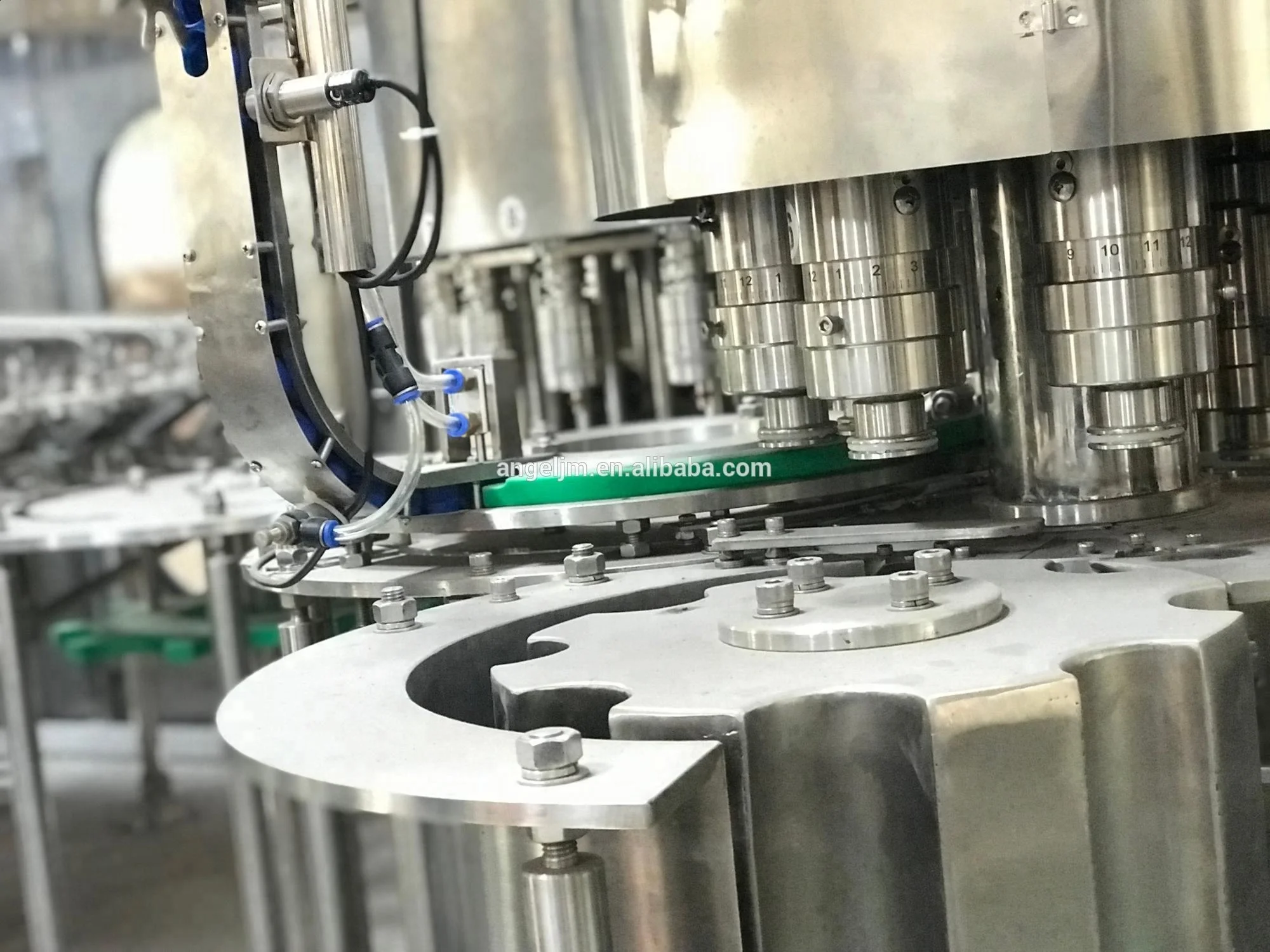

 Rinser Filler Capper 3 in 1 Machine (DGCF8-8-3)

The series equipment is used in production of PET bottle-packing carbonated beverage such as aerated water, sprite, coca-cola, gas containing with the capacity from 1,000-2500B/H)



juice beverage filling mchine	carbonated beverage production line	juice beverage production system
three bucket type CO2 and beverage Mixer machine	Syrup Cooling Machine	syrup filter



Main Feature

1. This machine has a compact structure, perfect control system, easy to operate and
2. automatic degree.
3. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
7. Equipped with perfect clean management system to ensure the bottle clean.
8. Only by changing the star-wheel, can realize to fill the changed bottle shape.
9. The machine adopts perfect overload protective device can ensure the operator and machine safe.
10. This machine adopts adjustable frequency converter.
11. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
12. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
13. The electric components and pneumatic components are all introduced from world famous brand products.

small bottle water bottling machine 0.5L/1L/drinking water filling plant

Instantaneous ultra high temperature sterilization	mixing tank	Co2 purifier



small bottle water bottling machine 0.5L/1L/drinking water filling plant

 Technical parameter

 Model: DCGF8-8-3

Production capacity: 1000-2500b/h

Filling precision: ≤±5mm (liquid level)

Filling pressure: <0.4Mpa

Polyester bottle specification: bottle diameter: φ50-φ100mm

gas source pressure: 0.4Mpa

gas consumption: 0.5m³/min

total power: 8.07kw

overall dimension:3010x2180x2400mm



carbonated beverage capacity: 6000-9000b/h	CIP Rinse Machine On The Spot	filling part



Jiangmen Tings drinking water equipment co.,ltd all staff warmly welcome new  or old customers come for consultation, we will be making detailed project plan, to realize low cost, high efficiency and scientific process combination. In order to  make filling machinery achieved your ideal requirements.(   small bottle water bottling machine 0.5L/1L/drinking water filling plant )



Welcome to visit our factory.

Any inquiry please feel free to contact me directly.
