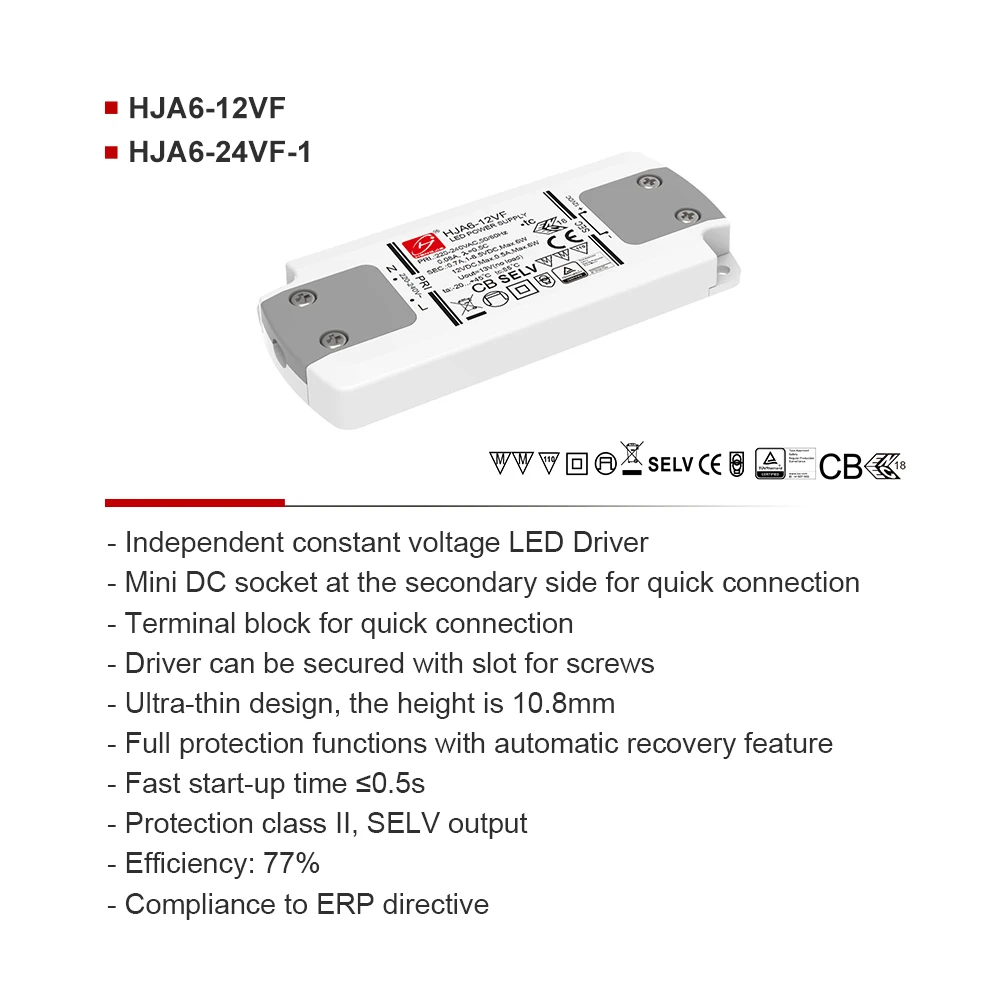

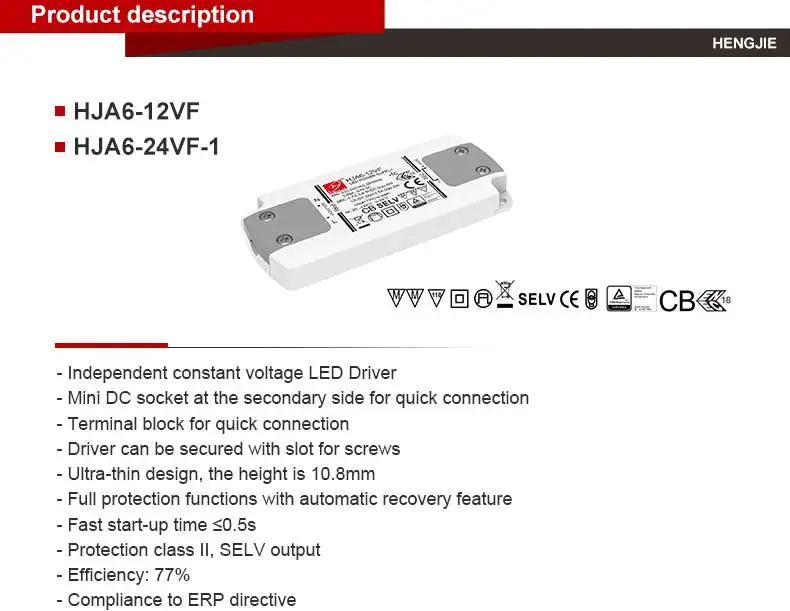

Constant Voltage independent driver for LED lamp super thin size

Product Overview

Description





Input	Rated supply voltage(Vac)	220-240	220-240
	Voltage range(Vac)	198-264	198-264
	Line frequency(Hz)	50/60	50/60
	Input current(mA)	80	80
	Efficiency with full load	70%	77%
	Power factor(at 230V,50Hz,full load)	0.50C	0.50C
	No load power consumption(W)	<0.5	<0.5
	Inrush current(peak/duration)	16A 75us	19A 82us
Output	Turn on time(S)	<0.5	<0.5
	Output power(W)	6	6
	Output voltage(V)	12	24
	Output voltage tolerance	±5%	±5%
	Ripple voltage(mV)	500	500
	Output current range(A)	0-0.5	0-0.25
	Output current (mA)	700	350
	Output current tolerance	±8%	±8%
	Ripple current(mA)	60	20
	Output voltage range(V)	1-8.5	1-17
	Max. output voltage(V)	13	25
	Isolation output to input	SELV	SELV
	Dimming interface	N/A	N/A
	Dimming range	N/A	N/A
Protection	Overload protection	Y	Y
	Over-temperature protection	Y	Y
	Short circuit protection	Y	Y
	Open circuit protection	Y	Y
	Automatic restart after restore	Y	Y
Ambient and life	Ambient temperature in normal working Ta(℃)	-20…+45	-20…+45
	Max. casing temperature Tc(℃)	85	85
	Nominal life-time(hrs)	50'000@TC=80℃	50'000@TC=80℃
	Failure rate	0.1%/1000h	0.1%/1000h
	Guarantee(Years)	5	5
	Storage Temperature(℃)	-30…+80℃
	Ambient humidity range	5%...85%RH, Not condensing
Others	Weight(gram)	40
	Housing material	PC
	Housing color	White
	Waterproof rating	IP20
