China supplier CE approval 380v 37kw ac soft starter(XPD037B 3)
- Category: >>>
- Supplier: Wuxi Xipuda Electronic Technology Co. Ltd.
Share on (62522350040):
Product Overview
Description
China supplier CE approval 380v 37kw ac soft starter(XPD037B-3)
Product Description
XPD series of digital AC motor soft starter is the use of power electronics technology, micro-processing technology and modern control theory design and production.
The product can effectively limit the starting current when the asynchronous motor starts.
Widely used in fans, pumps, transport class and the compressor and other load-type machinery.
Product Details
Installation and Dimensions:
| Model | Motor power (KW) | Rated Current (A) | Dimension (mm) | Mounting Dimension (mm) | Copper size | Weight (kg) | Installation | |||||||||
| W1 | H1 | D | W2 | H2 | D1 | D2 | d | W3 | W4 | D4 | d1 | |||||
| XPD008B-3 | 7.5 | 15 | 176 | 268 | 176 | 130 | 246 | 115 | 85 | φ6 | 57 | 20 | 2 | φ9 | 5.5 | Wall hanging |
| XPD015B-3 | 15 | 30 | 176 | 268 | 176 | 130 | 246 | 115 | 85 | φ6 | 57 | 20 | 2 | φ9 | 5.5 | |
| XPD022B-3 | 22 | 45 | 176 | 268 | 176 | 130 | 246 | 115 | 85 | φ6 | 57 | 20 | 2 | φ9 | 6 | |
| XPD030B-3 | 30 | 60 | 176 | 268 | 176 | 130 | 246 | 115 | 85 | φ6 | 57 | 20 | 2 | φ9 | 6 | |
| XPD037B-3 | 37 | 75 | 206 | 285 | 182 | 146 | 261 | 108 | 75 | φ6 | 63 | 20 | 2 | φ9 | 7 | |
| XPD045B-3 | 45 | 90 | 206 | 285 | 182 | 146 | 261 | 108 | 75 | φ6 | 63 | 20 | 2 | φ9 | 7 | |
| XPD055B-3 | 55 | 110 | 206 | 285 | 182 | 146 | 261 | 108 | 75 | φ6 | 63 | 20 | 2 | φ9 | 8.5 | |
| XPD075B-3 | 75 | 150 | 206 | 285 | 182 | 146 | 261 | 108 | 75 | φ6 | 63 | 20 | 2 | φ9 | 8.5 | |
| XPD090B-3 | 90 | 180 | 260 | 463 | 213 | 231 | 429 | 140 | 55 | φ9 | 78 | 30 | 5 | φ11 | 22 | |
| XPD110B-3 | 110 | 220 | 260 | 463 | 213 | 231 | 429 | 140 | 55 | φ9 | 78 | 30 | 5 | φ11 | 22 | |
| XPD132B-3 | 132 | 260 | 260 | 463 | 213 | 231 | 429 | 140 | 55 | φ9 | 78 | 30 | 5 | φ11 | 22 | |
| XPD160B-3 | 160 | 320 | 260 | 463 | 213 | 231 | 429 | 140 | 55 | φ9 | 78 | 30 | 5 | φ11 | 22 | |
| XPD187B-3 | 187 | 365 | 300 | 490 | 242 | 270 | 457 | 165 | 55 | φ9 | 91 | 40 | 5 | φ11 | 35 | |
| XPD200B-3 | 200 | 400 | 300 | 490 | 242 | 270 | 457 | 165 | 55 | φ9 | 91 | 40 | 5 | φ11 | 35 | |
| XPD250B-3 | 250 | 480 | 300 | 490 | 242 | 270 | 457 | 165 | 55 | φ9 | 91 | 40 | 5 | φ11 | 35 | |
| XPD280B-3 | 280 | 550 | 300 | 490 | 242 | 270 | 457 | 165 | 55 | φ9 | 91 | 40 | 5 | φ11 | 35 | |
| XPD320B-3 | 320 | 620 | 300 | 490 | 242 | 270 | 457 | 165 | 55 | φ9 | 91 | 40 | 5 | φ11 | 35 | |
| XPD400B-3 | 400 | 720 | 472 | 530 | 306 | 400 | 486 | 232 | 105 | φ11 | 150 | 50 | 6 | φ11 | 45 | |
| XPD450B-3 | 450 | 850 | 472 | 530 | 306 | 400 | 486 | 232 | 105 | φ11 | 150 | 50 | 6 | φ11 | 45 | |
| XPD500B-3 | 500 | 1000 | 472 | 530 | 306 | 400 | 486 | 232 | 105 | φ11 | 150 | 50 | 6 | φ11 | 45 | |
Typical application wiring diagram:
A drag two control schematic:

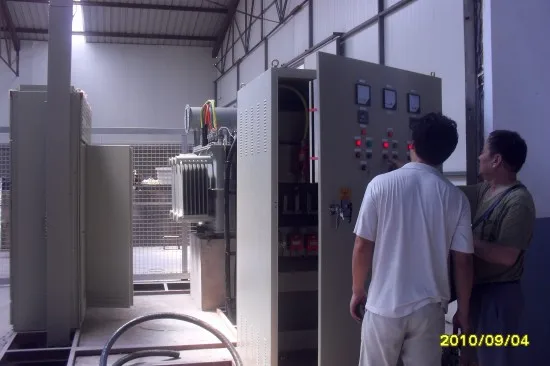

Application
Packaging & Shipping

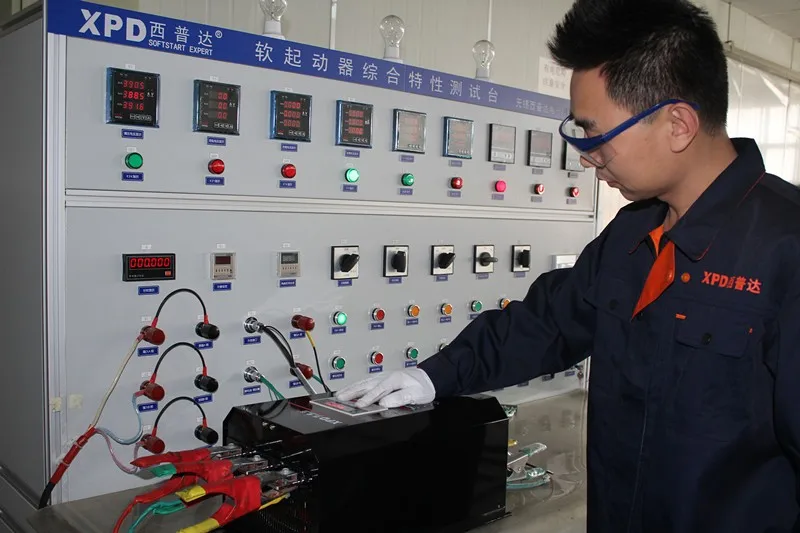

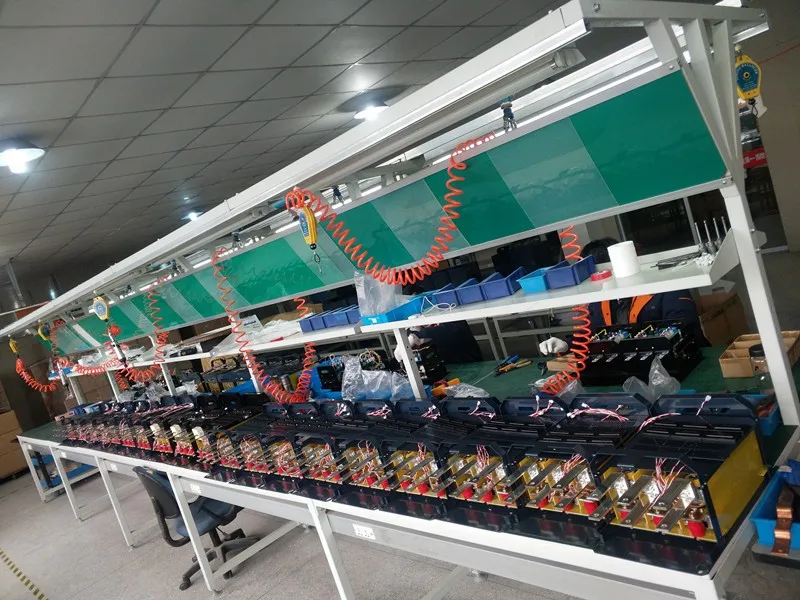

Our Factory
FAQ
Q1: OEM or customer's logo printed is available?
Yes, OEM or customer's logo are welcome.
Q2: Delivery date?
Usually 3-7 days after receiving deposit; specific delivery based on order quantity.
Q3: What's your payment terms?
30% deposit and 70% balance or 100% by T/T, L/C, Western Union.
Q4: If we do not have shipping forwarder in China, would you do this for us?
We can offer you the best shipping line to ensure you can get the goods timely at best price.
Q5: Can you send me a sample?
Yes, we can send you the sample for checking our quality, but you need to pay sample fee which is lower than original price.
