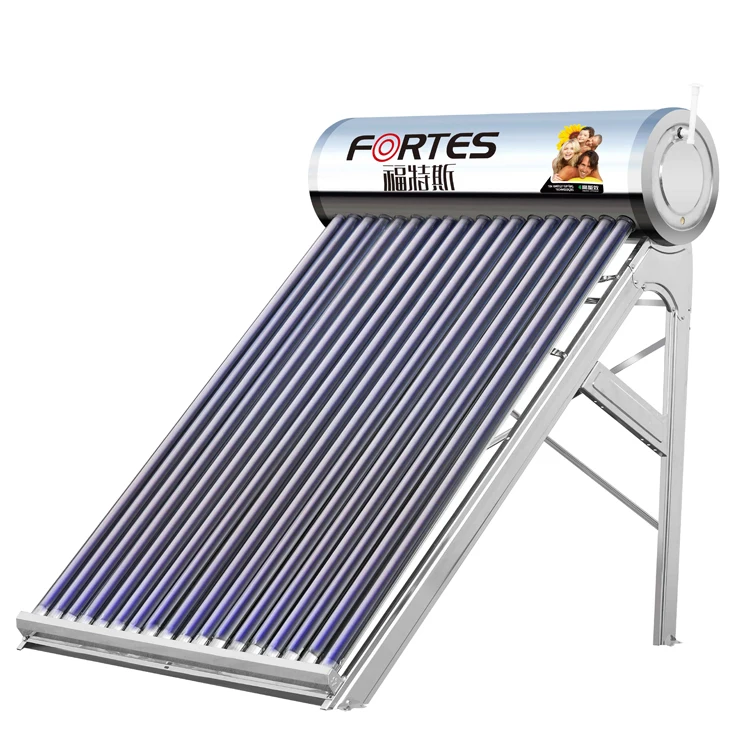

Hot Water Vacuum Tube Solar Water Heater for home or commercial
Hot Water Vacuum Tube Solar Water Heater for home or commercial
Hot Water Vacuum Tube Solar Water Heater for home or commercial
Hot Water Vacuum Tube Solar Water Heater for home or commercial
Hot Water Vacuum Tube Solar Water Heater for home or commercial

Hot Water Vacuum Tube Solar Water Heater for home or commercial

Share on:


Price:$120.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Features:
1. Cheap and reliable solution, Simple structures, Easy installation.
2. High efficiency of heating,water heated by sun light directly.
3. Withstands water pressure no more than 0.1MPa.
4. Operated without any power supplying.
5. Electric heater can be used as back-up in rainy days.
6. Hot water can be used directly, or can be used as a pre-heated.
7. Water flow in the vacuum tubes and is operated when confined.
8. Tank is equiped with electric water heater setting,automatic temperature controller(optional ).
9. the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.


Remark:
1.Solar hot storage tank diameter(mm): 460mm,470mm,480mm
2.Thickness, insulated(mm): 50/55/60
3.Vent connection(inch):1/2'' or 3/4''
4.Electric heater connection(mm): 47,1/2", 3/4"or 1"
5.Water connection(inch): 1/2'' or 3/4''
6.Collector angle(degree): 20-45 degree


Types
SP (Integrated Low Voltage System)
Outer box material
White steel or food-grade SUS304 2B stainless steel plate
Outer tank diameter
460mm
Liner material
Food grade SUS304 2B stainless steel plate or 316L stainless steel
Liner diameter
360mm
Pipe
High-quality borosilicate glass
Vacuum tube size (mm)
58/1800 (diameter / length)
Tube number
9/10/12/15/18/20/24/30/32/36/40
Frame (Tripod)
Galvanized sheet, stainless steel or aluminum alloy
Insulation
High-quality polyurethane foam made by advanced high-pressure foaming machine
Insulation thickness
50mm, (outer box 460mm), 55mm (outer box 470mm), 60mm (outer box 500mm)
Hail resistance
25 mm
Working pressure
0.05 MPa
Qualified
CE, CCC, solar signs EN12976, SABS


High version : 2.1 Meter
Water tank diameter: 50 cm
Inside and outside: 304
Stand: 12 cm 201
2.1 meter collector tube


Specification


number
Number of tubes
East-west footprint(L)
North-South footprint(W)
Height(H)
Net capacity(L)
total capacity(L)
Water tank weight(kg)
Stand weight(kg)
Collector weight(kg)
1
16
123
175
146
140
156
15.3
15.7
2.2
2
18
138
175
146
157
175
17.2
16
2.2
3
20
153
175
146
174
194
18.5
16.4
2.2
4
24
183
175
146
208
232
21.5
22.8
2.2
5
30
228
175
146
259
289
25.7
23.5
2.2
6
36
273
175
146
310
346
32.2
27.7
2.2
7
42
318
175
146
361
403
37.5
28.3
2.2
8
48
363
175
146
412
460
42.2
34.4
2.2
9
55
415.5
175
146
472
527
48.2
34.7
2.2


















FAQ


RAQ
1- What is your Delivery Time?
   LCL order/Sample order:  3--7days.
   Full container order:10-15days.
2- What is your Guarantee Time?
  3 years.
3- Can you accept OEM ?
  YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
  We accept T/T,L/C,West Union
5-What is your MOQ?
  1 set
6-What is your Packing?
  LCL order/Sample order in wooden box Package
  Full container order in Standard quality export carton with PE Foam Protection
7-What is your FOB Port?
  We accept FOB Shanghai & Ningbo
8.-What is your Monthly Production Capacity?
  1000 sets
9-What is your Shipping Term?
  By Sea/Air/Rail
