PXB200 max 220 liter double L ring 200L drum special blow molding machine

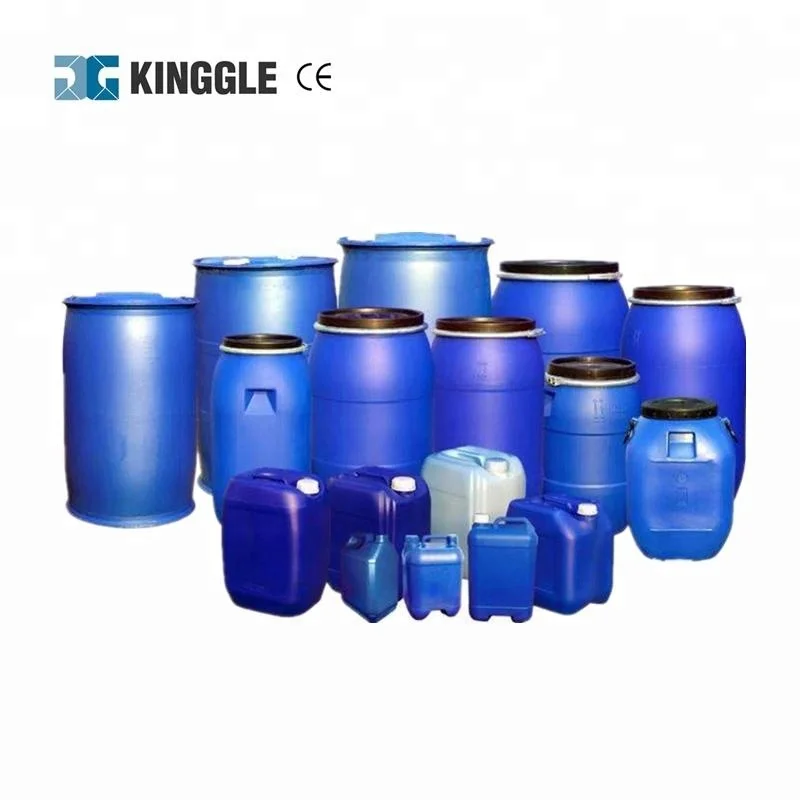

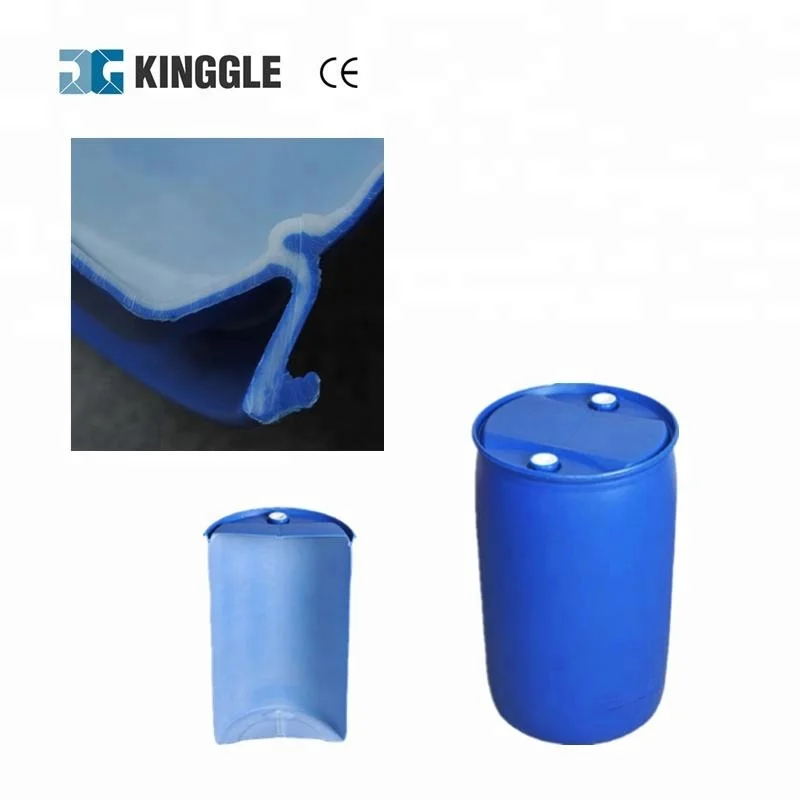

This model PXB200L/PXB200LP is fixed open-closing and accumulator die head series which adopts oblique arm double drawbar synchronous clamping mechanism, large space for mold, clamping stable, mold platen durable, mold clamping by oil cylinder pressure directly. The accumulator die head is double layer and double bestrow with patented technology. The extruder unit adopts high efficiency mixing screw mechanism for HMWHDPE with patented technology. This machine can produce max 230L containers and special for large size chemical packing drums, such as 220L double "L" ring drums, single "L" ring drums. Technical characteristics: It has passed international  dangerous goods chemical packaging SGS certification.

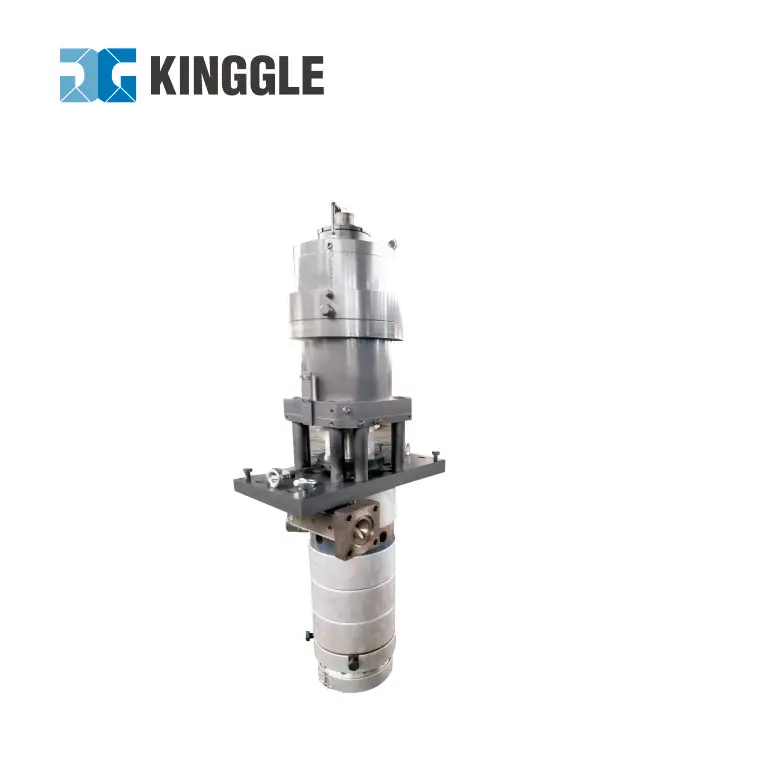

Die head: verticality first-in first-out system;

Extruder unit: adopt automatic temperature control unit of import,the screw united by hard tooth surface gear box and frequency motorto achieve stepless speed regulation;

Clamping device: the clamping device of double draw bar is a type of hydraumatic and fixed , draw bar of new type through template,this type is accommodate large size of mould,smooth action,high stability,clamping mould force is uniformly,template is not distortional;

Hydraulic system: whole system adopt imported components,proportional pressure,flow,pressure feedback,system response is faster,action is more smoothly,lowest power loss,and the output of torque is big.

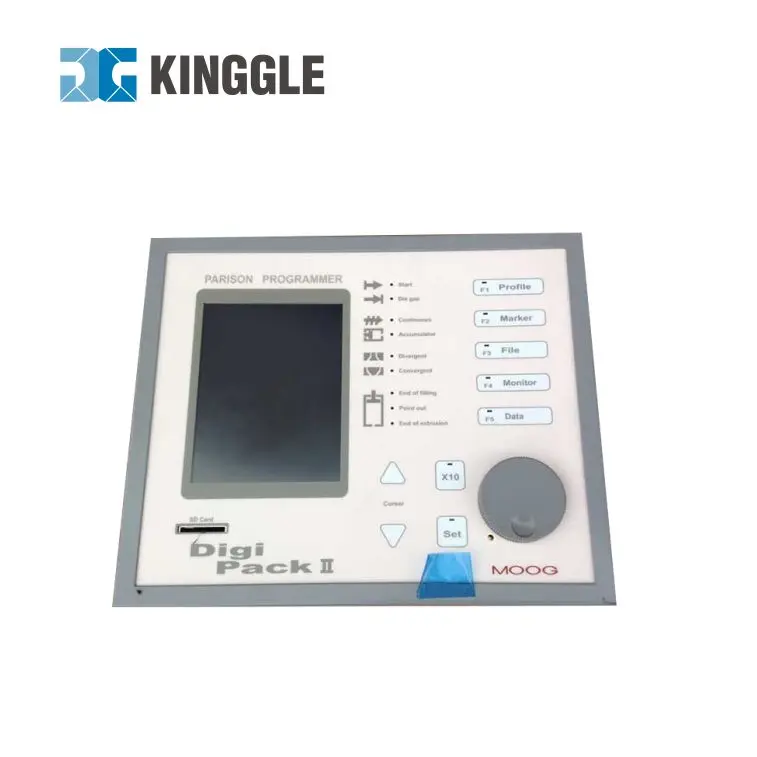

Electric controlling system: it adopts Japan programmable controller,touch screen,the characteristic of it has direct manipulation and large information on board.

The warranty period for Kinggle machine is one year with a life long maintenance.

 If the user requires special quality guarantee, other stipulated warranty period may be made after

 mutual agreement.
