Mechanical vacuum lifter used track and field equipment egonomic lift systems

Product Overview

Description

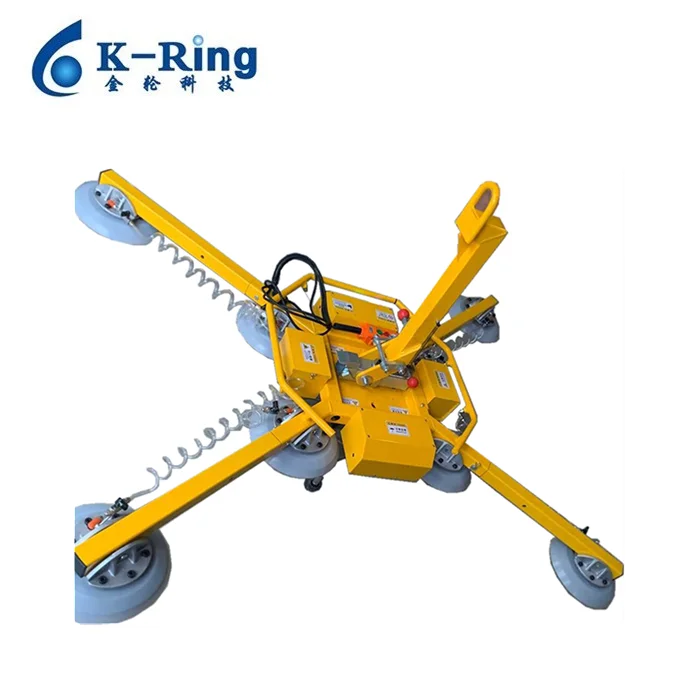

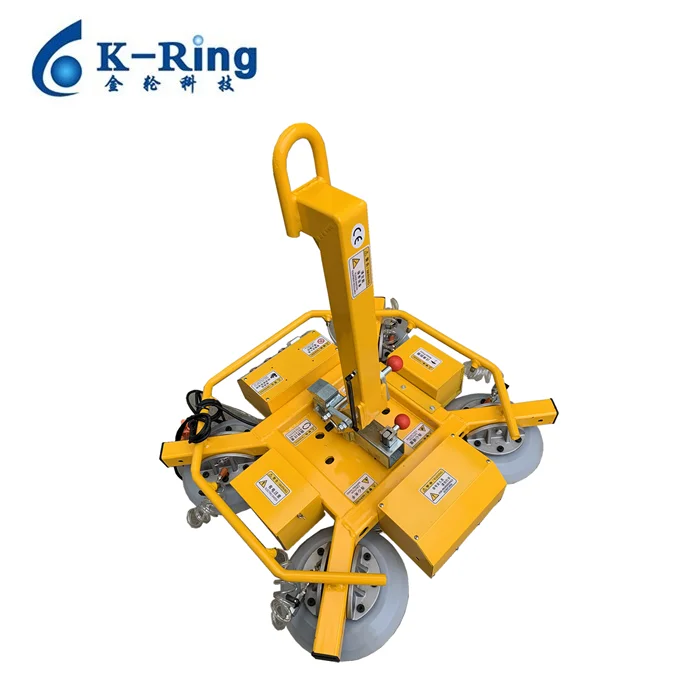

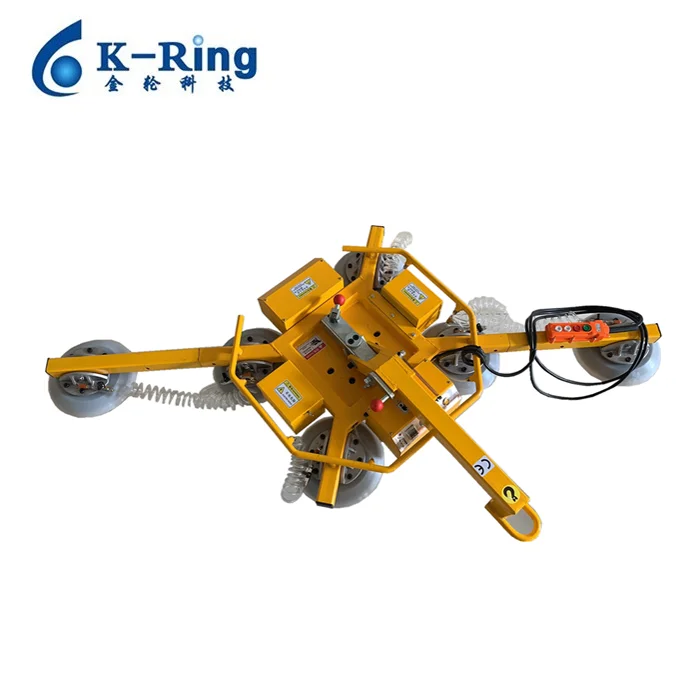

 Mechanical vacuum lifter used track and field equipment egonomic lift systems



This type is Electric suction, manual rotation 360 degrees, manual turning 90 degrees, suitable for all types of glass plate installation, easy to operate and carry.







Features:

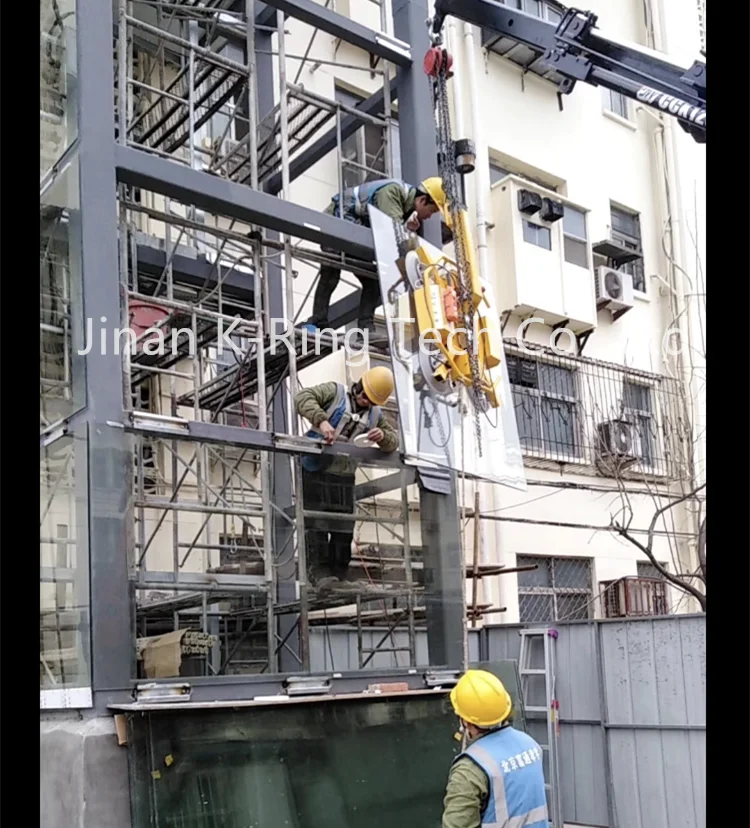

1. Totally enclosed shell design, safe and reliable. It is widely used in glass deep processing, transportation and installation of glass curtain wall, usually used with crane or crane



2. Adjustable design, can be assembled in various ways according to the needs, and change the position of suction cup to absorb different shapes and sizes of glass (extension bar can be customized according to the size of glass)



3. The vertical plane is rotated 360 ° manually, the horizontal plane is turned 90 ° manually, and the electric suction and exhaust are carried out



4. Thomas DC vacuum pump and maintenance free battery are used, and no additional air source or power supply is needed during use



5. Panasonic digital display vacuum pressure switch and battery meter can clearly monitor the safe operation of the equipment



6. The equipment is equipped with a vacuum pressure supplement system, which can ensure that the whole vacuum system maintains a relatively constant safety pressure value during the glass handling process



7. Equipped with power-off pressure maintaining and alarm device, the pressure maintaining function can extend the emergency treatment time and make the use more safe after an unexpected power-off



8. It is equipped with 12V backup battery. In case of no power supply during operation, it can be replaced in time to ensure the progress of the project





Specifications:

Vacuum lifter model:	KR400D	KR600D		KR800D
Lifting Capacity:	400kgs	600kgs		800kgs
Suction cup size:	Φ300mm	Φ300mm		Φ300mm
Unit suction cup bearing:	100kgs	100kgs		100kgs
Rotation function:	360 degree manual rotate
Overturn function:	90 degree manual overturn
Voltage:	DC12V
Charger:	AC220V/110V
Dead-weight:	70kgs		90kgs		100kgs
Vacuum lifter size:	850x750x300mm		1800x900x300mm		1760x1460x300mm
Extension bar:	500mm
Control system:	Integrated control cabinet design with wired remote control
Glass weight= Length x Width x Thickness x2.5/1000000
