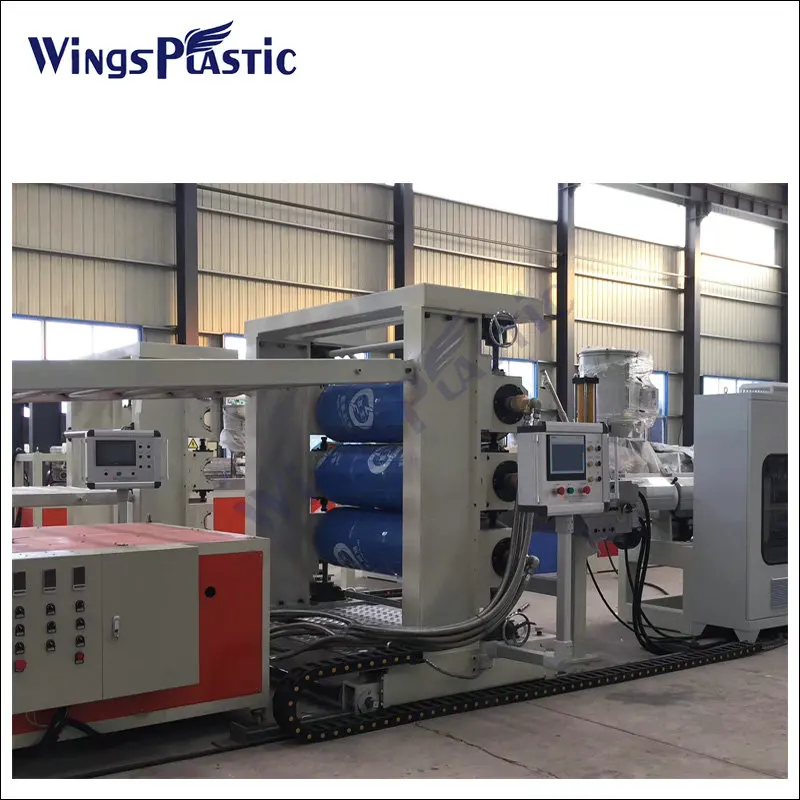

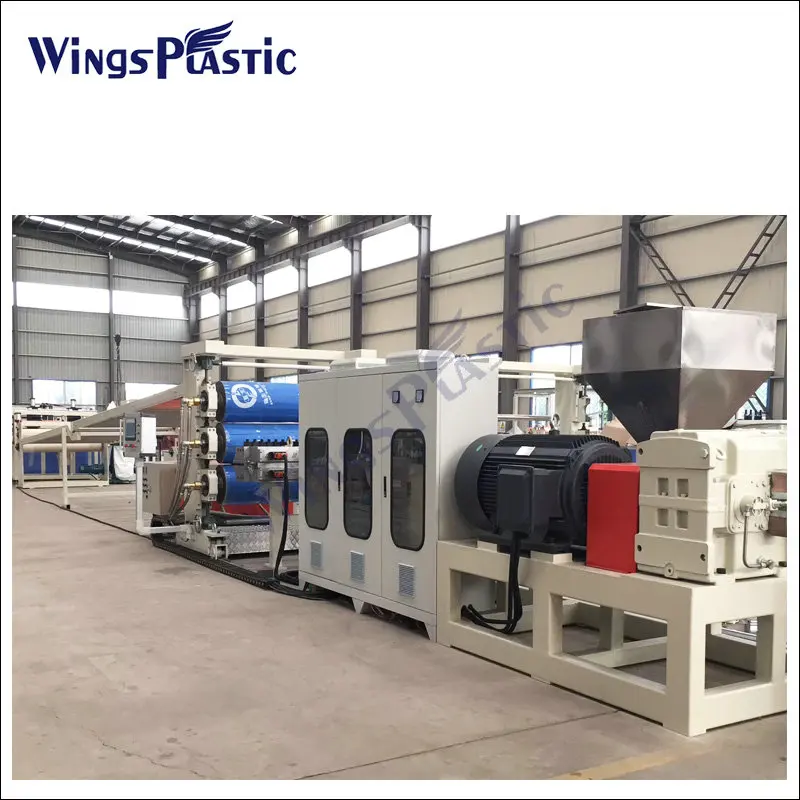

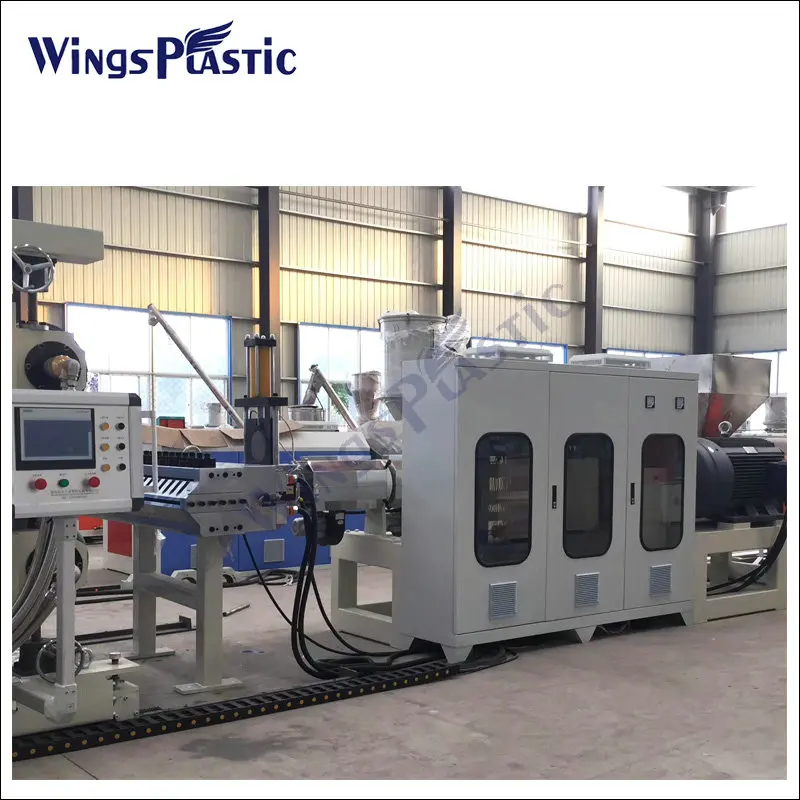

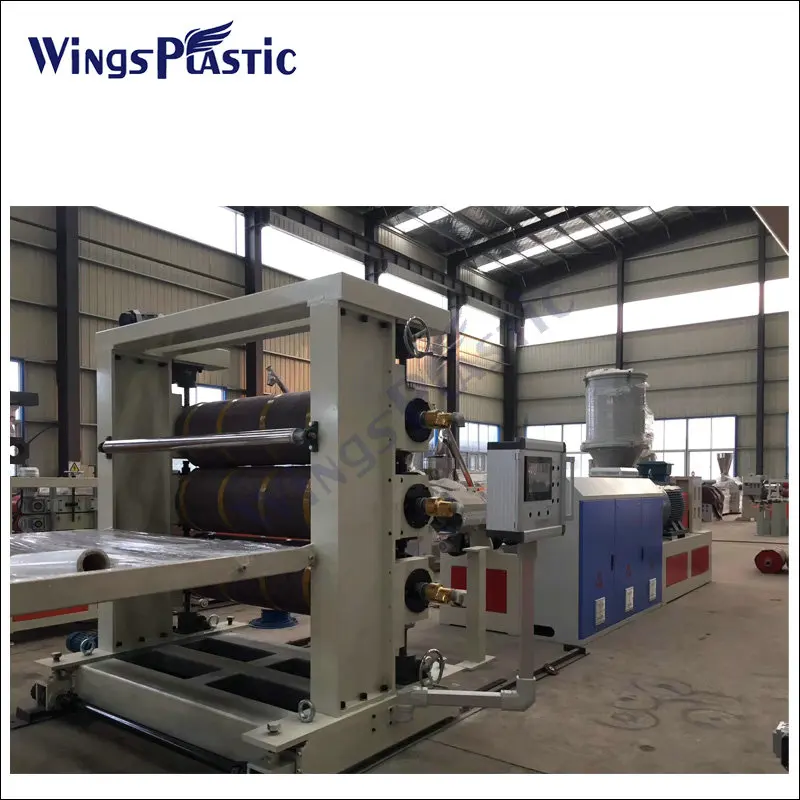

PMMA Acrylic Sheet Board Making Machine Production Line Extrusion Line System

Share on (62522587322):


Price:$100,000.00

Quantity:


Product Overview

Description



Product Description


PMMA Acrylic Sheet Board Making Machine Production Line Extrusion Line System
The light guide plate is an optical material. The main material used is PMMA (acrylic or Plexiglas). Design principles is from the laptop LCD screen, which is a high-tech products transforming the line light source into the surface light source. Optical-grade acrylic as base material using the backlight technology of the LCD display screen, through the light with high light transmission rate, calculated by the computer-guided light, make the light guide plate molding through refraction the surface light uniform.
Guide plate-features:
The guide plate can be arbitrarily cut into the required size, be mosaics, simple process, and convenient manufacture; high
conversion rate (30% higher than the traditional plate), uniform light, indoor life is more than 8 years long, safety and
environmental protection, durable and reliable, and is suitable for the outdoor area; Can be made into special shapes, like round,oval, circle, triangle and so on; Under the same brightness, thinner plate can be uses to save the cost; you can use any light source, point, line light source as the surface light into conversion; Light sources include LEDCCFL (cold cathode fluorescent lamp), fluorescent tubes and so on.



Name
WS-90/900
WS-120/900
WS-12065/900
WS-13065/1200
WS-15090/1500
Sheet Max Width
900mm
900
900
1200
1500mm
Sheet Thcikness
0.1-1mm
0.18-2mm
0.18-2mm
0.18-2mm
0.18-2mm
Capacity
200-250kg/h
350-400kg/h
550-600kg/h
600-700kg/h
800-1000kg/h


Extruder
It is could be single screw extruder or twin screw extruder according materials.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system

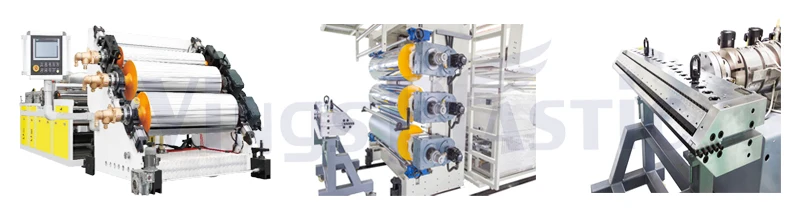

Extrusion Die
Material :P20 , the surface of die is chromeplated, anti-corrosive

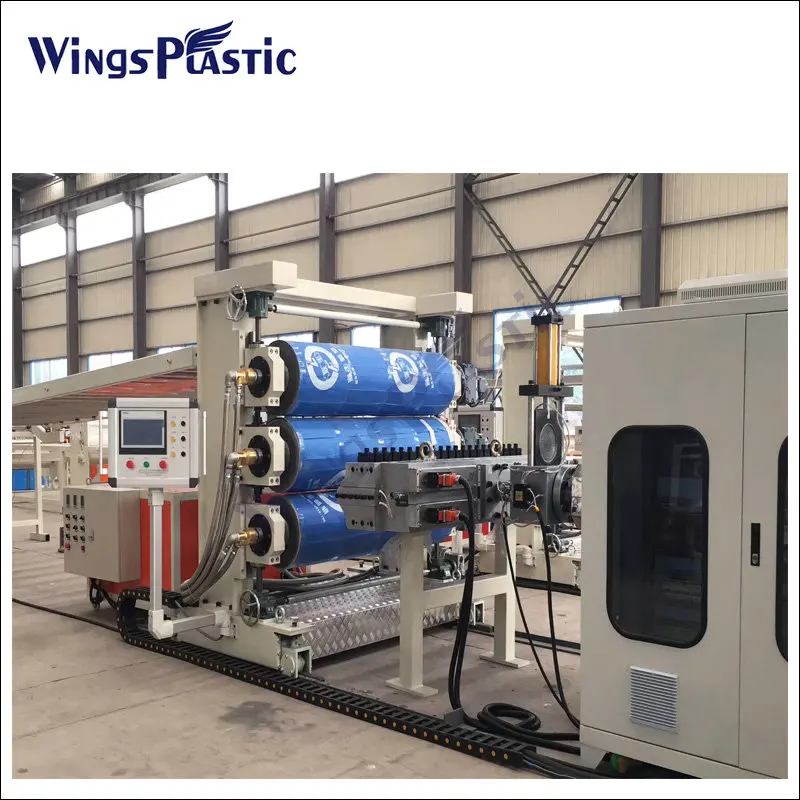

Calendar
It is adopted 400-600mm diameters calending rollers, temperature is controlled by oil system.

Calender Driver
The calendar roller driver adopted high quality motor and famous brand reducer.
The motor could be servo motor.


Automatic cutter
Cutting way: saw cutting with automatic metering
Control Box
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control.
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability


Company Introduction




Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA EVA PMMA PC PS Sheet Extrusion Machine. Equipment operation is stable, automatic production, saving labor, efficient extrusion
