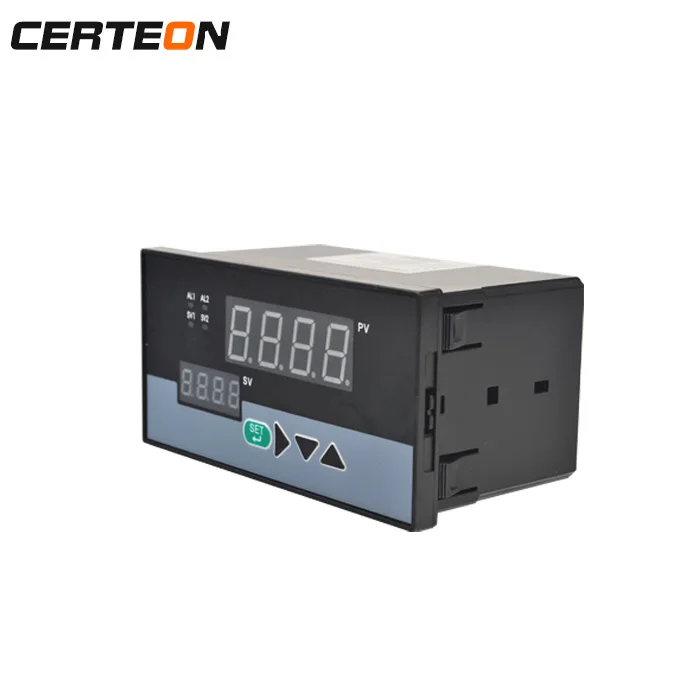

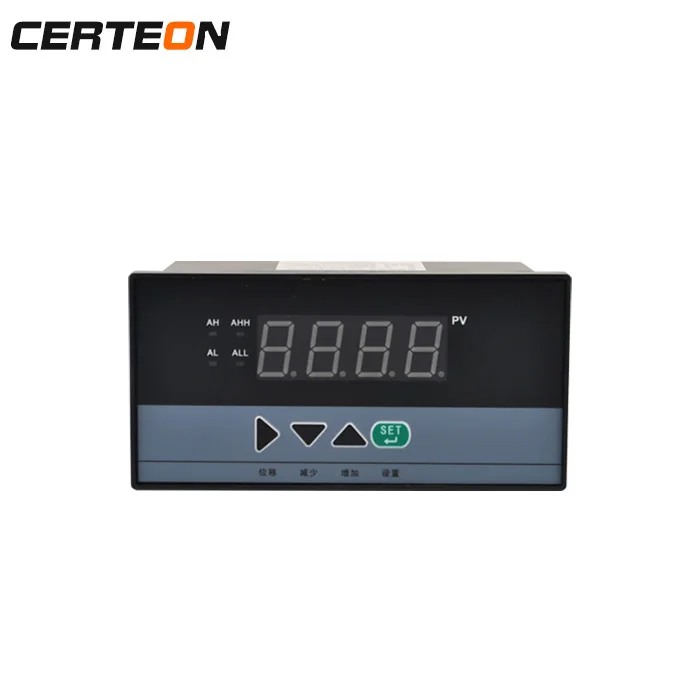

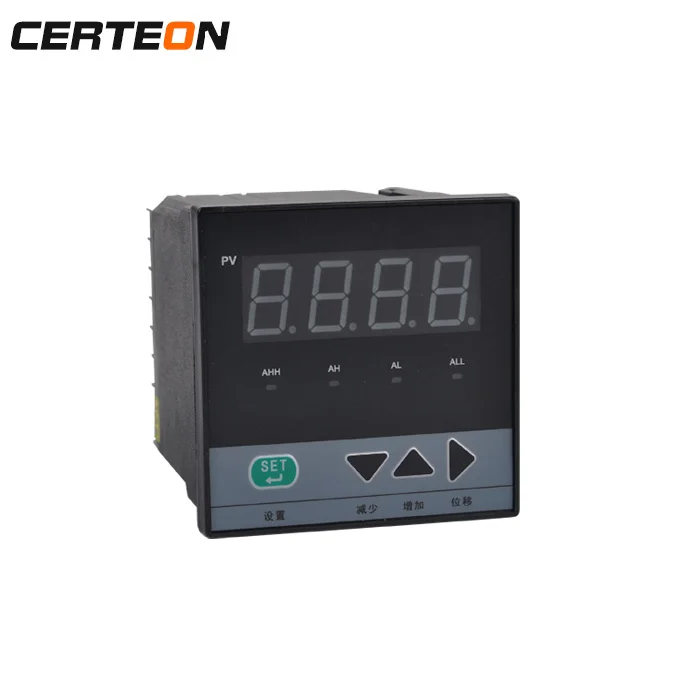

96x96 xmtd multi input single Multi channel digital bbq temperature controller with PID SSR relay output LED display

Product Overview

Description

product parameters

Power Input	100-240VDC, -15%, +10%/50-60Hz;  or 24 VDC/AC, -15%, +10%.
Input type	Thermocouple: K (-100~1300℃), S (0~1700℃), R (0~1700℃), T (-200~+390℃), E (0~1000℃), J (0~1200℃), N (0~1300℃), WRe3-WRe25 (0~2300℃), WRe5-WRe26 (0~2300℃)   Resistance temperature detector: Cu50, Pt100   Linear Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-60mV, 0-20mV, 0-10V, ect.   Linear current: 0-20mA, 4-20mA, etc.   Linear resistance: 0-80ohm, 0-400ohm
Control Outputs	relay 250VAC/2A or 30 VDC/1A   triac 100-240VAC/0.2A (continuous), 2A (20mS intantaneous, repeat period>= 5s)   ssr driver - 12VDC/30mA    thyristor zero crossing trigger output: triac 5-500A, 2 paralleled SCRs or SCR power   Linear current: 0-20mA, 4-20mA
Alarm Outputs	1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A   1 channel relay(small volume) 30VDC/1A, 250VAC/1A   2 channels relay: 30VDC/2A, 250VAC/2A
Communications	Modbus and AIbus RS485
Power consumption	≤ 5W
Operating Ambient	Temperature -10~60℃; Humidity ≤90%RH

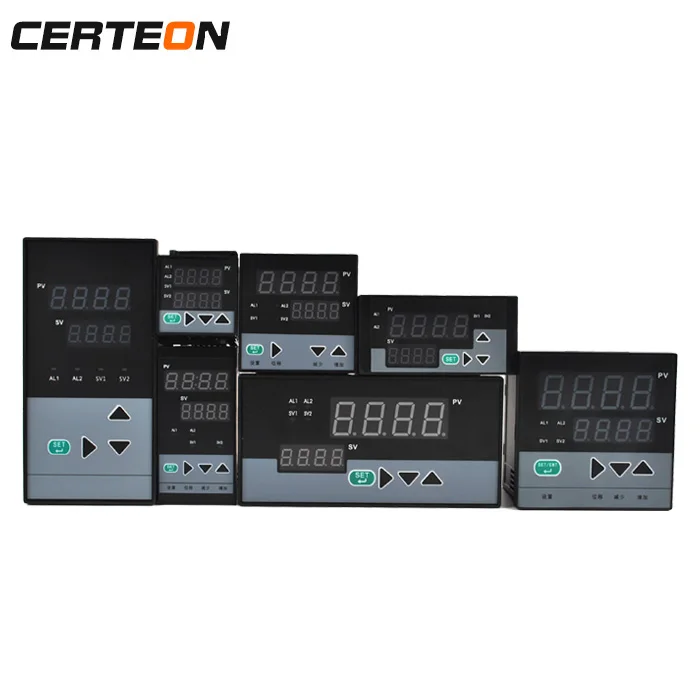

Front Panel size	96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.



Q:What is the delivery time ?

 A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you



Q:How about your package ?

 A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .



Q: How about the Warranty time ?

 A:Our warranty time is 12 months after you get our goods  . All lifelong technology service and support .



Q:How about the payment terms ?

A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:What is the MOQ?

A:1PC.



Q:Can I get a lower price if I order large quantities?

A:Yes,cheaper prices with more bigger size orders.



Q:Can I have my own logo of the products?

A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
