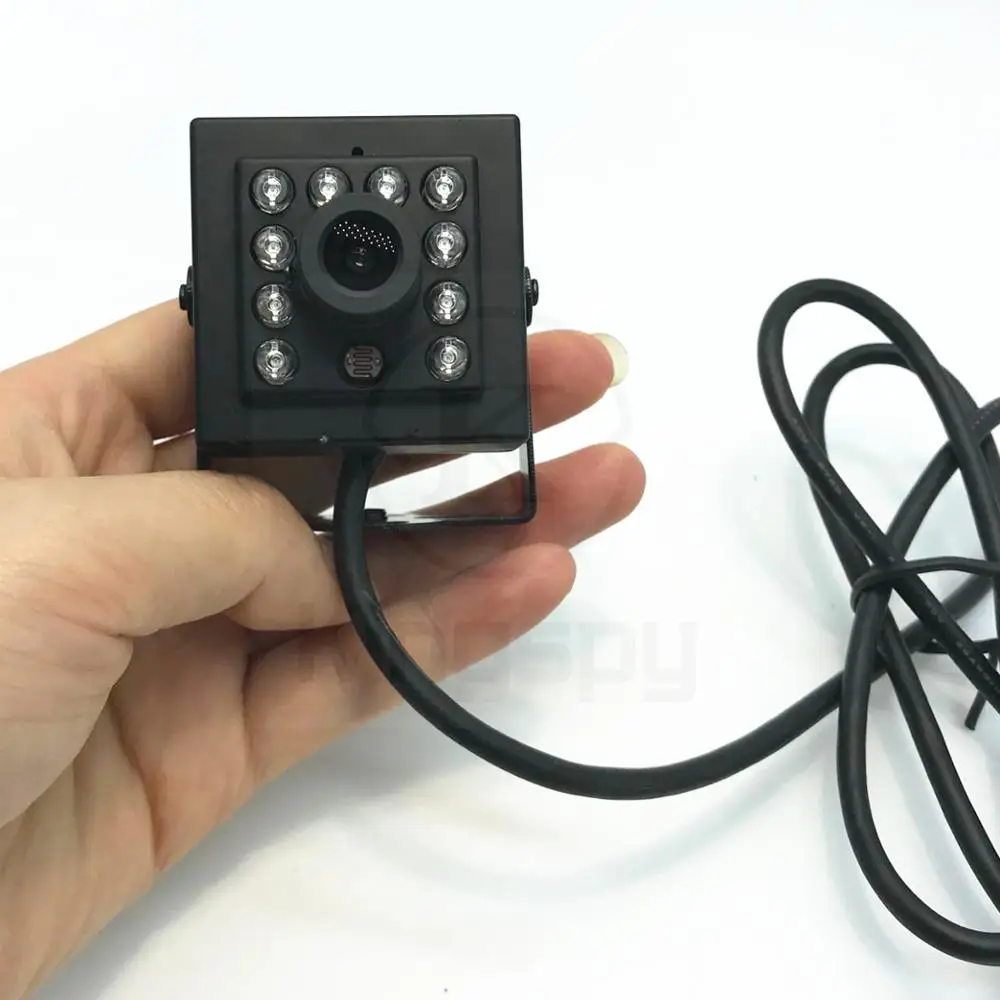

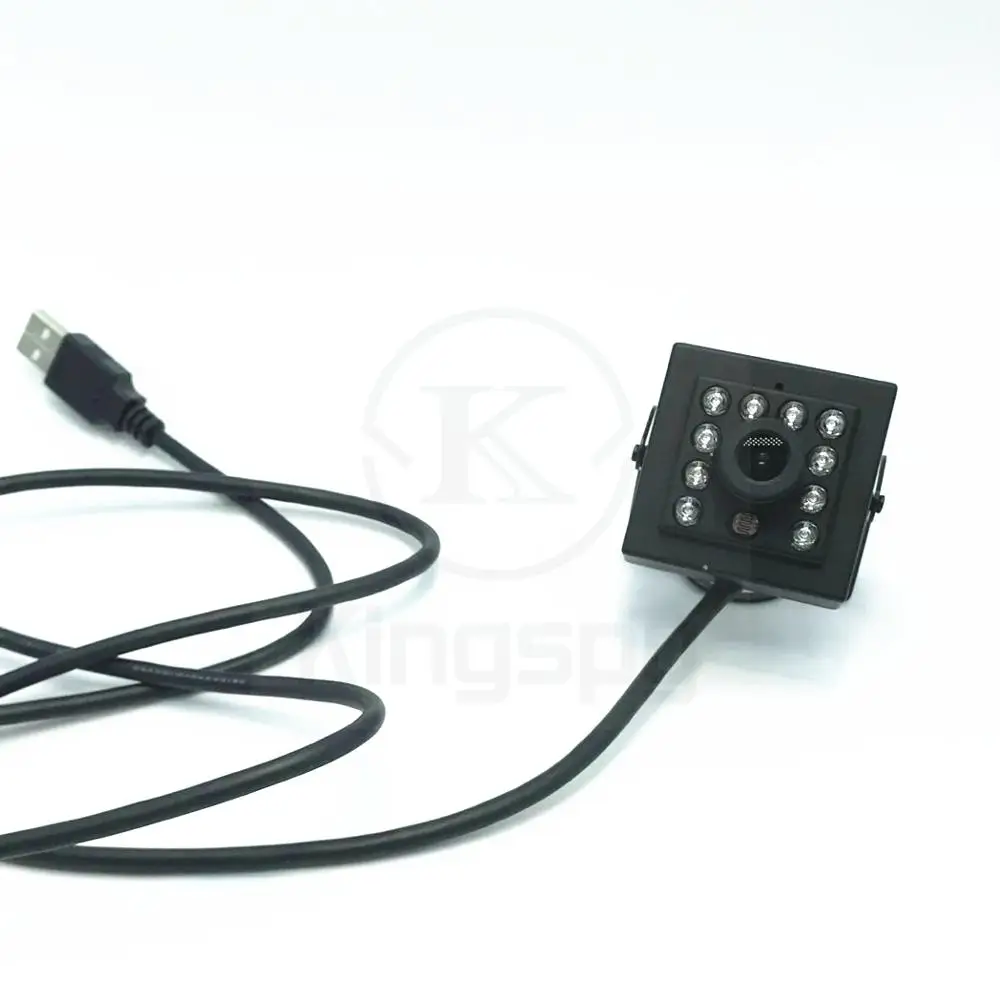

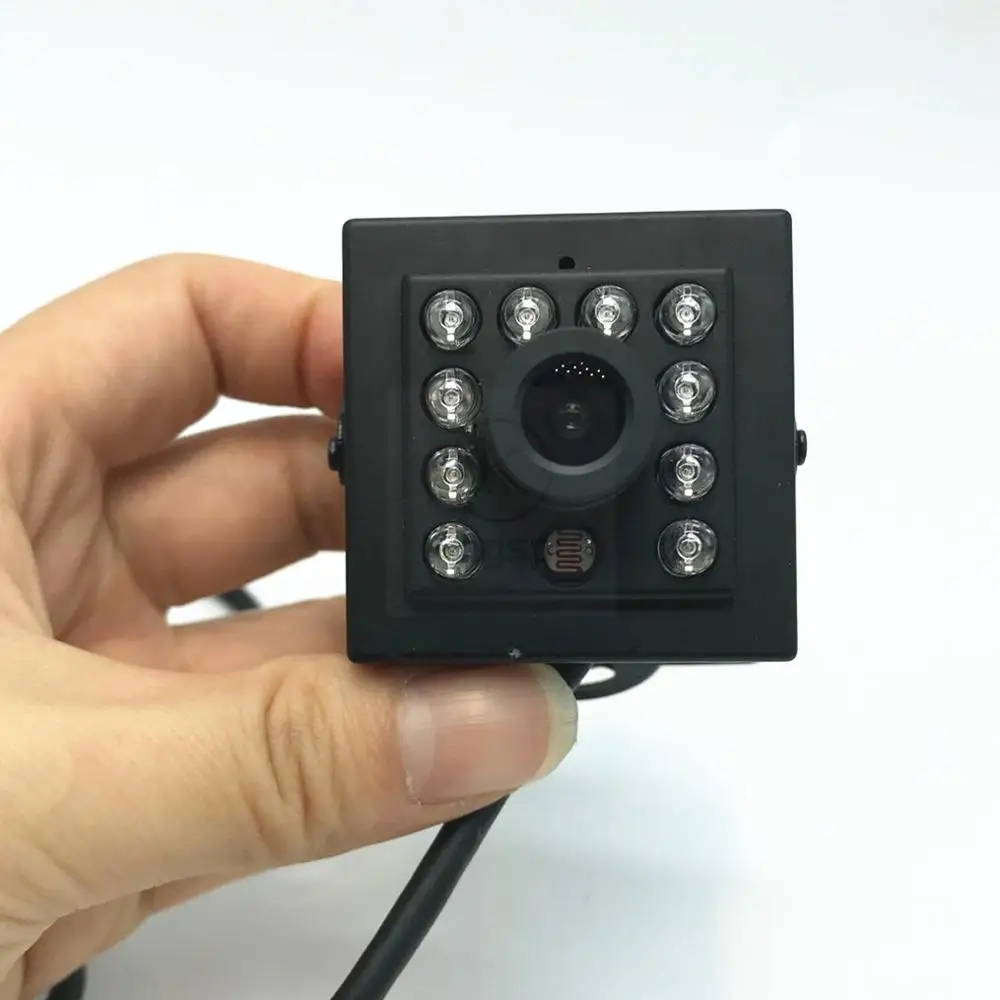

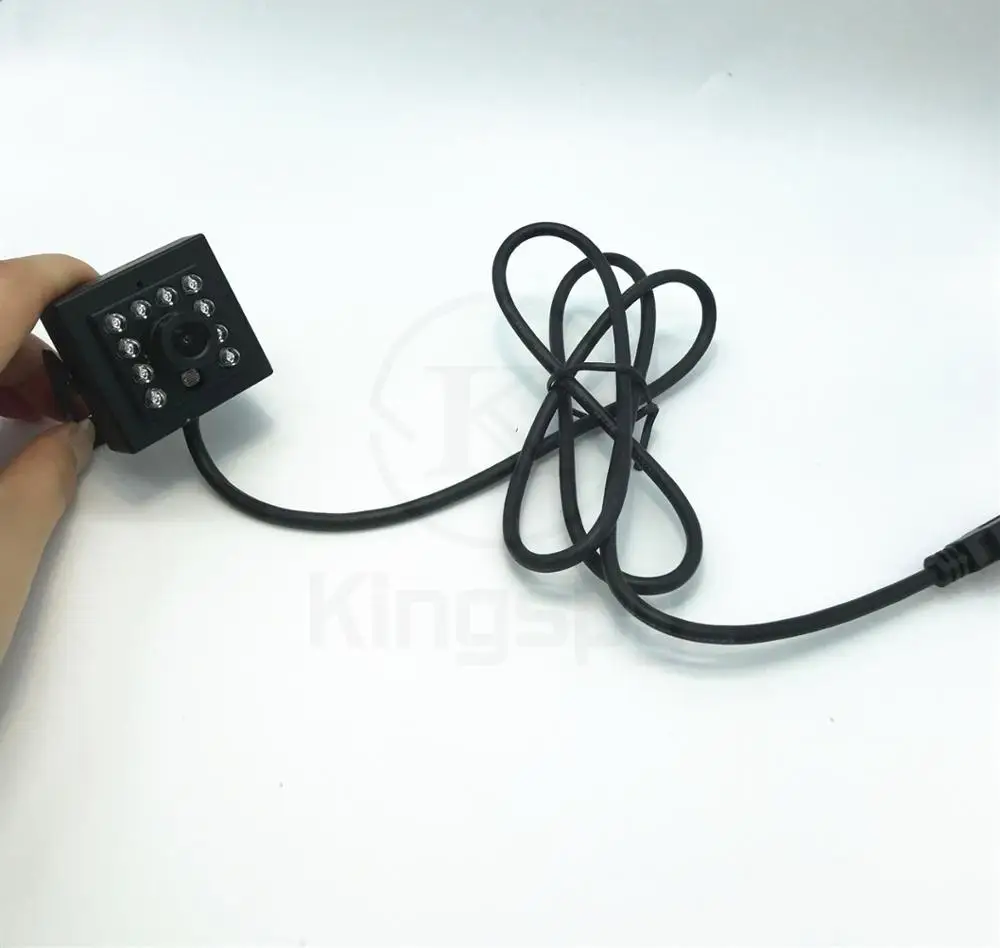

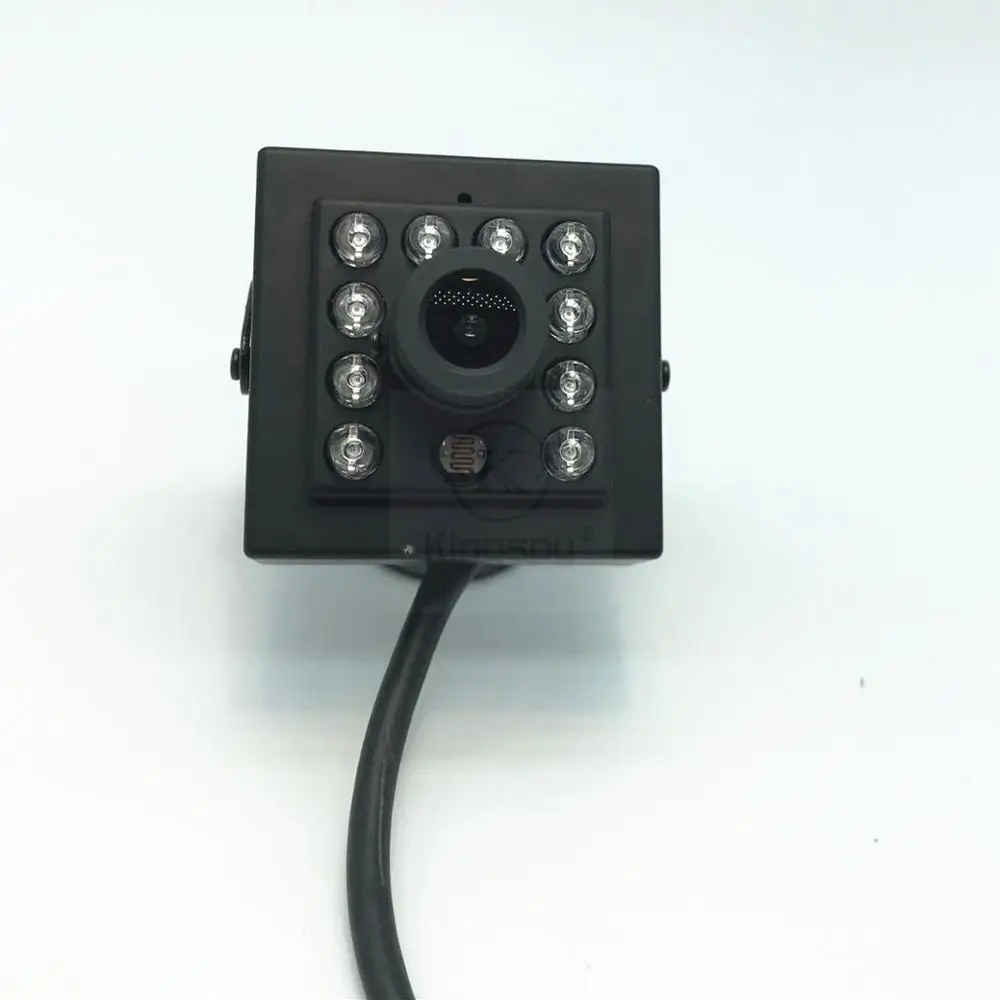

HD CMOS OV7725 480P Night Vision UVC Webcam mini Security USB camera with 10 pcs ir leds infrared
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62522911865):
Product Overview
Description
Certifications
Product Description
HD CMOS OV7725 480P Night Vision UVC Webcam mini Security USB camera with 10 pcs ir leds infrared
| *640x480 VGA resolution USB Camera |
| *Support Android and Linux system |
| *Suport YUY and MJPEG format |
| *high pixel technology for sharp image and accurate color reproduction |
| *low light performance – ideal for any lighting condition |
| *Super small outline and thin profile for embedded applications |
| *High quality lens, true and undistorted color image |
| *Low power consumption – ideal for portable equipment |
| * WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above |
Specifications:
LENS: 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 2m USB cable (1M/3 M/5M optional)
with IR cut & IR LED board
| Models | KS-U10L4018-940NM (3.6mm lens) |
| Sensor | OV7725 |
| Lens size | 1/4 inch |
| Max. Resolution | 640X480 VGA |
| Picture format | YUY2 |
| MJPEG | |
| USB Protocal | USB2.0 HS/FS |
| USB1.1 FS | |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 640 (H) x 480 (V) pixels MJPEG: 30FPS, YUY2 30FPS |
| Adjustable parameters | Brightness/Contrast/Color saturation/Definition |
| Gamma/WB | |
| Support resoluion | 640x480 352x288 320x240 160x120 |
| Night vision | optional, can choose IR board |
| view angle | 30-150 degree optional |
| voltage | DC 5V |
| current | 120mA |
| work temperature | DEGREES(-20~70) |
| Size | 38X38, 32x32mm |
| Support OS | WinXP/Vista/WIN7/WIN8 |
| Linux with UVC | |
| Mac-OS X 10.4.8 or later | |
| Wince with UVC | |
| Android 4.0 or above |
Appliations:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

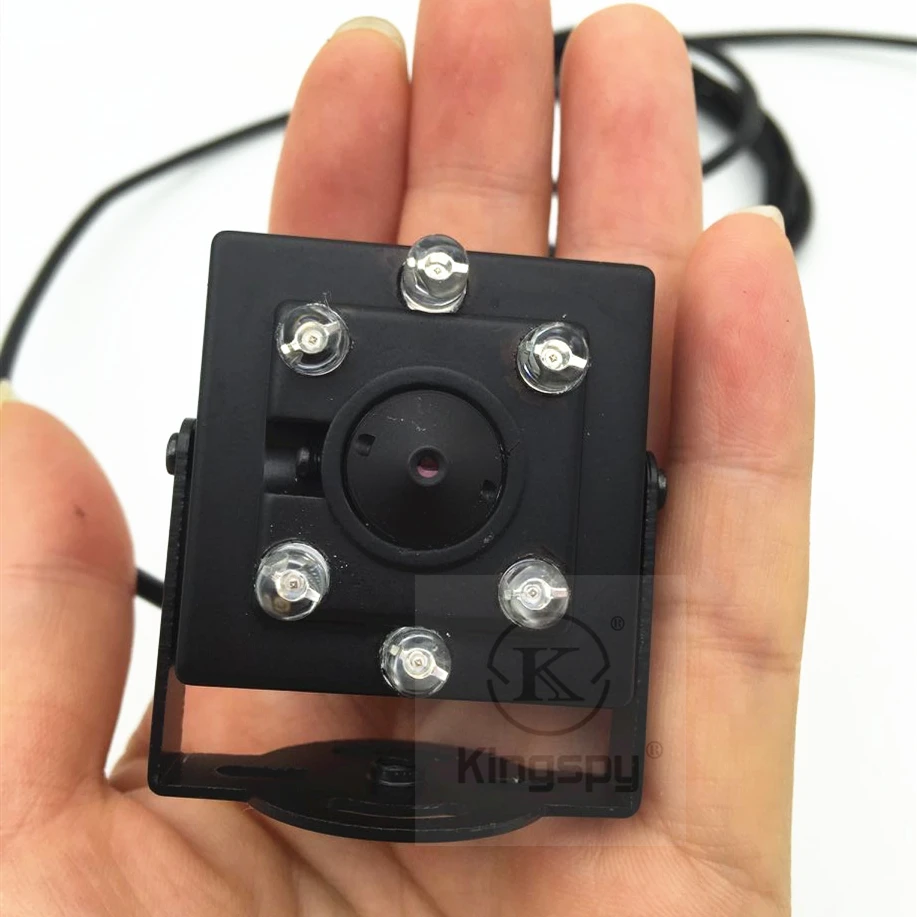

SIMILAR USB IR CAMERAS AS BELOW :
Packaging & Shipping
![`VGY_6]5K7ZEA)3M6{T5S`C.jpg](http://sc02.alicdn.com/kf/H04e47fc666644d3b9287ea90a97d5819I/239129465/H04e47fc666644d3b9287ea90a97d5819I.jpg)
Our Services
1) Guarantee We promise 1 year warranty from Shipping date,
once there's a problem which users can't fix themselves,
we'll sent accessories or a new IP camera as replacement to you.
2) Authorisation We will sent you authorization as business partner / distributor.
3) MOQ 1pcs
For big order, I suggest order by standard carton,
4) OEM/ODM order are also most welcomed.
5) Why us? Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
And we have more than 6 new models released each year!
POSITIVE REVIEWS FROM OTHERS CUSTOMERS :
About us
FAQ
1.Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
