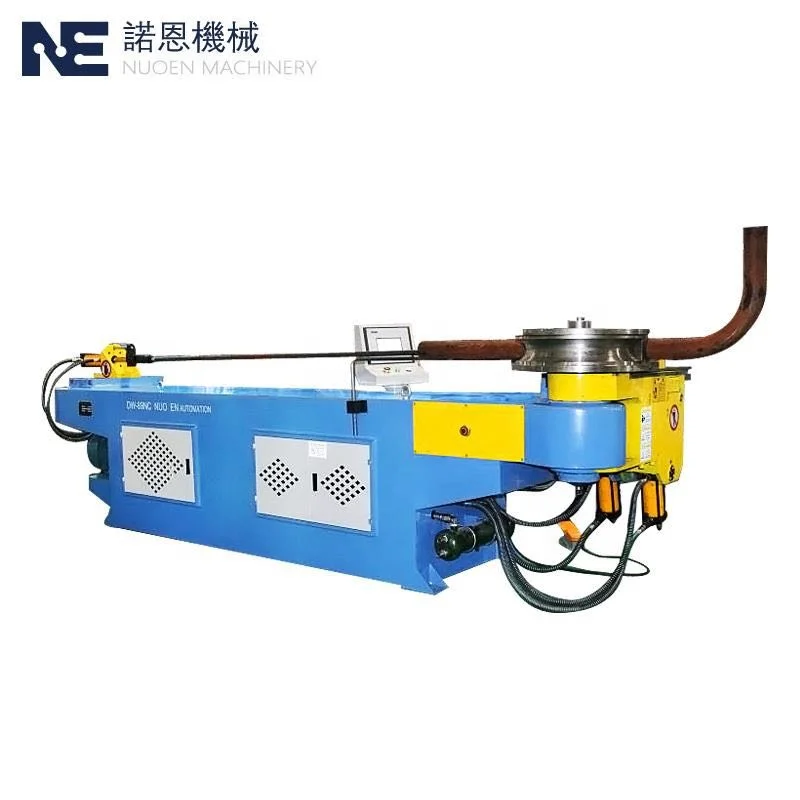

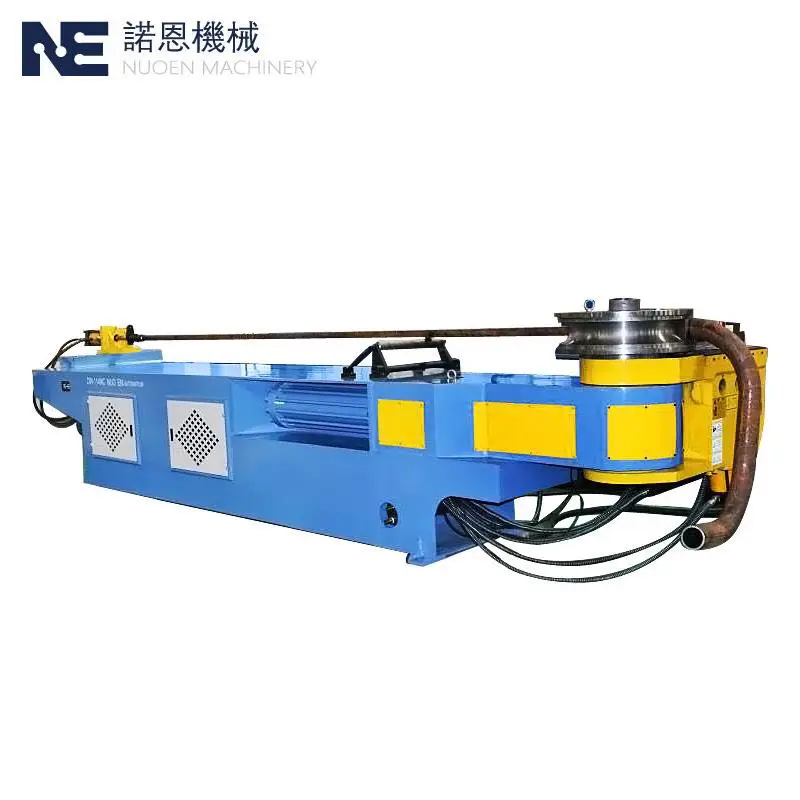

The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.
1. The machine is controlled by NC, hydraulically driven, and prefabricated with a variety of different bending angles.
2, Chinese-English subtitle display, man-machine dialogue operation, you can choose manual, semi-automatic operation mode, mobile foot switch has both start and stop functions.
3, Using of high-performance imported hydraulic valve components ( Yuken from Japan).
4, Equipped with a cooling system to effectively control the working temperature.
5. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fittings processing industry
B. The main technical parameters:
Main Specifications
Unit
Model: DW-114NC
Remarks
Maximum Bending Pipe Diameter * Wall Thickness
mm
Φ114*10
The minimum bending radius depends on the pipe diameter
The maximum bending radius depends on the customer requirements
The maximum core-through length may depend on the customer requirements
Maximum Bending Radius
mm
R520
Minimum Bending Radius
mm
R90
Maximum Bending Angle
Degree
190
Standard Core-through Length
mm
4500
Control System
Microcomputer Control
Allowable Pipe Fitting Elbow Number
Unit
16
Storable Component Number
Unit
16*16
Oil Hydraulic Motor Power
KW
22
Maximum System Pressure
Mpa
14
Oil Hydraulic System Control
Solenoid Valve
Oil Tank Capacity
L
350
Machine Outline Dimensions
mm
5700*1300*1600
Machine Weight
Kg
7000
C.Application:

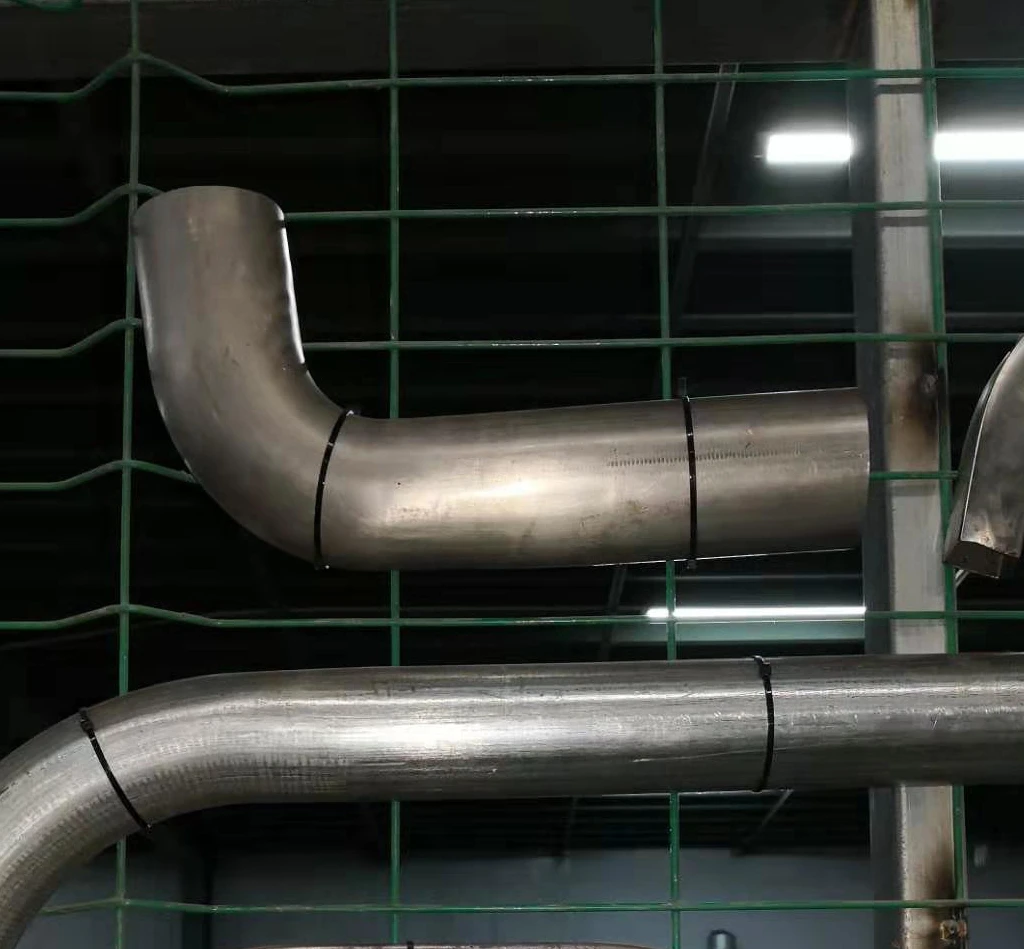

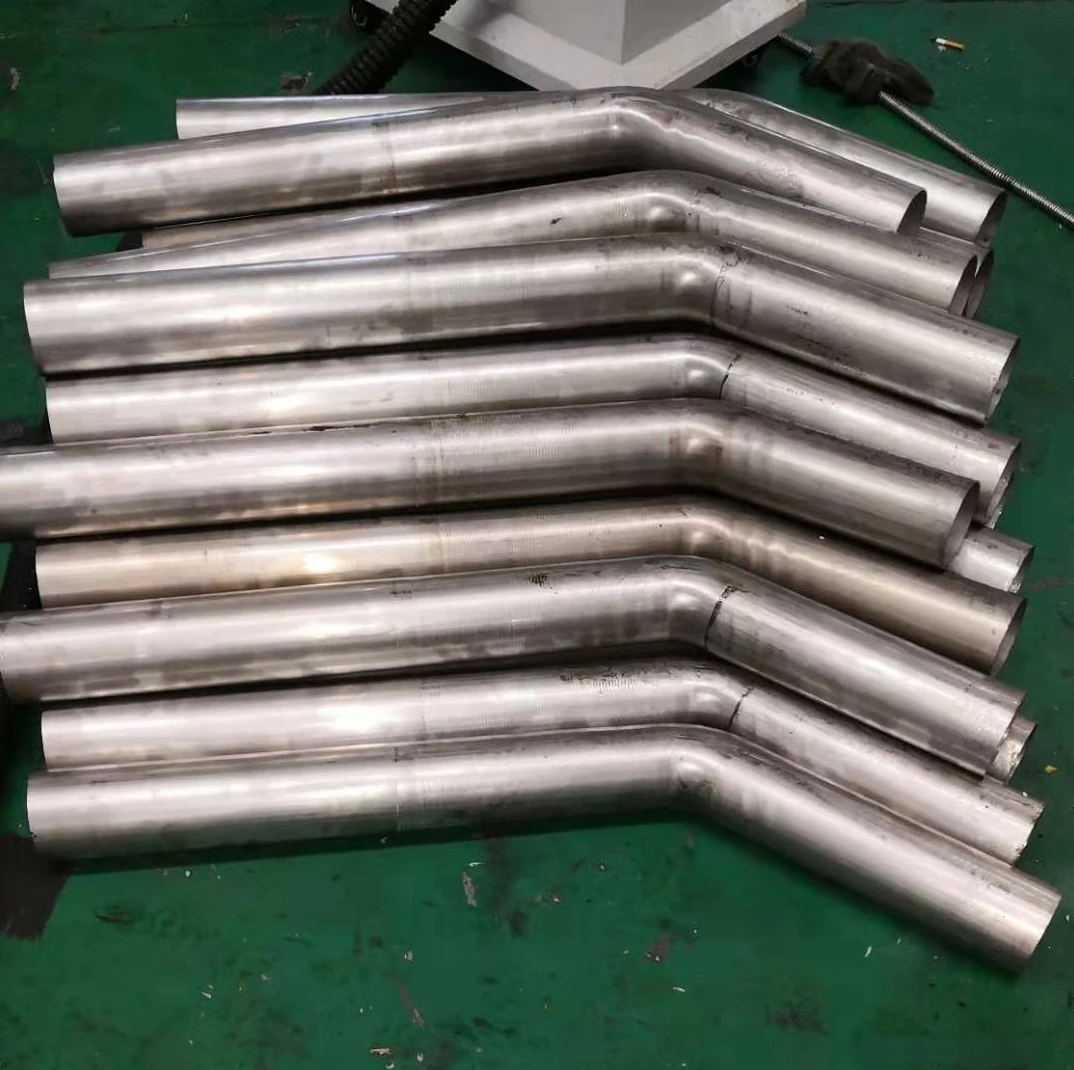

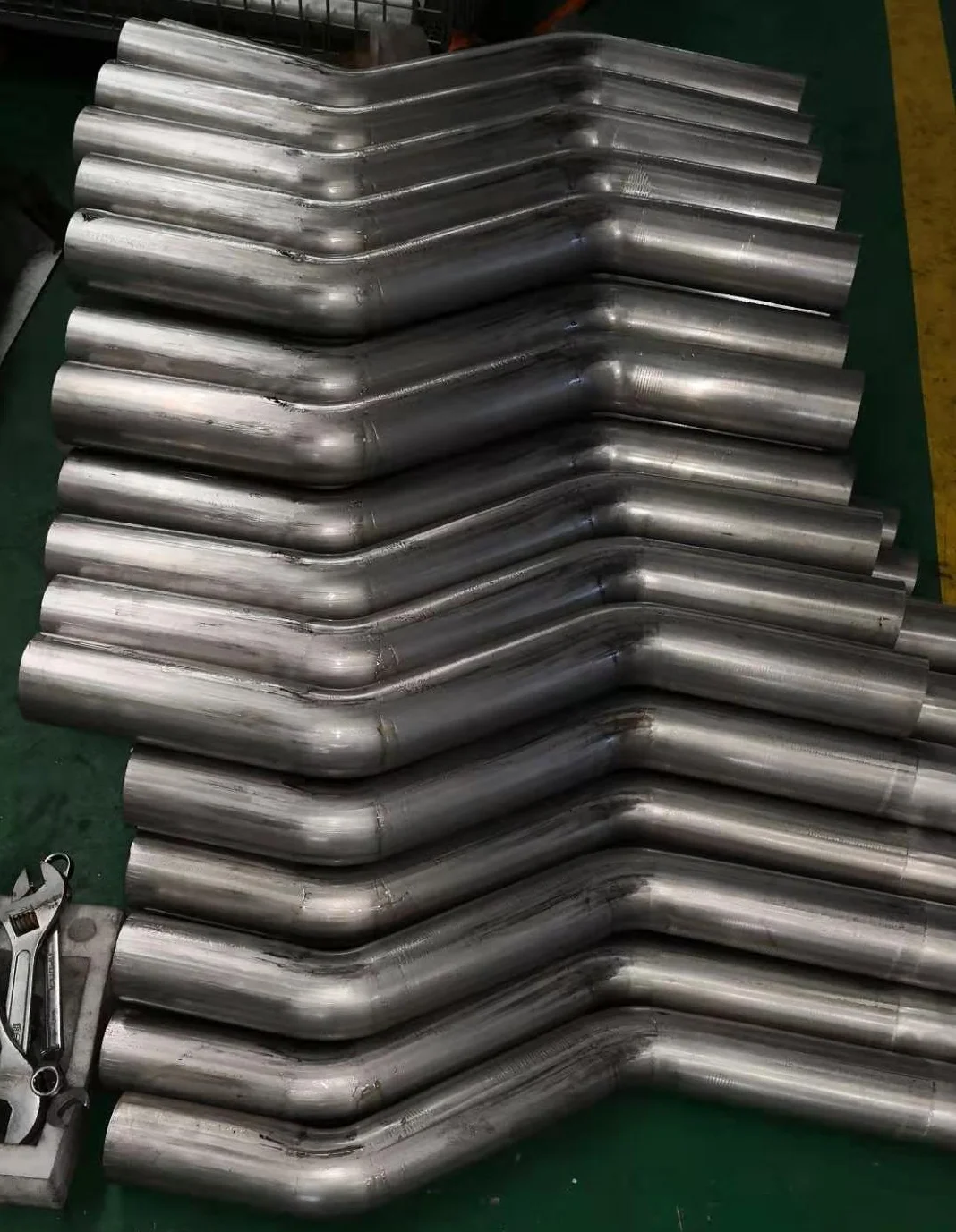

1. Exhaust pipe of car, motorcycle, airplane and other machinery. 2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities 3. Pipes of kitchen and bathing facilities, pipes of medical equipments. 4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.
