PMMA/PC/PET/PP/Polycarbonate/Acrylic Plastic Hollow Sheet Machine Line
- Category: >>>
- Supplier: Zhangjiagang Sansu Machine Co. Ltd.
Share on (62523084469):
Product Overview
Description

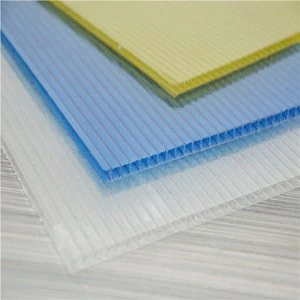

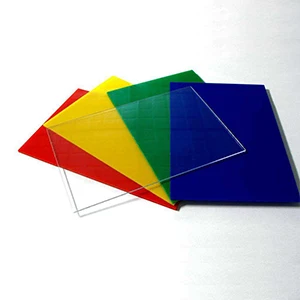

FINAL PRODUCTS
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line
Plastic sheet: excellent performance in a wide range of applications
Plastic sheets are made of plastic as raw materials. They are widely used in the construction and chemical industries. They are used in chemical, environmental protection, and construction boards. They are wear-resistant, vibration-resistant, corrosion-resistant, recyclable, strong, resistant Aging, waterproof, moisture-proof, not easy to deform, repeated use and so on. Moreover, the replaced hard plastic pallet plate can also be recycled and processed, which greatly reduces the cost.
Among them, the ultra-high molecular weight polyethylene is particularly outstanding. It is an engineering plastic with excellent performance, such as high abrasion resistance, impact resistance, low friction coefficient, good self-lubrication, and excellent low temperature resistance. , Chemical resistance, etc.
Plastic sheets are made of plastic as raw materials. They are widely used in the construction and chemical industries. They are used in chemical, environmental protection, and construction boards. They are wear-resistant, vibration-resistant, corrosion-resistant, recyclable, strong, resistant Aging, waterproof, moisture-proof, not easy to deform, repeated use and so on. Moreover, the replaced hard plastic pallet plate can also be recycled and processed, which greatly reduces the cost.
Among them, the ultra-high molecular weight polyethylene is particularly outstanding. It is an engineering plastic with excellent performance, such as high abrasion resistance, impact resistance, low friction coefficient, good self-lubrication, and excellent low temperature resistance. , Chemical resistance, etc.
MACHINE DESCRIPTION
SANSU - 15+ Years Professional Experience in R&D and Manufacturing Extrusion Line

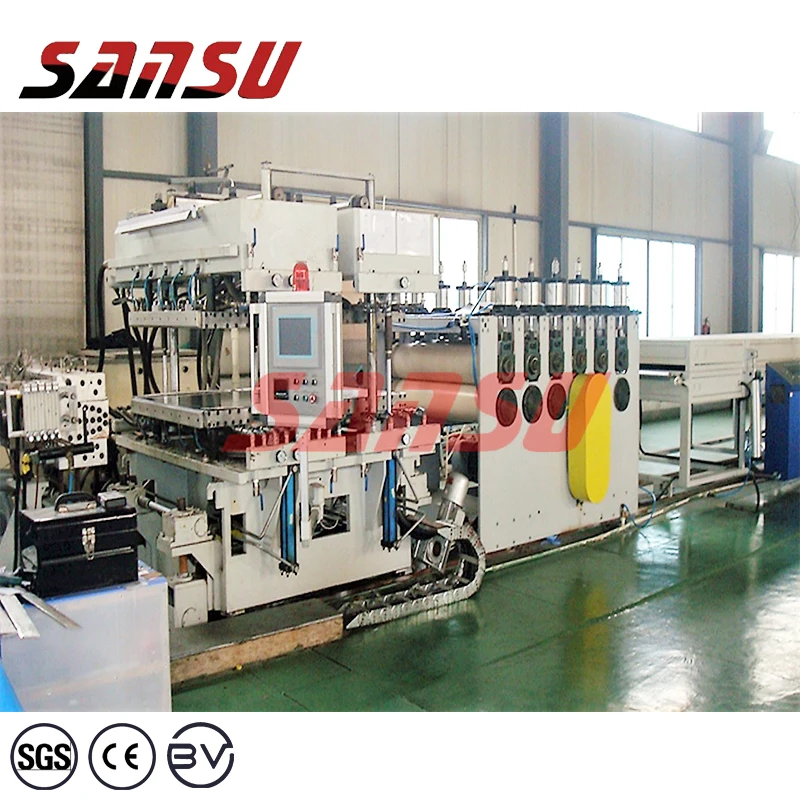

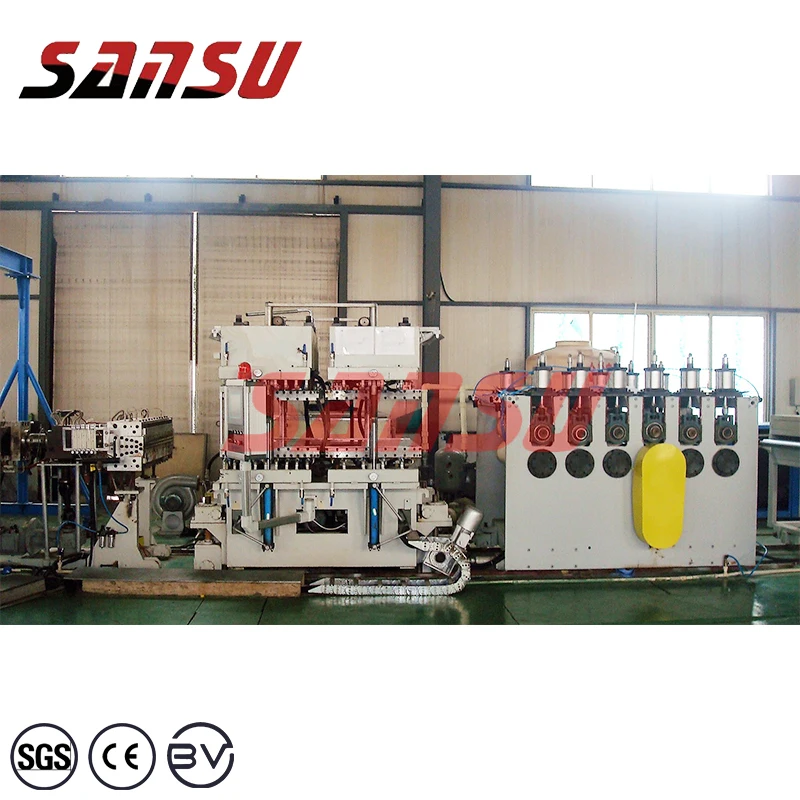

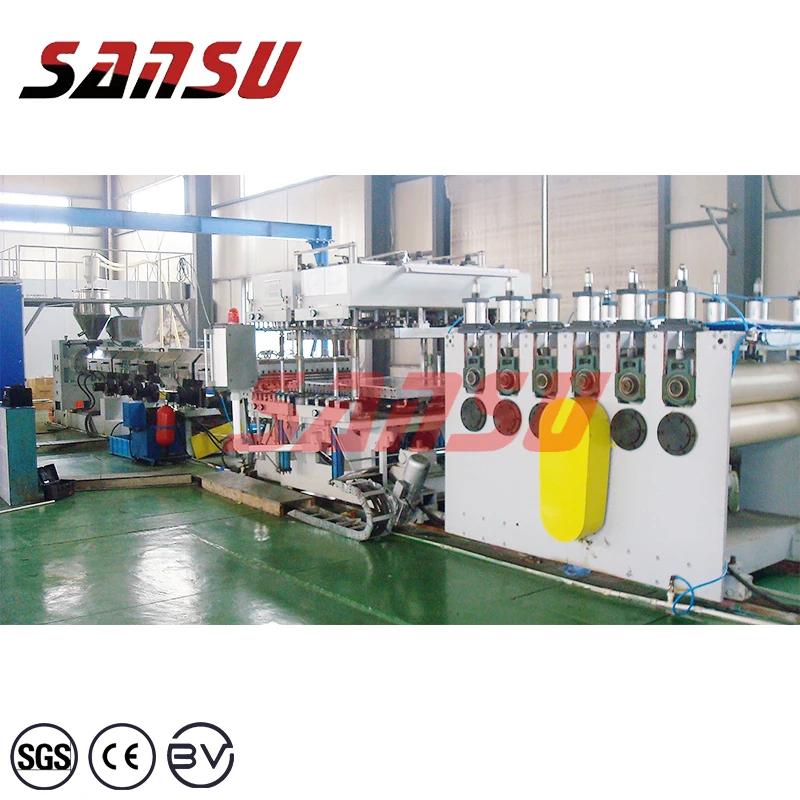

PMMA/PC/PET/PP/Polycarbonate/Acrylic Plastic Hollow Sheet Machine Line.
In the plastic extrusion molding equipment, the plastic extruder is usually called the main machine, and the supporting equipment plastic extrusion molding machine is called the auxiliary machine. After more than 100 years of development, the plastic extruder has been derived from the original single screw, such as twin screw, multi-screw, and even no screw. Plastic extruder (main machine) can be used with various plastic molding auxiliary machines such as pipes, films, holding materials, monofilaments, flat filaments, packing belts, extrusion nets, plates (sheets), profiles, granulation, cable coating Match and form various plastic extrusion molding production lines to produce various plastic products. Therefore, plastic extrusion molding machinery is one of the widely used machines in the plastic processing industry, now and in the future.
PRODUCT DETAILS
The extrusion system includes a screw, a barrel, a hopper, a head, and a die. The plastic is plasticized into a uniform melt through the extrusion system, and is continuously extruded by the screw under the pressure established in the process.
⑴Screw: It is the most important part of the extruder. It is directly related to the application range and productivity of the extruder. It is made of high strength and corrosion resistant alloy steel.
⑵Machine barrel: It is a metal cylinder, generally made of alloy steel or composite steel pipe lined with alloy steel that is heat-resistant, high compressive strength, strong, wear-resistant and corrosion-resistant. The barrel cooperates with the screw to achieve the crushing, softening, melting, plasticizing, venting and compacting of the plastic, and continuously and uniformly conveys the rubber to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter. The principle is to make the plastic fully heated and fully plasticized.
Plastic extruder
Plastic extruder (4 photos)
(3) Hopper: The bottom of the hopper is equipped with a cutting device to adjust and cut off the material flow. The side of the hopper is equipped with a sight hole and a calibration metering device.
⑷Machine head and mold: The head is composed of alloy steel inner sleeve and carbon steel outer cover. The head is equipped with a forming mold. The function of the head is to transform the plastic melt that rotates into parallel and linear motion, and evenly and smoothly introduce the mold Sleeve and give the plastic the necessary forming pressure.
⑵Machine barrel: It is a metal cylinder, generally made of alloy steel or composite steel pipe lined with alloy steel that is heat-resistant, high compressive strength, strong, wear-resistant and corrosion-resistant. The barrel cooperates with the screw to achieve the crushing, softening, melting, plasticizing, venting and compacting of the plastic, and continuously and uniformly conveys the rubber to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter. The principle is to make the plastic fully heated and fully plasticized.
Plastic extruder
Plastic extruder (4 photos)
(3) Hopper: The bottom of the hopper is equipped with a cutting device to adjust and cut off the material flow. The side of the hopper is equipped with a sight hole and a calibration metering device.
⑷Machine head and mold: The head is composed of alloy steel inner sleeve and carbon steel outer cover. The head is equipped with a forming mold. The function of the head is to transform the plastic melt that rotates into parallel and linear motion, and evenly and smoothly introduce the mold Sleeve and give the plastic the necessary forming pressure.
1. Single screw extruder.
Model SJ120/33
Max Output 350kg/h
Diameter 120mm
Motor power 132kw SIMO DC motor
Speed adjuster EUROTHERM DC Adjuster
Material 38CrMoAlA
Surface treatment Nitrided and polished
Rotation speed 20~90r/min
Material 38CrMoAlA
Max Output 350kg/h
Diameter 120mm
Motor power 132kw SIMO DC motor
Speed adjuster EUROTHERM DC Adjuster
Material 38CrMoAlA
Surface treatment Nitrided and polished
Rotation speed 20~90r/min
Material 38CrMoAlA
2. Double station screen changer
Material of filter plate 38CrMoAl
Diameter of filter plate 150mm
Change type Hydraulic cylinder
Hydraulic station power 2.2KW
Diameter of filter plate 150mm
Change type Hydraulic cylinder
Hydraulic station power 2.2KW
3. T-die
Width of mould chasm 800mm
Max. hatch of mould:
producing sheeting with thickness 10mm
Min. hatch of mould:
producing sheeting with thickness2mm
Max. hatch of mould:
producing sheeting with thickness 10mm
Min. hatch of mould:
producing sheeting with thickness2mm

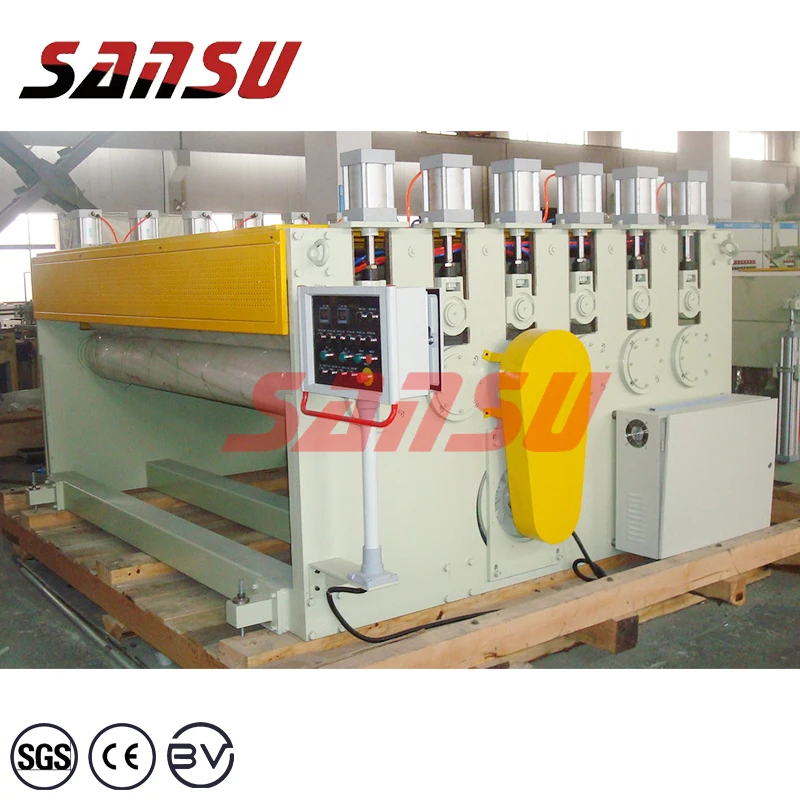

4. Three rolle
Feeding type With feeding roller
Max. speed 15m/min
Height of center 1000mm
Driving system
Power of driving: Up roller: 1.5KW Mid roller:1.5KW Down roller:1.5KW
Max. speed 15m/min
Height of center 1000mm
Driving system
Power of driving: Up roller: 1.5KW Mid roller:1.5KW Down roller:1.5KW
5. Haul off cooling shelf with side cutter
The cutting motor of trimming edge 750W
The width of cooling stacker 800mm
Length of stacker 6m
The width of cooling stacker 800mm
Length of stacker 6m
6. Water Roller temperature controller
Quantity of controller 3 sets
Heating power 9KW
Heating type Heating oil
Oil pump 0.75KW *3
Oil cooling water
Quantity of controller 3 sets
Heating power 9KW
Heating type Heating oil
Oil pump 0.75KW *3
Oil cooling water
9. Winder
Max diameter of roller 450mm
The max. width of sheet 800mm
Power of rotating motor 1.5kw
The max. width of sheet 800mm
Power of rotating motor 1.5kw
MACHINE PARAMENTERS
Model | Max Output | Diameter | Motor power | Speed adjuster | Material | Surface treatment | Rotation speed |
SJ120/33 | 400kg/h | 120mm | 132kw SIMO DC motor | EUROTHERM DC Adjuster | 38CrMoAlA | Nitrided and polished | 20~90r/min |
SJ90/33 | 200kg/h | 90mm | 75kw SIMO AC motor | ABB inverter | 38CrMoAlA | Nitrided and polished | 20~90r/min |
RELATED PRODUCTS
ABOUT SANSU
Sansu Machinery.
Sansu is manufacturer for kinds of plastic sheet extrusion machines, such as PET/PC sheet extrusion line, PE/PP/ABS sheet extrusion line, PP/PC hollow sheet line, PET infrared crystallized dryer,and established with excellent research and development team,Now we have 30000 sqm of factory and more than 60 employee,We have more than 10years production for kinds of plastic sheet extrusion line, such as PET PP PE ABS sheet machine. We always keep researching for new technology, and make complete process from recycling to sheet extrusion.
Our Advantages.
1. Experiences We have own R&D teams, engineers have more than 20 years experiences on plastic extrusion machine manufacturing, we are professional.
2. We use high quality materials for manufacture each machine.
3. Good and professional after-sales service not only include warranty period, for whole life of machine.
2. We use high quality materials for manufacture each machine.
3. Good and professional after-sales service not only include warranty period, for whole life of machine.
FAQ
Q:What is acceptable payment terms?
A:T/T or L/C at sight
Q:Are you the manufacturer or trading company?
A:We are an industrial manufacture factory.we have independent technical team who focus on making machine; all the products are made by our technical team .
Q:How do you make the quotation for client?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
Type of pipe you want to produce. Pipe diameter. Raw material and its types
A:T/T or L/C at sight
Q:Are you the manufacturer or trading company?
A:We are an industrial manufacture factory.we have independent technical team who focus on making machine; all the products are made by our technical team .
Q:How do you make the quotation for client?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
Type of pipe you want to produce. Pipe diameter. Raw material and its types
If you can also send us photos of your samples, it would be highly appreciated.
