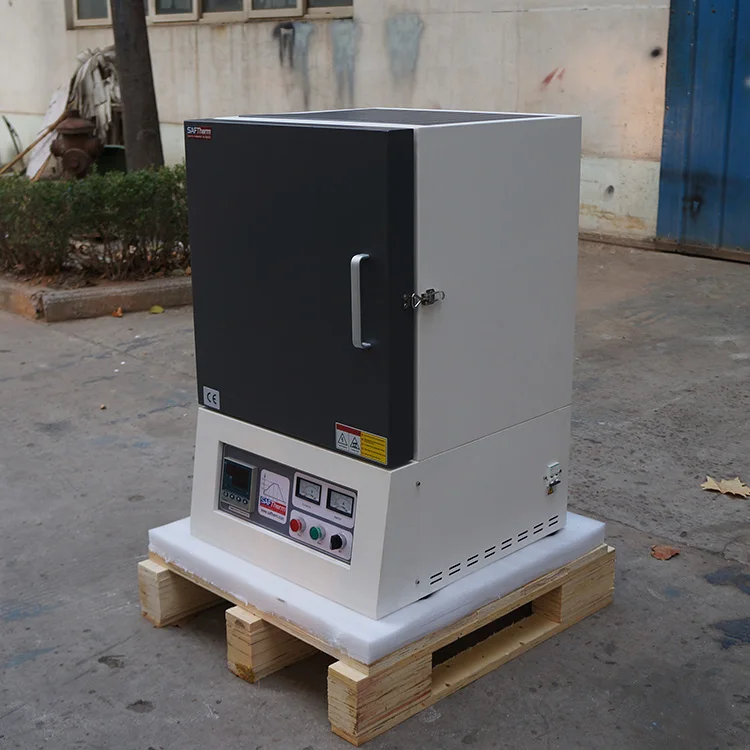

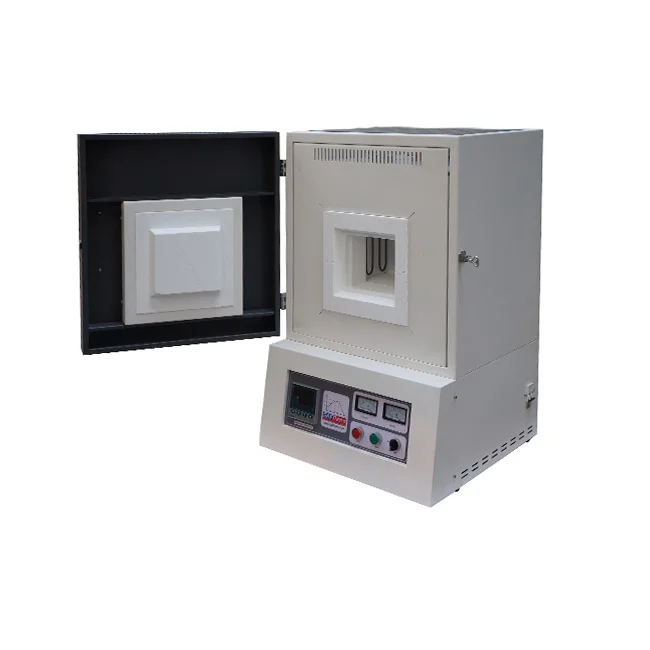

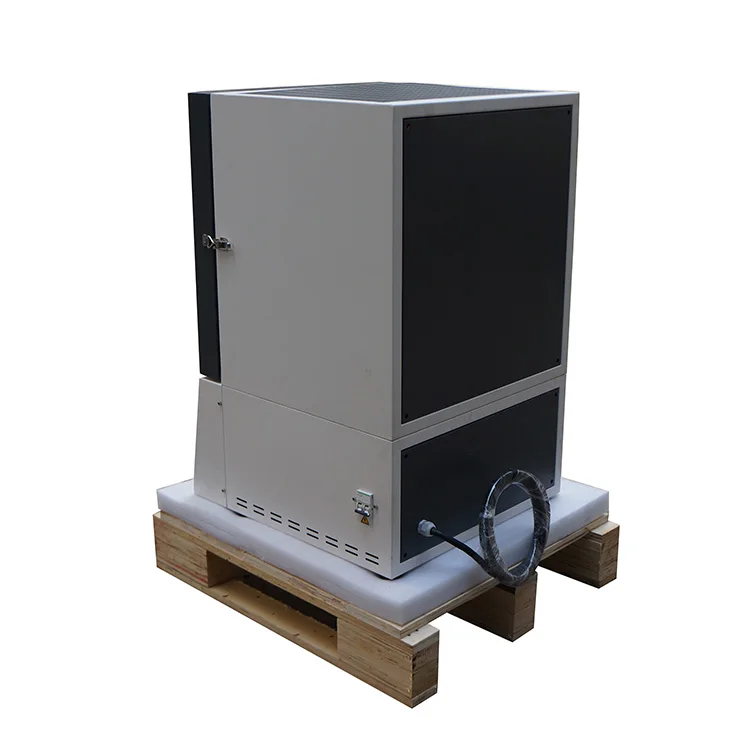

electric furnace manufacturer ash furnace kiln pottery

Model

STM-3-17

STM-6-17

STM-8-17

STM-12-17

STM-20-17

STM-36-17

Customized

Chamber size(WxLxH)mm

150x150x150

180x230x150

200x200x200

200x300x200

250x320x250

300x400x300

Any size

Type

Benchtop

Furnace structure

Chamber material, temperature controller system, heating element , furnace shell and other assistant parts

Max temperature

1700℃

Continue Operating Temp.

1650℃

Power supply

220V/4KW

220V/5KW

220V/5KW

220V/6KW

380V/9KW

380V/15KW

Depends on size

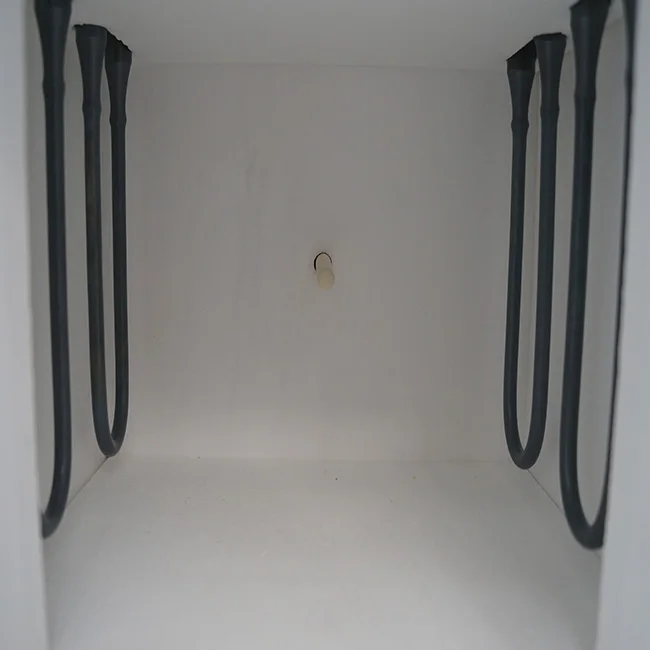

Heating element

High quality MoSi2 rod

Chamber material

High temperature polycrystal alumina ceramic fiber material

Temperature precision

±1℃

Thermocouple

B type

Temperature controller

YUDIAN intelligent microcomputer PID controller can program 30 segments

Electronic component

DELIXI make

Heating rate

≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )

Safety protection

Overheat and thermocouple-break alarm

Certification

ISO9001 CE SGS

Furnace shell

high quality cold-rolled steel sheets CNC processing

Insulation

High quality thermal insulation material to ensure a good uniformity

Accessories

One pair of high temperature furnace gloves

One pair of crucible stongs

Optional

Paperless recorder

Stainless steel exhaust chimney

Alumina crucible
