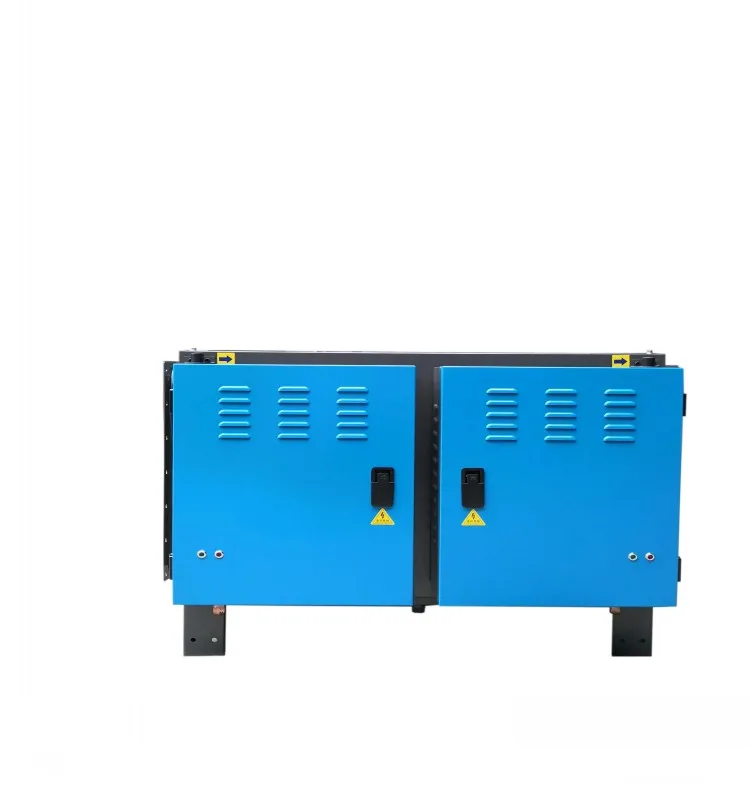

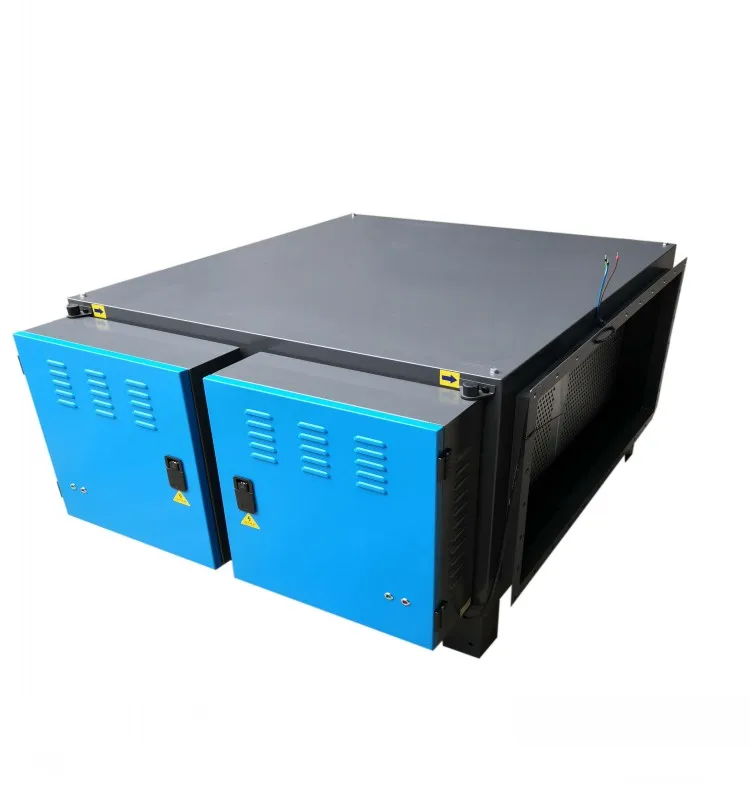

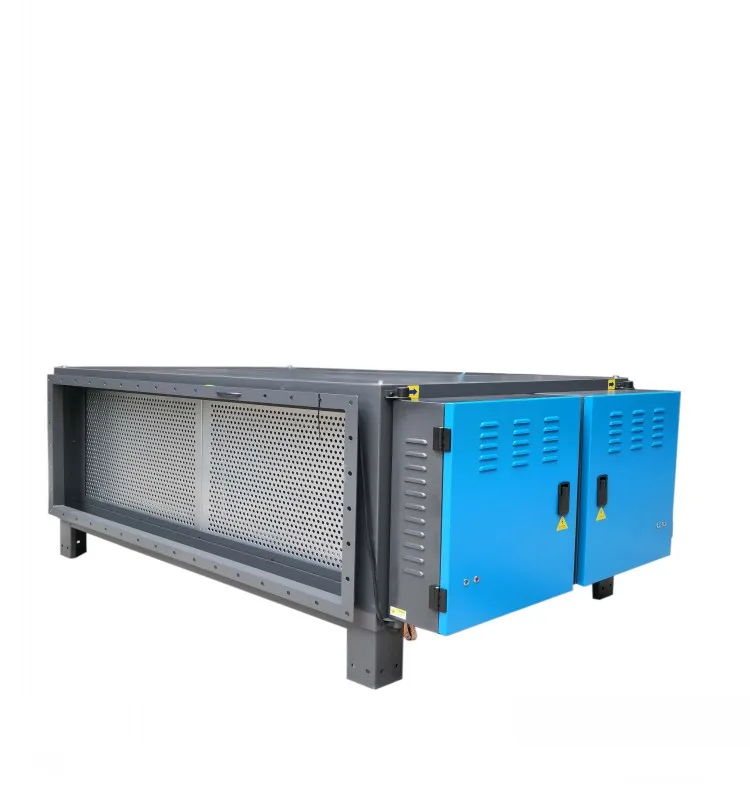

Industrial chimney smoke air cleaner coffee roaster afterburner electrostatic filter
- Category: >>>
- Supplier: Nanning Juwei Electromechanical Technology Co. Ltd.
Share on (62523283578):
Product Overview
Description
Our advantages
Products Description
What is the electrostatic precipitator (esp)?
Model | JW120 |
Air volume | 12000 m³/h |
Dimension(L*W*H) | 986*1173*702mm |
Flange Size(A*B) | 901*463mm |
Electric filed | 4pcs |
Input voltage | 220V/50Hz |
Power | 600W |
Efficiency | 96% |
Cabinet material | carbon steel with powder coated finish |
Electric filed material | Anti-corrosion aviation aluminum alloy sheet |
Contaminated air is drawn by the fan through a washable metal mesh pre-filter which traps large dust particles. The remaining particles, some as small as 0.01 microns, pass into a strong electrical field (ionizing section) where the particles receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternative plate is charged with the same polarity as the particles, which repel, while the interleaving plates are grounded, which attract and collect the contaminants. The contaminants are held in these plates until they are washed away. JUWEI electrostatic air cleaners are able to trap both wet and dry particles.
Size information
Model No. | Air volume(m3/h) | Filtration efficiency | Power rate(W) | Size(mm) | Flange size(mm) |
JW40 | 4000 | 98% | 48 | 543*862*702 | 584*463 |
JW60 | 6000 | 98% | 70 | 823*670*702 | 392*463 |
JW80 | 8000 | 98% | 96 | 823*862*702 | 584*463 |
JW120 | 2000 | 98% | 140 | 986*1172*702 | 894*463 |
JW160 (horizontal) | 16000 | 98% | 192 | 986*1554*702 | 1276*463 |
JW160 (vertical) | 16000 | 98% | 192 | 986*862*1273 | 584*1033 |
JW200 | 20000 | 98% | 280 | 986*1076*1273 | 798*1033 |
JW240 | 24000 | 98% | 332 | 986*1172*1273 | 894*1033 |
JW280 | 28000 | 98% | 350 | 986*1364*1273 | 1086*1033 |
JW320 | 32000 | 98% | 384 | 986*1556*1273 | 1278*1033 |
How to select the right model for your ventilation system?
Details View
Adopt 1.5mm thickness carbon steel with powder coated finish, strong casing, no rust, corrosion resistance.
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture efficiency, both of our ioniser and collector cell use very high voltage.
High-efficiency electric field
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.
parallel plates of the collector cell.
Inside cooling fan
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.
Equipped with open the door and power off device, when maintenance door is opened, high voltage power supply automatically cut
off, and electrostatic power supply control system with over voltage protection and short circuit protection, stable and rest
assured.
off, and electrostatic power supply control system with over voltage protection and short circuit protection, stable and rest
assured.
Company Profile
Company Introduction
Juwei Machinery and Electricity Technology Co., Ltd was established in 2012, located in Kede hardware machine and electric city of Nanning, Guangxi, China.
We are professionally specialized in manufacturing and exporting many kinds of electrostatic precipitator (ESP), air blowers and exhaust hoods for kitchen, restaurant, hotel, CBD, factory, industrial cutting machine plant, coffee bean roasting machine plant, CNC processing factory and so on.
With professional R&D and high-end machine equipment, we can offer customers with high quality, high efficiency and durability products, and committed to provide customers with reasonable and efficient purification program, accept OEM & ODM. Up to now, our products have been exported to over 35 countries and won customers' praise.

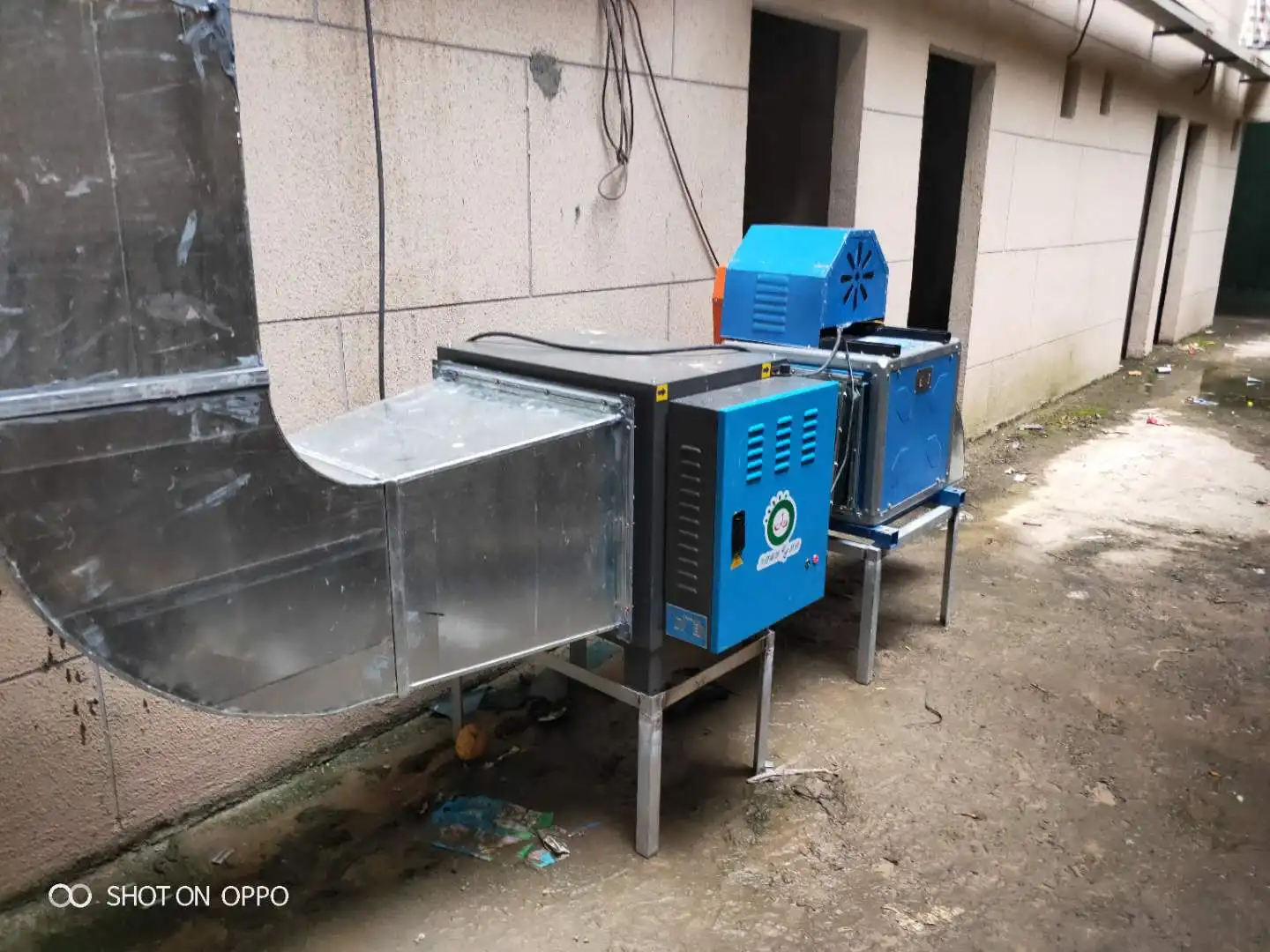

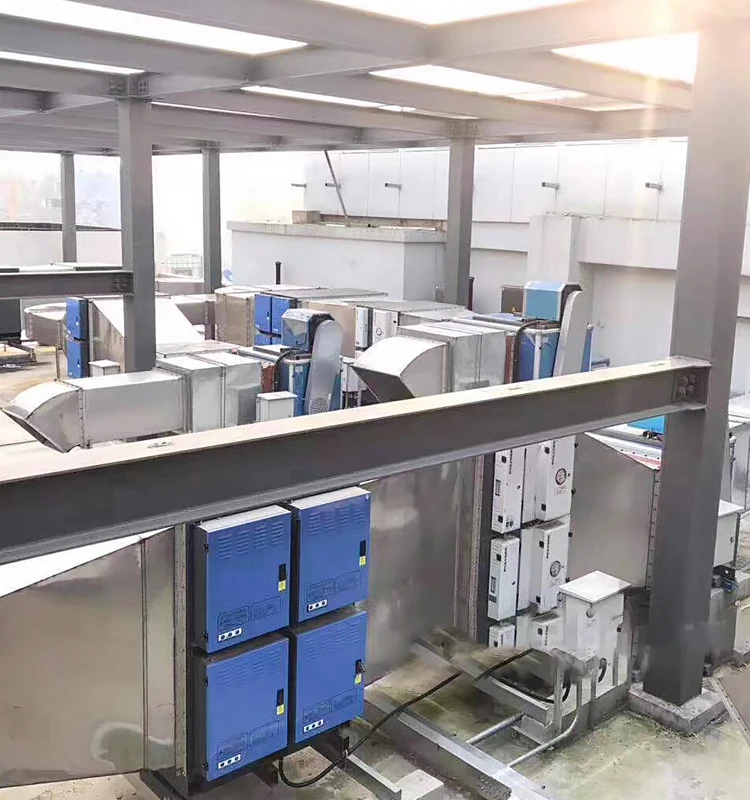

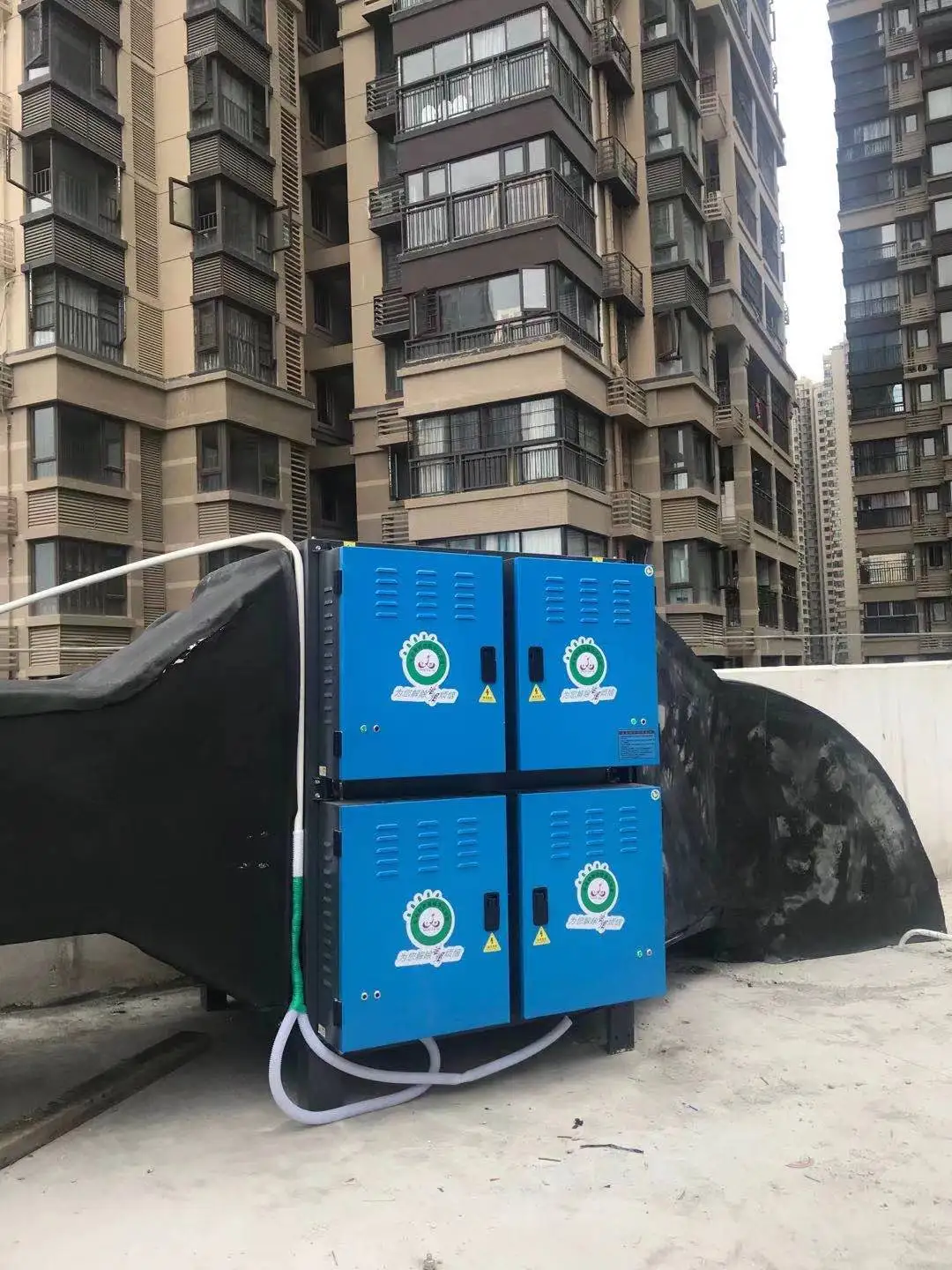

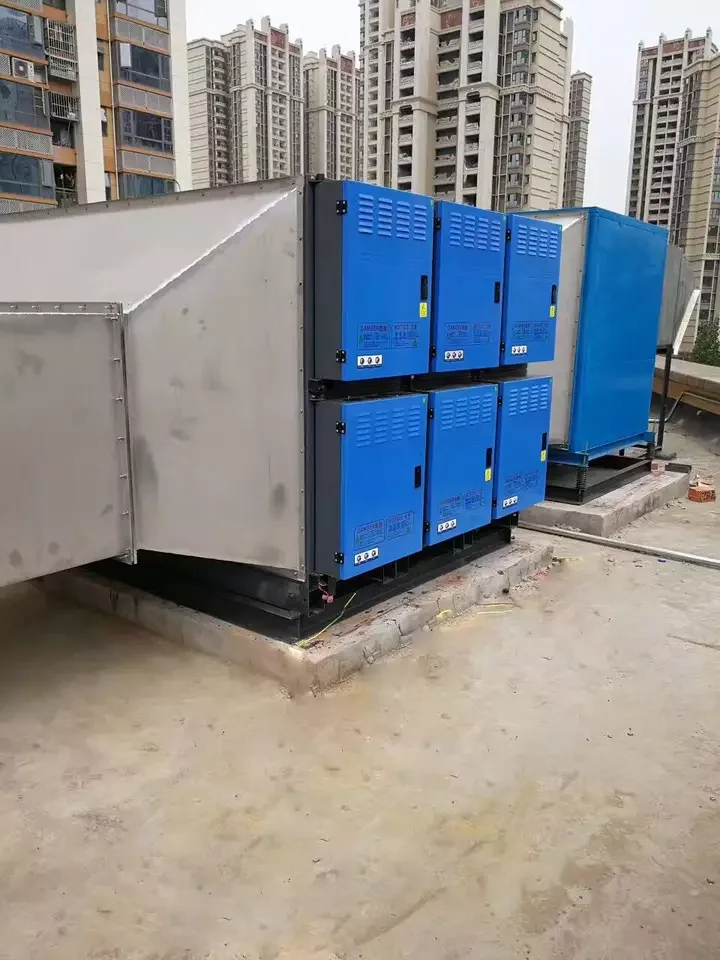

Application &Installation
How to install the electrostatic precipitator (esp)?

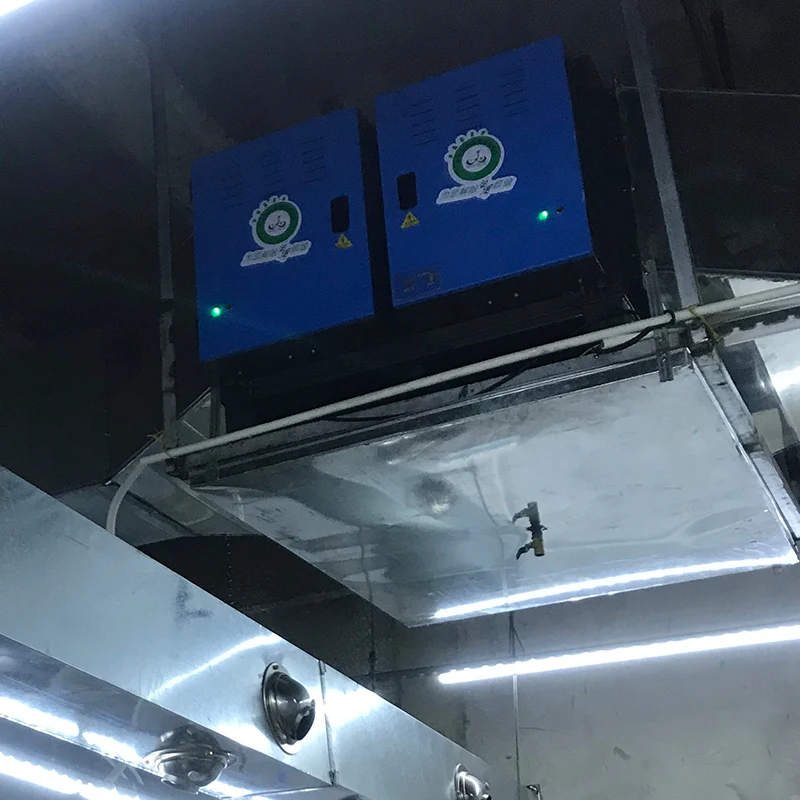

Sample drawing diagram in kitchen installation, the ESP air cleaner should be installed before exhaust fan.
Sample drawing diagram in kitchen installation, the ESP air cleaner should be installed before exhaust fan.
Recommend Products
FAQ
Q: Are you the factory or trading company?
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.
Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
