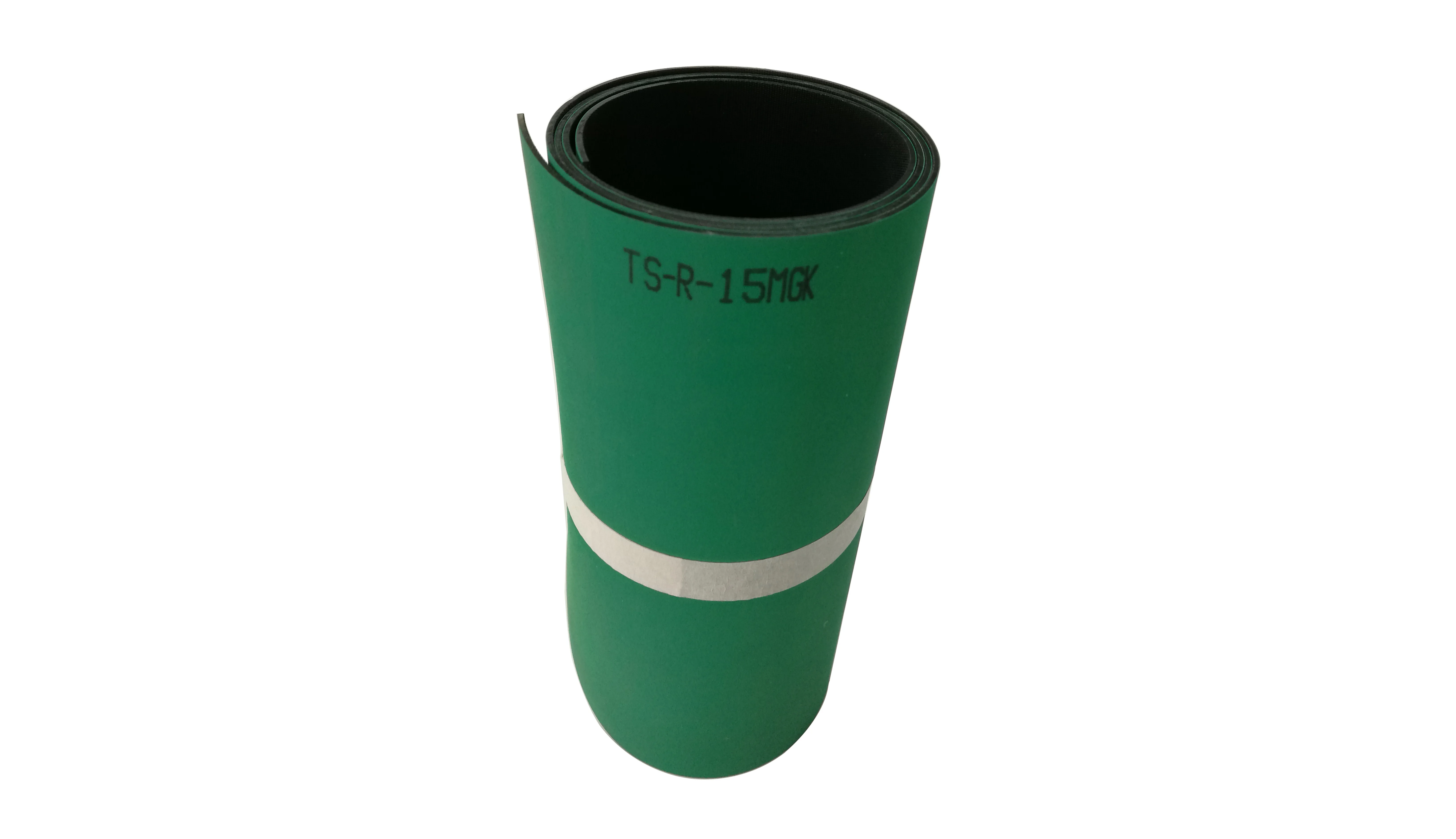

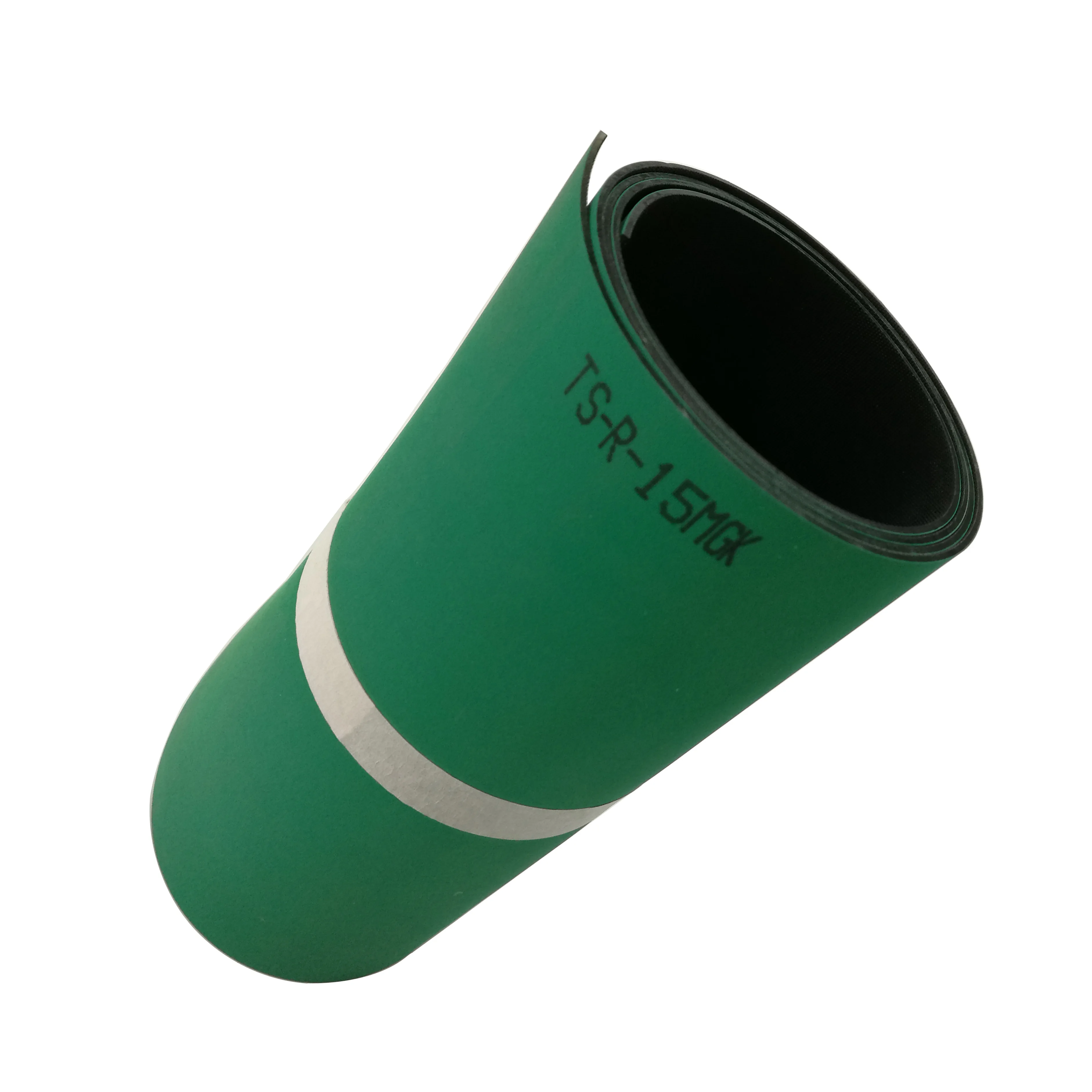

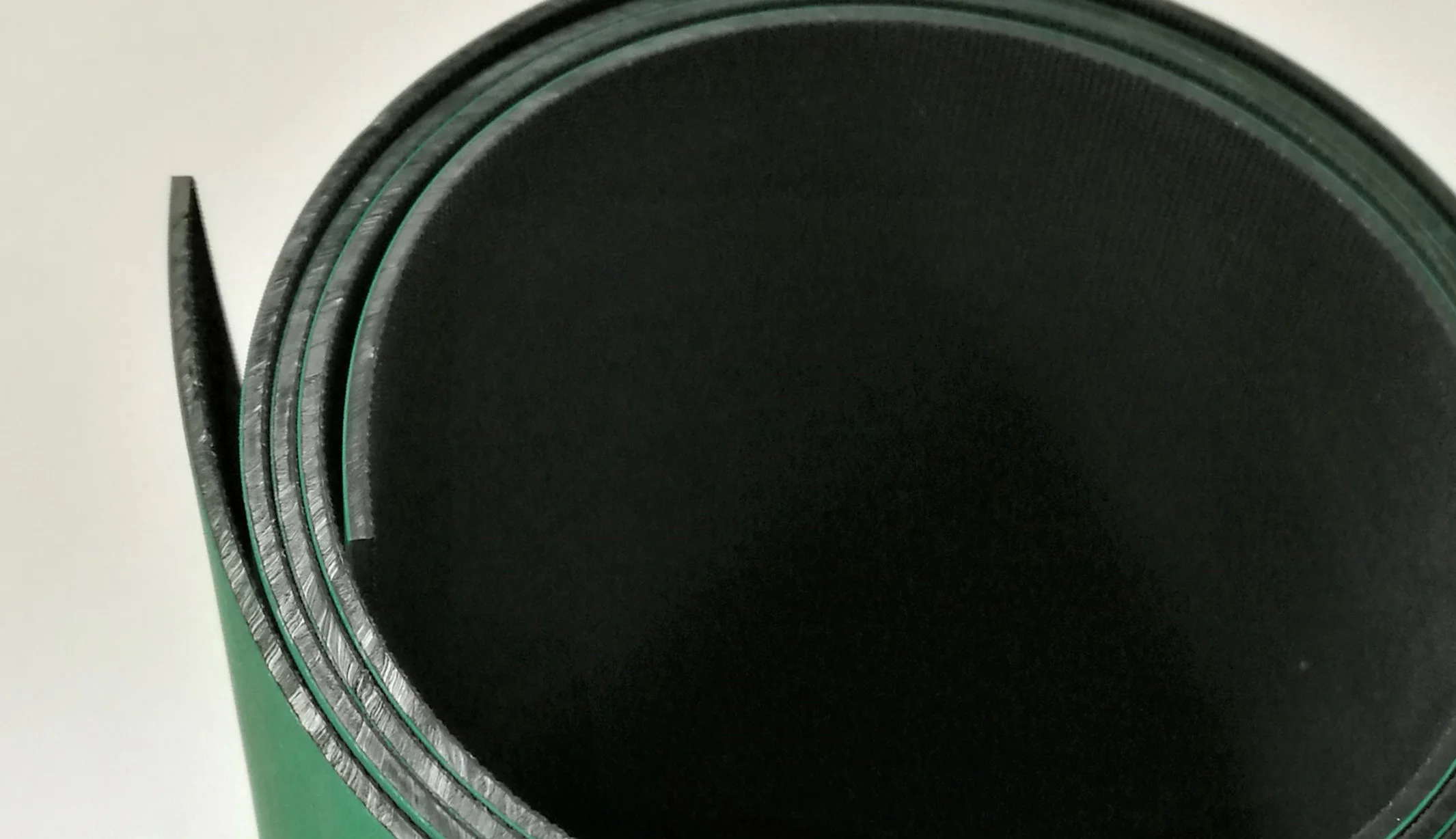

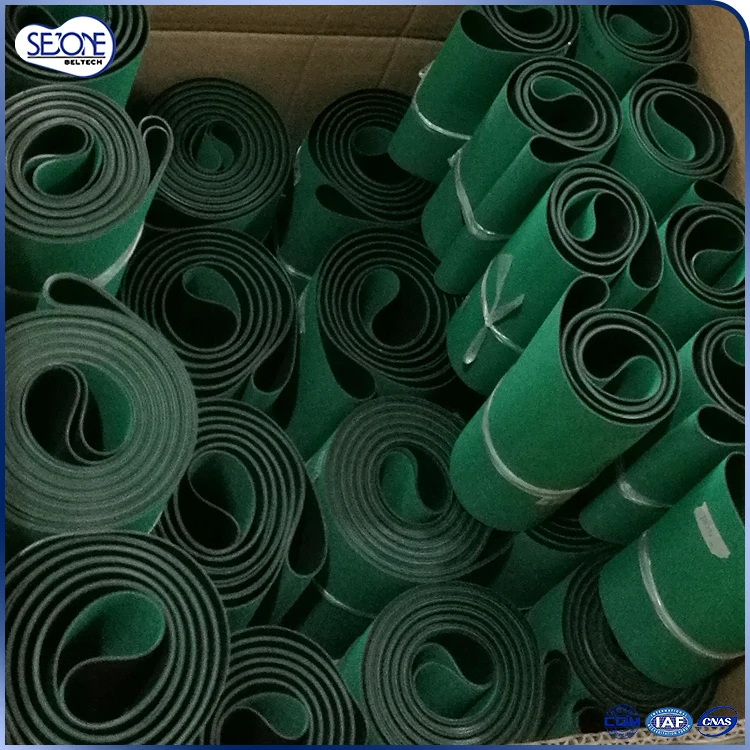

1.5mm green/black elastic belts rubber belts
- Category: >>>
- Supplier: Jiangyin Siqiang Tape Co. Ltd.
Share on (62523290430):
Product Overview
Description
PRODUCT DESCRIPTION
Technical Data

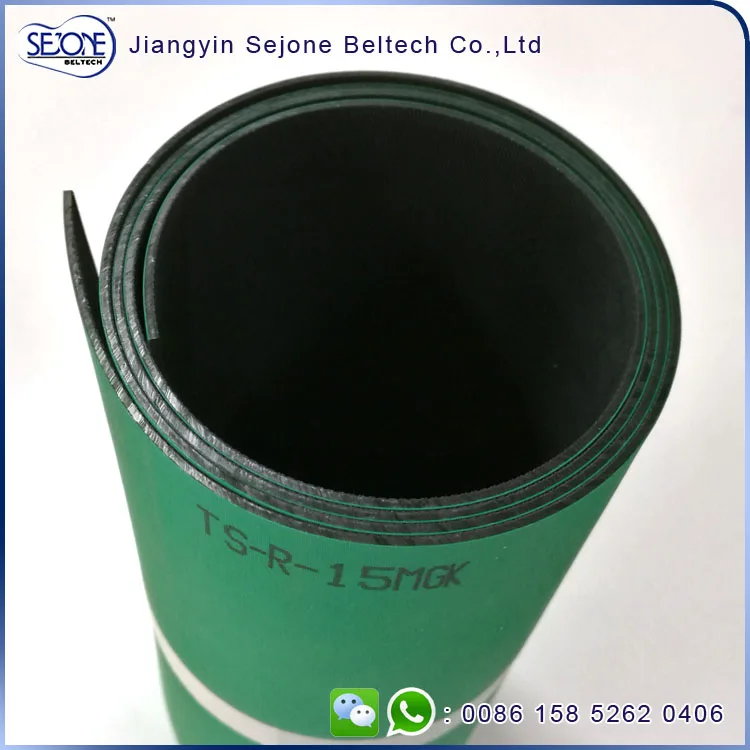

Item | TS-R-15MGK-A | Antistatic | YES |
Thickness(mm) | 1.5 | Traction Layer | TPU |
Belt Weight(kg/m2 ) | 1.55 | Friction Cover | XNBR |
Max Width (mm) | 500 | Color | Black |
1% Elongation(N/mm) | 0.79 | Reverse Cover | XNBR |
MPD(mm) | 15 | Color | Green |
Working Tempreture(°c) | -20~50 | Jointing Method | Flexproof/finger joint |
 |  |  |
| TS-10SDK | TS-10GK-A | TS-10DK-A |
1Q: Manufacturer or Trading company?
A: Manufacturer. Presently have 6 production lines, with own test center.
2Q: Location&Visit?
A: East China. 2 hour‘s drive away from Shanghai downtown; or 1 hour's bullet train. Call us, if need us pick up.
3Q: About R&D?
A: More than 0.5 million US dollars on R&D, with independent lab. Schedule of new products annually.
4Q: Material? Supplier?
A: Imported polyamide, polyester, NBR and XNBR, etc. Most suppliers authorized for 5 years more.
5Q: Customized, OEM?
A: Sure. Not only color, design, texture, but also labeling&marks.
6Q: Samples?
A: Sure. Normally 3 working days.
7Q: Quality Control?
A: Strict production flow and data to evaluate all steps; sheets track back each step.
Belt recommend
| ITEM NO. | THICK | TRAC | CONVERYING | CONVERYING | FRICTION | FRICTION | JOINING | ANTI | TEMPERA | MAX |
| NESS | TION | SIDE | SIDE | SIDE | SIDE | METHOD | STATIC | TURE | WIDTH | |
| (MM) | LAYER | COLOR | MATERIAL | COLOR | MATERIAL | (OC) | (MM) | |||
| TS-10MK-A | 1.0 | TPU | Dark Green | / | Black | XNBR | finger joint | Y | -20~50 | 500 |

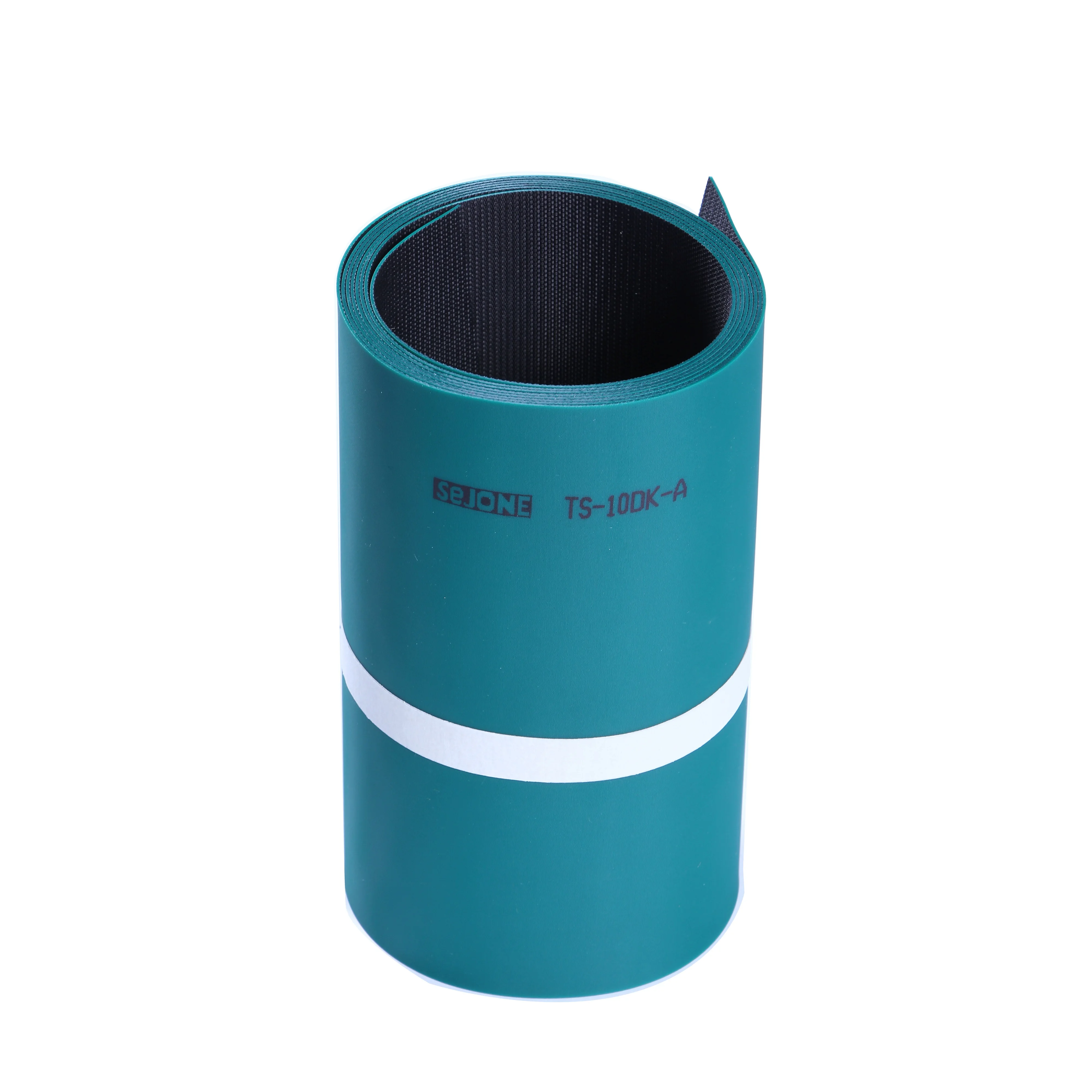

| TS-10DK-A | 1.0 | TPU | Dark Green | / | Black | XNBR | finger joint | Y | -20~50 | 500 |

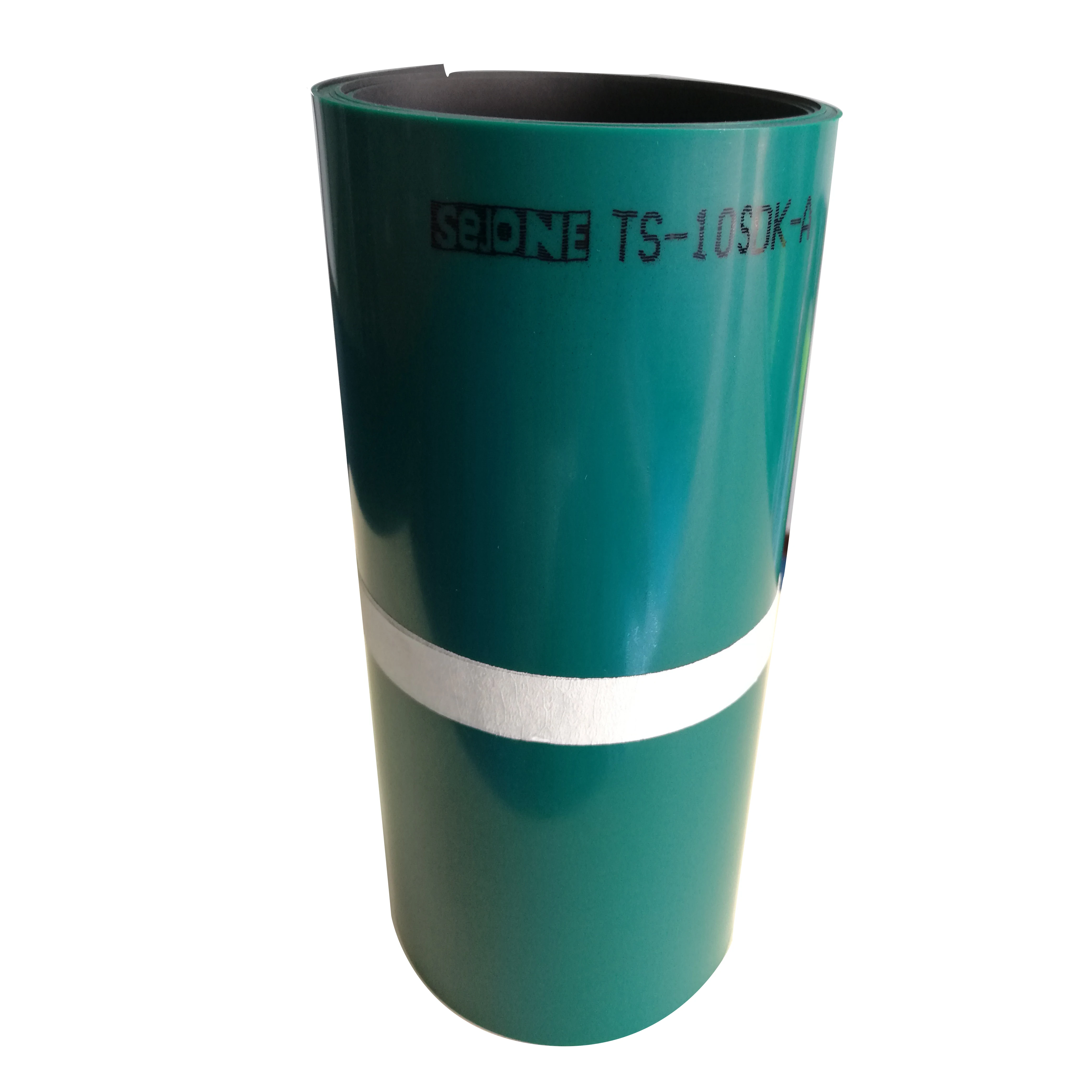

| TS-10SDK-A | 1.0 | TPU | Dark Green | / | Black | XNBR | finger joint | Y | -20~50 | 500 |

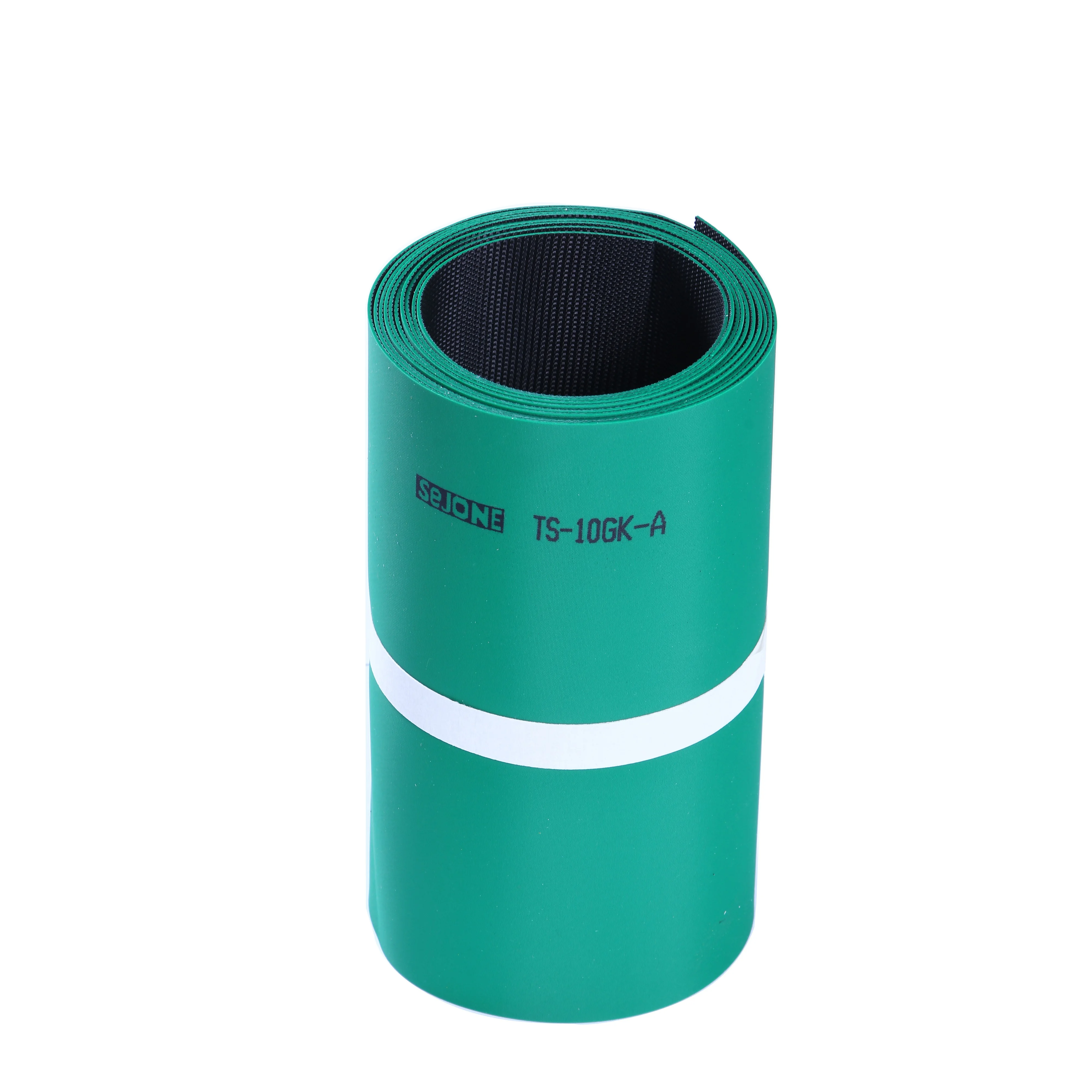

| TS-10GK-A | 1.0 | TPU | Green | / | Black | XNBR | finger joint | Y | -20~50 | 500 |
| TS-R-12GK-A | 1.2 | TPU | Green | XNBR | Black | XNBR | finger joint | Y | -20~50 | 500 |
| TS-R-15GK-A | 1.5 | TPU | Green | XNBR | Black | XNBR | finger joint | Y | -20~50 | 500 |
| TS-R-15MGK-A | 1.5 | TPU | Green | XNBR | Black | XNBR | finger joint | Y | -20~50 | 500 |
| TS-R-20GK-A | 2.0 | TPU | Green | XNBR | Black | XNBR | finger joint | Y | -20~50 | 500 |
