4S 6S 7A PCM PCB 22.2V Li ion pcba assembly pcb board LiFePO4 BMS Battery Packs
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (62523293395):
Product Overview
Description
Product Description
If you feel that this product does not meet your requirements, you can consult our staff, you can recommend or customize the lithium battery protection board you want.
Product Paramenters
Description of application effect
(Battery Management System) BMS can extend battery life and make battery work safely.
This model can be used for solar, LED lights, Emergency lights, Digital Equipment, etc.electric scooter,e-bike,tourisr sightseeing
vehicle,electric tricycle,low speed ev,emergrncy ups,solar street light,RV&home energy storage......
vehicle,electric tricycle,low speed ev,emergrncy ups,solar street light,RV&home energy storage......
Product Description
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
5.ISO9001/ISO14001/CE/ROHS certificates
6.Fast delivery
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
5.ISO9001/ISO14001/CE/ROHS certificates
6.Fast delivery
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
About the battery BMS/PCB/PCMFunction: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection andauotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality
working performance , Flexible application
( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
Mode | LWS-6S7A-053(6S) |
PCM Size | L50*W32*T5 mm |
battery series | 4s-6s Available |
working current | 7A Available |
Application | LED lights, Emergency lights, Digital Equipment, etc |
Sample | available |

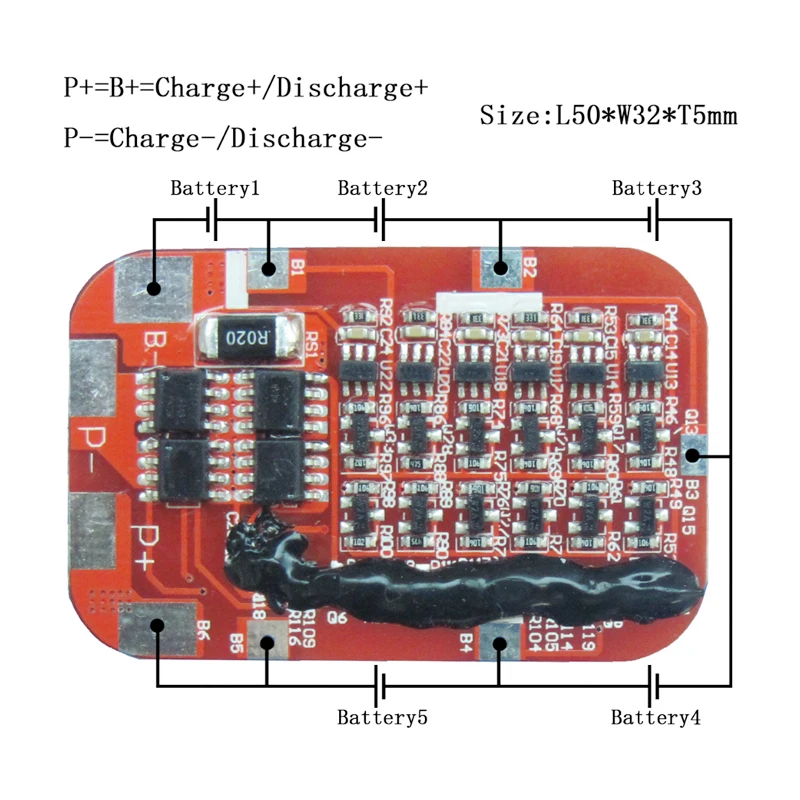

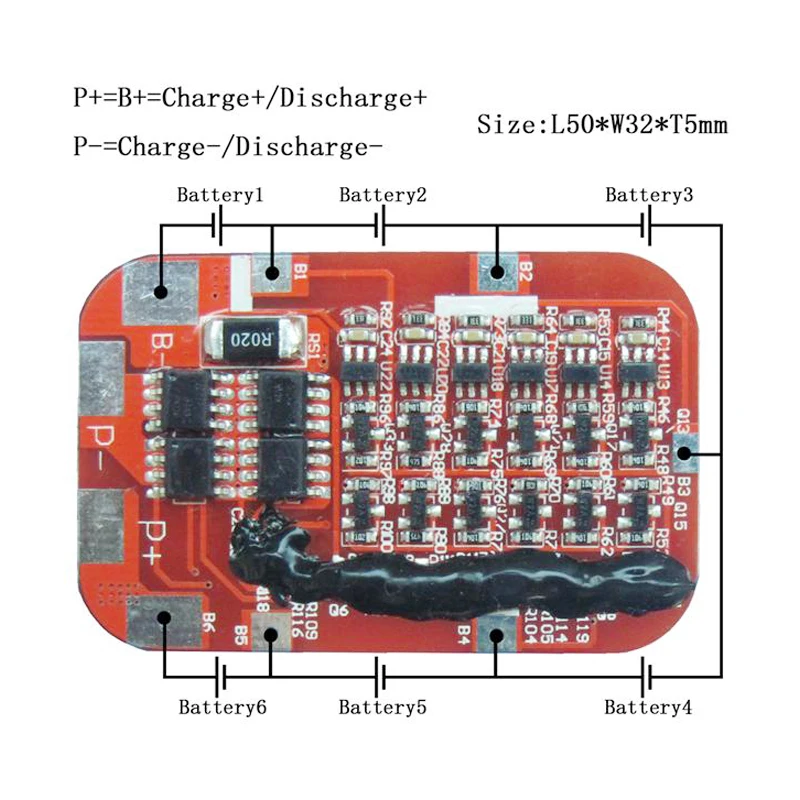

Wiring:
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2......B6; then insert the cable into the BMS;
(The maximum number of strings is 4-6 strings, the example picture is 6 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2......B6; then insert the cable into the BMS;
(The maximum number of strings is 4-6 strings, the example picture is 6 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
PCM Specifications For 19.2V（6S） LiFePO4 Battery Packs | ||||||
Model:LWS-6S7A-053(6S) | ||||||
N | Test item | Criterion | ||||
1 | Voltage | Charging voltage | DC:21.6V 3.6/Cell | |||
Balance voltage for single cell | ||||||
2 | Current | Balance current for single cell | ||||
Current consumption | ≤20μA | |||||
Maximal continuous charging current | 7A | |||||
Maximal continuous Discharging current | 7A | |||||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.90±0.025V | |||
Over charge detection delay time | 0.5S—2S | |||||
Over charge release voltage for single cell | 3.80±0.025V | |||||
4 | Over discharge protection | Over discharge detection voltage for single cell | 2.00V±0.05V | |||
Over discharge detection delay time | 10mS—200mS | |||||
Over discharge release voltage for single cell | 2.50±0.05V | |||||
5 | Over current protection | Over current detection voltage | 0.10±0.015V | |||
Over current detection current | 20±3A | |||||
Detection delay time | 5ms—15ms | |||||
Release condition | Cut load | |||||
6 | Short protection | Detection condition | Exterior short circuit | |||
Detection delay time | 200—500uS | |||||
Release condition | Cut load | |||||
7 | Resistance | Protection circuitry（MOSFET） | ≤20mΩ | |||
8 | Temperature | Operating Temperature Range | -40～+85℃ | |||
Storage Temperature Range | -40～+125℃ | |||||
Title goes here.
*Complete products contract PCB assembly and manufacturing services
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
ShenZhen LWSPCM Co;ltd -We are specialzed manufacturer in the lithium battery pack pcb/pcm/bms.
The usage ranges cover lithium battery pack (lithium metal batteries),power li-ion batteries(LiCoO2,LINiCoMnO2,LiMnO4 ,LiFePO4)
Applications for: mobile phone batteries,Laptop,Tablet PC,power tool,e-bike,electric buses,golf cart power bank etc,involved in digital products,electric vehicle,energy storing device,medical equipment and mobile illumination) and so on.
Of which,the LiFePO4 battery balanced protection board is our core products.
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
ShenZhen LWSPCM Co;ltd -We are specialzed manufacturer in the lithium battery pack pcb/pcm/bms.
The usage ranges cover lithium battery pack (lithium metal batteries),power li-ion batteries(LiCoO2,LINiCoMnO2,LiMnO4 ,LiFePO4)
Applications for: mobile phone batteries,Laptop,Tablet PC,power tool,e-bike,electric buses,golf cart power bank etc,involved in digital products,electric vehicle,energy storing device,medical equipment and mobile illumination) and so on.
Of which,the LiFePO4 battery balanced protection board is our core products.
1.after sales services
2.OEM,ODM,Customized Design
3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'needs.
We take time to listen to your unique business needs and then set out to surpass them .
Payment Term:L/C,T/T,Paypal
Can provide variouse capacity and size is per your requirements.
Packaging & Shipping
Packing: Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
2.OEM,ODM,Customized Design
3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'needs.
We take time to listen to your unique business needs and then set out to surpass them .
Payment Term:L/C,T/T,Paypal
Can provide variouse capacity and size is per your requirements.
Packaging & Shipping
Packing: Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.
LiFePO4 battery: 3.2V or 3.3V.
Li-ion or Li-polymer battery: 3.6V or 3.7V.
LTO battery: 2.3V or 2.4V.
Q: How to choose a suitable BMS/PCM for my battery packs?
A: Please tell us following required details and we will advice for you:
Battery material & Battery series & Capacity & working current & Application
(For example: LiFePO4 BMS, 13 series, charge 40A, discharge 40A, application for e-bike 1800W.)
Q: Do you have Minimum Order Requirement (MOQ)?
A: Small PCM: 10 PCS MOQ; Large PCM: 1 PCS MOQ.
Sample orders or bulk orders are all welcome.
Q: Can I require products size?
A: We can provide various size and specification is per your requirements, also ODM / OEM is welcome.
A: Please take a look at the battery body.
LiFePO4 battery: 3.2V or 3.3V.
Li-ion or Li-polymer battery: 3.6V or 3.7V.
LTO battery: 2.3V or 2.4V.
Q: How to choose a suitable BMS/PCM for my battery packs?
A: Please tell us following required details and we will advice for you:
Battery material & Battery series & Capacity & working current & Application
(For example: LiFePO4 BMS, 13 series, charge 40A, discharge 40A, application for e-bike 1800W.)
Q: Do you have Minimum Order Requirement (MOQ)?
A: Small PCM: 10 PCS MOQ; Large PCM: 1 PCS MOQ.
Sample orders or bulk orders are all welcome.
Q: Can I require products size?
A: We can provide various size and specification is per your requirements, also ODM / OEM is welcome.
