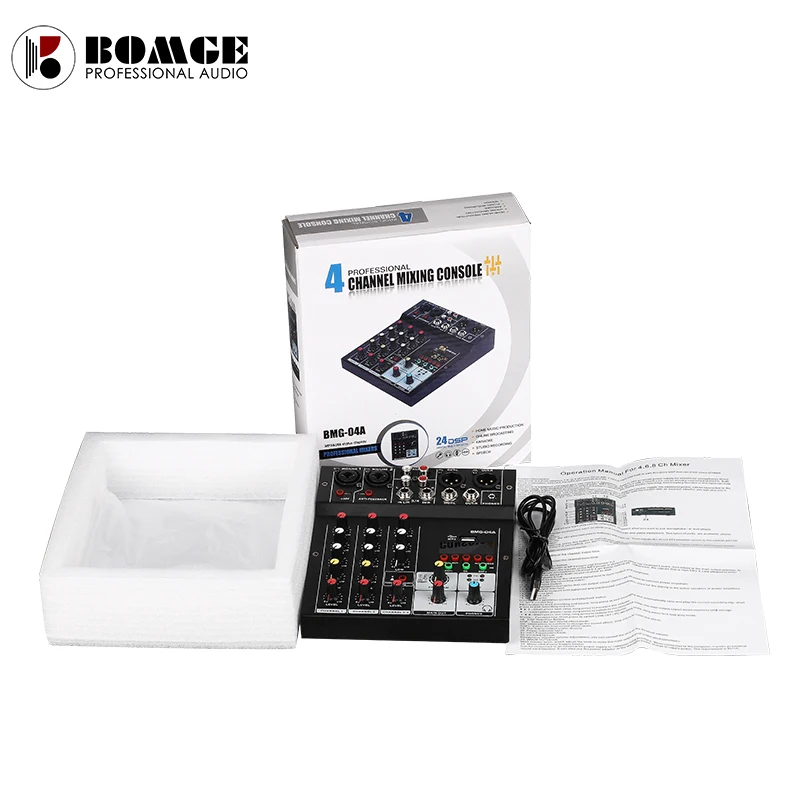

BMG 24 DSP usb blueteeth sound audio mixer audio mixing console 5V power supply by usb buses and mobile charger
- Category: >>>
- Supplier: Enping Xiehe Audio Equipment Factory
Share on (62523372153):
Product Overview
Description
4 channel usb blueteeth sound audio mixer mixing console 5V power supply directly powered by usb buses and mobile charger
Header
Product Features

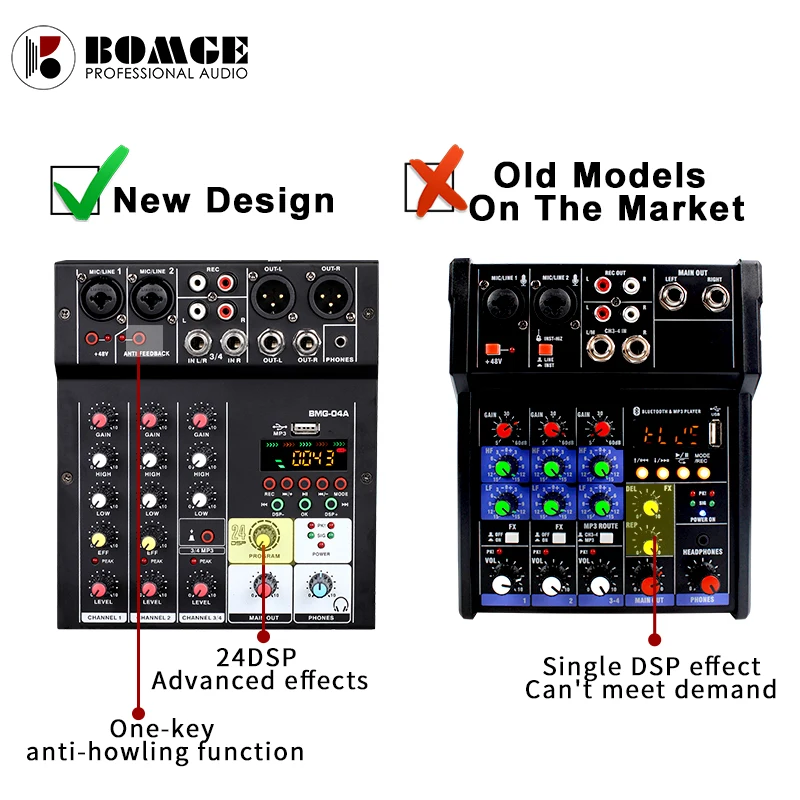

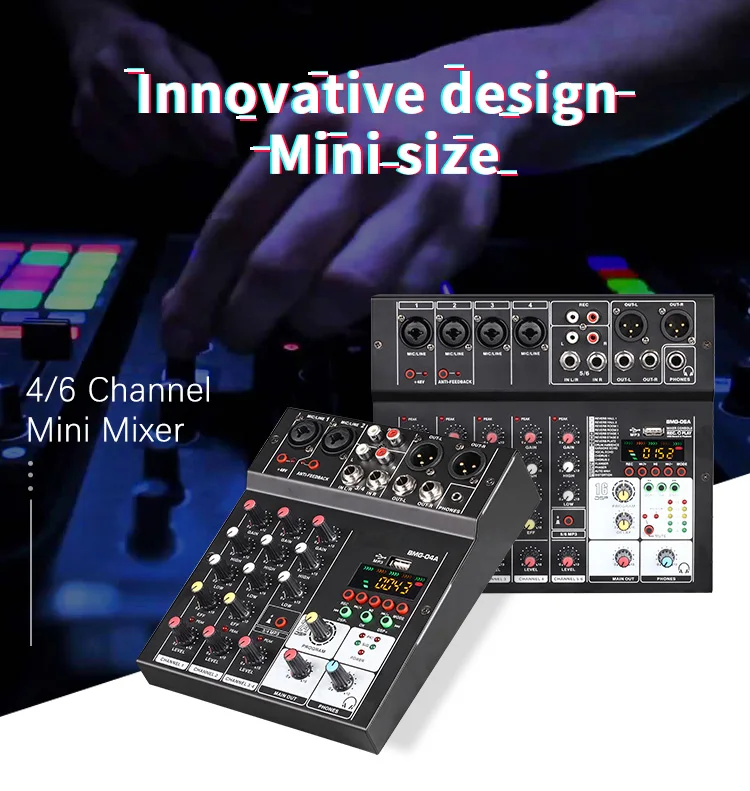

4/6 channel mixer (With 2 Mic/Line or 4 Mic/Line for)
Mic input channel with EQ and Effect

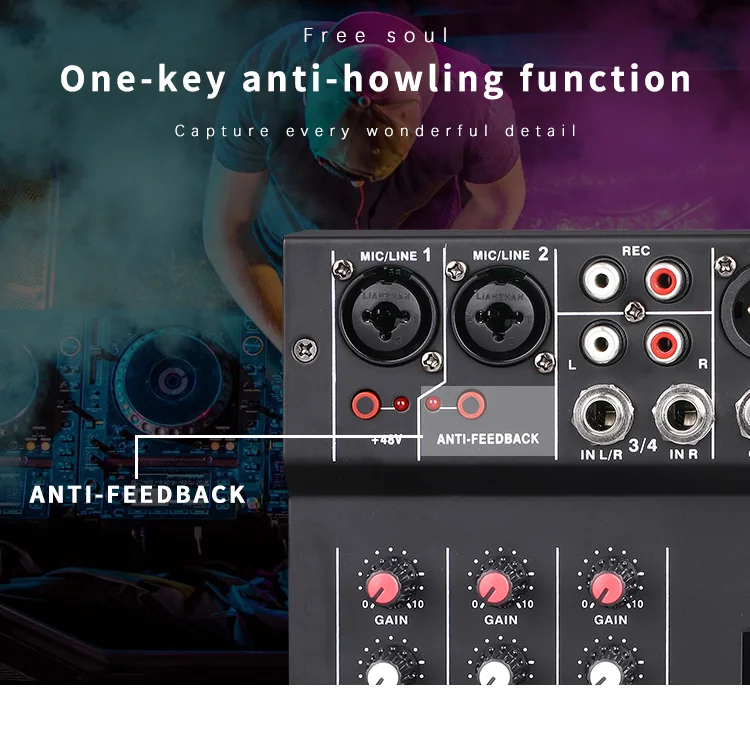

Mic input channel with Anti-Feedback function to avoid the noise.

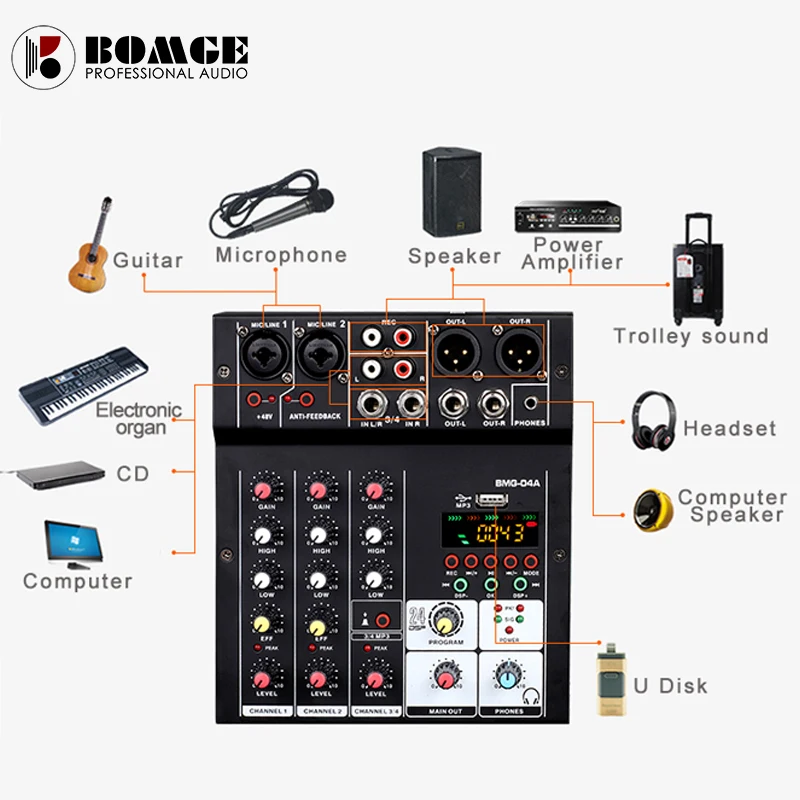

2 kinds of Jack(6.35+RCA) on stereo input channel
2 kinds of master Output (XLR + 6.35Jack)
Built-in Blueteeth, connect with mobile phone or another Blueteeth player

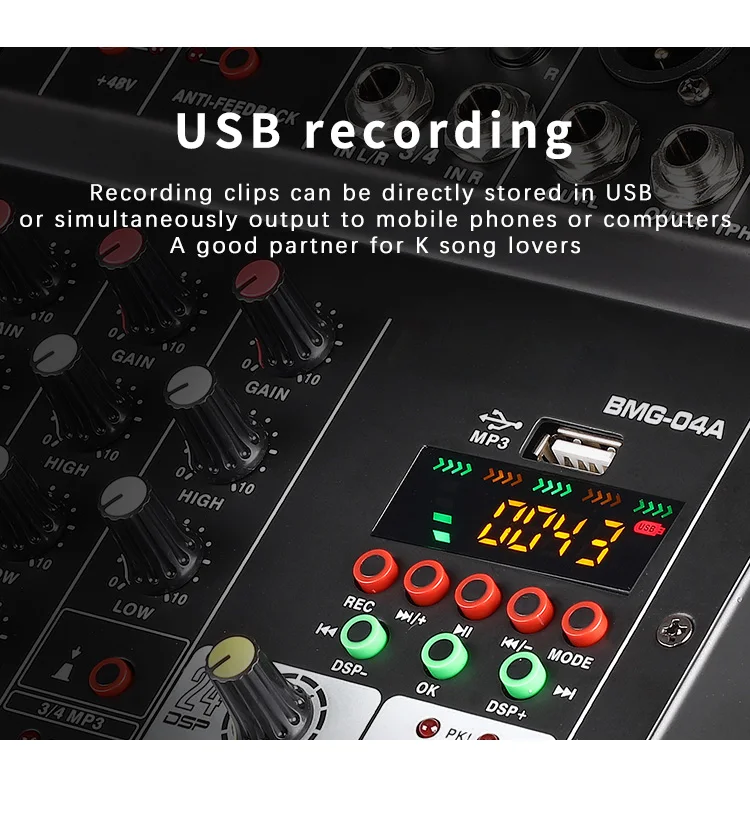

Built-in MP3 player to play music in multiple formats and record, with LED display
Connect USB to PC to play and record the music

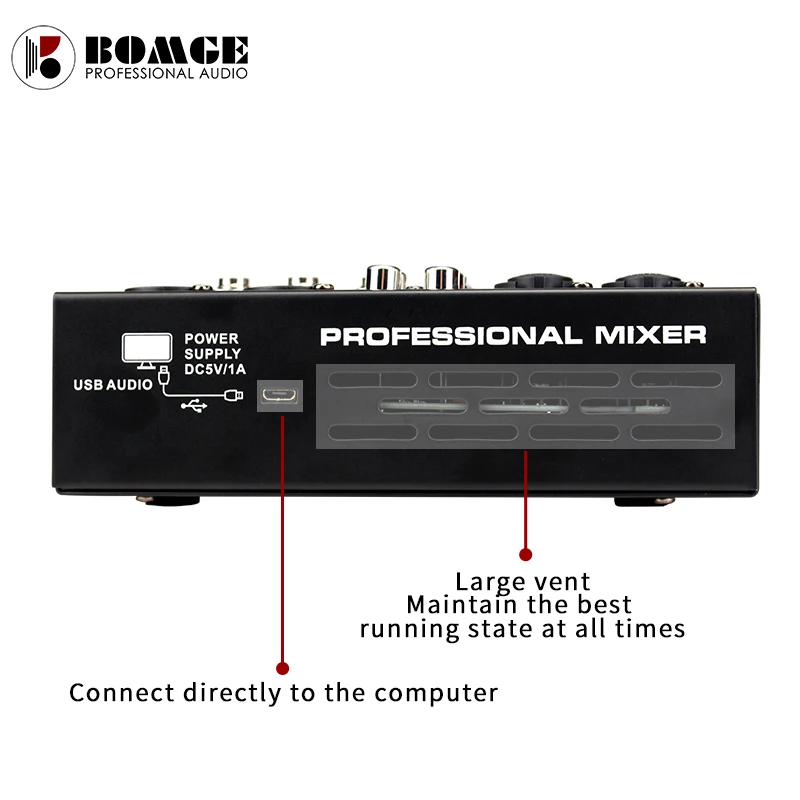

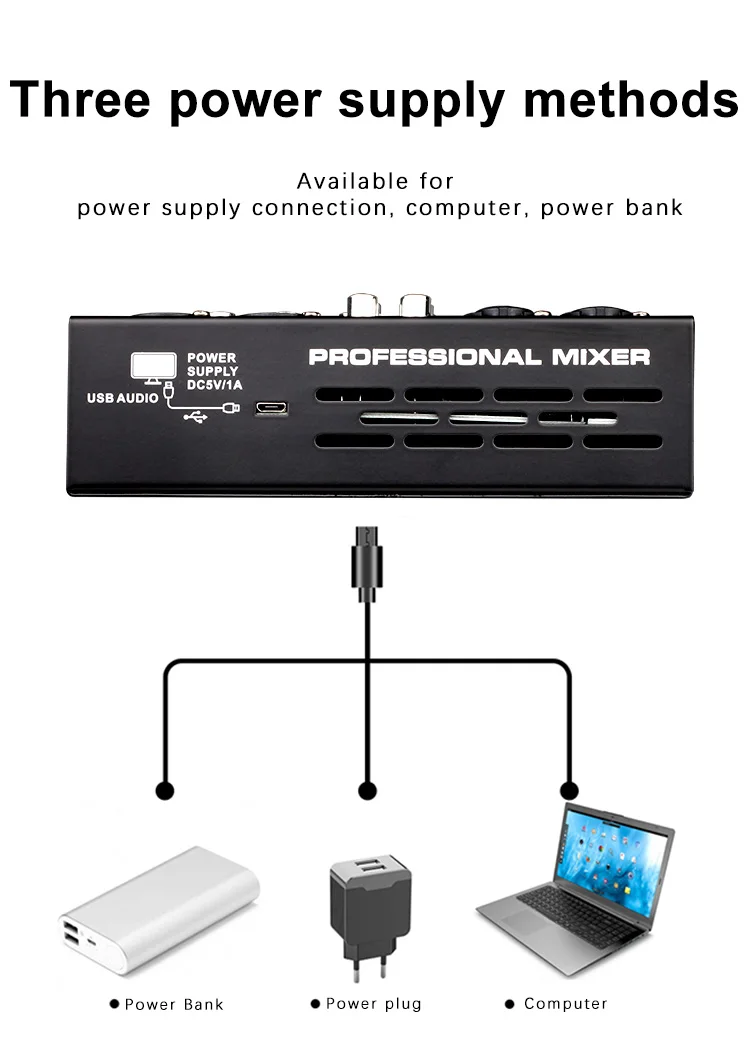

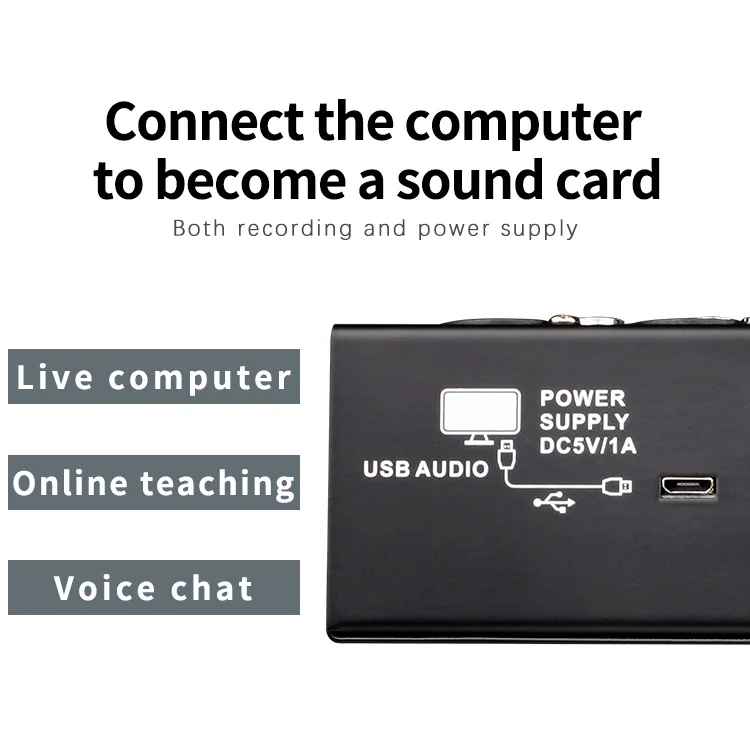

Connect USB to PC or power bank for supplying power, convenience for mobile audio connection and outdoor guitar playing and singing
CTRL/Phones outputs, providing maximum audio monitoring flexibility
Built-in 24 DSP
Built-in stereo equalizer
Built-in 48V phantom power for condenser microphone input
DC 5V/1A power supply, or PC power supply
Mic input channel with EQ and Effect
Mic input channel with Anti-Feedback function to avoid the noise.
2 kinds of Jack(6.35+RCA) on stereo input channel
2 kinds of master Output (XLR + 6.35Jack)
Built-in Blueteeth, connect with mobile phone or another Blueteeth player
Built-in MP3 player to play music in multiple formats and record, with LED display
Connect USB to PC to play and record the music
Connect USB to PC or power bank for supplying power, convenience for mobile audio connection and outdoor guitar playing and singing
CTRL/Phones outputs, providing maximum audio monitoring flexibility
Built-in 24 DSP
Built-in stereo equalizer
Built-in 48V phantom power for condenser microphone input
DC 5V/1A power supply, or PC power supply
Specification
| Model | BMG-04A |
| Mono Input Channels | 2 |
| Stereo Output Channels | 2 |
| Microphone Interface Phantom Power | +48V |
| Frequency Response | -20Hz~20KHz ±1dB |
| Total Harmonic Distortion | <-0.005% |
| Signal to noise ratio(S/N) | >78dB @ 1KHz 0dB |
| Channel Crosstalk | ≥80dB @ 1KHz |
| Gain Control | Mono -51dB~0dB; Stereo -26dB~0dB |
| Earphone output | 12dB±1.5dB @ 1KHz 32Ω |
| Aux Maximum Unbalanced Output | 19dB±1.5dB |
| Gain Difference between each Channel | ≤2dB |
| Effector | 24 DSP |
| Channel Clipping Indicator | 3dB clipping level ahead instruction |
| Power Supply | 110~240 V |
| Power Output | NO |
| Net Weight | 1 KG |
| MP3/USB/SD Card | YES |
| Blueteeth Player | YES |
| Audio Recording | YES |
