Product Overview
Description
Ningbo Ruyi Joint Stock Co. Ltd.
Ruyi has been dedicated to the manufacture of the warehousing logistics equipment and the main products can be classified intothe following series,electric pallet truck,electric stacker,order picker,narrow aisle truck,electric tow tractor,hand pallet truck,manual stacker , lift table and forklift.

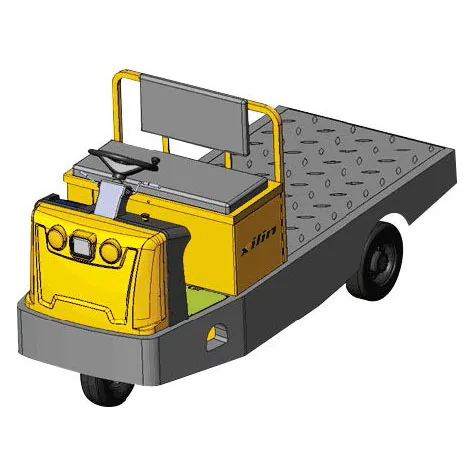

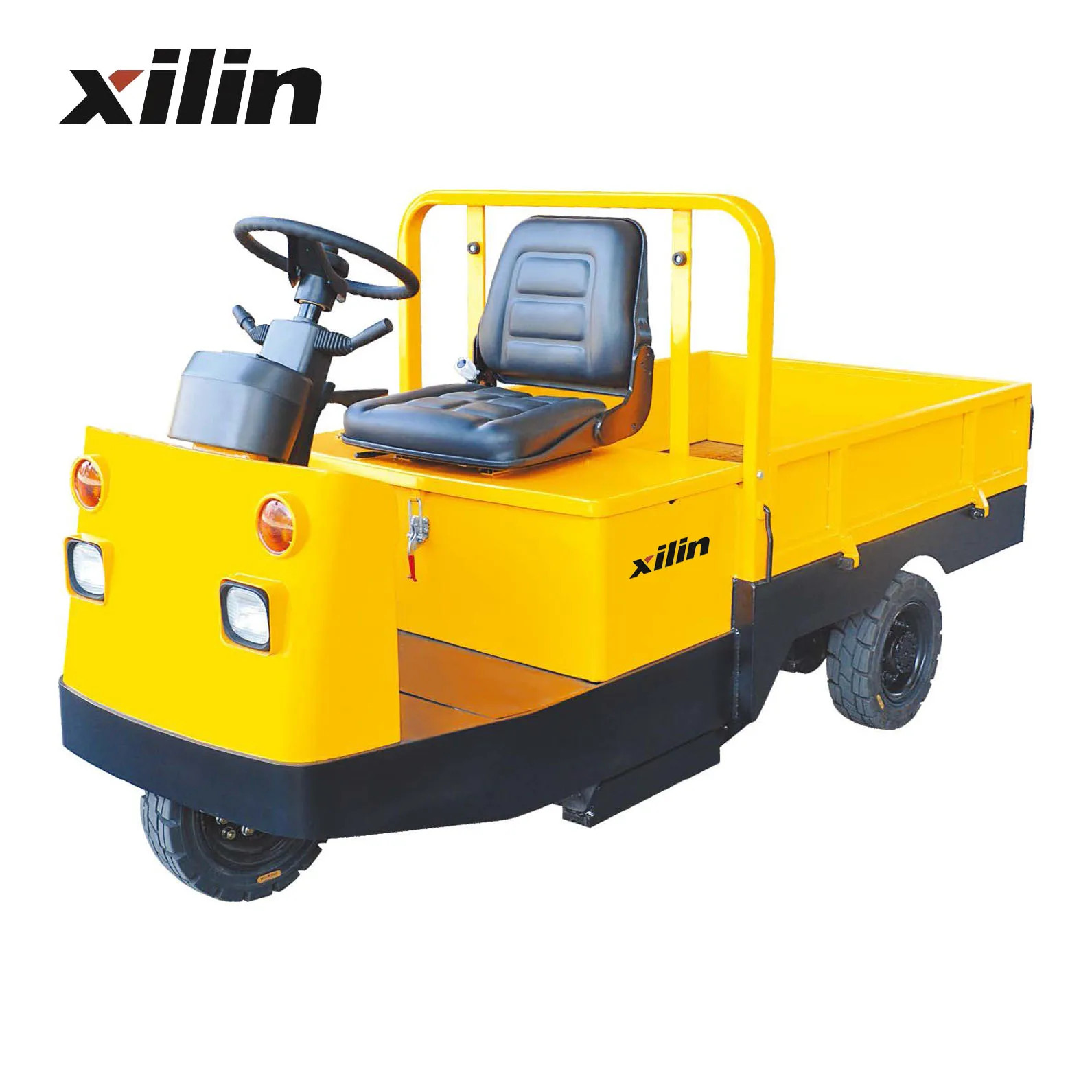

Xilin 1000kg 1500kg 2000kg Electric Platform Truck 1/1.5/2ton Electric Tow Tractor

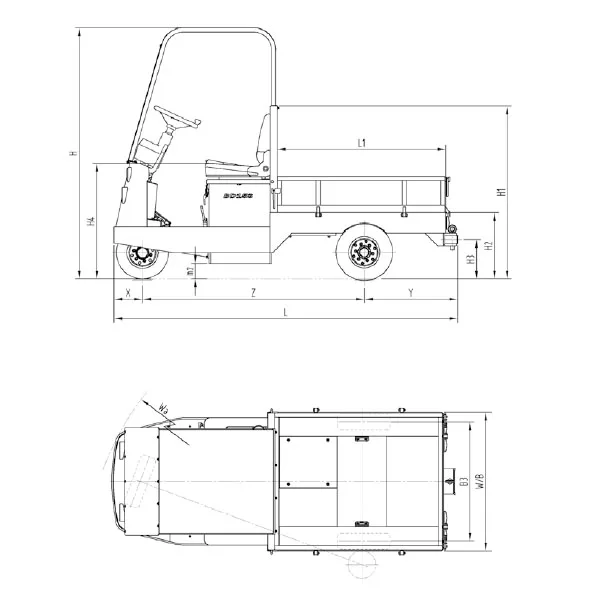

Model | BD10S | BD15S | BD10SE | BD20SE | ||||
Drive type | battery | battery | battery | battery | ||||
Load capacity | Q(kg) | 1000 | 1500 | 1000 | 2000 | |||
Length of loading surface | L1(mm) | 1220 | ||||||
Width of loading surface | W(mm) | 1000 | ||||||
Loading height,unladen | H2(mm) | 460 | 480 | 500 | 500 | |||
Towing height | H3(mm) | 260 | 280 | ~ | ~ | |||
Seat height/stand height | H4(mm) | 835 | 835 | 940 | 940 | |||
Overall length | L(mm) | 2485 | 2485 | 2410 | 2410 | |||
Overall width | B(mm) | 1000 | ||||||
height(standard) | H(mm) | 1240 | 1250 | 1290 | 1290 | |||
Turning radius | Wa(mm) | 1998 | 1998 | 1900 | 1900 | |||
Travel speed,laden/unladen | Km/h | 12/13 | 10/13 | 7/11 | 6.5/10 | |||
Battery voltage,nominal capacity K5 | V/Ah | 48/240 | 48/270 | 36/200 | 36/250 | |||
Service weight(with battery) | kg | 980 | 1080 | 780 | 880 | |||
Model | BD10S | BD15S | BD10SE | BD20SE | ||||
Drive type | battery | battery | battery | battery | ||||
Load capacity | Q(lbs) | 2200 | 3300 | 2200 | 4410 | |||
Length of loading surface | L1(inch) | 48 | ||||||
Width of loading surface | W(inch) | 39.4 | ||||||
Loading height,unladen | H2(inch) | 18.1 | 18.9 | 19.7 | 19.7 | |||
Towing height | H3(inch) | 10.2 | 11 | ~ | ~ | |||
Seat height/stand height | H4(inch) | 32.9 | 32.9 | 37 | 37 | |||
Overall length | L(inch) | 97.8 | 97.8 | 94.9 | 94.9 | |||
Overall width | B(inch) | 39.4 | ||||||
height(standard) | H(inch) | 48.8 | 49.2 | 50.8 | 50.8 | |||
Turning radius | Wa(inch) | 78.6 | 78.6 | 74.8 | 74.8 | |||
Travel speed,laden/unladen | Km/h | 12/13 | 10/31 | 7/11 | 6.5/10 | |||
Battery voltage,nominal capacity K5 | V/Ah | 48/240 | 48/270 | 36/200 | 36/250 | |||
Service weight(with battery) | lbs | 2160 | 2380 | 1720 | 1940 | |||
