Product Overview
Description
Our Company
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. Main clients are around Southeast Asia,Mid East and South America. Welcome to visit our factory and sent inquiry to us.
Product Description
Product Application
Factory selling electric rock splitting machine portable breaking stone splitter 600T force
is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it into pieces within several seconds
Factory selling electric rock splitting machine portable breaking stone splitter 600T force Techanical Parameters:
Rock /stone splittler with hydraulic Gun | ||||||||||||
Model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 | ||||||
Piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm | ||||||
Drilling diameter | 42mm | 45mm | 50mm | 42mm | 45mm | 50mm | ||||||
Drilling depth | 500mm | 550mm | 600mm | 500mm | 550mm | 600mm | ||||||
The length of the wedge | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm | ||||||
Crack width | 10-40mm | 10-40mm | 10-40mm | 10-40mm | 10-40mm | 10-40mm | ||||||
Splitting time | 5-15s | 5-15s | 5-15s | 5-15s | 5-15s | 5-15s | ||||||
Theoretical splitting force | 600T | 600T | 600T | 800T | 800T | 800T | ||||||
The actual splitting force | 480T | 480T | 480T | 480T | 480T | 480T | ||||||
Weight | 28kg | 29kg | 30kg | 31kg | 32kg | 33kg | ||||||
Pump pack parameters | ||||||||||||
Engine | Electric engine | Gasoline engine | ||||||||||
Weight | 60kg | 110kg | 150kg | 100kg | 130kg | 150kg | ||||||
Capacity of tank | 40L | 60L | 88L | 45L | 65L | 90L | ||||||
Motor power | 3.0KW | 5.5KW | 7.5KW | 4Hp | 7Hp | 7.8Hp | ||||||
Working pressure (Mpa) | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | ||||||
Working Flux(L/m) | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 | ||||||
Configurable gun number | 1-5 | 2-7 | 2-10 | 1-3 | 3-8 | 3-10 | ||||||
Detailed Images

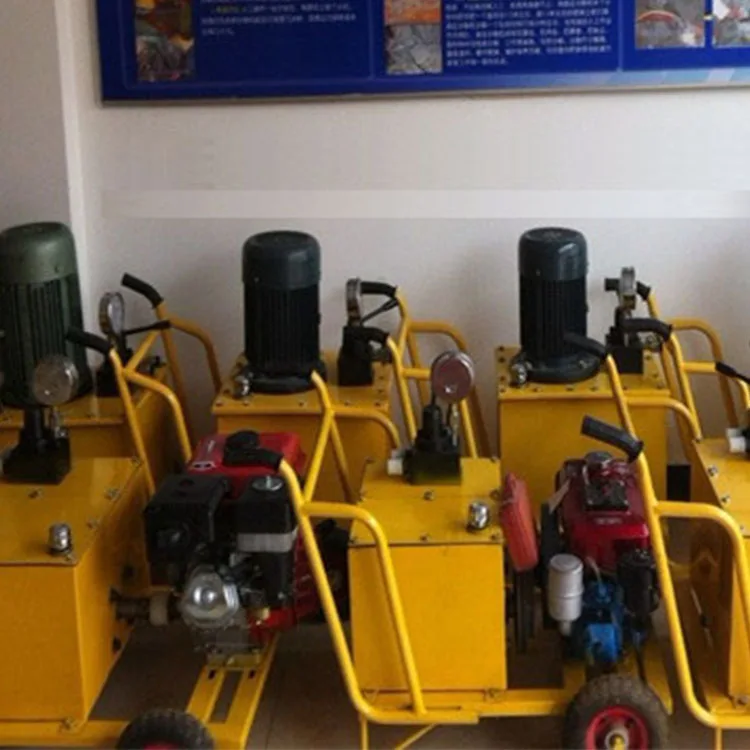

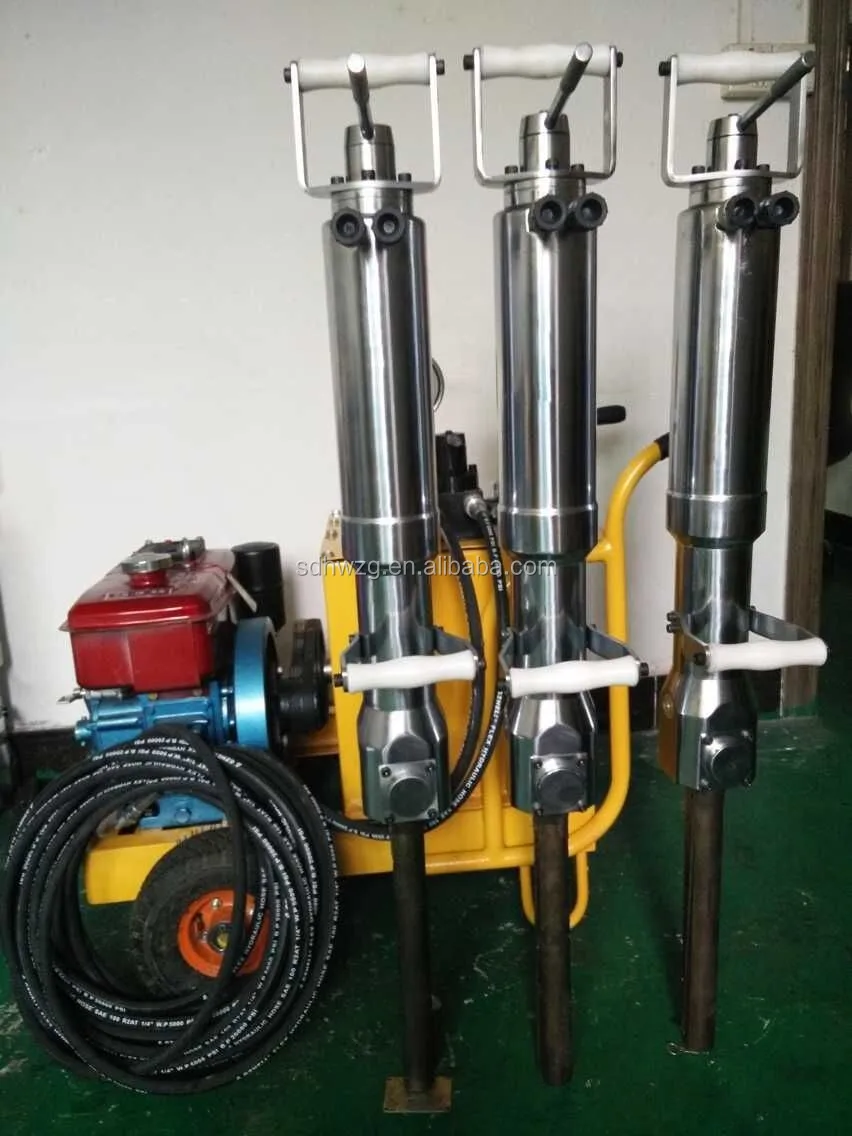

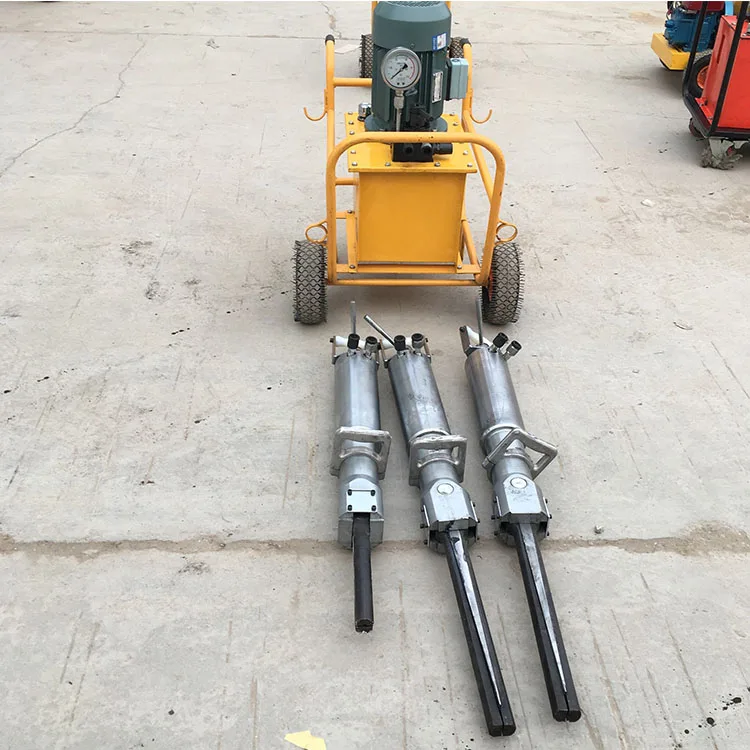

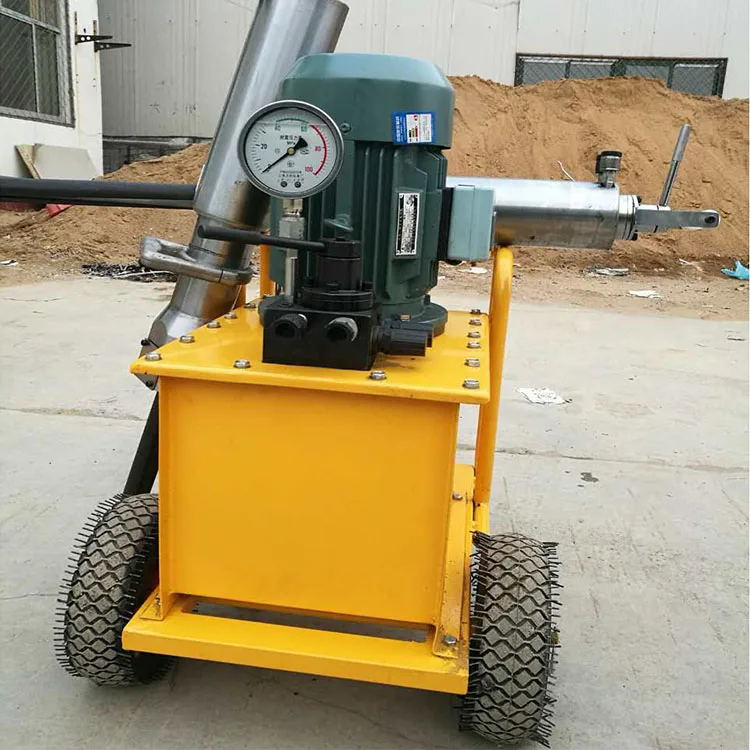

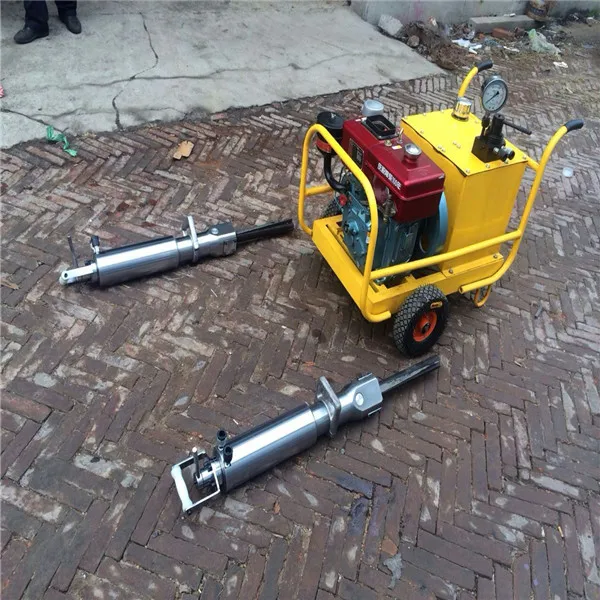

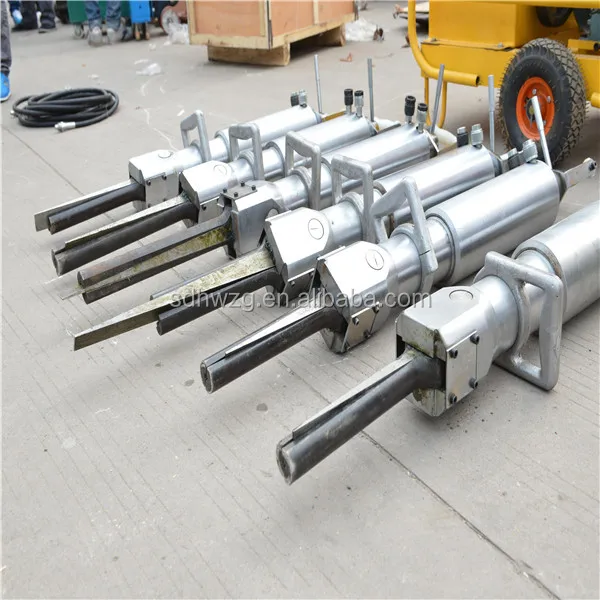

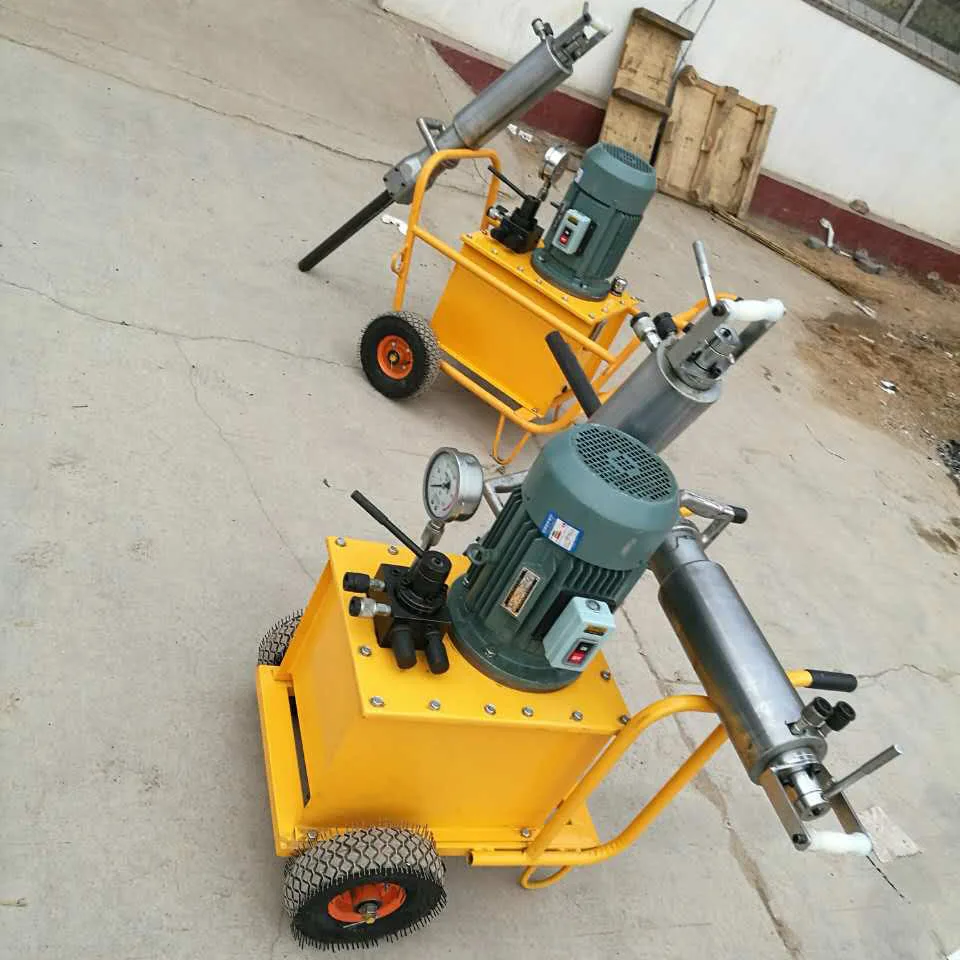

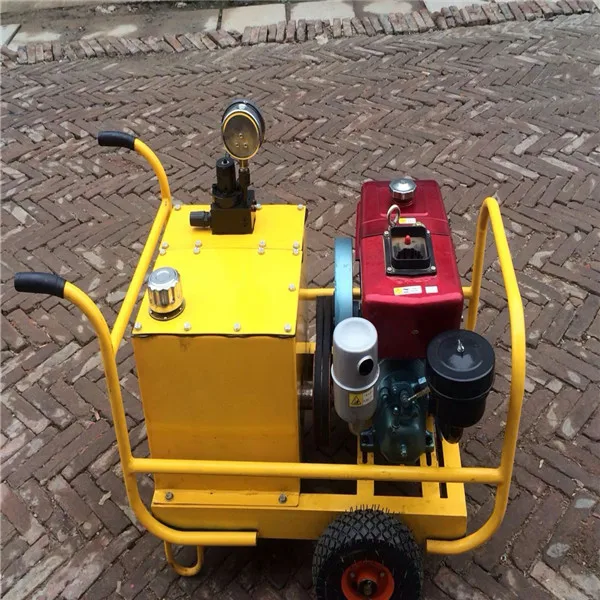

Factory selling electric rock splitting machine portable breaking stone splitter 600T force Pictures:

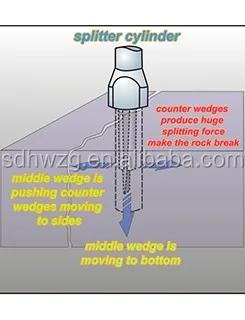

Factory selling electric rock splitting machine portable breaking stone splitter 600T force Working Principle :

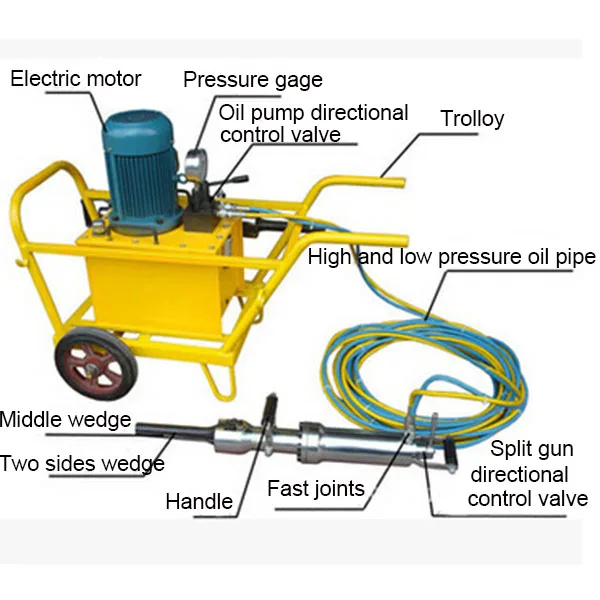

Factory selling electric rock splitting machine portable breaking stone splitter 600T force with splitter cylinder (1-10pcs option)

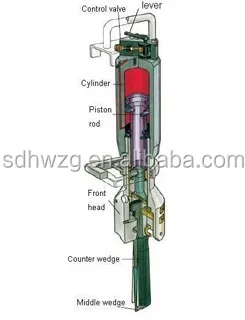

Splitter cylinder ( including two counter wedge + one middle wedge)
1 Counter wedges produce hyge spliting force make hte rock break
2 middle wedge is pushing counter wedges moving to sides
3 middle wedge is moving to bottom
