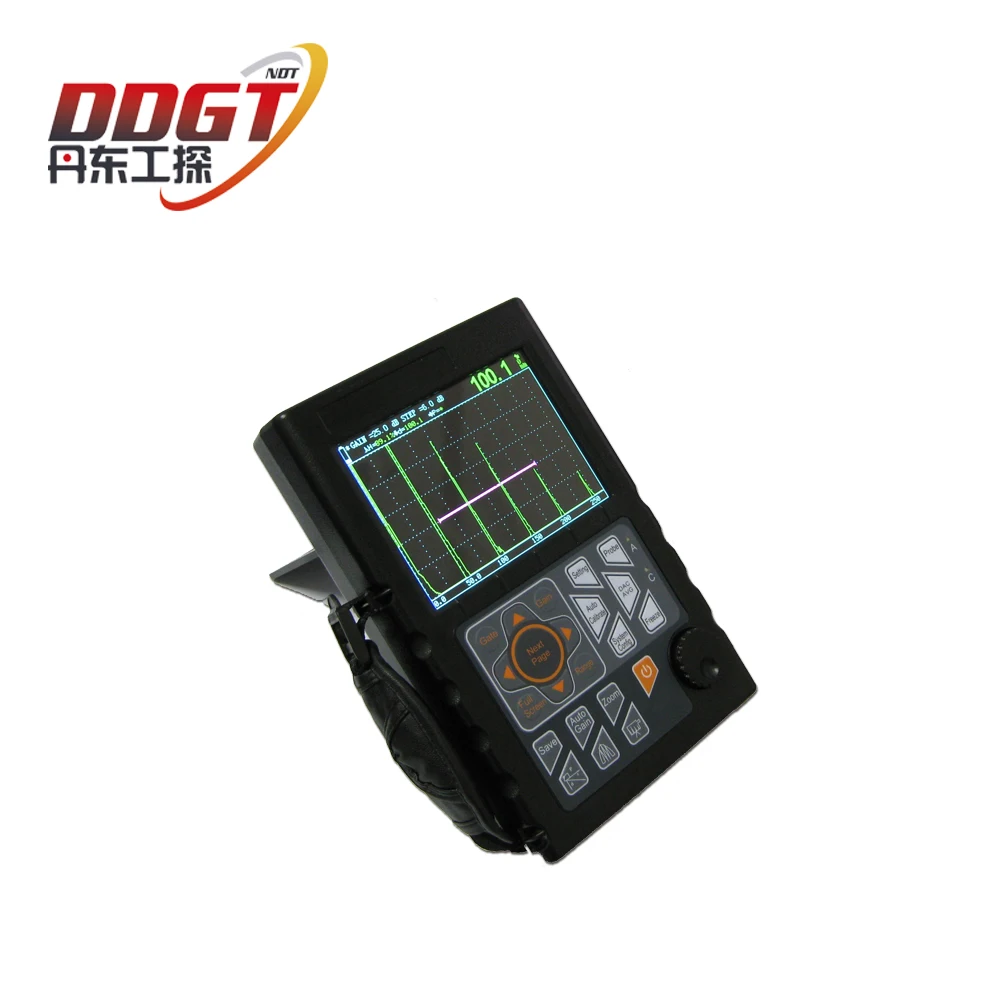

DDGTNDT Equipment High Precision Portable Digital Ultrasonic Flaw Detector DGT FD800 B scan with Communication software for PC
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (62523890829):
Product Overview
Description
Product Description

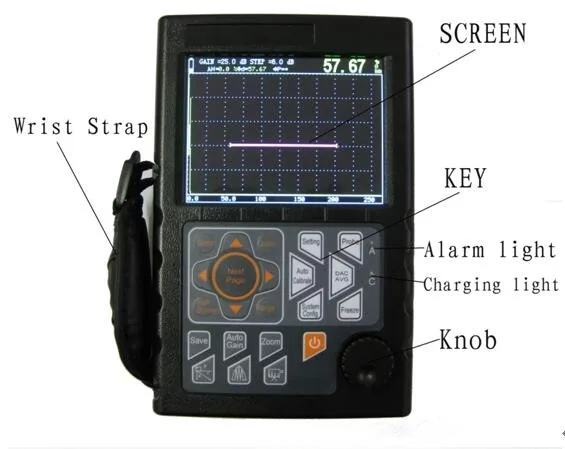

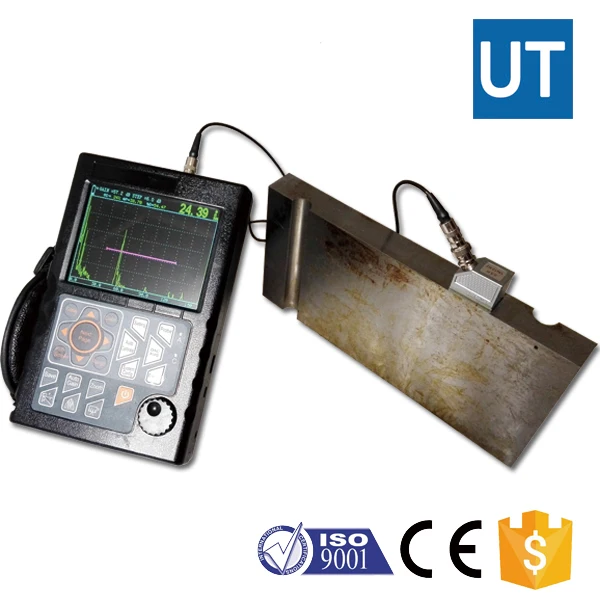

DGT-FD800 Ultrasonic Flaw Detector
Features
* Automated display precise flaw location(Depth d,levelp,distance s,amplitude,sz dB,ф);
* Automated switch three staff gauge ((Depth d ,level p,distance s);
* Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
* Convenient to make and use DAC\\TCG and AVG to evaluate the echo, the curve can be modified and compensated
* 6dB DAC functions;
* 100 independence setup, any criterion can be input freely, we can work in the scene without test block;
* Big memory of 1000 A graph
* Automated gain and gain scan;
* Peak Hold and Peak Memory；
* B scan;
* AWS D1.1
* Automated make video of test process and play; use upan ，the length of video is unlimited.
* Automated switch three staff gauge ((Depth d ,level p,distance s);
* Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
* Convenient to make and use DAC\\TCG and AVG to evaluate the echo, the curve can be modified and compensated
* 6dB DAC functions;
* 100 independence setup, any criterion can be input freely, we can work in the scene without test block;
* Big memory of 1000 A graph
* Automated gain and gain scan;
* Peak Hold and Peak Memory；
* B scan;
* AWS D1.1
* Automated make video of test process and play; use upan ，the length of video is unlimited.

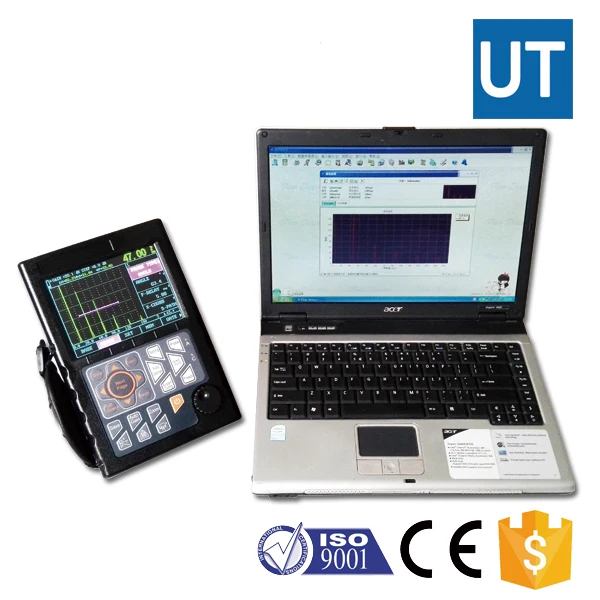

* Powerful pc software and reports can be export to excel;
* Li battery, continue working time up to 10 hours;
* The embeded software can be online updated;
* Li battery, continue working time up to 10 hours;
* The embeded software can be online updated;
Other assistant function
* Display freeze;
* Automated echo degree;
* Angles and K-value;
* Lock and unlock function of system parameters;
* Electronic clock calendar ;
* Two gates setting and alarm indication;
* Gate and DAC alarm;
* Automated echo degree;
* Angles and K-value;
* Lock and unlock function of system parameters;
* Electronic clock calendar ;
* Two gates setting and alarm indication;
* Gate and DAC alarm;
Technical Specifications
Measuring range（mm） | 0--10000 |
Vertical linearity error | ≤3% |
Horizontal linearity error | ≤0.1% |
Sensitivity margin | ≥62dB |
Dynamic scope | ≥34dB |
Resolution | ≥36dB |
Frequency range（MHz） | 0.5 --20 |
Gain（dB） | 0 --120 |
Velocity | 1000 --15000 |
Measurement mode | single、dual、THRU |
Reject | 0-80% |
Pulse shift（μs） | -20--+3400 |
Zero | （μs） 0.0--99.99 |

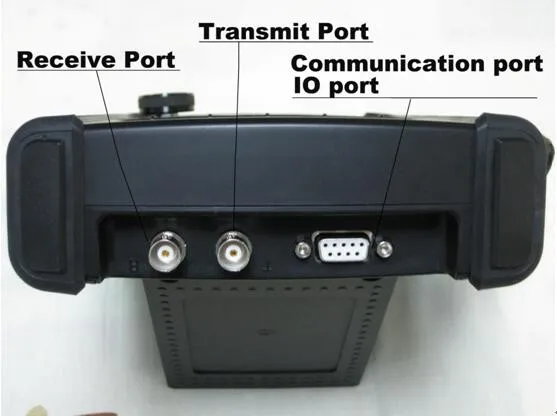

Port type | BNC |
Operating temperature | -20--50 |
H×W×D(mm) | 240×156×50 |
Weight（kg） | 1.0(with Battery) |
Packing & Delivery

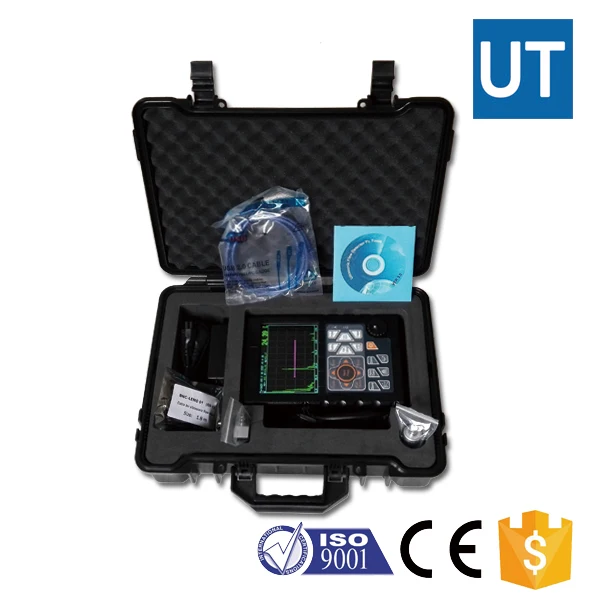

Standard Delivery
DGT-FD800 main unit | 1 |
1.5A/9V power adaptor (110v-240v) | 1 |
probe connecting cable | 2 |
Carrying case | 1 |
Instruction manual | 1 |
Straight transducer | 20mm 2.5MHz (One) |
Angle transducer | 8×9 60°4MHz (One) |
Rechargeable battery | 1 |
Serial cable | 1 (9 pin) |
Communication software for PC | 1 set |
Company Profie
Our Service
FAQ
Q: How long will you give customer the reply? A: We will contact you soon. The latest will not exceed 10 hours. Q: How about the quality of the products? A: We have the certificates of ISO and CE. We can send our certificates to you for your reference. Q: What is the price of the product? A: As we all believe the quality is the most important. We will provide the best quality machines with best price. Q: How about delivery time? A: Most of our products are in stock, after testing to your delivery, delivery time is about 5-7 days. Q: Can we visit your factory? A: Of course, please feel free to visit our factory. Q: How long is the warranty? A: 12 months. Warranty period free maintenance. | ||||||||
