Tobee Effluent Handling
$12,600
Seaflo high pressure solar water tank water pressure systems pressurized
- Category: >>>
- Supplier: Fujian Aidi Electric Co. Ltd.
Share on (62523998841):
Product Overview
Description
Application
Product Overview

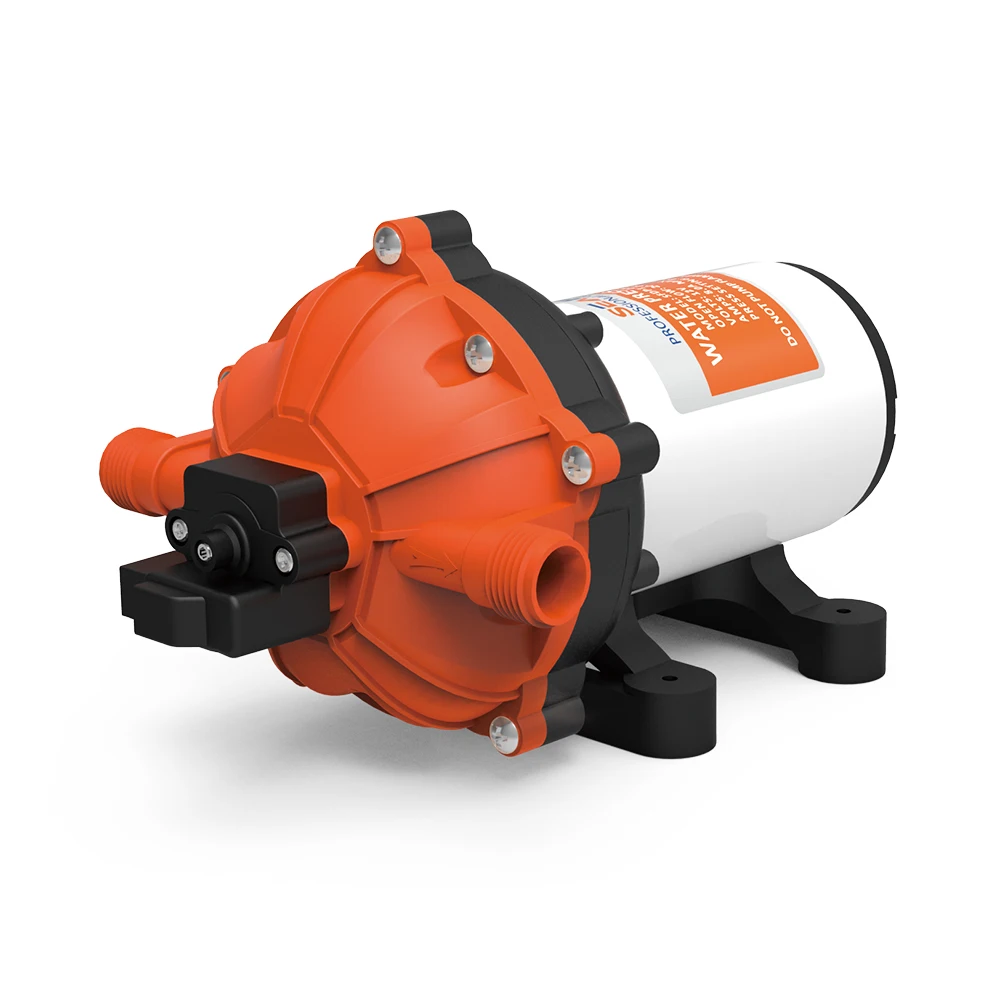

SEAFLO 8L Accumulator Pressure Boost System
A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.

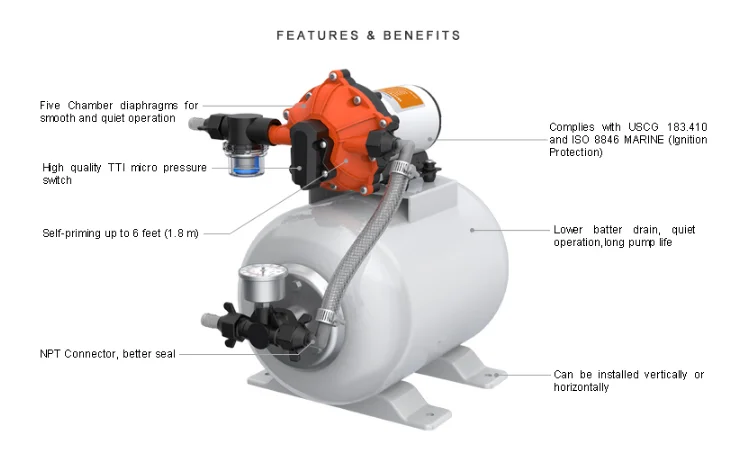

MORE FEATURES & BENEFITS
• Smoother flow, quieter water systems.
• Longer pump life, lower battery drain.
• Self-priming up to 6 feet (1.8 m).
• Five Chamber diaphragms for smooth and quiet operation
• Can be installed vertically or horizontally
• Maintenance free potable water quality accumulator tank
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
• 16 AWG, 4.5" long Leads
• Smoother flow, quieter water systems.
• Longer pump life, lower battery drain.
• Self-priming up to 6 feet (1.8 m).
• Five Chamber diaphragms for smooth and quiet operation
• Can be installed vertically or horizontally
• Maintenance free potable water quality accumulator tank
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
• 16 AWG, 4.5" long Leads

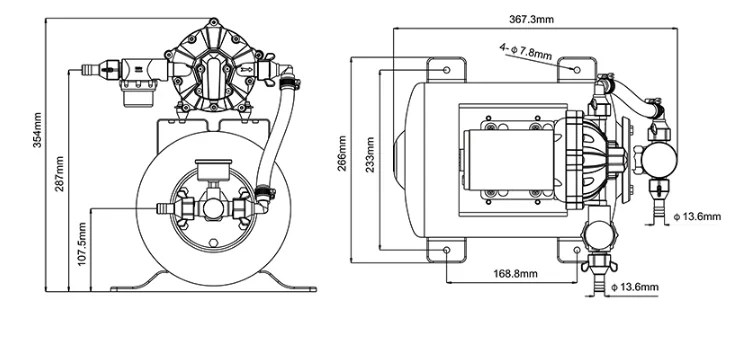

DIMENSIONS
APPLICATION
STANDARD PUMP CONFIGURATIONS

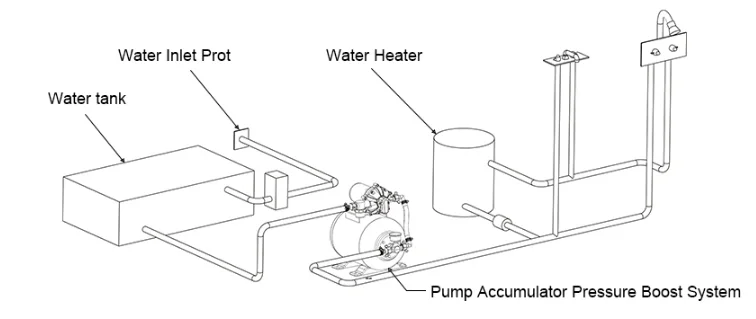

TYPICAL APPLICATIONS
Marine, RV, Filtration ;home water supply ,motorhome water supply
Marine, RV, Filtration ;home water supply ,motorhome water supply
Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
Control Type | Pressure switch |
Max Recommended Temperature | 60° C(140° F) |
Priming Capabilities | 6 feet (1.8 m) suction lift |
Re-start Pressure | Shut-on Pressure 20 PSI :20 PSI ±3 PSI Shut-off Pressure 60 PSI :60 PSI ±3 PSI |
Inlet/Outlet Ports | 1/2"-14 MNPT |
Weight | 11.9 lbs (5.4 kg) |
MOTOR | ||
Leads | 14 AWG, 13" (33 cm) long with 2-Pin connector/Leads | |
Duty Cycle | Continuous | |
Max.Amp Draw | 18.9 A | |
Fuse | 28.4 A | |
Model | Tank Volume | Voltage | Open Flow （GPM/LPM） | Max Draw | Pressure On (PSI/BAR) | Pressure Off （PSI/BAR) |
SFWSK1-030-060-0021 NEW | 8 L | 12V | 3.0 / 11.3 | 10.0A | 40 / 2.8 | 60 / 4.2 |
SFWSK2-030-060-0021 NEW | 8 L | 24V | 3.0 / 11.3 | 5.5A | 40 / 2.8 | 60 / 4.2 |
SFWSK1-040-060-0021 NEW | 8 L | 12V | 4.0 / 15.0 | 13.0A | 40 / 2.8 | 60 / 4.2 |
SFWSK2-040-060-0021 NEW | 8 L | 24V | 4.0 / 15.0 | 7.0A | 40 / 2.8 | 60 / 4.2 |
SFWSK1-050-060-0021 NEW | 8 L | 12V | 5.0 / 18.9 | 17.0A | 40 / 2.8 | 60 / 4.2 |
SFWSK2-050-060-0021 NEW | 8 L | 24V | 5.0 / 18.9 | 9.0A | 40 / 2.8 | 60 / 4.2 |
PRODUCT SPECIFICATIONS
SIMILAR PRODUCTS
Company information
FAQ
Q: What is your MOQ?
A: Minimum Oder amount is USD500.00 in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. The MOQ is 500 pcs per model per order for OEM/ODM orders (including private brands, bar codes, labels, different colors etc.)
Q: How can I pay for my order?
A: Please send us your order details including your email address, company details including delivery address. We will issue anorder on Alibaba Trade Assurance, and send you the payment link. Besides T/T, your Mastercard, VISA, Online Bank Payment, Pay Later can be used to pay.
Q: What is your terms of payment?
A: 100% in advance for order amount less than USD5000. And if order amount is above USD5000, payment term can be 30% by T/T in advance, balance against copy of B/L. If you have any another question, please feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: How about the freight cost?
A: It depends on your final order quantity, final gross weight and final dimension when shipped by sea and by air. If orders by air, we advise you to use your own TNT, FedEx, DHL account for freight collect.
Q: What is your warranty?
A: 1-2 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen, China.
Q: Where can I find more information?
A: Visit-www.seaflo.com to check all SEAFLO Marine and RV bilge pumps, fresh water pumps, switches, blowers, hatches, etc.
A: Minimum Oder amount is USD500.00 in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. The MOQ is 500 pcs per model per order for OEM/ODM orders (including private brands, bar codes, labels, different colors etc.)
Q: How can I pay for my order?
A: Please send us your order details including your email address, company details including delivery address. We will issue anorder on Alibaba Trade Assurance, and send you the payment link. Besides T/T, your Mastercard, VISA, Online Bank Payment, Pay Later can be used to pay.
Q: What is your terms of payment?
A: 100% in advance for order amount less than USD5000. And if order amount is above USD5000, payment term can be 30% by T/T in advance, balance against copy of B/L. If you have any another question, please feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: How about the freight cost?
A: It depends on your final order quantity, final gross weight and final dimension when shipped by sea and by air. If orders by air, we advise you to use your own TNT, FedEx, DHL account for freight collect.
Q: What is your warranty?
A: 1-2 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen, China.
Q: Where can I find more information?
A: Visit-www.seaflo.com to check all SEAFLO Marine and RV bilge pumps, fresh water pumps, switches, blowers, hatches, etc.
