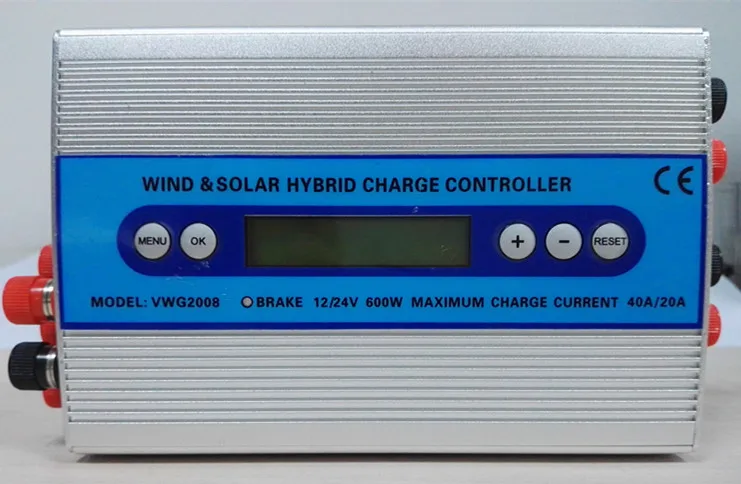

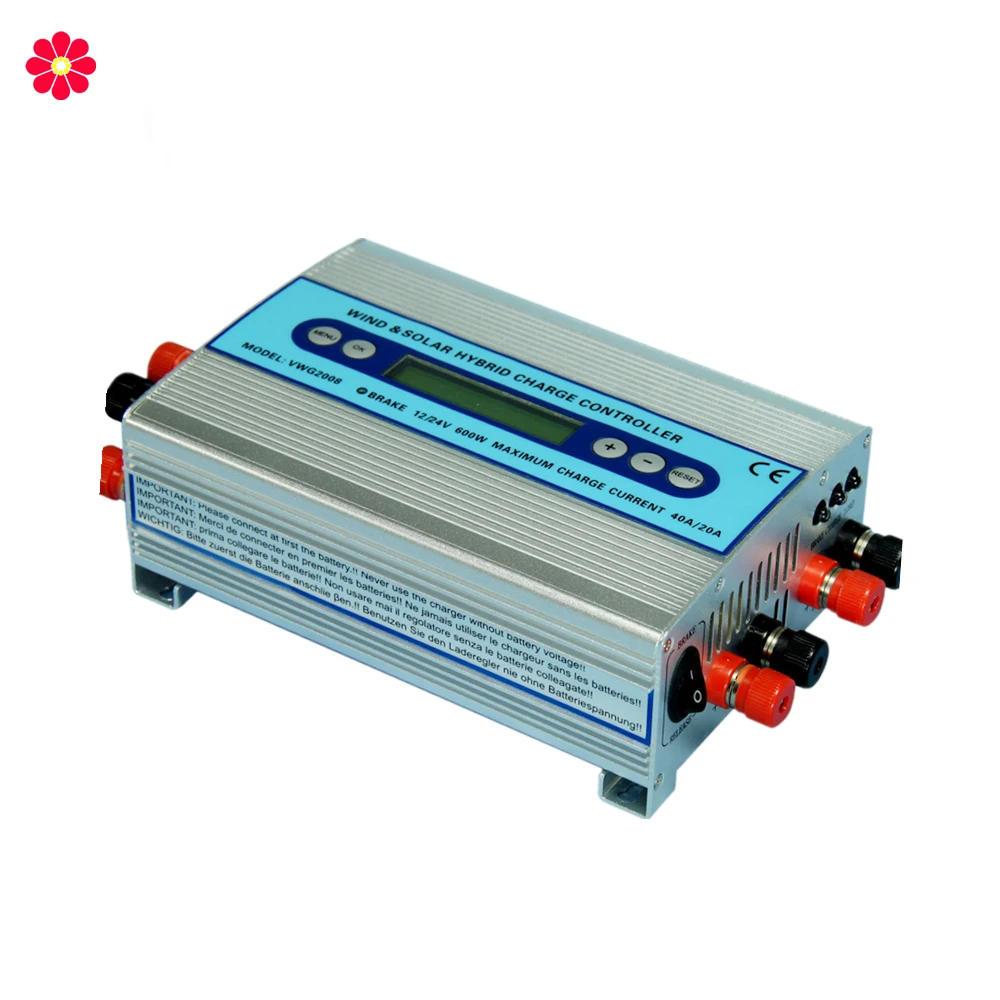

600W Wind Generator Regulator LED controller 12V 24V

Product Overview

Description



12V 600W wind generator regulator VWG2008 W&S hybrid charge controller main features:





1. LCD display with input keys to allow user to alter values



2. The unit will store information such as



Total amps generated



Total Kw hours generated



Amps used by load



And many more

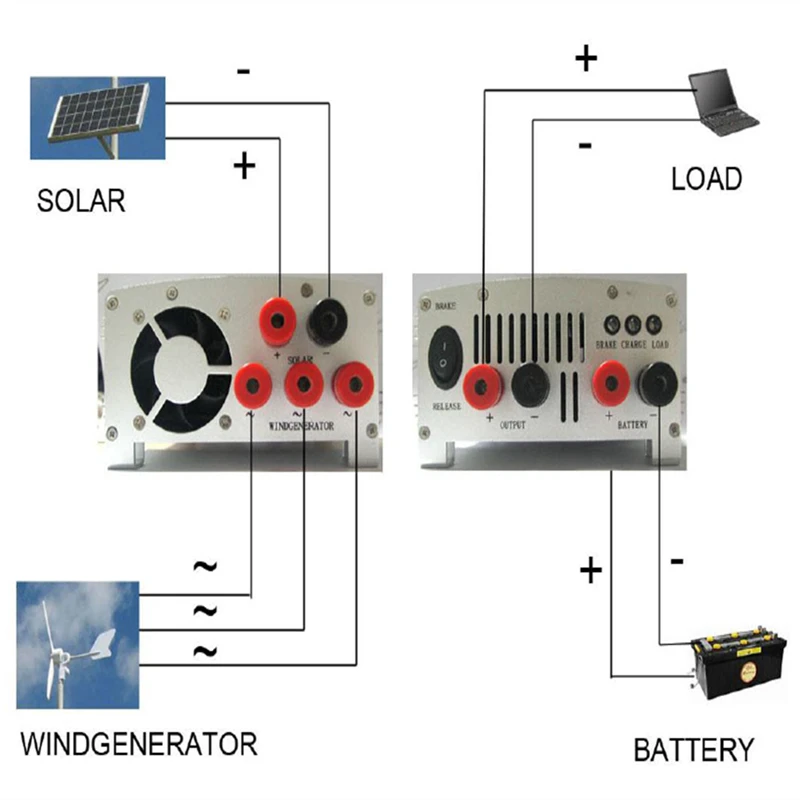

3. Connection of both solar and wind



4. Auto sensing of voltage of batteries connected(12Vor 24V)



5. Ensures the battery is maintained in best possible condition by preventing overcharging and over discharging.



6. Automatic braking of the turbine when battery fully charged and/or no load connected



7. Automatic braking of the turbine when charge current is too high i.e. in very high winds



8. Manual brake switch



9. A “Load” output where external devices can be switched on and off at user determined voltages.



10. The “load” output is also current limited to protect the connected device



11. Brake time is programmable





Main parameters:



MODEL	VWG2008
Rated Power	600W (Best ration: wind turbine500W, PV cells100W)
Applicable batteries	12/24V,100-300Ah(automatic distinguish voltage)
Wind turbine automatically braking voltage	17.5V/32.5V (DC voltage after rectification)
Battery full charge cut	14.32V/28.64V(default, adjustable)
Battery low voltage disconnect load	10.98V/21.97V(default, adjustable)
Load on voltage	12.44V/28.88V(default, adjustable)
Charge current max	40A/20A
Load current max	35.61A/17.80A
Recovery time after the automatic braking	10 Seconds(default,adjustable)
No load loss	Less than 40mA

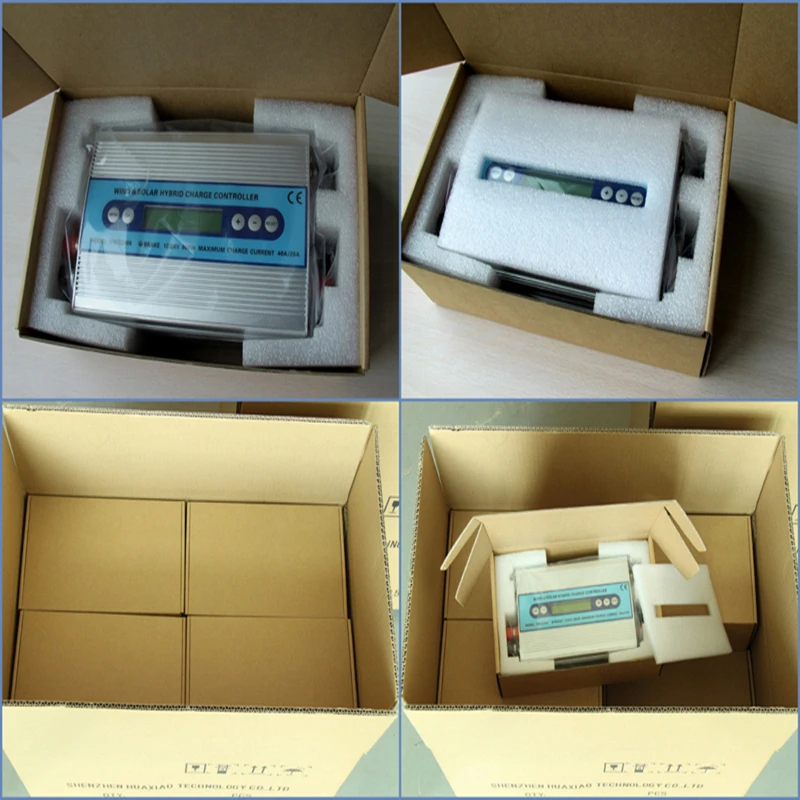

Carton packing:

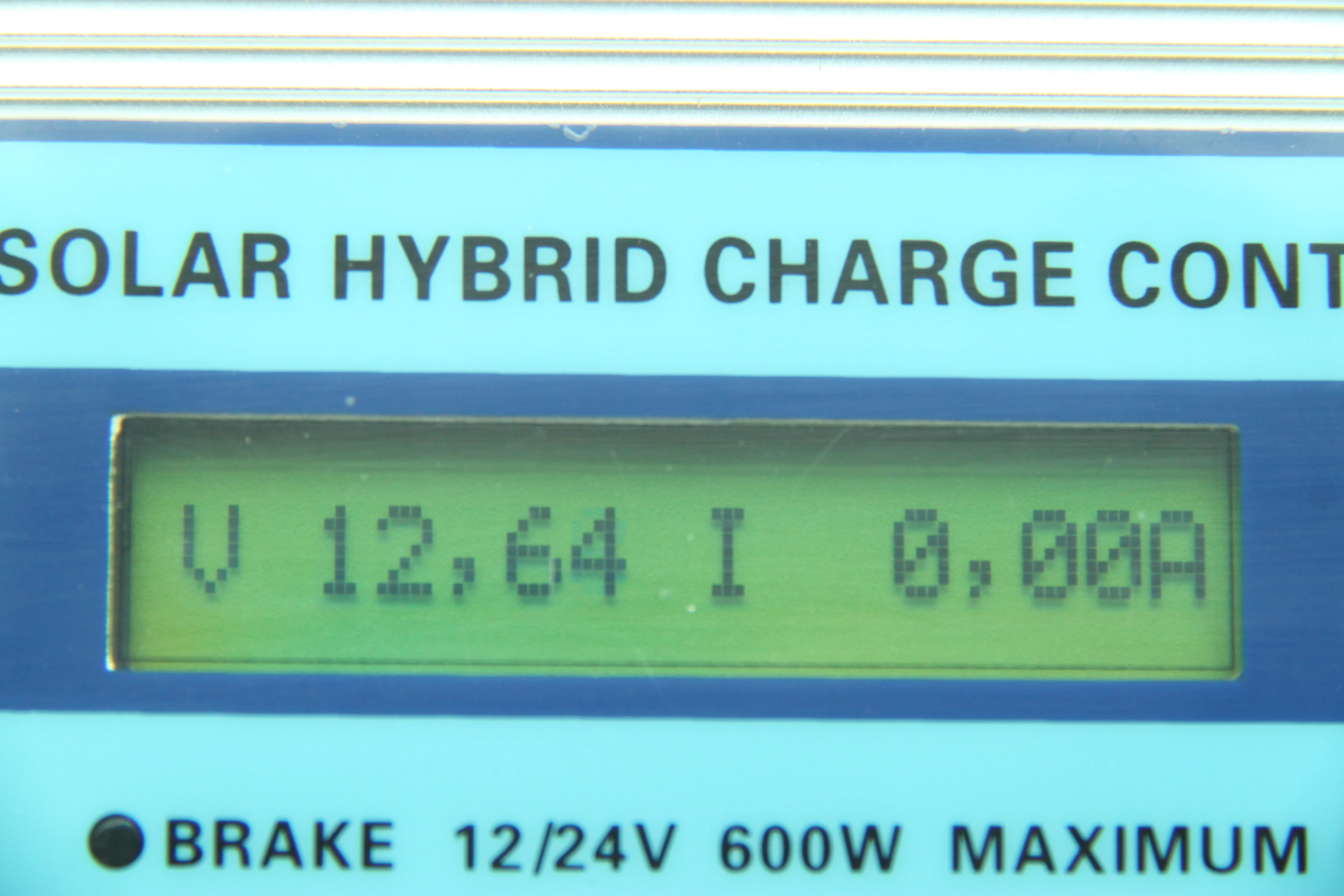

Display:

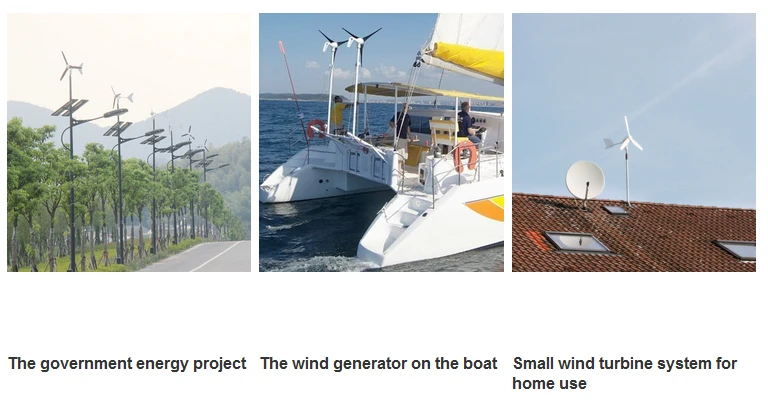

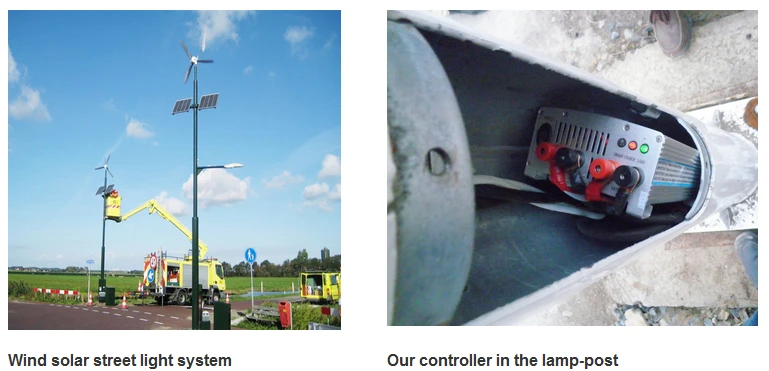

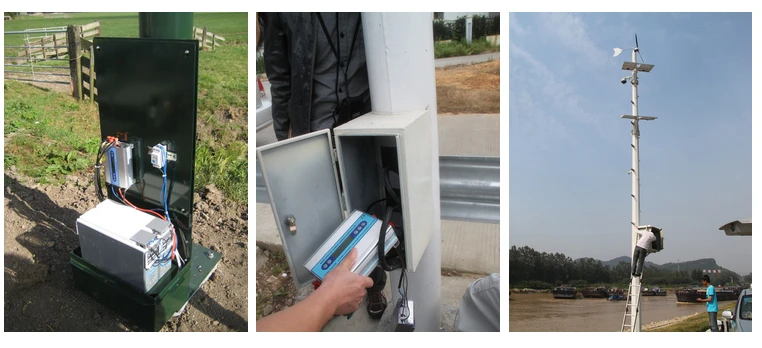

Project:
