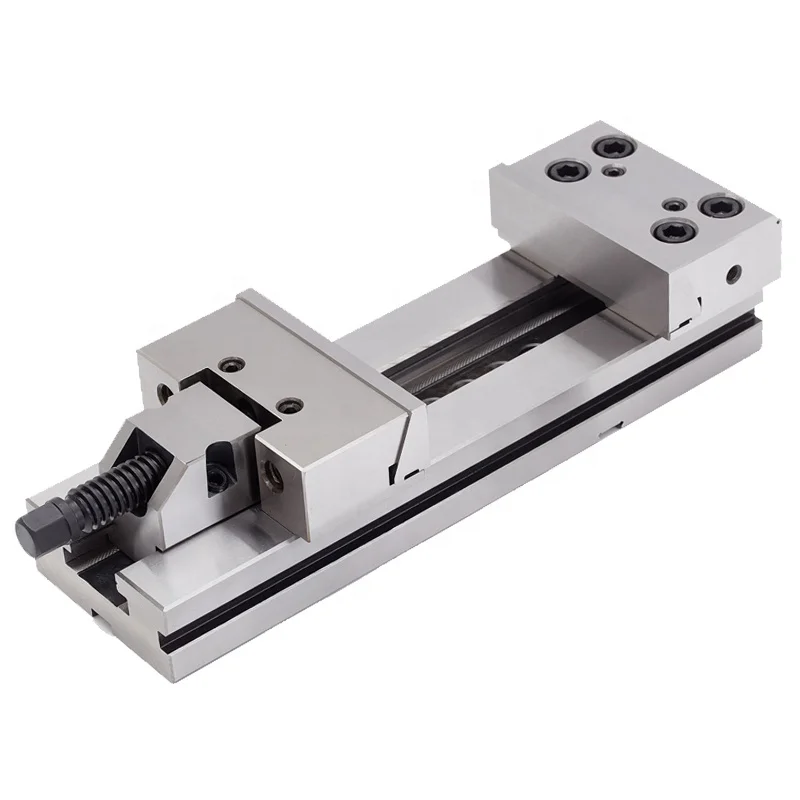

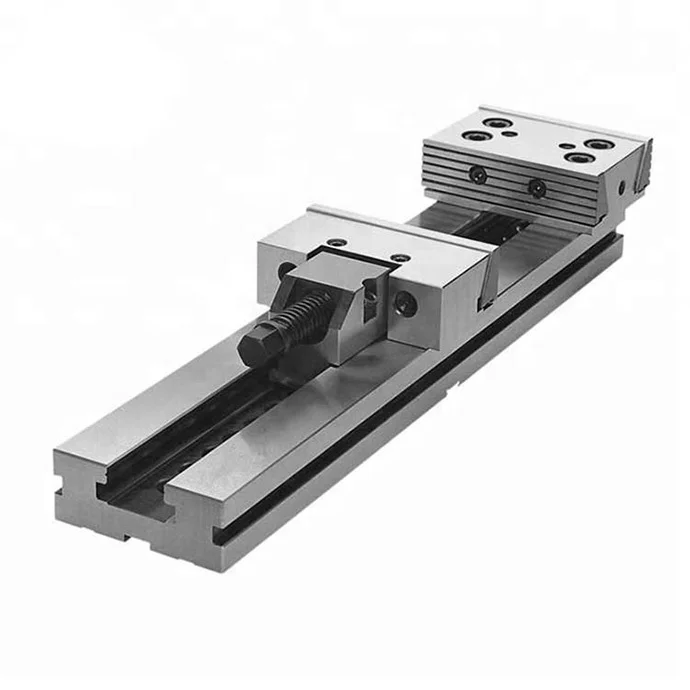

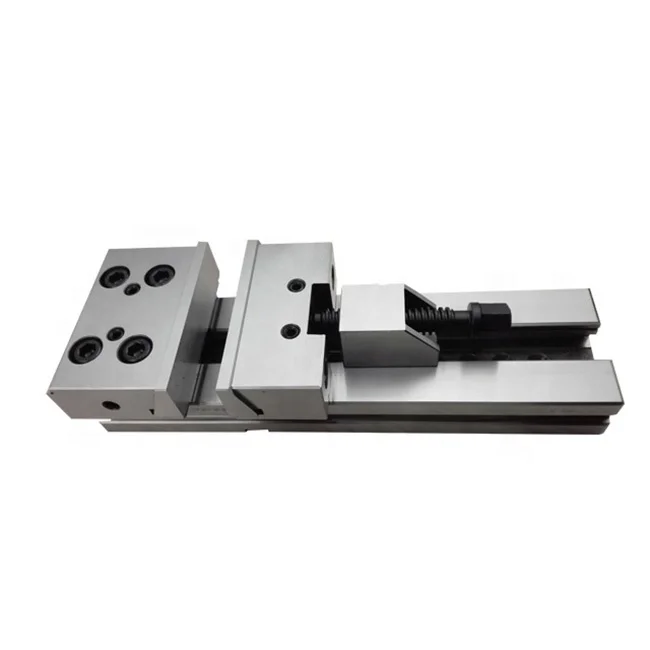

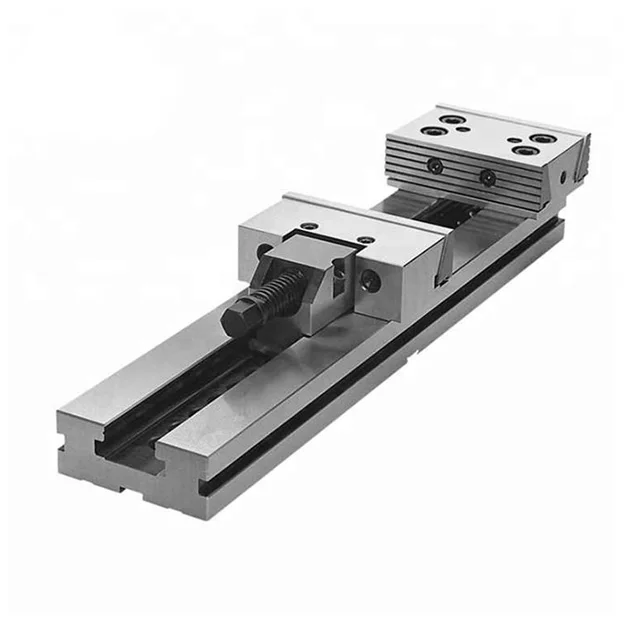

High precision 0.005mm GT150*200 GT200*300 VISE modular milling machine vise/bench vice
- Category: Vise >>>
- Supplier: Pingyuan Haotian Machinery Co. Ltd.
Share on (62524226537):
Product Overview
Description

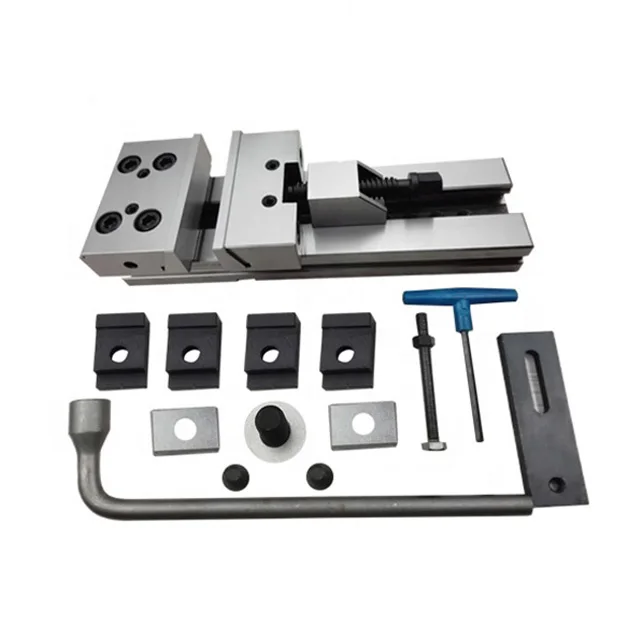

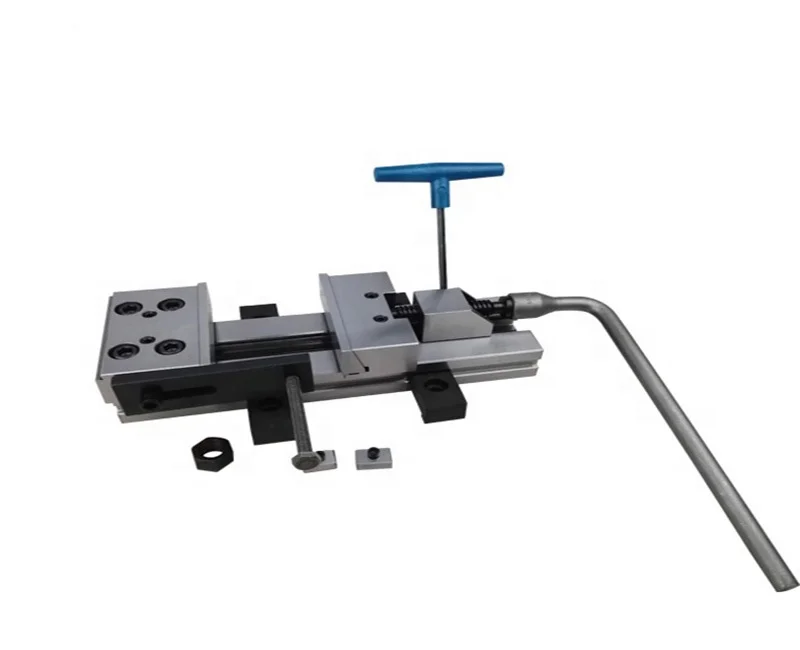

Factory price high precision GT150*200 modular machine vise/bench vice
Product Description

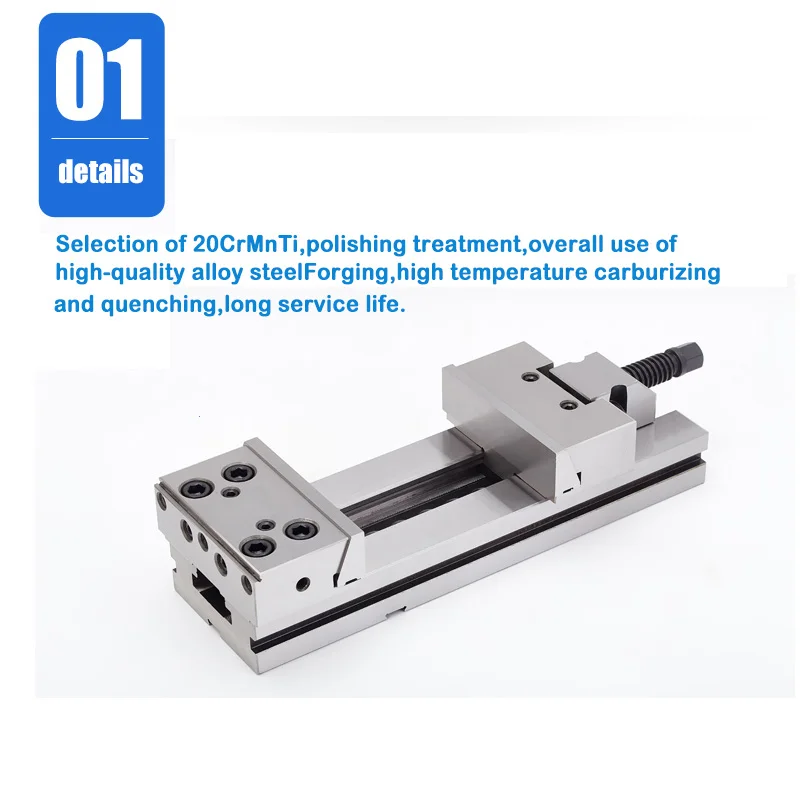

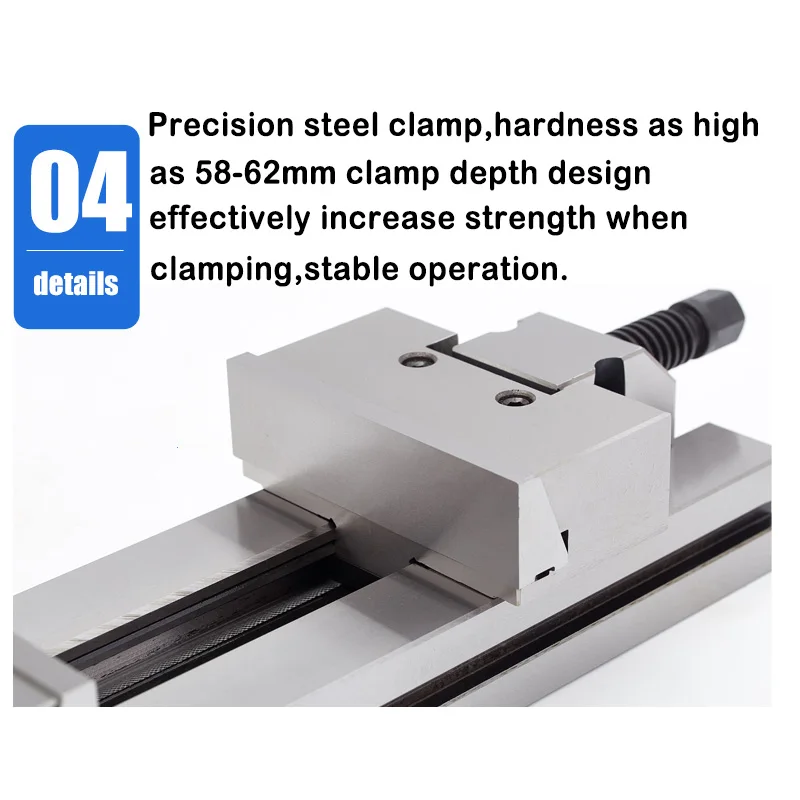

1. Produced of high quality steel,carburized to surface hardness:HRC58-62

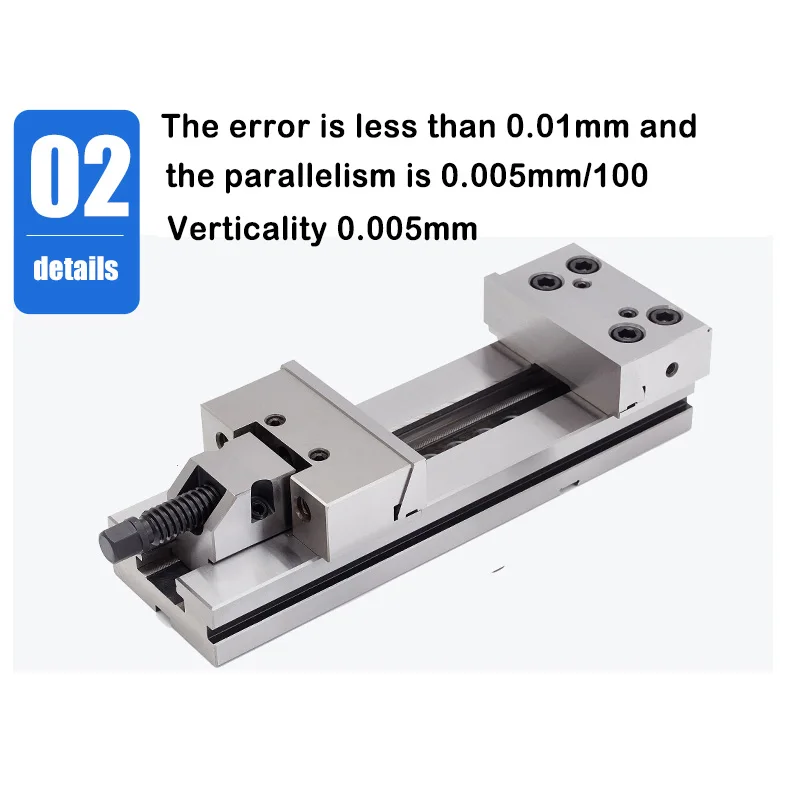

2. Parallelism 0.005mm/100mm, squareness 0.005mm

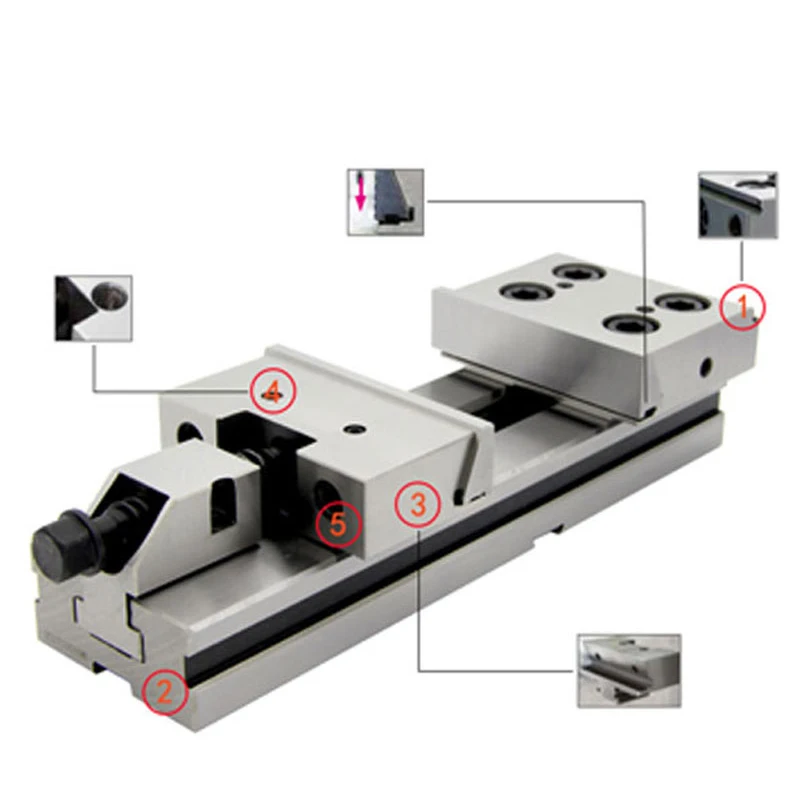

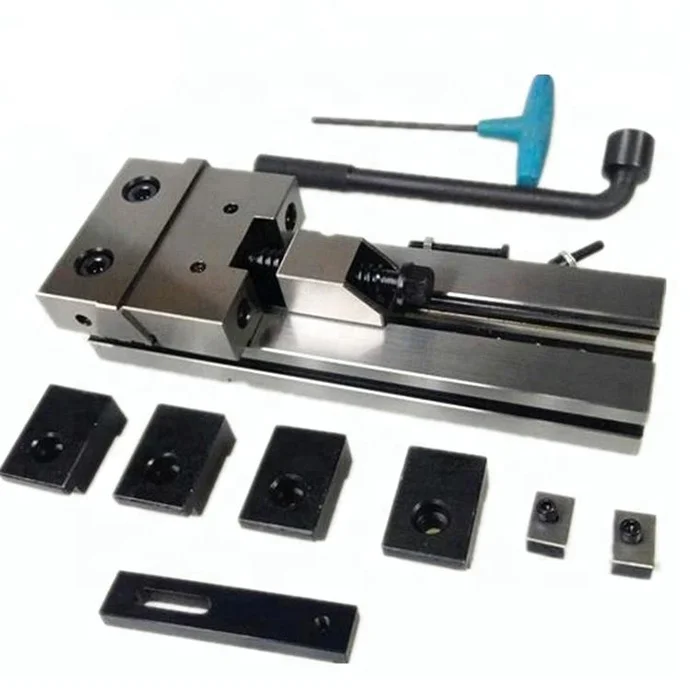

3. It have interchangeable base, fixed/ movable jawsit is quickly to clamp and easy to operate.
4. It is widely used on machining center and other precision machine tools
| Precision Modular Vise | |||||
| Order No. | B mm | H mm | Smax mm | L mm | Clamping Force |
| GT100-I | 100 | 30 | 100 | 270 | 3000 |
| GT125-I | 125 | 40 | 150 | 345 | 3000 |
| GT150A-I | 150 | 50 | 200 | 420 | 5000 |
| GT150B-I | 150 | 50 | 300 | 520 | 5000 |
| GT150C-I | 150 | 50 | 400 | 620 | 5000 |
| GT175A-I | 175 | 60 | 200 | 455 | 6000 |
| GT175B-I | 175 | 60 | 300 | 555 | 6000 |
| GT175C-I | 175 | 60 | 400 | 655 | 6000 |
| GT175D-I | 175 | 60 | 500 | 755 | 6000 |
| GT175E-I | 175 | 60 | 600 | 855 | 6000 |
| GT200A-I | 200 | 65 | 200 | 495 | 10000 |
| GT200B-I | 200 | 65 | 300 | 595 | 10000 |
| GT200C-I | 200 | 65 | 400 | 695 | 10000 |
| GT200D-I | 200 | 65 | 500 | 795 | 10000 |
| GT200E-I | 200 | 65 | 600 | 895 | 10000 |
| GT300A-I | 300 | 80 | 200 | 535 | 12000 |
| GT300B-I | 300 | 80 | 300 | 635 | 12000 |
| GT300C-I | 300 | 80 | 400 | 735 | 12000 |
| GT300D-I | 300 | 80 | 500 | 835 | 12000 |
| GT300E-I | 300 | 80 | 600 | 935 | 12000 |
| GT300F-I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G-I | 300 | 80 | 800 | 1135 | 12000 |

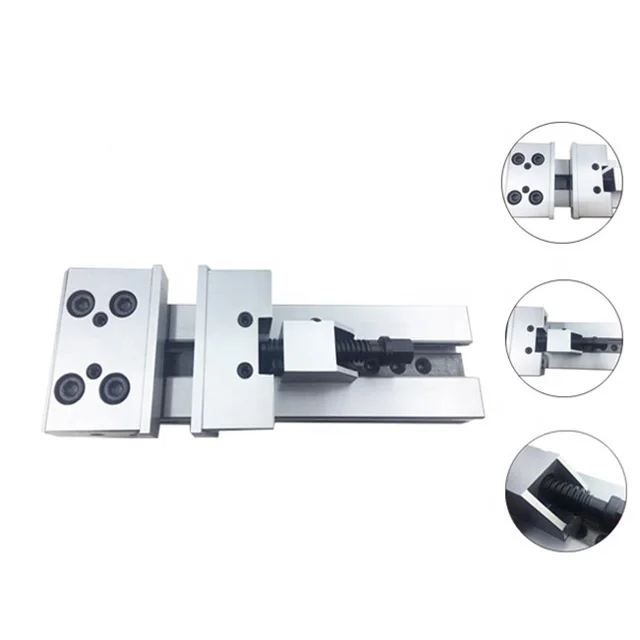

Product details

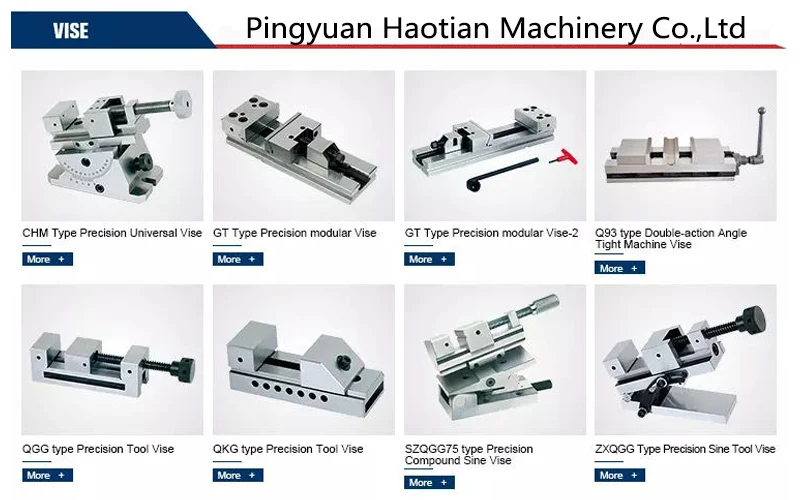

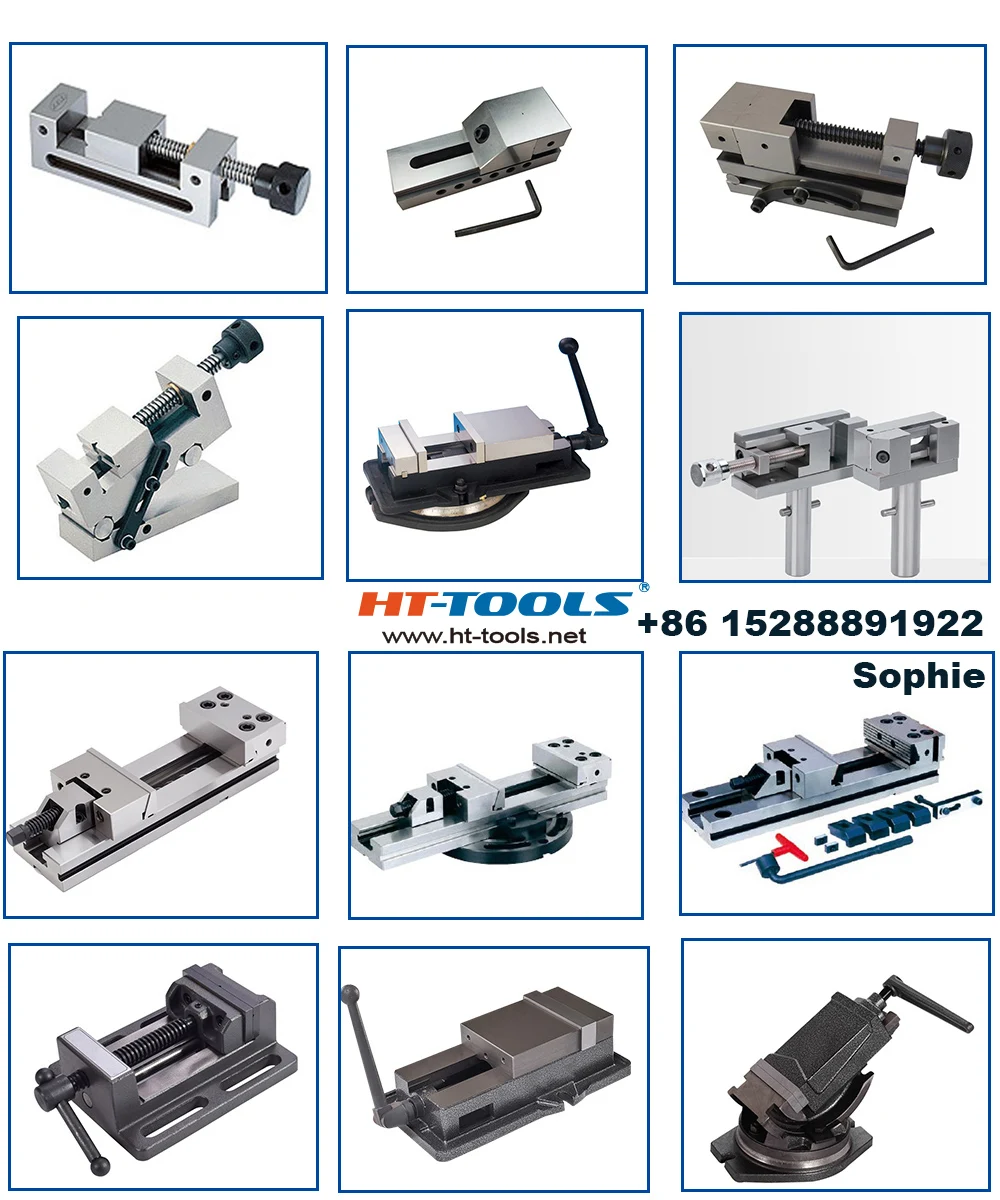

Other type vises:
Machine tool Accessories, please check below to know our
main items.
Tool Holder Shanks: BT Tool Holders,
DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50 Tool Holders, HSK Tool Holders,
DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders
Morse Taper Adapters, Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders,
Screw in Milling Cutter Holders, etc
.
Collet: ER Collets, ERC Collets ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud,
Tool Holder Locking Device,Machine Vise,Live Center etc.
