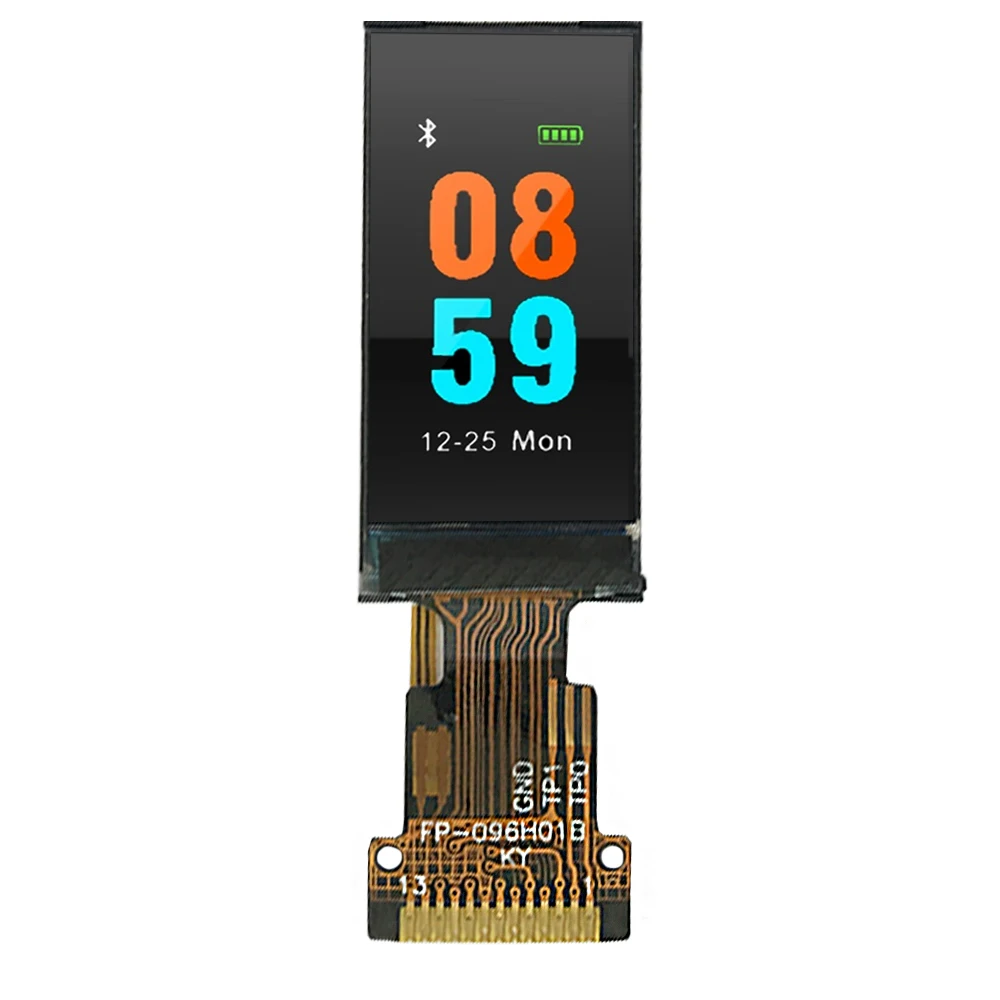

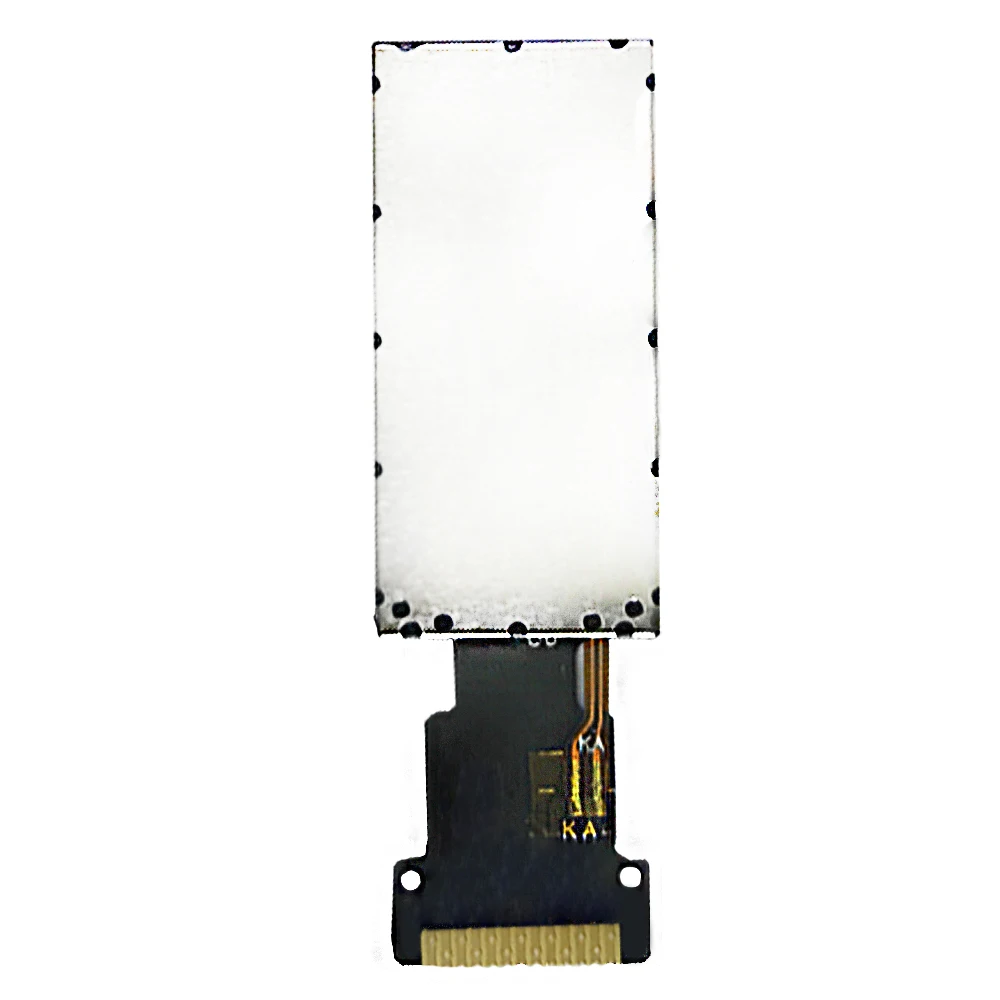

0.96 Inch 80x160 IPS TFT LCD Display ST7735S All View Color TFT 400cd
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62524339491):
Product Overview
Description
Display General Description

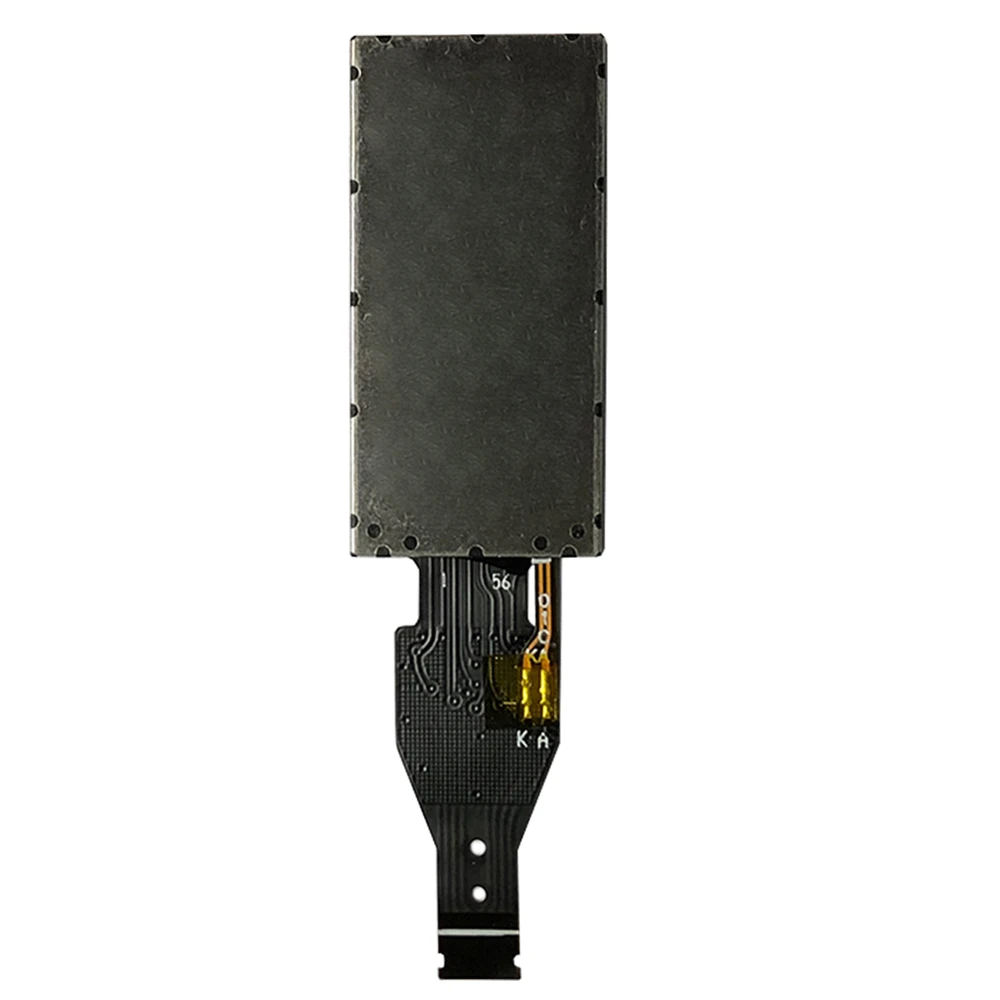

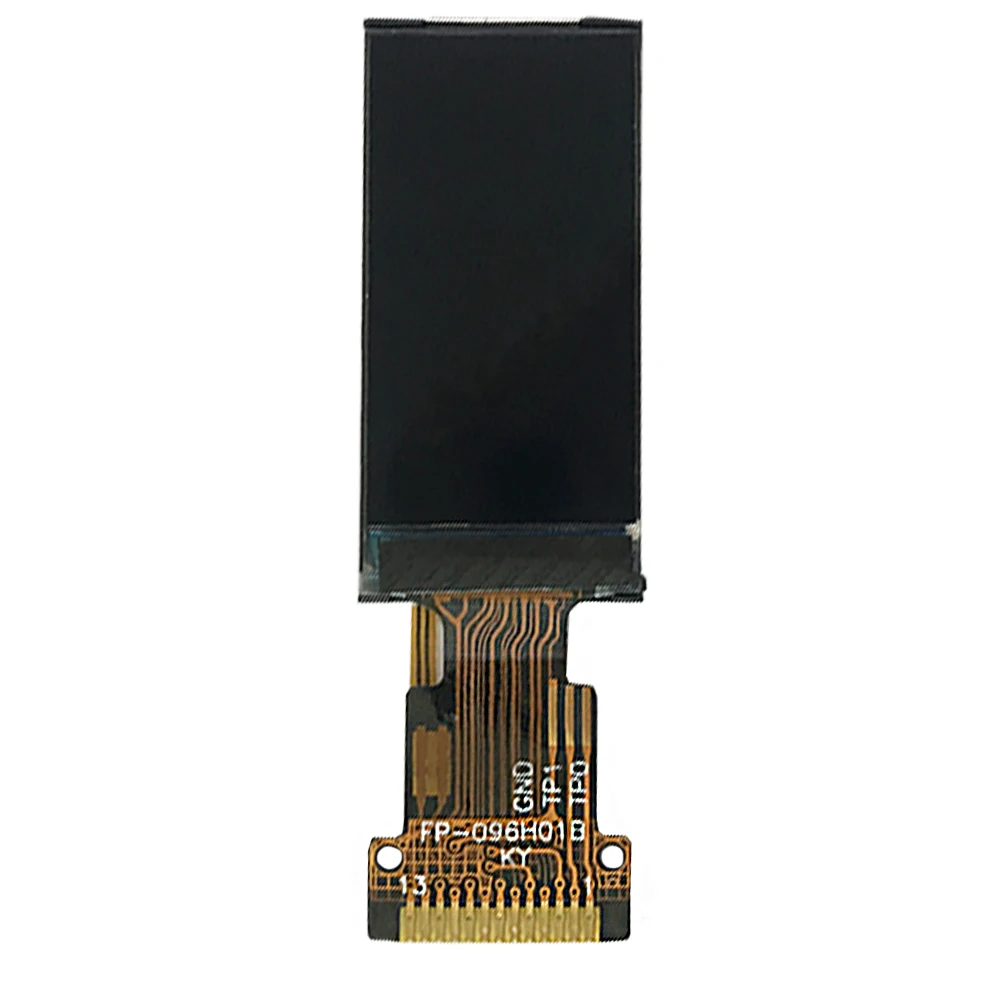

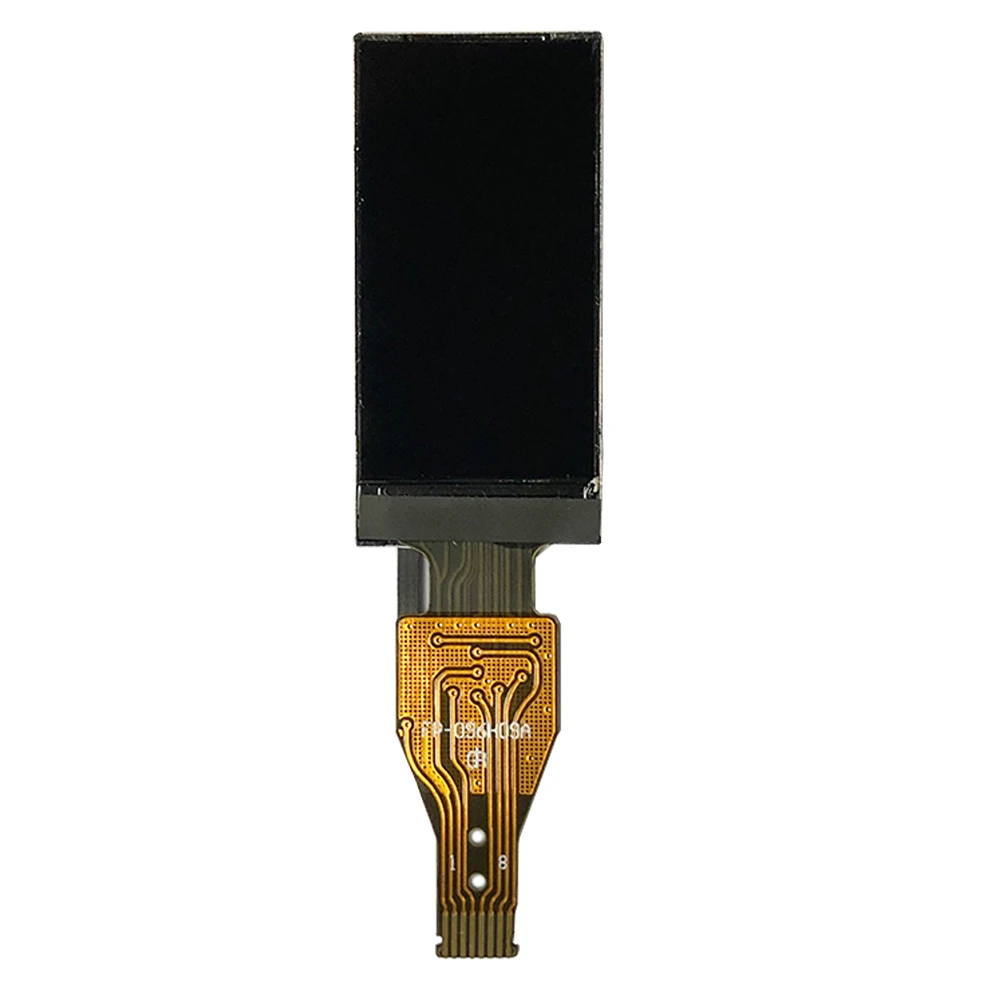

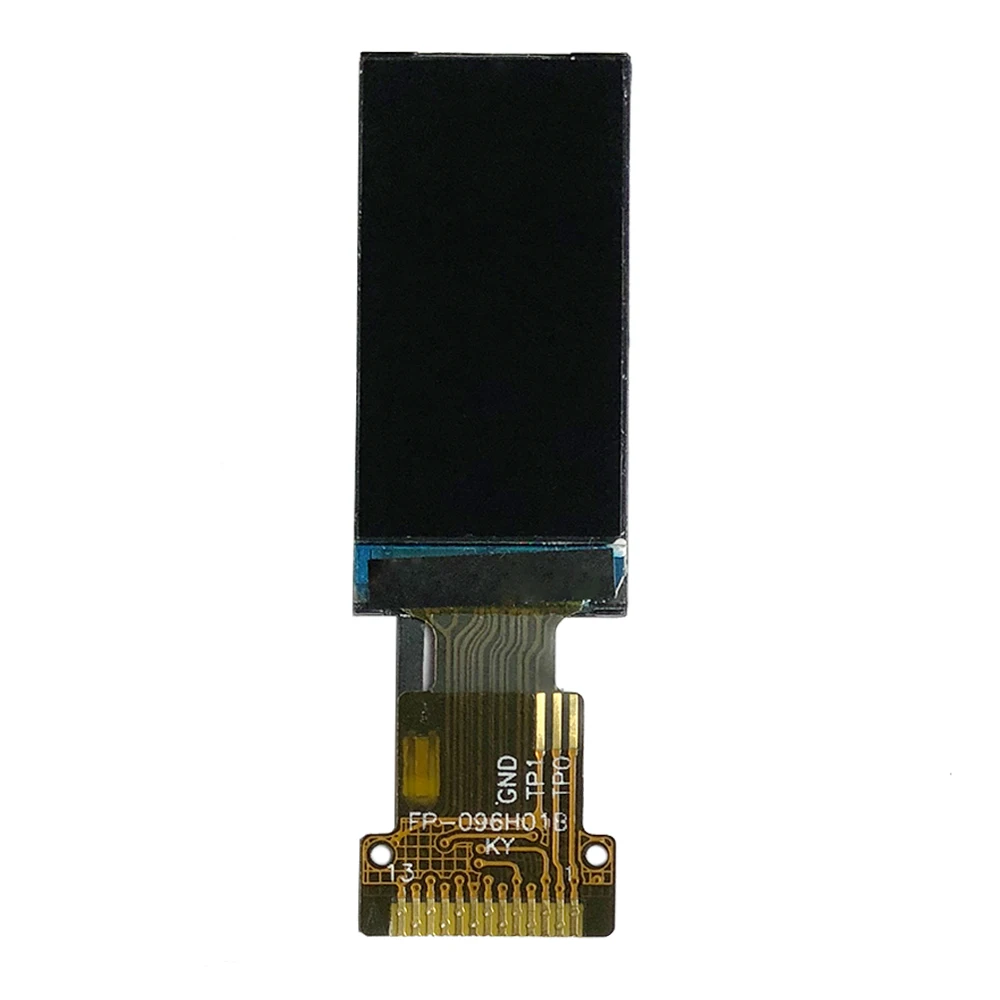

The LH096NT-IF09 is a compact and vibrant 0.96-inch IPS TFT LCD module. Manufactured by SWICN, this module features an 80x160 RGB pixel resolution on a black background, providing an appealing visual experience. With a typical brightness of 400cd/m2, it ensures clear visibility even in various lighting conditions. Powered by the ST7735S driver IC and supporting the 4-wire SPI interface, this module delivers reliable performance.
What distinguishes the LH096NT-IF09 is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
The module's Flexible Printed Circuit (FPC) is designed with a Zero Insertion Force (ZIF) connector type, enabling easy and direct connection to your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the LH096NT-IF09, offers customization options to meet specific requirements. They provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly suits their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
What distinguishes the LH096NT-IF09 is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
The module's Flexible Printed Circuit (FPC) is designed with a Zero Insertion Force (ZIF) connector type, enabling easy and direct connection to your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the LH096NT-IF09, offers customization options to meet specific requirements. They provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly suits their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT | ||
1 | Display Mode | TFT Display | |||
2 | Diagonal Size | 0.96 | Inch | ||
3 | Resolution | 80H) x 160(V) | Dots | ||
4 | Active Area | 10.8(W) x 21.7(H) | mm | ||
5 | Outline Dimension | 13.5(W) x 27.95(H) | mm | ||
6 | Thickness | 1.5±0.2 | mm | ||
7 | Pixel Pitch | 0.135(W) x 0.135(H) | mm | ||
8 | Pixel Size | 0.135(W) x 0.135(H) | mm | ||
9 | Display Driver IC | ST7735S | - | ||
10 | Touch Driver IC | No Touch | - | ||
11 | Display Color | 65 | K | ||
12 | Gray Scale | 1 | Bit | ||
13 | Brightness | 120(min) | cd /m2 | ||
14 | Contrast Ratio | 800:1 | - | ||
15 | Interface | 4-wire SPI | - | ||
16 | IC Package Type | COG | - | ||
17 | Module Connecting Type | Connector (Pitch:0.5mm, 8 PIN) | - | ||
18 | Weight | TBD | g | ||
19 | Pins | 8 | Pins | ||
20 | Operating Temperature | -20~70 | ℃ | ||
21 | Storage Temperature | -30~80 | ℃ | ||

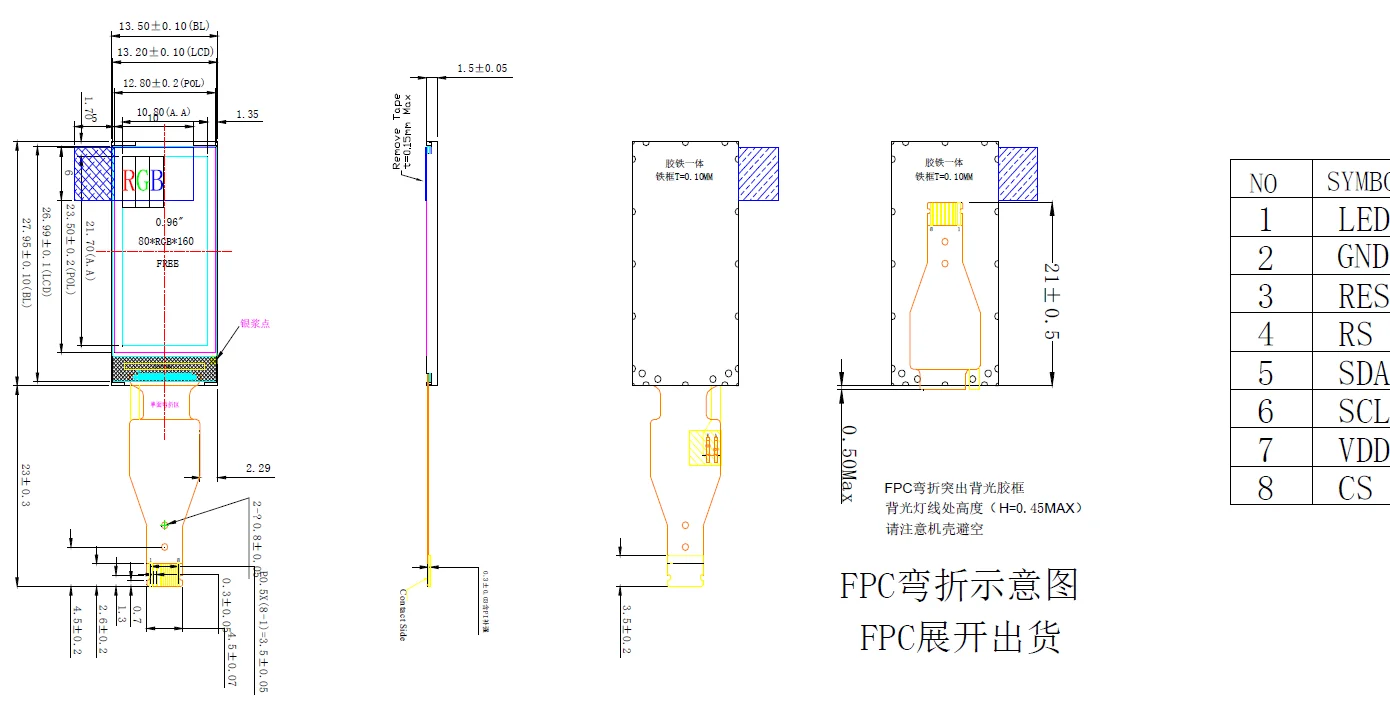

Drawing
Product Details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
About Us
Who is SWI?
Established in 2003, Shineworld Innovations Limited (SWI) is a major provider of display screens and customized display solutions based in China. Our primary objective is to offer customers the latest advancements in display technology, suitable for a wide range of environments, thereby enhancing the viewing experience. As a socially responsible and sustainable company, we prioritize the well-being of our employees and the community.
At SWI, we boast a pioneering technical team and advanced manufacturing facilities, enabling us to deliver competitive and high-quality products, solutions, and services. Our commitment to innovation revolves around understanding and addressing customer needs. We continuously invest in new technologies, with a particular focus on driving technological breakthroughs that propel the display industry forward.
At SWI, we boast a pioneering technical team and advanced manufacturing facilities, enabling us to deliver competitive and high-quality products, solutions, and services. Our commitment to innovation revolves around understanding and addressing customer needs. We continuously invest in new technologies, with a particular focus on driving technological breakthroughs that propel the display industry forward.
What does SWI offer the world?
With a wide range of standard and customized display products including LCM, TFT, OLED, Mrico LED, EPD and CTP, as well as direct bonding services, SWI provides customers the specific and integrated solutions and technologies best suited for the applications.
Our technology has been applied to a wide range of industries including consuming products, portable devices, financial devices, energy meter equipment, check-in machines, fiscal processors, wearable devices/body cams, intelligent home solutions, medical facilities and industrial equipment.
As the end users’ expectation increase on the display appearance and durability, direct bonding is becoming more and more common.
SWI provides direct bonding processing services for touch panel products, LCD displays, glass cover plates or any types of customer supplied display materials in various sizes of 0.2” to 110”. This provides customers with the flexibility to optically bond a wide array of display applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
Our technology has been applied to a wide range of industries including consuming products, portable devices, financial devices, energy meter equipment, check-in machines, fiscal processors, wearable devices/body cams, intelligent home solutions, medical facilities and industrial equipment.
As the end users’ expectation increase on the display appearance and durability, direct bonding is becoming more and more common.
SWI provides direct bonding processing services for touch panel products, LCD displays, glass cover plates or any types of customer supplied display materials in various sizes of 0.2” to 110”. This provides customers with the flexibility to optically bond a wide array of display applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
Our Advantages
Customer Focused
We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.
Effective Teamwork
We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.
Advanced Facilities
The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
Integrated Solutions
We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
Process Flow

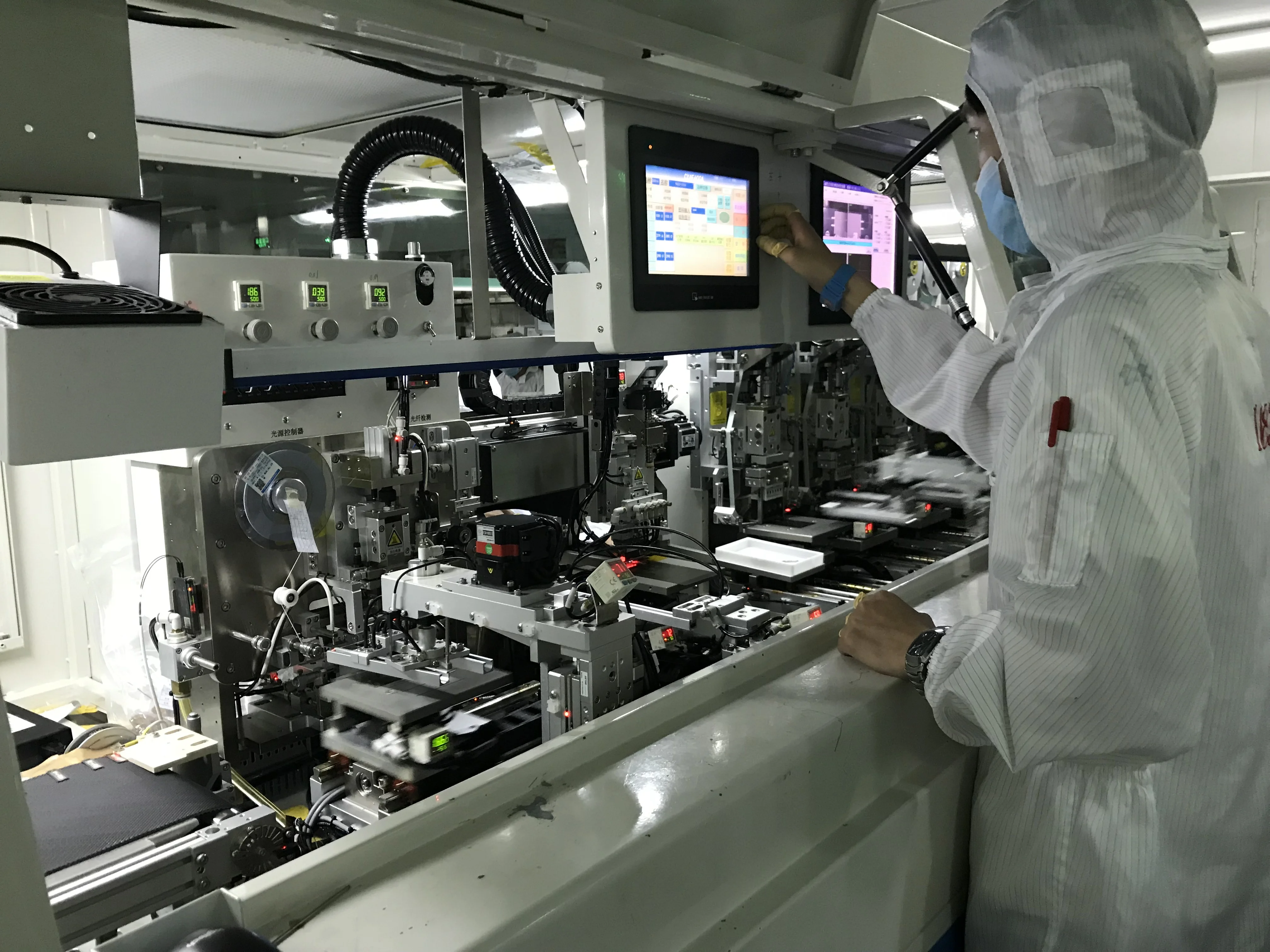

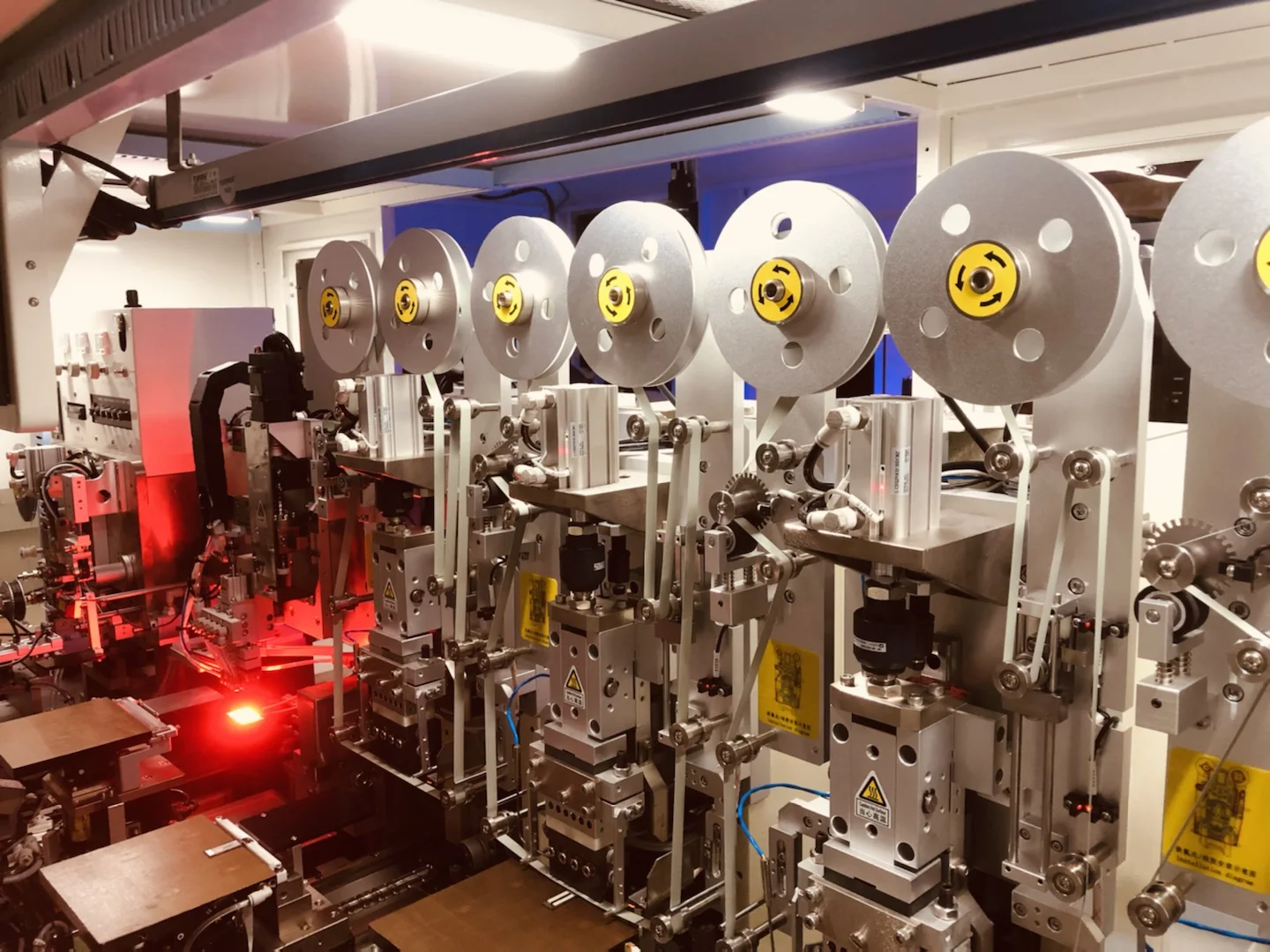

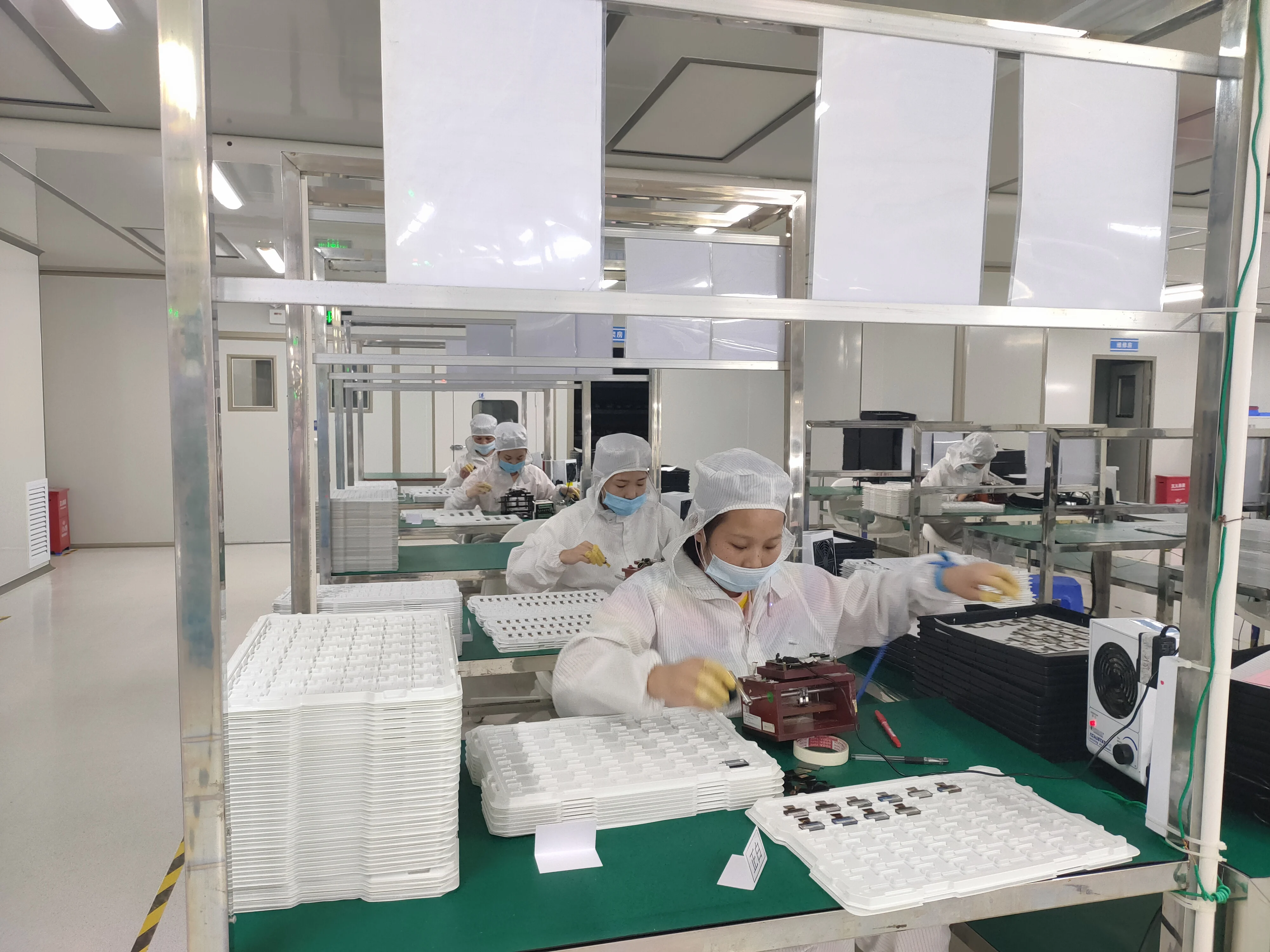

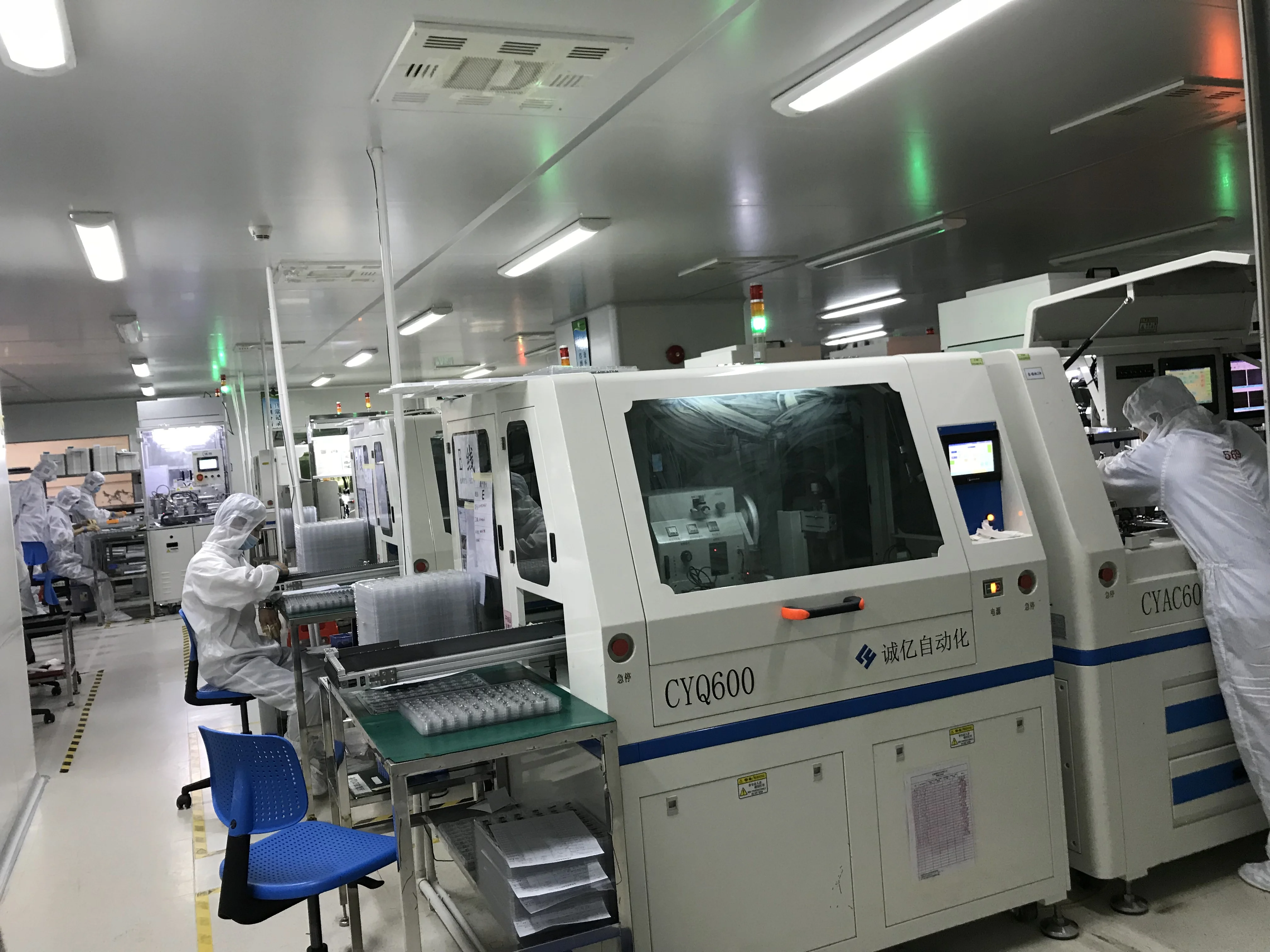

Our Factory

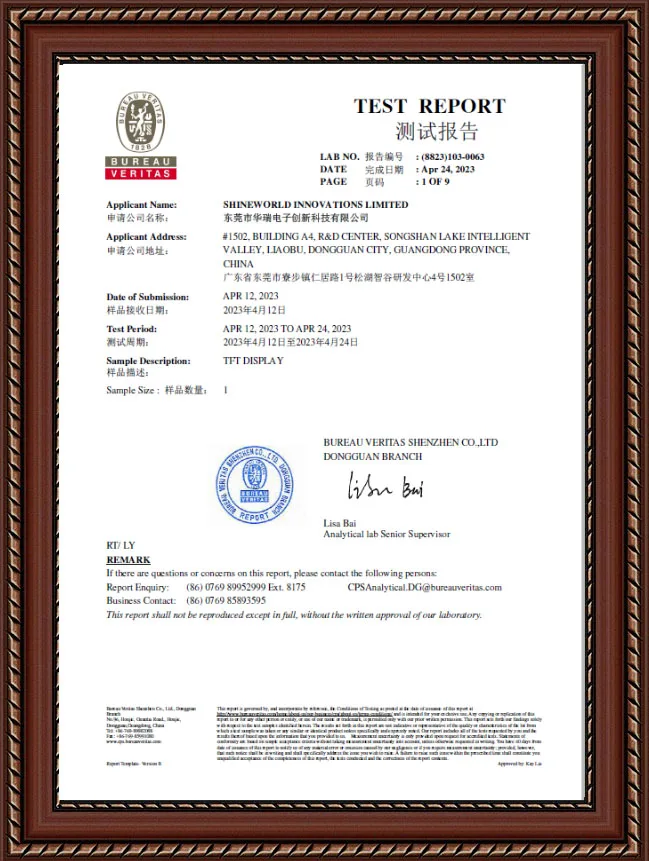

Certifications

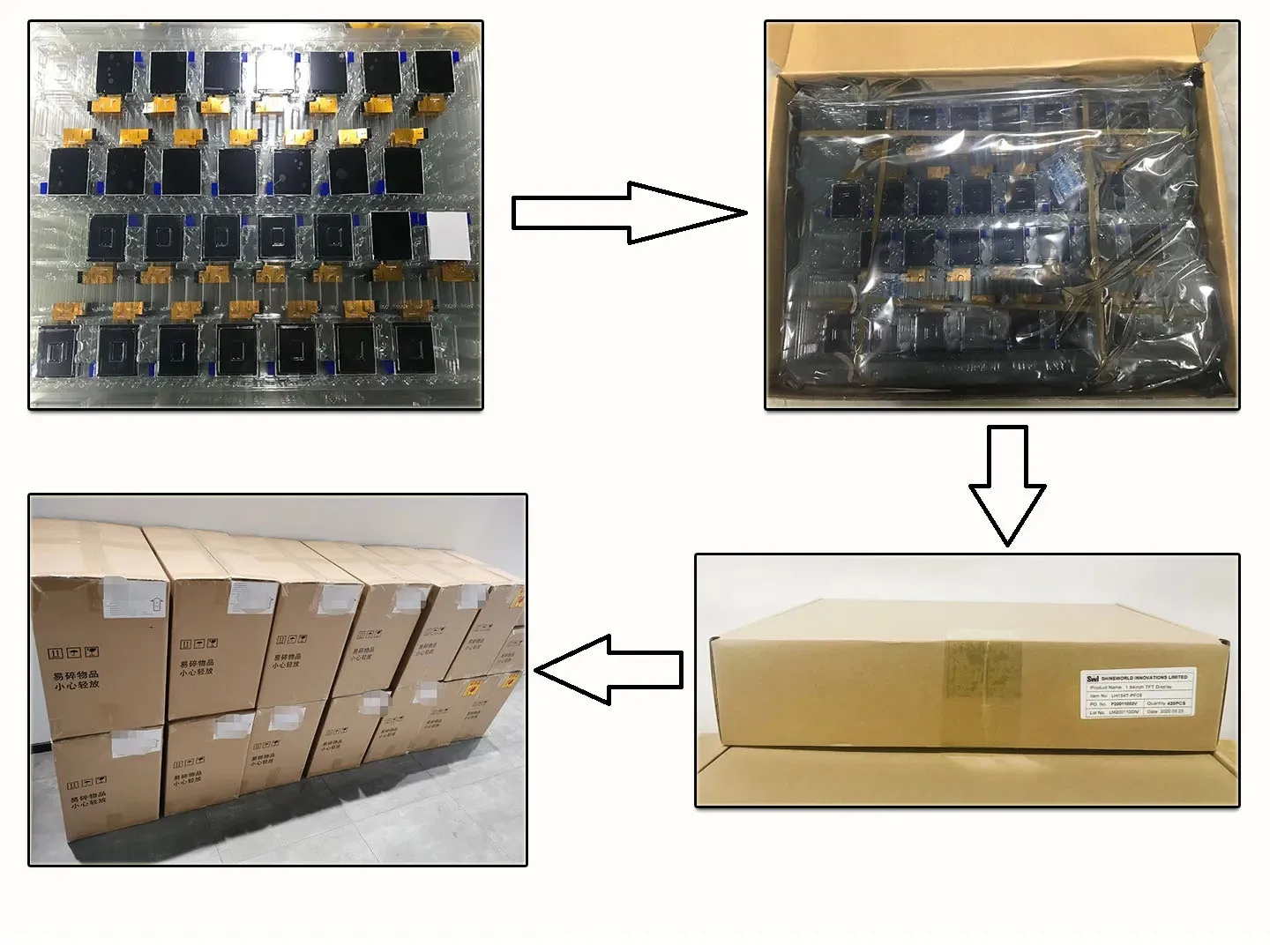

Packing
