SHAKMAN Brand New F2000 6*4 Cargo Truck Dump Truck
- Category: Dump Trucks >>>
- Supplier: Newindu,Construction,Engineering,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
SHAKMAN Brand New F2000 6*4 Cargo Truck Dump Truck
Product Description
With its reliable and stable structure design, high bearing capacity, excellent engine force, highly stable performance, and its frame forged in construction and mining industries with adverse operating environments, it is widely used for the short-range earthwork transportation tasks for mines and construction projects. It is world widely accepted by users from South East Asia, Middle East, Africa, South America countries. Without any question, SHACMAN dump truck is a good option for your project.
Main Parameters
ame | F2000 Dump Truck | ||
Model | SX3254JM384 | ||
Drive type | 6×4 | ||
Kerb mass (kg) | 11200 | ||
Rated loading capacity(kg) | 13670 | ||
Total mass(kg) | 25000 | ||
Max. speed (km/h) | 77 | ||
Min. turning diameter (m) | 18 | ||
Approach/Departure(°) | 16/66 | ||
Max. gradeability (%) | 30 | ||
Appearance dimensions (mm) Length×Width ×Height | 8275×2490×3450 | ||
Wheel base (mm) | 3800+1350 | ||
Overhang(front/rear) | 1525/1600 | ||
Track width (mm) (front/rear) | 1939/1800 | ||
Engine | Steyr Engine, WD615.50,290HP E-II | ||
Rated output power | 213kw | ||
Torque(N.m r. p. m) | 1160/1100-1600 | ||
Displacement(L) | 9.726 | ||
Fuel tank capacity (L) | 380L iron tank | ||
Tyre: | 11R22.5 Tubeless | ||
Clutch | φ430 diaphragm spring | ||
Gearbox | Transmission | 9JS135, 9F,1R | |
Gear ratio | 12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1 R12.66 | ||
Front axle | 7.5T front axle | ||
Drive axle | STR 13T×2 axle ratio 5.73 | ||
Steering | technology(left-hand drive) | ||
Brake | Service brake | With dual-circuit compressed air brake | |
Park brake | Power spring brake acting on front & rear wheel | ||
Cab | D’long F2000 lengthen-flat top cab, single bed with A/C, Manual window lifter | ||
Body dimensions (mm) | 5600×2300×1400mm bottom 8mm,side6mm | ||
Lifting style | Middle lift | ||

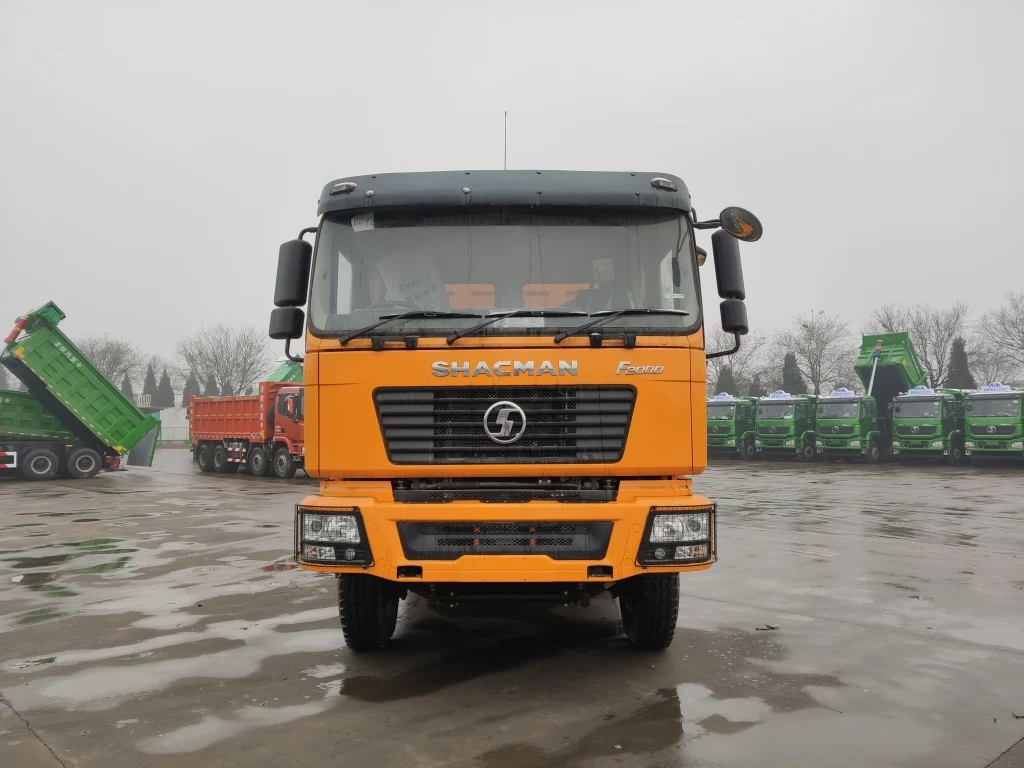

Product Image
