JAGUAR Manufactures Easy Operate PC Control Lead free Wave Soldering Machine for Fire Alarm Production
- Category: >>>
- Supplier: Shenzhen JAGUAR Automation Equipment Co. Ltd.
Share on (62524701685):
Product Overview
Description
Product Description

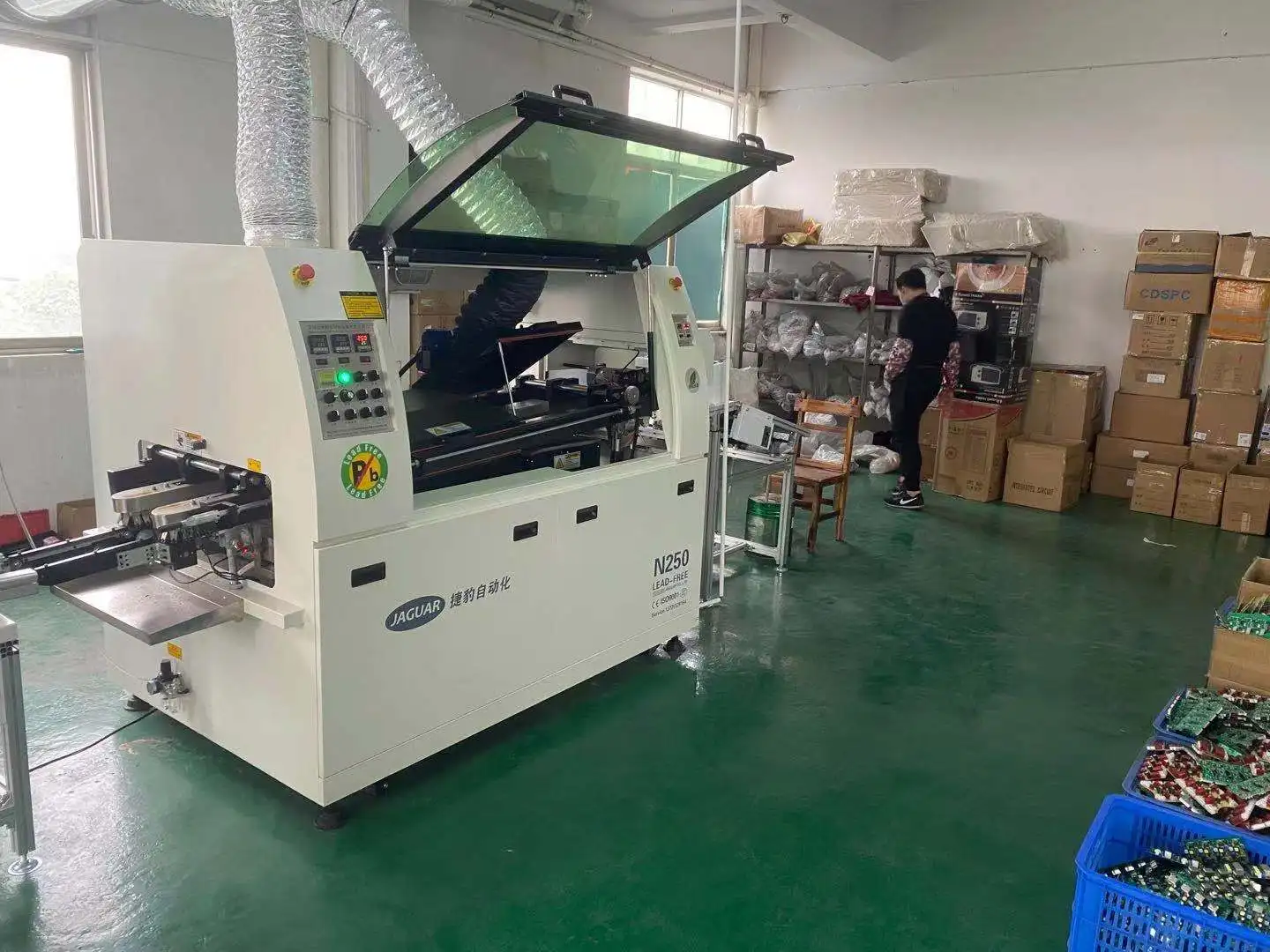

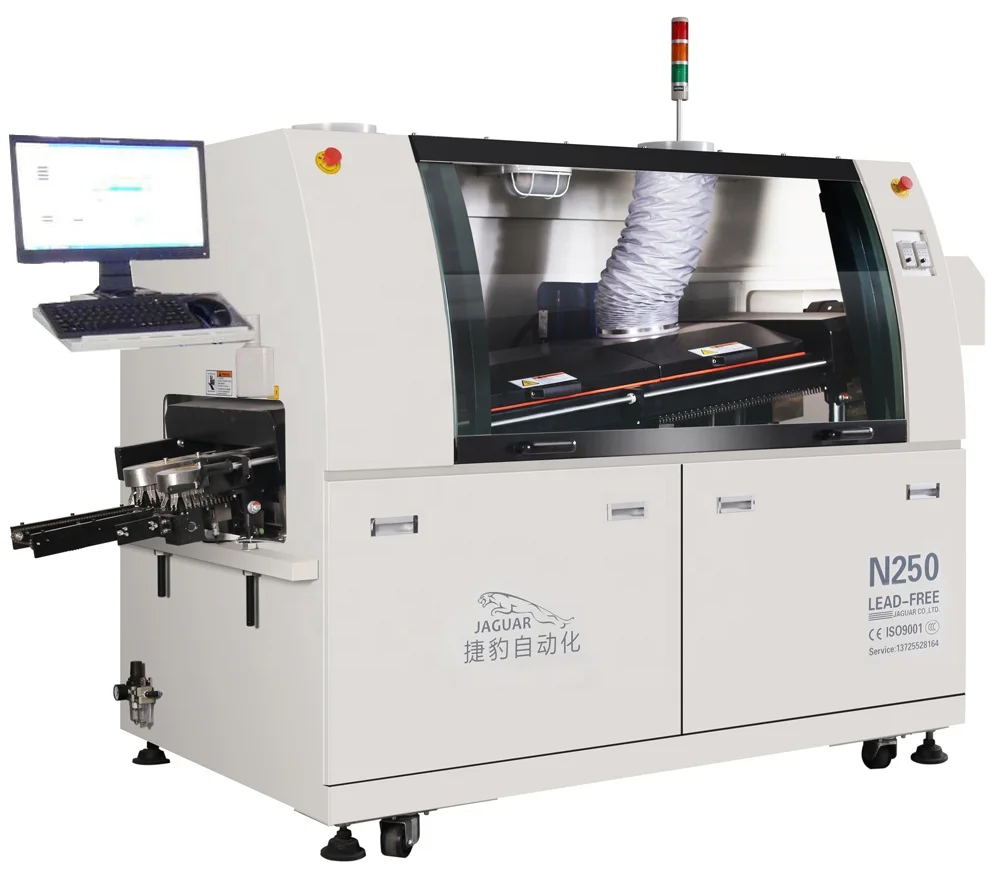

JAGUAR Economic 2 Preheater Lead-free Wave Soldering Machine N250
1. Compact size, suitable for medium output factory
2. 2 preheater, total length: 800mm, hot air mode, uniform temperature
3. Upgrade stepper motor driven flux spray, intelligent recognize PCB width and length
4. Non-stop and automatic flux spray modes selectable
5. Dual wave solder pot, perfect soldering effect
Specification:
Model No. | JAGUAR N250 |
Number of Pre-heaters | 2 |
Pre-heater Passage | 800mm |
Body Size | 1800(L)*1200(W)*1600(H) |
Outside Dimension | 2500(L)*1200(W)*1600(H) |
Weight | 800KG |
Total/Steady consumption | 11KW/4-6KW |
Air Supply | 0.5MPa |
Preheating Style | Hot air |
Preheater Consumption | 220V 5KW |
Control Method | Button+PLC (Option: Touch Screen, PC) |
Range of Temp. Set-point | Room Temperature---300℃ |
Preheating Time | About 10-15mins for Setting 150℃ |
Solder Application | Lead-free / Sn-Pb |
Solder Pot Capacity | 220KG |
Solder Pot Temperature | 300℃ |
Solder Pot Consumption | 380V 6KW |
Solder Temp. Control Method | PID&SSR |
Wave Motor Power | 180Wx2pcs 220V |
Solder Melting | About 120mins for Setting 250℃ |
PCB Width | 50-250mm |
Conveyor Speed | 0-1800mm/min |
Conveyor Direction | L→R (R→L Optional) |
Solder Angle | 4-7 º |
Flux Pressure | 3-5 Bar |
Flux capacity | 3.2L |
Company Information
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

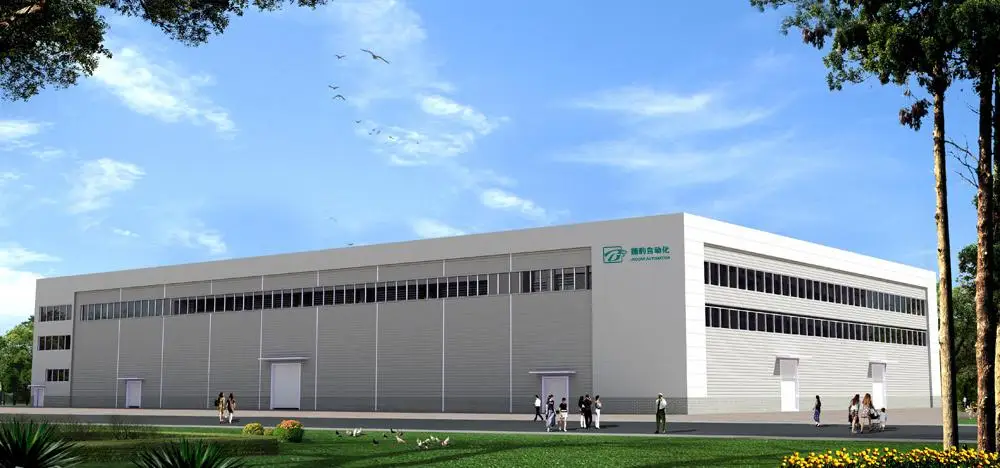

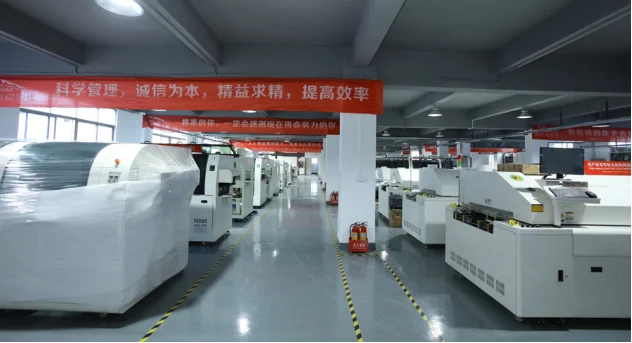

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
Please contact me if you need any machine!
Best Regards,
JAGUAR AUTOMATION
Add.:14th Building,Furong Industrial Zone,Xinqiao Street, Bao'an District, Shenzhen,China
