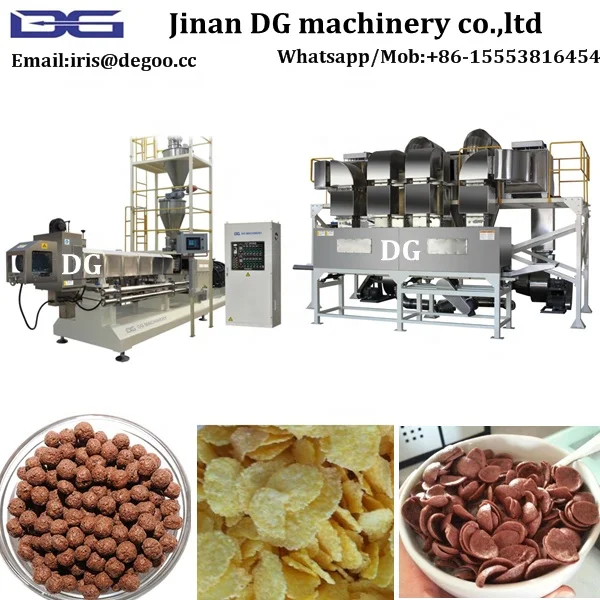

Flat rice crispy Make extruder machine/Crunch Cereal Snacks Plant Machinery/Corn flaking process equipment

Product Overview

Description

Brief introduction of the corn flakes and nutritional cereal processing line:



1. Raw Materials: Main corn Powder and Other Cereals Powder

2. Products: All kinds of snacks with different shapes and types.
3. Capacity: 60-80 KG/H,100-150KG/H ,200 -250KG/H,300-350 KG/H
4. Flow Chart: Mixing —Extruding —Flaking —Drying — Baking —Coating —Baking —Cooling
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ,

                  also can make it according to customers' local voltage of different countries
6. Machines Materials: All the machines are made by food grade stainless steel.

Technical Parameters of Breakfast Cereal Production Line :

Model	Installed power	Power consumption	Throughput	Dimension
DG32-II processing line	135KW	101KW	60-80kg/h	45X2.8X2.7M
DG52-II processing line	210kw	168KW	100-150kg/h	54.7X2.8X2.7M
DG75-II processing line	292KW	219KW	200-250kg/h	64.2X3.2X3.1M
DG75-II B processing line	342KW	256KW	300-350kg/h	69X3.3X3.8M

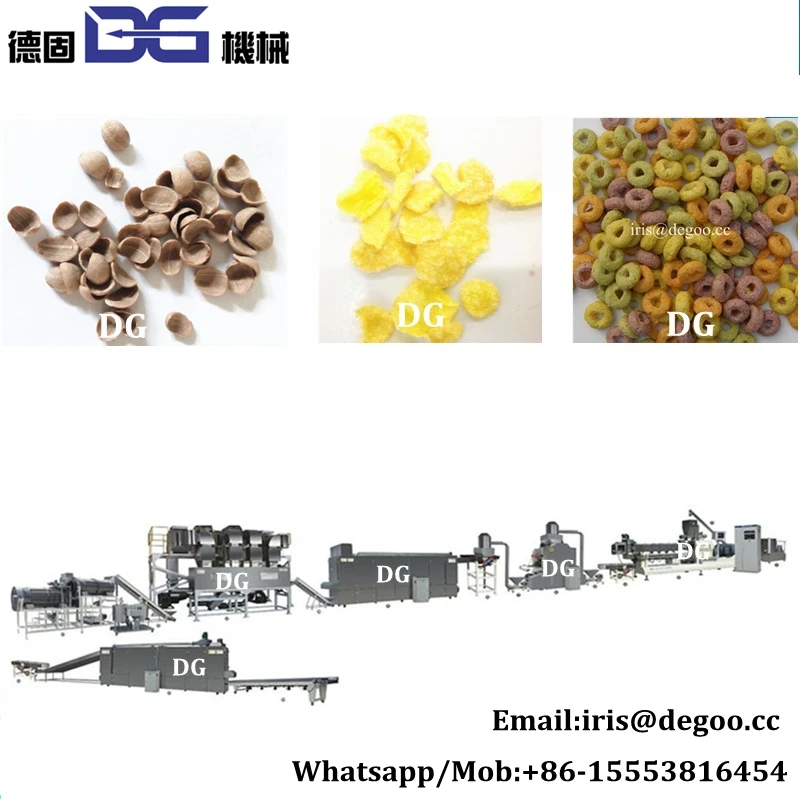

CAD drawing of Corn Flakes and Breakfast cereal production line (Example:300-350kg/h):

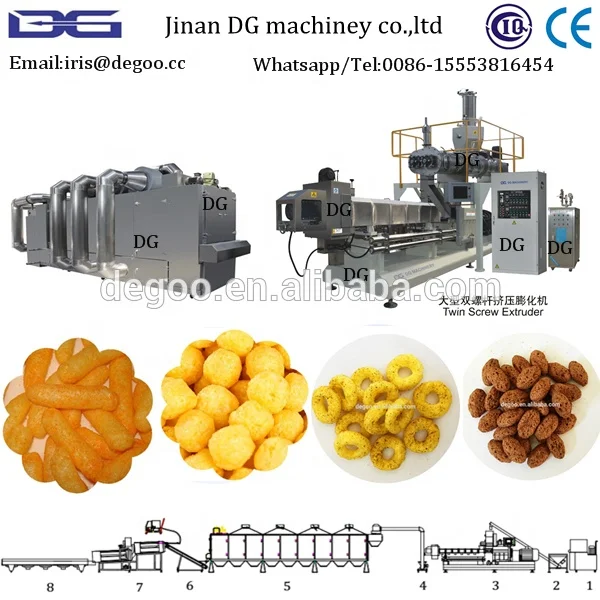

Brief introductions of single machines of the corn flakes and cereal processing line:



1.Flour mixer : to mix various raw materil evenly.

2.Screw conveyor : to convey raw material to extrude

3.Twin/Double screw extruder :to extruder and cook the raw material into different shapes breakfast cereal

4.Water injector: to inject water on the producing process.

5.Vibrating cooler: to spread the products and cool it quickly.

6.Air conveyor: to convey the food to the next machine

7.Flakes presser: to press the particles into thin flakes (its size of flakes can be adjusted)

8.Higher vibrating cooler: to spread the flakes and sancks food and cool it quickly.

9.Belt drying oven: to dry snacks food by circulating belt.

10.Belt conveyor: to elevate the snacks food to the next machine

11.High temperature toaster: to use hot air to dry the snacks food.

12.Flavoring machine: to spray flour ,sugar oil and other seansons on the food to get decilious food.

13.Extending drying oven: to dry the corn  flakes after it being coated sugar.

14.Cooling conveyor: to cool food.
