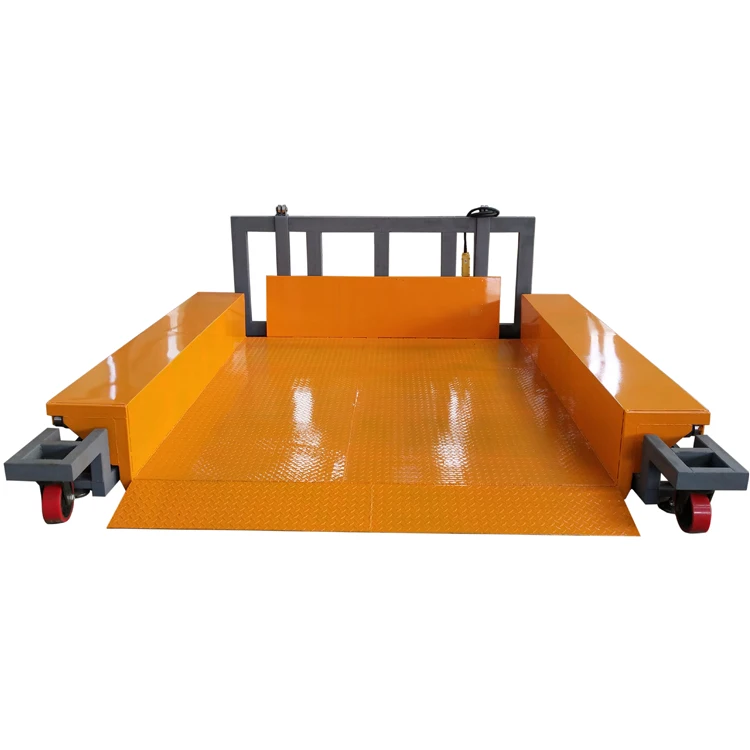

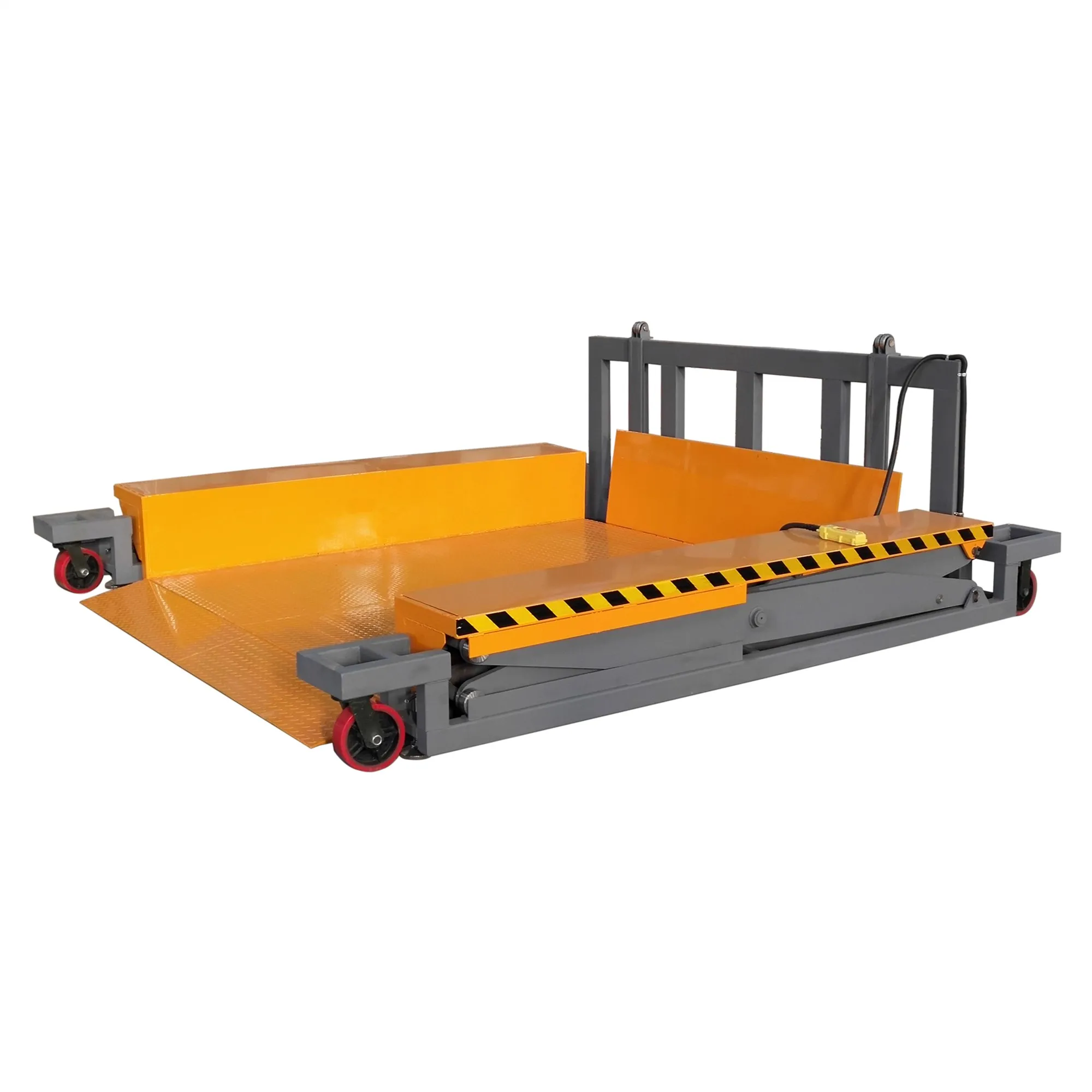

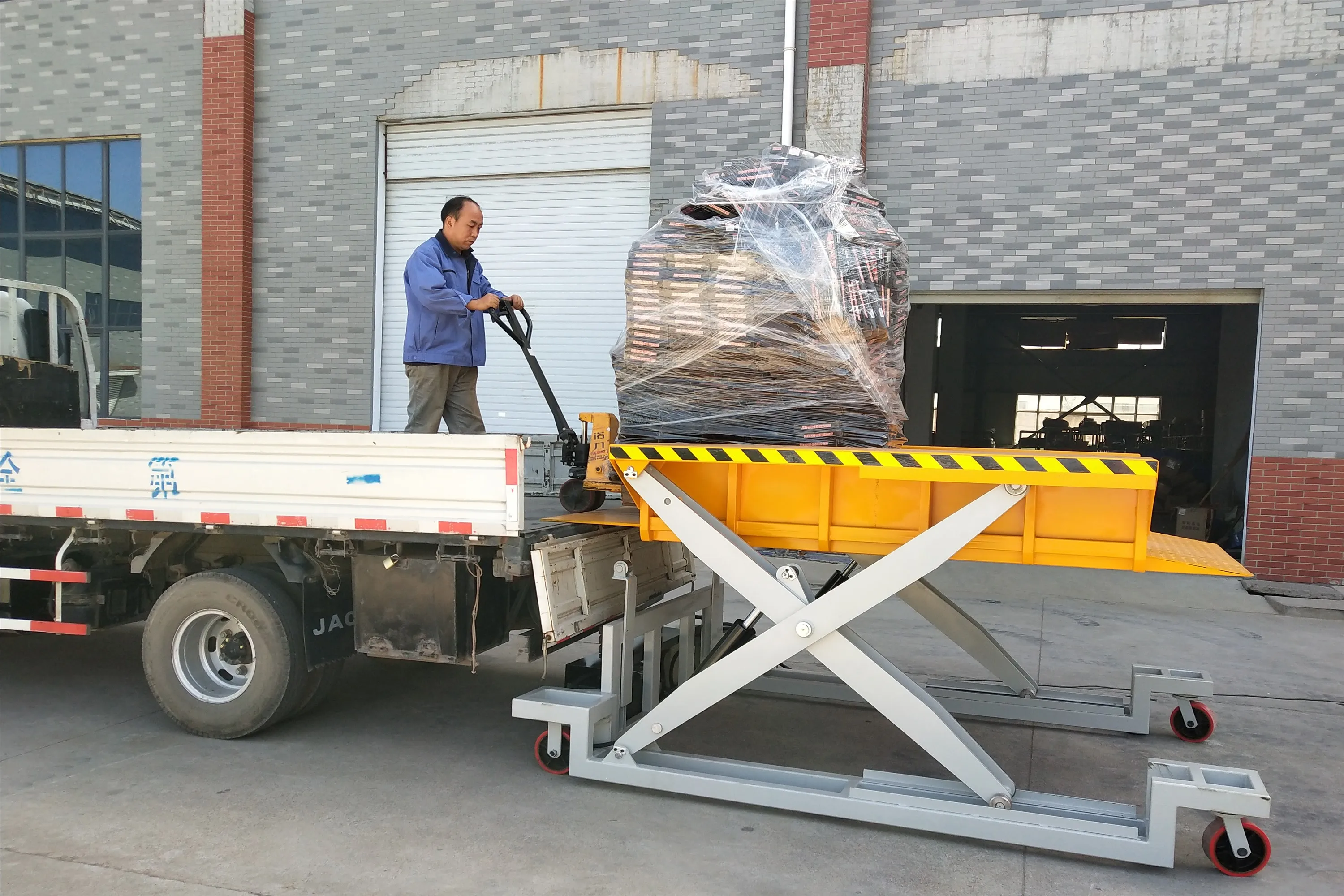

1T 1.5T 2T Mobile Transport Lift electric hydraulic scissor table lifter
- Category: >>>
- Supplier: Xinxiang Zhongxiang Lifting Machine Co. Ltd.
Share on (62524766891):
Product Overview
Description
Product Description
1T 1.5T 2T Mobile Transport Lift electric hydraulic
scissor table lifter

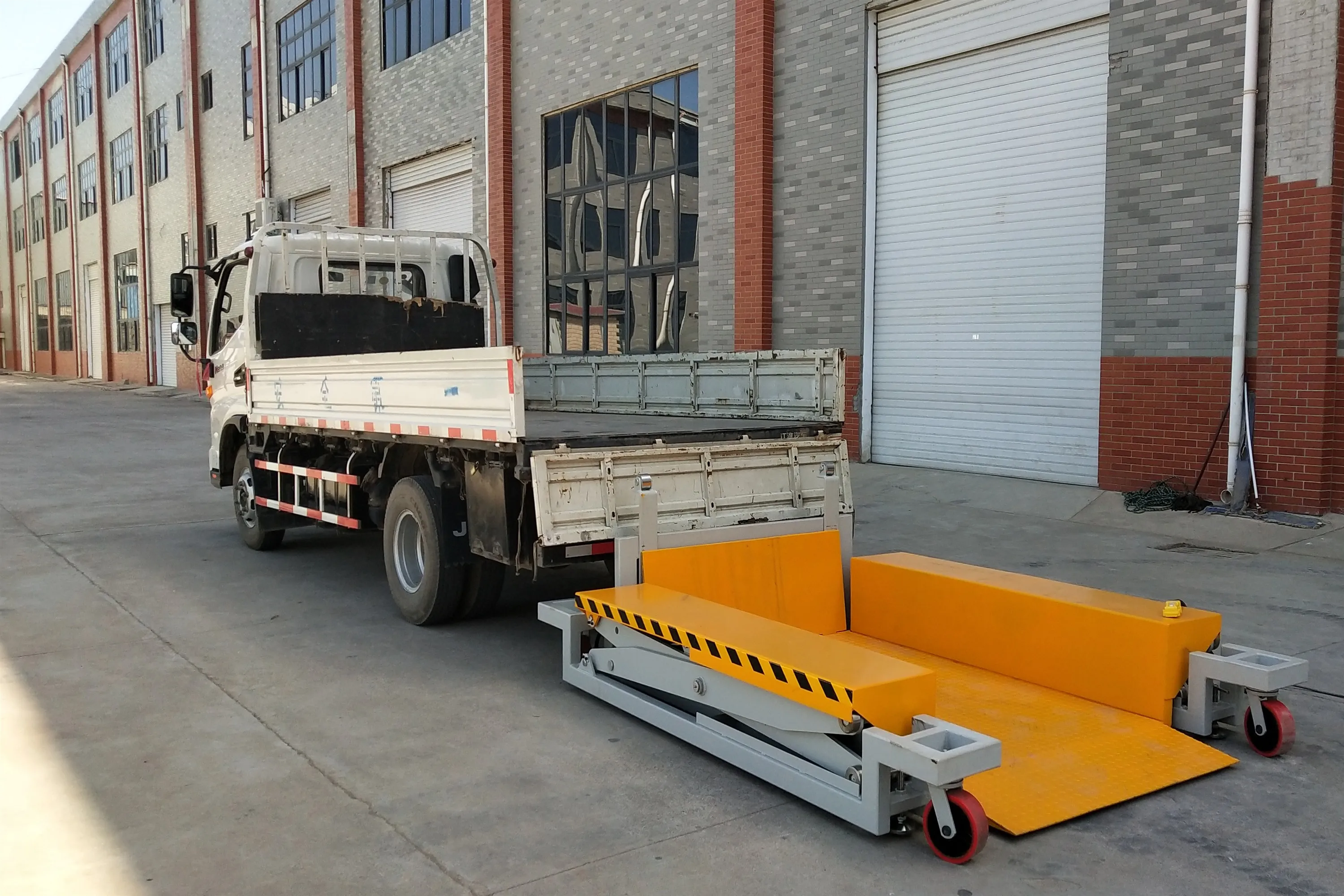

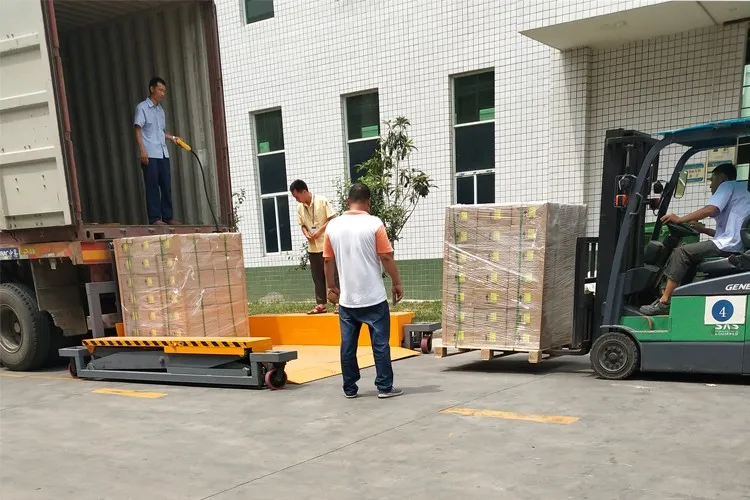

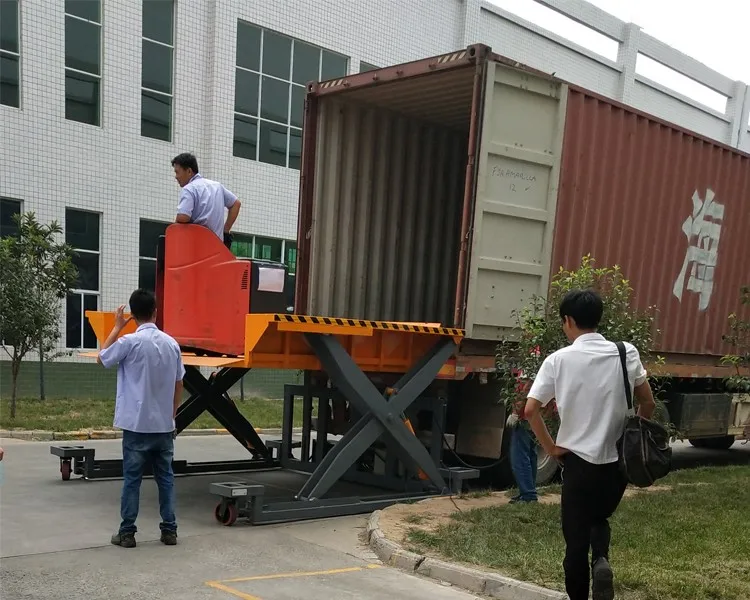

The mobile loading platform is an economical hydraulic lifting platform with high safety and good mechanical properties. It is widely used in cargo platforms and loading and unloading sites without loading and unloading equipment, and can be equipped with a variety of auxiliary equipment. It can help users safely and efficiently load and unload trucks of various heights and sizes. In use, the loading platform is lapped at the rear of the truck so that the forklift can enter the truck to load and unload cargo from the platform. It can not only reduce labor intensity, but also double the efficiency of loading and unloading operations, speed up the circulation of logistics, and achieve greater economic benefits.
Reference specification
We will customize the best product according to your needs, and also give you two reference models for you to choose:
model | Platform size (L*W) | Rated load (C) | Min height (mm)H1 | Max height (mm) H3 | Motor Power (Kw) | Wheel height (mm) H2 | Protection plate height (mm) H4,H5 | Lift speed (mm/s) | Operating Voltage (V) | |||||||||
PTY-01 | 2000*1300 | 1000 | 60 | 1300 | 1.5 | 350 | 400,600 | 50 | AC380/220 DC24 | |||||||||
PTY-02 | 2300*1500 | 1500 | 60 | 1500 | 2.2 | 350 | 400,600 | 50 | AC380/220 DC24 | |||||||||
PTY-03 | 2500*1600 | 2000 | 80 | 1650 | 3 | 400 | 450,600 | 60 | AC380/220 DC24 | |||||||||
Special custom | ||||||||||||||||||
Detailed Images
Material details

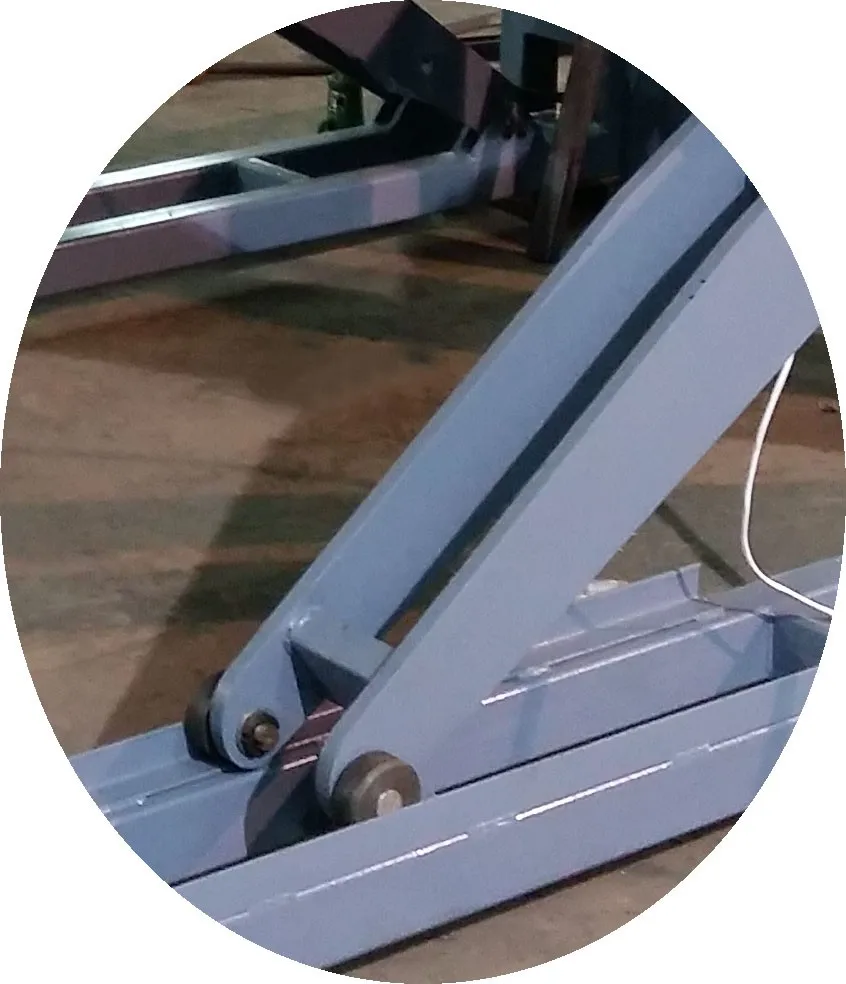

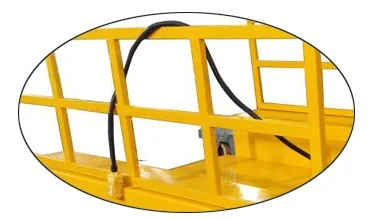

Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.More strong!
The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

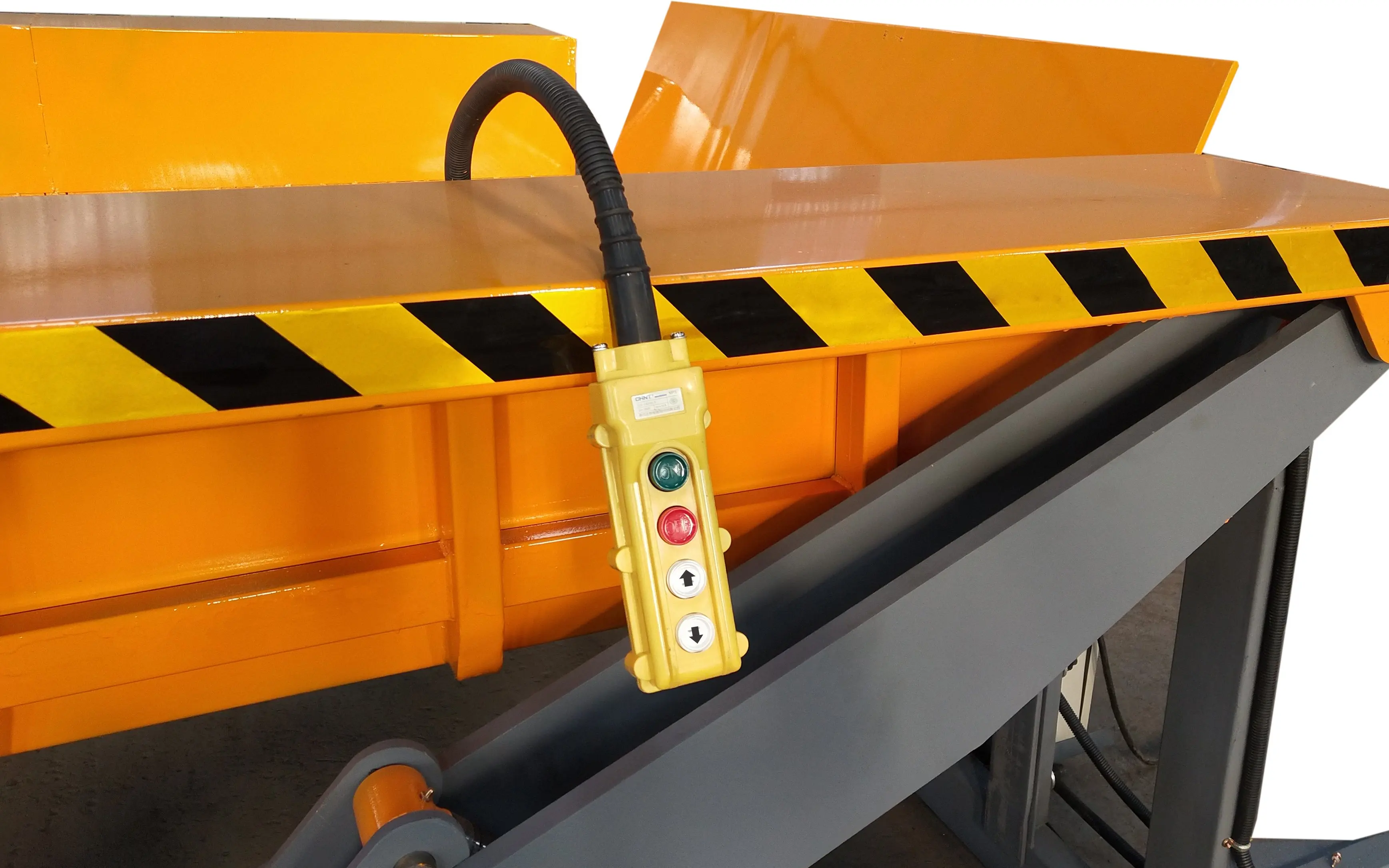

Automatic rider tongue & remote control handle
Automatic rider tongues can effectively bridge gaps and protect cargo.More convenient!
Each machine is equipped with 30 meters wireless remote control handle.

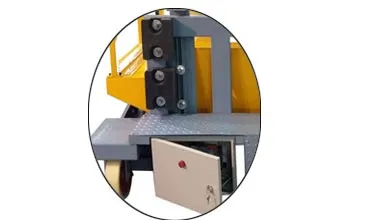

Control System & Crash Rubber Pad
Each platform has a complete set of control switches.
The power part :AC380V/220V or DC24V/12V.
The control part : 24V safety voltage.
Anti-collision rubber pad can effectively protect the carriage and equipment and avoid damage.More safety!
Hydraulic system
The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks,the oil cylinder when the tubing is broken.
The hydraulic system has a power failure emergency manual descending device.

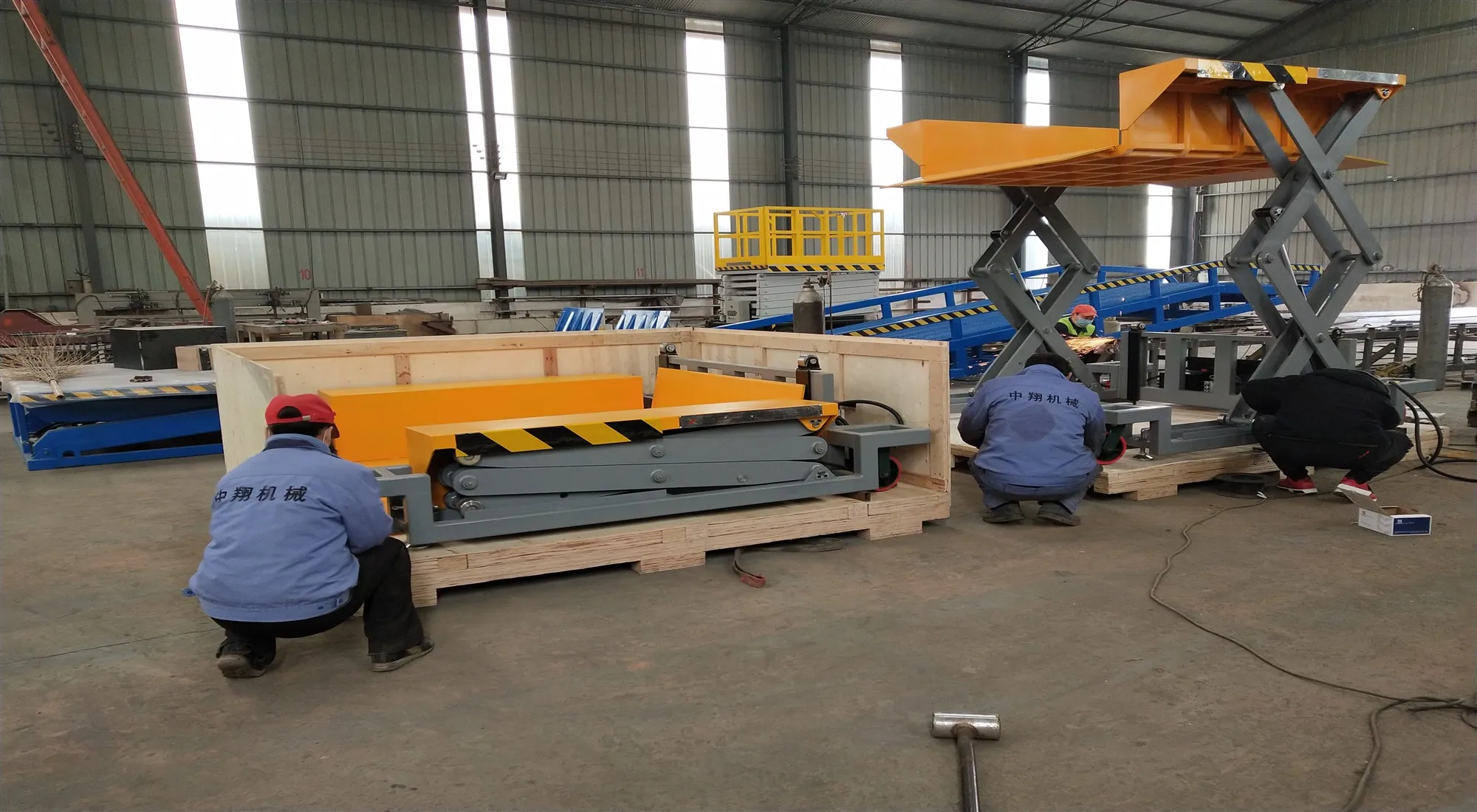

Packing & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our commitment
1. Respond to inquiries within 24 hours.
2. Professional pre-sales service technology to provide a full range of solutions.
3. We could offer professional use,installation and adjustment training.
4. The technician support remote or on site.
5.welcome to our factory and company.
Our Company
Xinxiang Zhongxiang Lifting Machine Co., Ltd. is a high-tech enterprise engaged in the research, development, planning, design, manufacture, installation, maintenance and maintenance of stereo garages and lifting equipment. It is a famous enterprise in Henan Province. After years of development, the company has a professional technical team and modern production line production staff and excellent installation team, to provide our customers with efficient, safe, reliable products and perfect services. We have gradually shaped the "Zhongxiang Machinery" brand and our products have been sold to major cities in China. We will always adhere to the principle of integrity, self-confidence, intention, and innovation, and always follow the business philosophy of "quality-oriented, service-oriented", just to make you satisfied.
Certifications
Our Clients
So far, we have been developing more than ten years, has also accumulated a lot of quality customers, the above is a well-known Chinese company that we have worked with. We just want to confirm to you: We are trustworthy.
