Automatic 1g 5g 10g 20g sugar stick salt sachet packing machine price
- Category: >>>
- Supplier: Foshan Tentoo Mechanical Equipment Co. Ltd.
Share on (62525121978):
Product Overview
Description
Product Description
Product Application
1.The whole body 304 stainless steel high-precision structure, rust and durable, easy operation and maintenance.
2.PLC, touch screen, stepper motor control, bag length set convenient and accurate.
3.Frequency control, bag more convenient and smooth, simple and quick, save time and film.
4.High sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, so that the sealing and cutting position more accurate.
5.Temperature independent PID control, better adapt to a variety of packaging materials.
6.From filling, bagging, printing date, inflatable (exhaust) one-time completion.
7.Drive system is simple, more reliable, more convenient maintenance.
8.All controls are implemented by software to facilitate functional adjustment and technology upgrades, never lagging behind.
Main Machine Specification | ||||||
Model | TT-380 | |||||
Film width | max 320mm | |||||
Bag length | max 220mm | |||||
Bag width | 50-150mm | |||||
Packaging Rate | 5-60bags/min | |||||
Measurement Range | 50-500ml | |||||
Film Thickness | 0.04-0.08mm | |||||
Power | 220V 50/60Hz 2KW | |||||
Machine Size | 970*680*1950 | |||||
Machine Quality | About 300KG | |||||
Optional device | Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag | |||||
Application
Detailed Images
Easy control touch screen
Simens PLC control system,colourful touch screen ,easy operation ,intuitionistic and efficient with auto warming protection function to minimize loss.
Panasonic Frequency
PLC Computer control system ,machine performance is more stable and convenient for parameters adjusting.

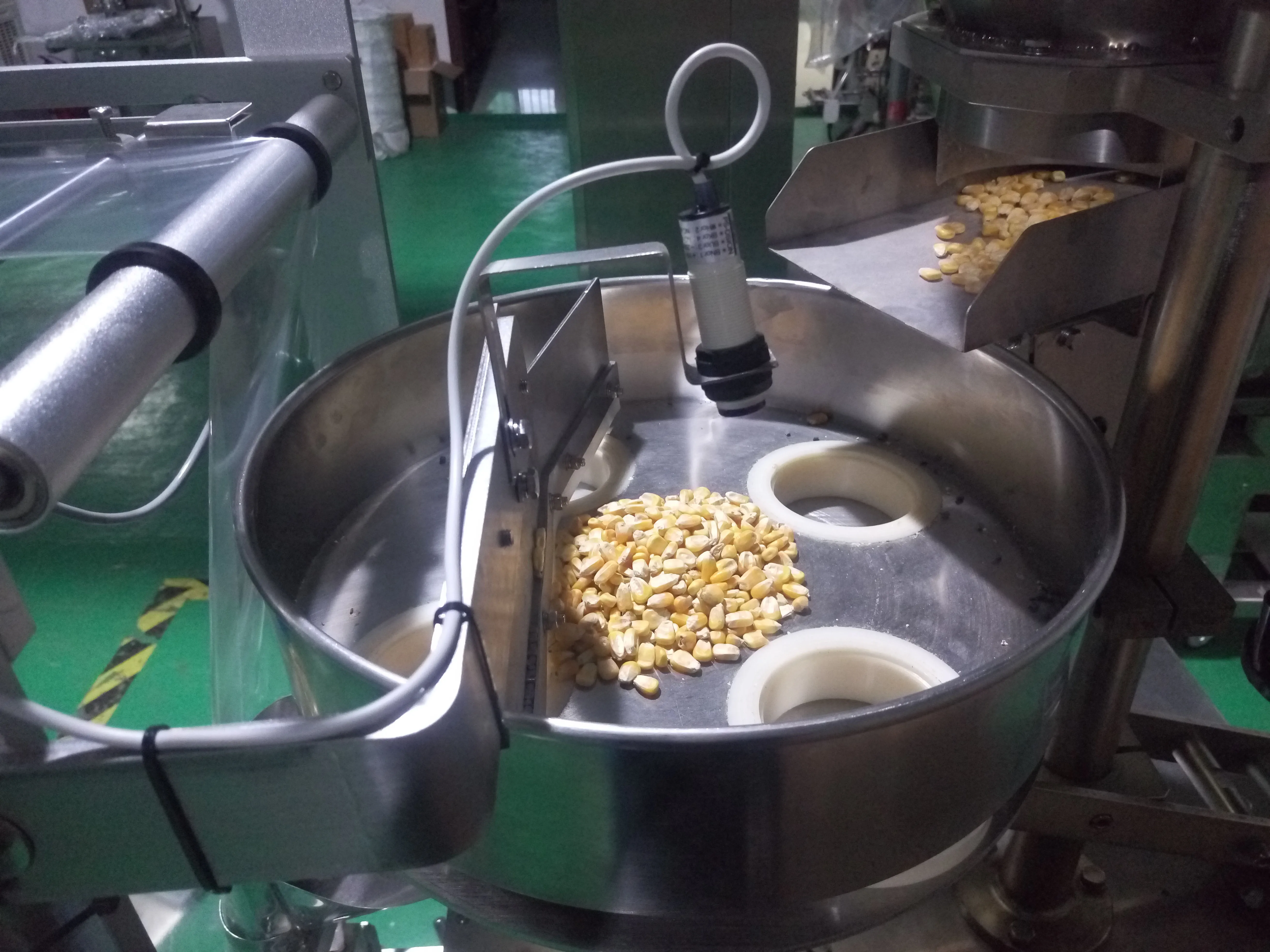

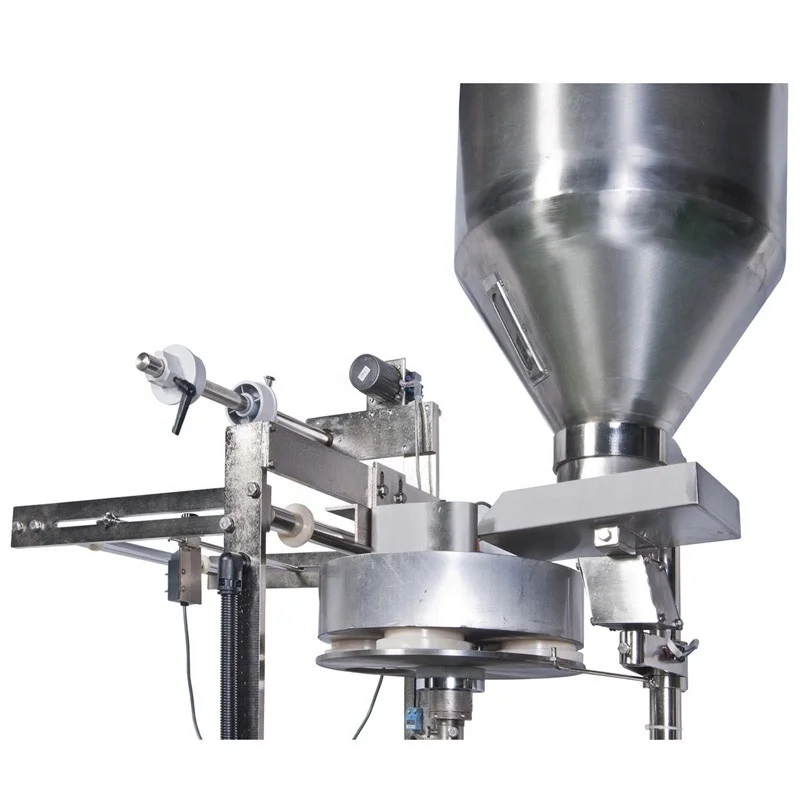

Volumetric cup system.
Adjustable volumetric cup measuring system with high weighing precision.
Sealing structure.
Independent PID temperature control ,neat back sealing ,sharp knife block ,make strong packing bag.
High speed date printer
Print the producing and expire date flexible adjustment date format.
Company Profile
Packing & Delivery
Our Service
After-sale Services:
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Tentoo engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. TENTOO has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
Certificate
FAQ
1. What is your main products?
We provide all kinds of granule packing machine, powder packing machine and liquid packing machine.
2. What should i do for my orders?
Please share us some information of what you want to package, and it will be best by sharing us some photos of it, then we could
know exactly which of our machine is best to you.
3. How can i make sure my money is safe?
For this issue, you could pay us through Alibaba by using “Trade assurance”, Alibaba will guarantee your money is safe, and we will only get money from Alibaba only after sending out goods to you.
4. I don’t know a lotabout the packing machine,is it difficult to operate?
It is quite a simple machine, we will make sure you can use it easily. We will finish all the setting here and take some guiding videos for you, then you could know more in advance. Also we provide overboard service, we could be there if you need.
5. How about the quality of your packing machine? Any certification?
We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.
We provide all kinds of granule packing machine, powder packing machine and liquid packing machine.
2. What should i do for my orders?
Please share us some information of what you want to package, and it will be best by sharing us some photos of it, then we could
know exactly which of our machine is best to you.
3. How can i make sure my money is safe?
For this issue, you could pay us through Alibaba by using “Trade assurance”, Alibaba will guarantee your money is safe, and we will only get money from Alibaba only after sending out goods to you.
4. I don’t know a lotabout the packing machine,is it difficult to operate?
It is quite a simple machine, we will make sure you can use it easily. We will finish all the setting here and take some guiding videos for you, then you could know more in advance. Also we provide overboard service, we could be there if you need.
5. How about the quality of your packing machine? Any certification?
We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.
6. What is the after-sales and guarantee ?
First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge.
The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer.
First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge.
The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer.
