EMV Card Reader and PCI EPP Safe Durable Through Wall Atm Machine

Product Overview

Description

Product Description

EMV Card Reader and PCI EPP Safe Durable Through-Wall Atm Machine



About us:



1. More than 15 years manufacturing experiences and products applied /placed more than 180 countries

2. Young,energetic,smart and perfessional R&D team

3. Nearly 10 years' international trading experience

4. Our factory  is located in Shenzhen city,China, which is a international city



Description:

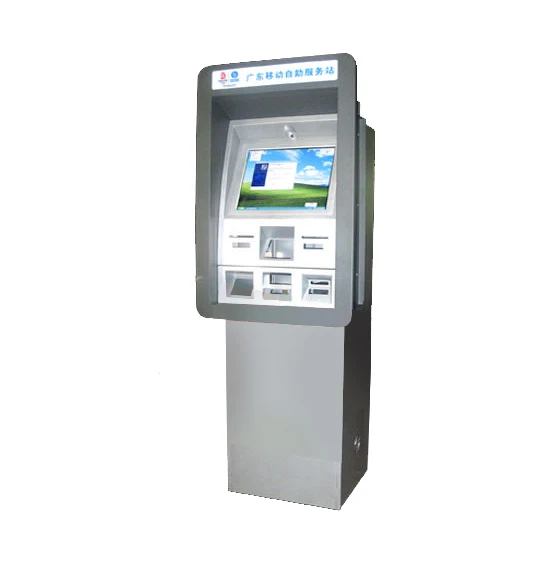

KMY8800 series kiosks are ATM machine, KMY ATMs are especially designed for banking and retailing for the cash dispensing and recycling. It’s flexible design and high quality performance can bring “low cost, high reliability and stability” in your ATM investment.





Configuration of parking self service kiosk



KMY8802A Kiosk Basic Configuration
Components	Specification
Computer	CPU:i3/i5/i7  Main memory unit:4GB/8GB  SSD:128G Sound Card:Included  Slot to insert board:There are some slot for additional boards  OS:Windows   HDD:500GB  Graphic:video memory 128MB LAN:10/100/1,000Mbps(upgradeable as option) (More sizes and types of PC available upon request)
Monitor	FT LCD : 15, 17 or 19 optional                  : Brightness 300~1200nits                  : Contrast 450:1~1000:1 Resolution: 15 1024*768 17 1280*1024  19 1280*1024 More sizes between 20"~46" upon request
Printer	Receipt printer: Thermal printer; Paper width: 79.5mm; Max paper roll diameter:240mm                             Dot matrix printer (optional): Paper width: 76mm; Max paper roll diameter:140mm                             Journal printer: Dot matrix Chinese printer; Paper width: 76mm; Max paper roll                                                         diameter 85mm
Input Device	One 4x4 numeric metal encryption keypad, compliant with VISA/PCI EPP Standard
Card Reader	Suck-in motorized card reader, magcard(Tr 1/2/3) compliant with ISO and compatibility standard and IC card reading and writing; Compliant with EMV standard; Suck back the card left by user; Eject the card when power-failure is optional.
Card Dispenser Module	Telephone card/VIP card pre-made automatically dispensing, for all standard size prefab card(including magcard, IC card, RFID card, etc). Capacity: 100~1,000 pcs optional.
Cash Acceptance and Fee Paying	Identify the popular currency in most of the countries and regions. Highly validating ability, double-face/four-sides identifying, high identifying speed, automatically tidying up; Front maintenance/back maintenance/standing/ horizontal mode optional. Storage capacity: 300~1000 notes optional.
Backup Power Supply	Provide backup power supply in case of sudden power failure when the terminal is in process of transaction. Serial port communication is optional.
Safety	Anti-vandal safety: Compliant with UL291 standard Data safety: EPP is compliant with VISA Security Standard; Card reader is compliant with EMV Level1 Standard; IC Card Control is compliant with EMV 4.0 Level2 Standard. Electric safety: Compliant with GB4943 Standard EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard Monitoring system: Digital video security monitoring system (optional)
Physical Features	Volume: Height: 1645mm; Width: 560mm; Depth: 780mm; Weight: 430Kg
Operating environment	Temperature: 0℃--40℃; Relative Humidity: 20--95%
Electric features: Power: Standby status 180W, transaction status 350W                                   Power supply: Single-phase AC220V+15% 50Hz, AC110V+15% 60Hz

Packaging Shipping









      KMY (SZ KMY Co., Ltd) is a worldwide leading manufacturer of self-service kiosks, metal keyboards, and telephone POS. The company is located in Shenzhen, China, a beautiful seaside city, which is the most developed and high-tech driven area in China, only 45 minutes ride from Shenzhen to Hong Kong and very convenient for international business discussion.

      KMY products and solutions are popular both in the domestic and global markets in over 40 countries, mainly in America, Europe, Asia, Africa, and the Middle East and have gained a strong reputation in this industry. KMY is not only a profitable company with robust financial performance and stable cash flow, but is also a company with growing potentials and prospects. Looking forward, KMY defines its strategic goal of "becoming a worldwide leader in the self-service world and achieving leapfrog evolution from excellence to preeminence”. To this end, KMY will adhere to its core value proposition of "Responsibility Makes Perfection" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.

      KMY’s Team is our core competence. We know that all the quality products and services come from a conscientious and enthusiastic team. The intellectual staff and over 75% of the engineering technology staff have at least 10 years experience in manufacturing kiosks, developing technology and researching self-service terminals

      Our belief is that “Integrity, Teamwork, Innovation and Sustainability” are the factors that will keep KMY growing stably and healthily and provide better services to our customers.











Exhibition show
