Portable Hardness Tester manufacturer HARTIP2500 with big color display , / 2 HLD, auto impact direction

Product Overview

Description

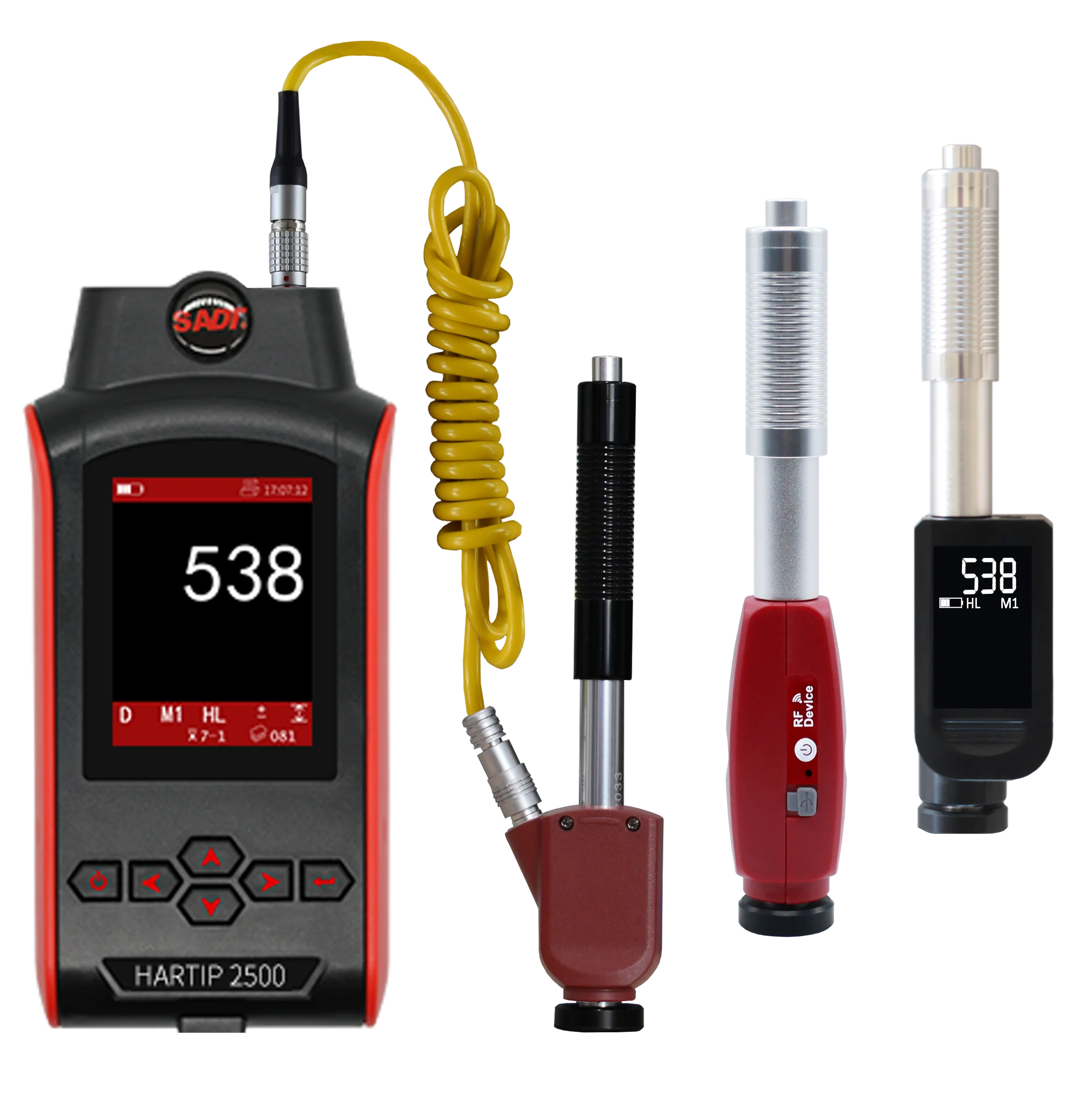

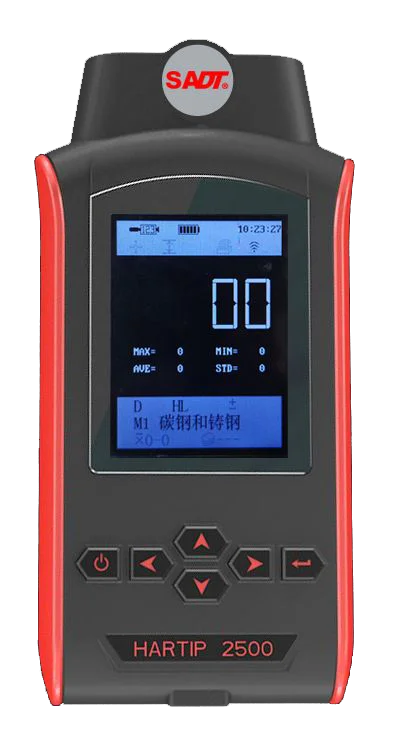

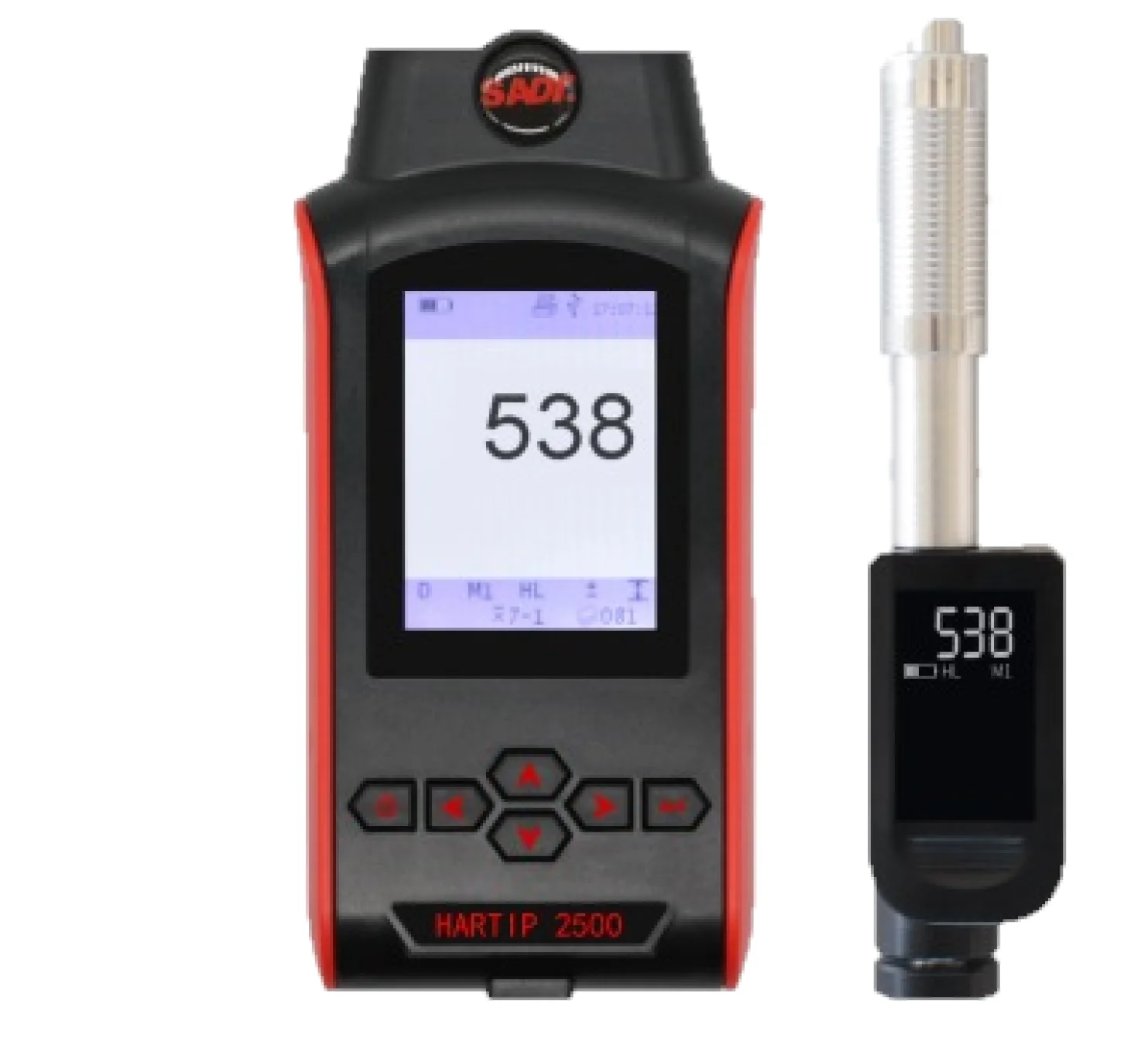

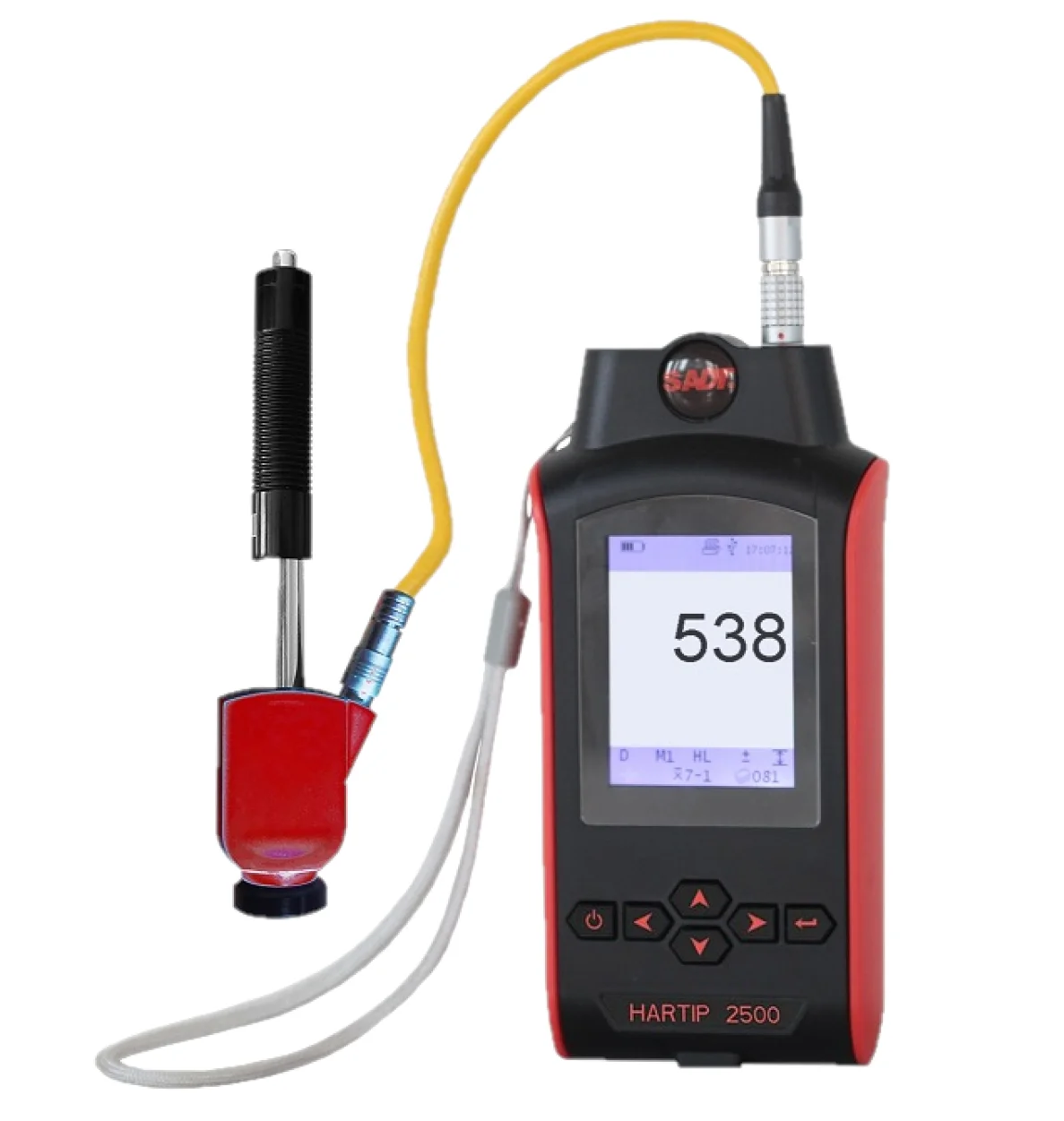

Portable Hardness Tester HARTIP 2500 with big color display



HARTIP 2500 is an innovation of traditional Leeb hardness tester. All probes worked with HARTIP 2500 are modularized digital probe, which gives more accurate hardness value. Besides, HARTIP2500 can also work with our wireless probe and new RP reading probe as optional.



Advantages
›› Equipped with digital probes only
›› Cost- effec tive with reading probe (optional)
›› High repeatability accuracy: +/-2 HL (or 0.3% @HL800)
›› High linear accuracy for any angles
›› TFT color display
›› Auto compensate error for different impac t direc tion
›› Powered by AA batter y or USB power supply
›› The tester can be attrac ted to the workpiece with magnetic base (optional)
›› Statistics value can be calculated automatically
›› Up to 10 kinds of menu language
›› Data managing sof tware on PC
›› Power on/off automatically or manually



Specification



Principle	Leeb hardness measurement
Accuracy / Repeatability	±0.3% @ HL=800 / ±2HL
Display High contrast color	TFT 240 x 320
Hardness scale	HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range	HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / HRA7-88.5 / σb(rm)24-6599N/mm2
Probe	Digital probe D/ C/DC/D+15/DL/E Wireless probe D C/DC/D+15/DL/E (optional), Reading probe D (optional)
Materials and conversion	curves 11 common metal materials, 75 curves
Memory 999 data	999 data
Statistics function	Average / Max. / Min. / S. value
Re-calibration	Allowed by user
Indicator	Low battery
Language	En g l i s h
Interface USB / Bluetooth (optional)	USB / Bluetooth (optional)
Power on/off	Auto / Manual
Power supply	AA alkaline battery / USB power supply
Working environment	-20°C~+70°C
Dimension (mm) 1	145x70x30
Net weight (g)	145
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Standard package

HARTIP 2500
HARTIP 2500 main unit 1
Digital probe D 1
Test block D 1
Small support ring 1
Cleaning brush 1
Probe cable 1
USB cable 1

Software
Operation manual 1
Test Certificate 1
Carrying case 1

Optional accessories

Digital probe C/DC/D+15/DL/E
Reading probe D
Wireless probe D C/DC/D+15/
DL/E
Special support rings
Standard support ring for
probe D
Small support ring
Impact body D
Carbide ball tip D
Test block D with certificate
Test block D w/o certificate
