tig welding machine inverter 220V dc tig welder wsm 200 with Pulse powerful welding machine
- Category: >>>
- Supplier: Taizhou Lemin Welding Equipment Co. Ltd.
Share on (62525440817):
Product Overview
Description
Products Description

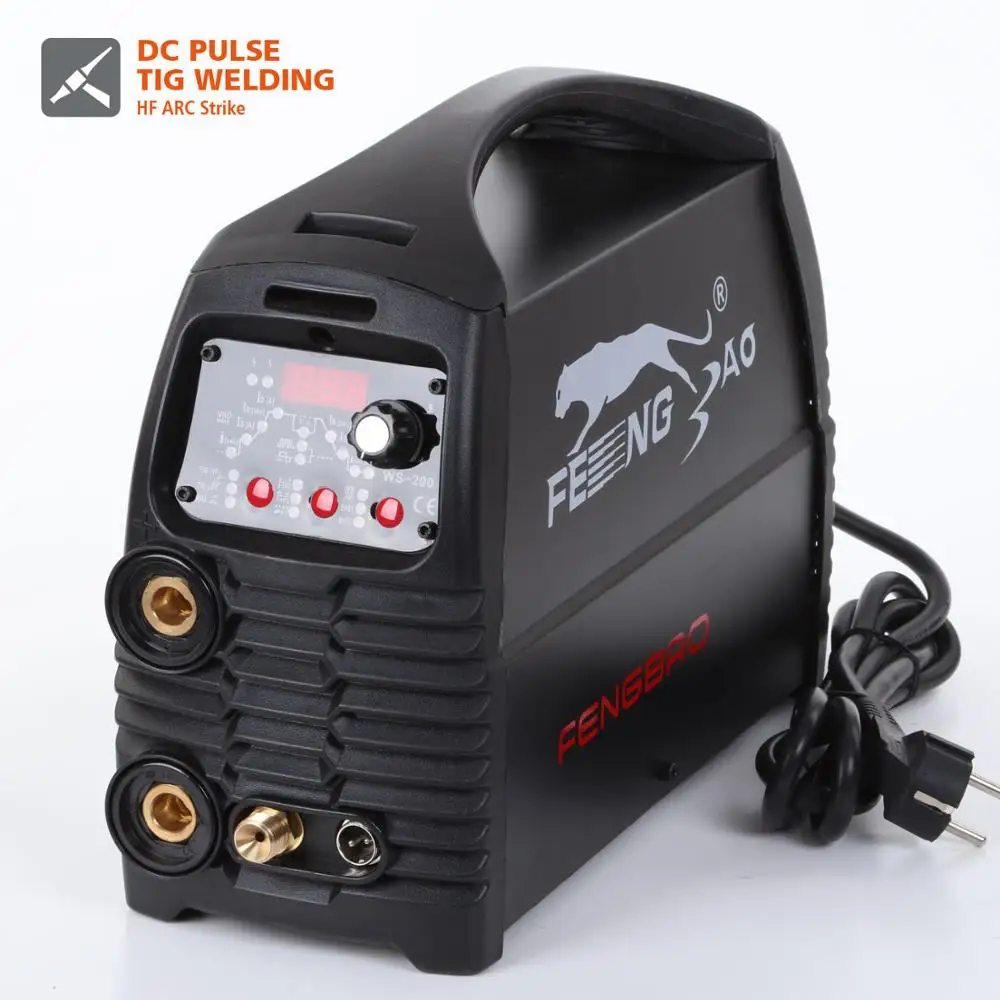

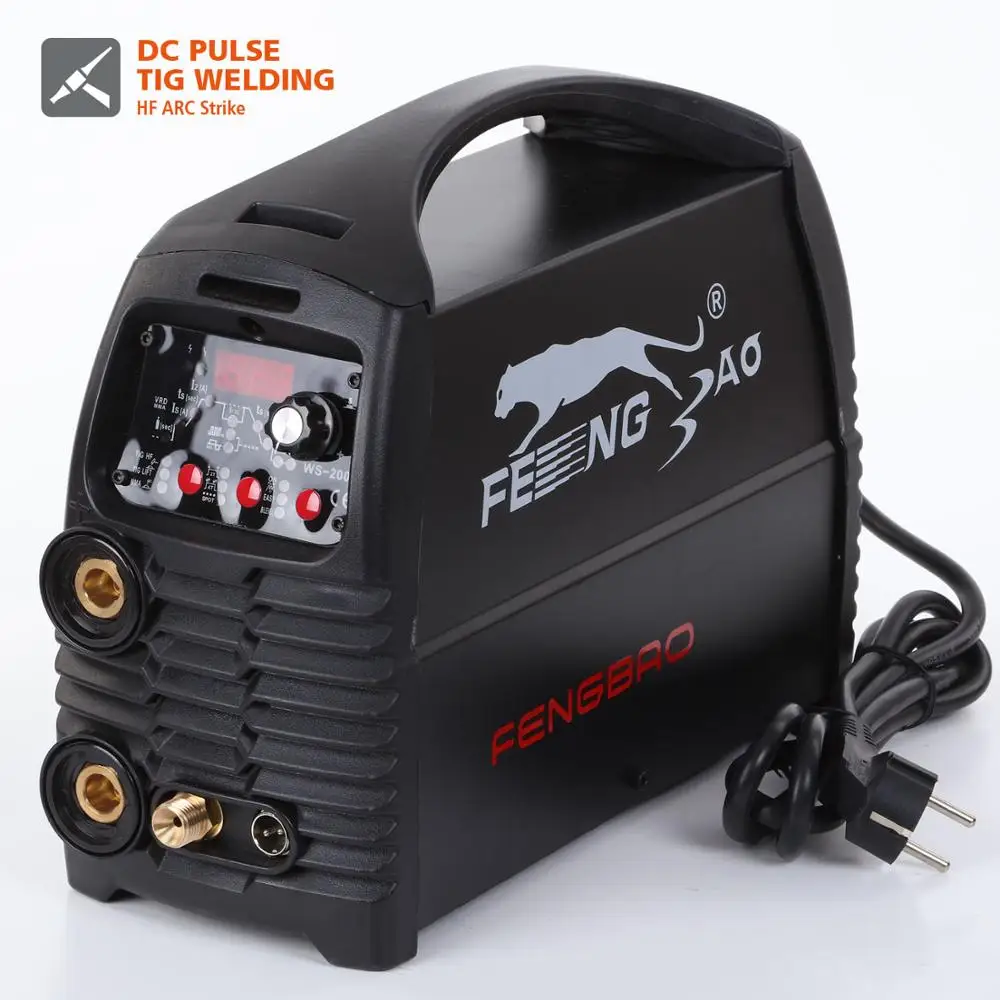

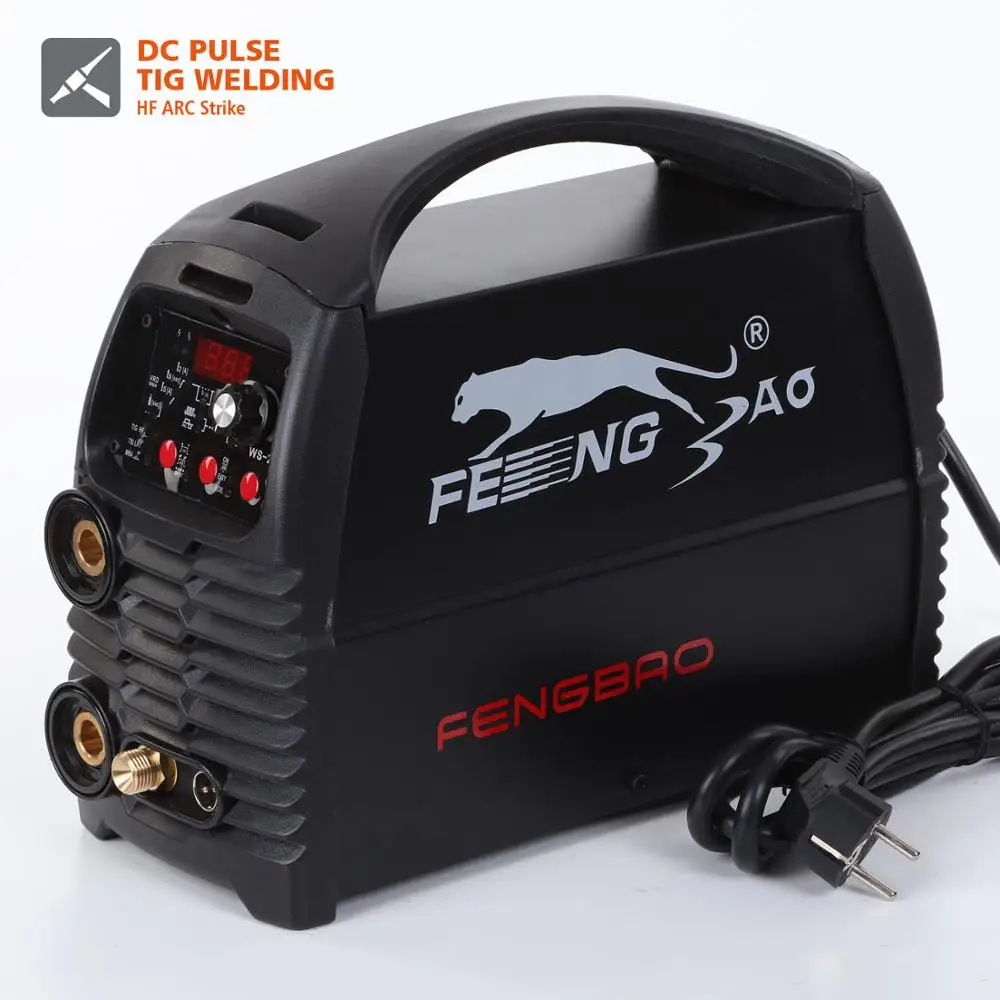

TIG-200 PULSE IGBT INVERTER WELDING MACHINE
This welding machine is a power source for arc welding, made specially for TIG DC welding with HF or LIFT strike and MMA wleding with coated electrodes (Rutile, acid, basic).
The particular features of this inverter welding machine, such as high-speed and precise adjustment, result in excellent quality welds.
Incorporating the latest EASY PULSE Technology is confirmed as the perfect solution for a wide range of applicatoins.
> Reaparing workshop
> Metral artworks
> Steel Constructions
> Light Industry
> Metral artworks
> Steel Constructions
> Light Industry
Becasue of its flexibility, the TIG DC welding is suitable for welding different materials:
> Low and High carbon steel
> Heavy metals
> Titanium
> Low and High carbon steel
> Heavy metals
> Titanium
> Alloys
> Stiinless steel
> Aluminium
> Stiinless steel
> Aluminium
Details Images
MULTI FUNCTION, COMPACT DESIGN, EASY HANDLING
The inverter system of regulation at the power supply input (primary) also leads to a drastic decrease in the volume of both the transformer and the leveling reactance so that it is possible to build a considerably smaller, lighter welding machine, highlighting its advantages of easy handling and transport.

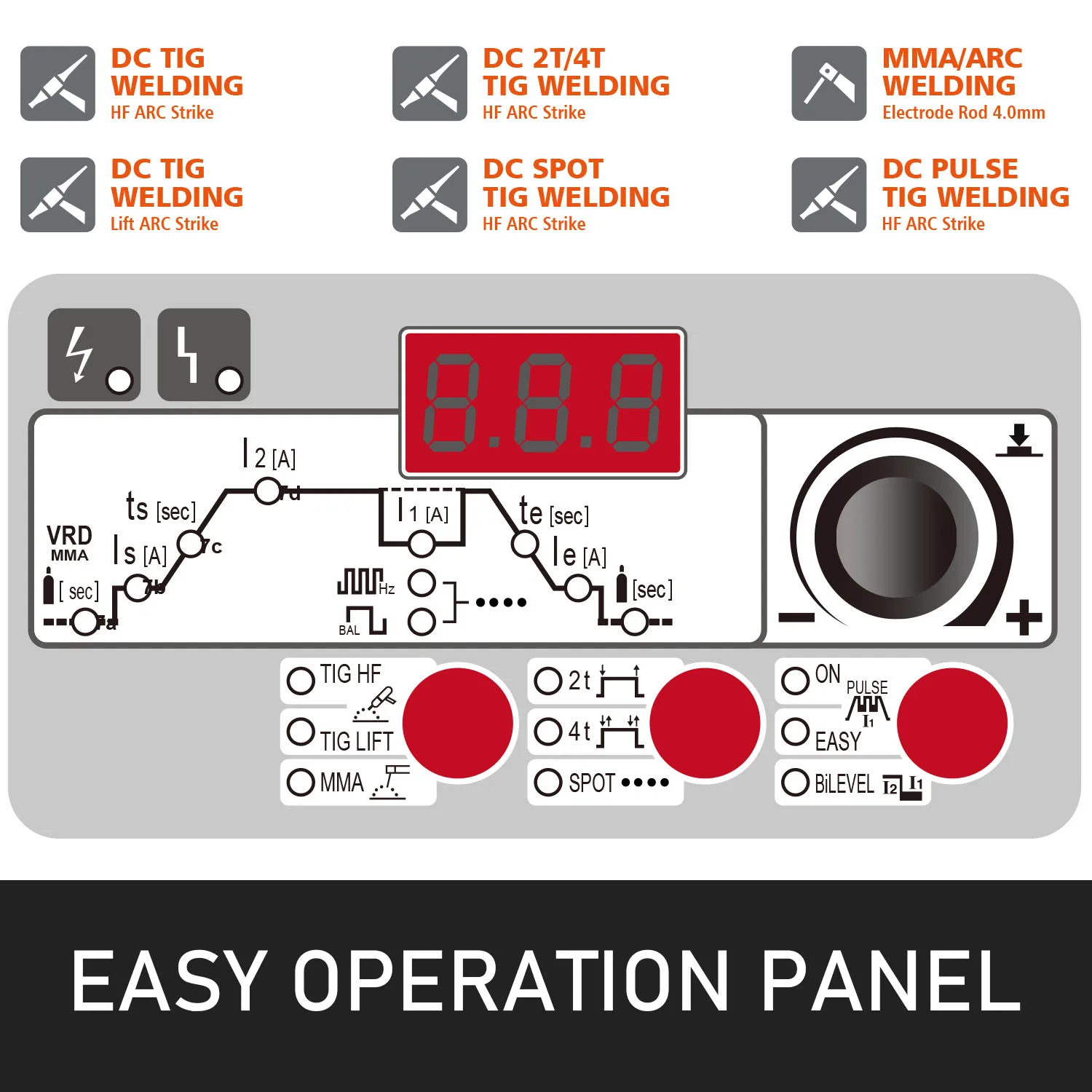

MULTI PROCESS OPERATING PANEL
When in the TIG mode, you can choose between pulsed (ON PULSE),automatic pulse (EASY PULSE), and Bi-LEVEL. None of these processes is active if the LED is off.
PULSE: manual pulse mode where the following parameters can be set: MAIN CURRENT (I2), BASE CURRENT (I 1 ), PULSE FREQUENCY AND BALANCE.
EASY PULSE automatic pulsed mode where only the MAIN CURRENT (I2 ) needs to be set. The other parameters, BASE CURRENT (I1 ), PULSE FREQUENCY and BALANCE, are adjusted automatically according to the preset values (I1 = 70% I 2,FREQUENCY = 2Hz, BALANCE = 0). These values can be modified.
The PULSE and EASY PULSE modes are indicated for welding thin material.
PULSE: manual pulse mode where the following parameters can be set: MAIN CURRENT (I2), BASE CURRENT (I 1 ), PULSE FREQUENCY AND BALANCE.
EASY PULSE automatic pulsed mode where only the MAIN CURRENT (I2 ) needs to be set. The other parameters, BASE CURRENT (I1 ), PULSE FREQUENCY and BALANCE, are adjusted automatically according to the preset values (I1 = 70% I 2,FREQUENCY = 2Hz, BALANCE = 0). These values can be modified.
The PULSE and EASY PULSE modes are indicated for welding thin material.
The more relative products you may like.
Click bellow picture for getting more information!
Product Paramenters
Product Model: | TIG-200 PULSE | ||||||
Product Description: | IGBT INVERTER TIG/MMA INVERTER WELDING MACHINE | ||||||
Rated Input Voltage: | 1phase, 230V +/- 15% | ||||||
Rated input Power: | 7.2Kw | ||||||
Frequency: | 50/60Hz | ||||||
No-load Voltage: | 60V | ||||||
Rated Duty Cycle: | 40% | ||||||
Effenciency: | 85% | ||||||
Class of Insulation: | F | ||||||
Protection Level: | IP21 | ||||||
Power Plug: | 20A | ||||||
Output Current: | MMA/ARC/STICK | 20-160A | |||||
TIG HF/PULSE | 20-200A | ||||||
TIG LIFT STRIKE | 20- 200A | ||||||
Function Support: | VRD | Available | FOR MMA ONLY | ||||
HOT START | Available | ||||||
ARC FORCE | Available | ||||||
2T/4T WELDING | Available | ||||||
PULSE WELDING | Available | ||||||
Size & Weight: | Product Dimension | 430x235x300mm | |||||
Poduct Weight | 6.5Kg | ||||||
Package Dimension | 510x250x340mm | ||||||
Package Weight | 11Kg | ||||||
Accessories: | Standard Accessories： | - 1x WP17 HF TIG TROCH with 3m cable | |||||
- 1x 200A Electrode Holder with 2m cable | |||||||
- 1x 300A Ground Clamp with 2m cable | |||||||
- 1x Welding mask | |||||||
- 1x Chipping Hammer/Brush | |||||||
- 1x Manul Book | |||||||
Optional Accessories： | - WP17V LIFT TIG Torch with 4m cable. | ||||||
- Storage Box | |||||||
*** NOTE: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order *** | |||||||
Why Choose Us
Quality & Engineering
DECAPOWER delivers consistent quality from our ISO9001 certificated manufacturing facilities that you can rely on every turn. Our application-spefic engineers and dedicated R&D team are able to tailor solutions for optimal performance and value.
Company Profile
OUR MANUFACTURER
TAIZHOU LEMIN WELDING EQUIPMENT CO., LTD is the manufacturer of DECAPOWER company group.
We're focusing on developing and producing reliable quality Inverter Welding Machines and Air Plasma Cutter with favorable price, such as MMA/ARC WELDER, TIG WELDER, MIG WELDER and AIR PLASMA CUTTER which has been approved by CSA, CCC, CE certificate.
CORE TARGET:
Tailor client's assortment products with innovation, competitive price and well presentation.
PEOPLE:
We're culturally diverse globally gained. Our Knowledge and Industry focused terms are driven to satify and exceed customer's expectations.
CULTURE:
Our "CAN-DO" and "YES.WHY NOT" philosophy defines DECAPOWER's global approach. Our customer-centric spirit makes it easy to work and being partner with us.
Exhibition
FAQ
1. Q: Are you a factory or trading company?
A: We're a group company including 4 factories and 1 offshore company. LEMIN is the professional manufacturer of producing welding machines and plasma cutter. If you need other items like Air compressor, we will introduce the professional salesman to you.
2. How many employees in your company?
A: Totally nearly 300 staff in our group company. There is 60 staff working in LEMIN factory.
3. Q: Where is your factory located ? How can i get there ?
A: Our factory is located Wenling City of Zhejiang Province, which is very near Ningbo and Shanghai.You can reach us very conveniently.
Wenling Train Station: 5mins by car
Taizhou Airport: 30mins by car
Ningbo Train Station: 1 Hour by fast train
Shanghai Train Station: 4 Hour by fast train
Wenling Train Station: 5mins by car
Taizhou Airport: 30mins by car
Ningbo Train Station: 1 Hour by fast train
Shanghai Train Station: 4 Hour by fast train
4. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.
5. Q: What's your delivery time ?
A: Usually, it will take 35 days after we confirming the sales contract and details.
6. Q: What kind of payment terms do you accept ?
A: T/T or L/C at sight.
7. Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service.
8. Q: What's your warranty ?
A: We offer 12 month warranty period as the quality guarantee. Meanwhile, we will offer 1% free PCB or spare parts for customers maintanence with the shipment.
