Product Overview

Description

1,5,10,40,70 micron polypropylene pleated water filters taiwan for drinking water treatment,wholesale water filters

 Big pleated high flow filter cartridges



Appearance description (Refer to above picture)



Big plaeted high flow filter cartridge utilize pleated depth media and result in exceptional flow capacity,low pressure drop and excellent retention efficiency.The considerete design of top hnadle makes manual operation quick and wasy.Extended service life and less maintenance requirement make the filter cartridges as one of the most cost-saving solutions in big RO applications



Advantages & Features

1.High suiface area results in longer service life,low pressure drop and higher flow capacity.

2.The considerate design of top handle makes change out quick and easy

3.Extended service life and less maintenance requirement make the cartridges saving solution.

4. Available in various sizes and filter media to meet different needs and applations.

5. Free of additives and binders due to advanceed thermally welding construction



Applations

1.Pre RO/DI

2.Cooling water

3.Chemecals

4.Petrochmical

5.Food&Beverage



Specifications

Type	Polypropylene Melt Blown	Polypropylene Fiber Pleated	Glass Fiber Pleated	Polyethersulfone Pleated
Micron Rating	1,5,10,20,30,50,100 μm	1,5,10,20,40,70 μm	1,5,10,20 μm	0.1,0.2,0.5,1 μm
O-ring	Silicone,EPDM,Viton, encapsulated Viton
Core	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene
Filter Support	Polypropylene	Polypropylene	Polypropylene	Polypropylene
End cap	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene
Cage	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene	Glass Filled Polypropylene
Inside Diameter	3" (75 mm)

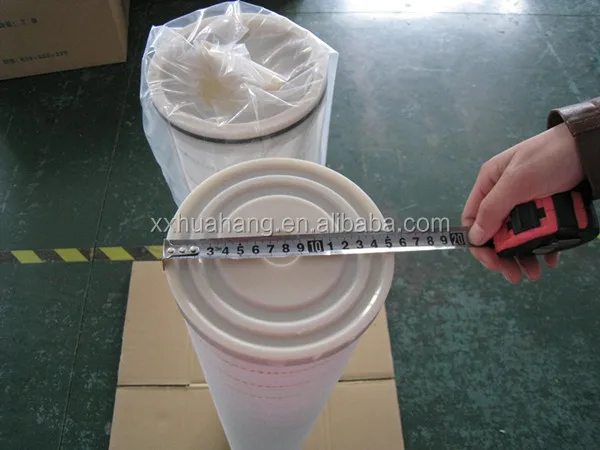

Outside Diameter	6" (152 mm)



Product show (Below pictures as  references)

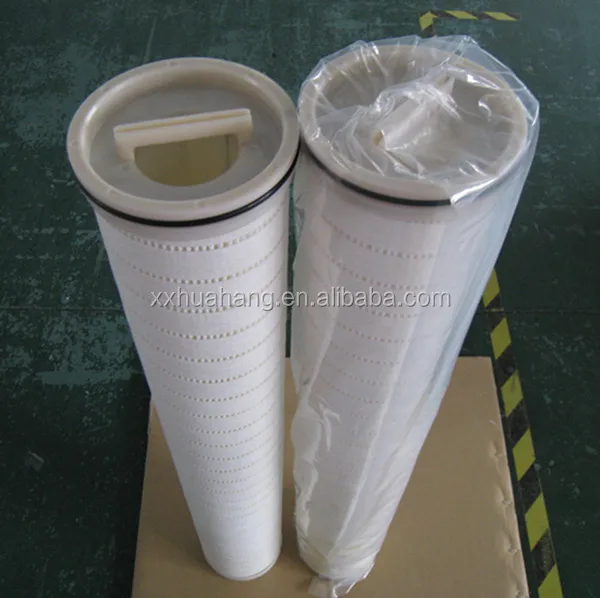

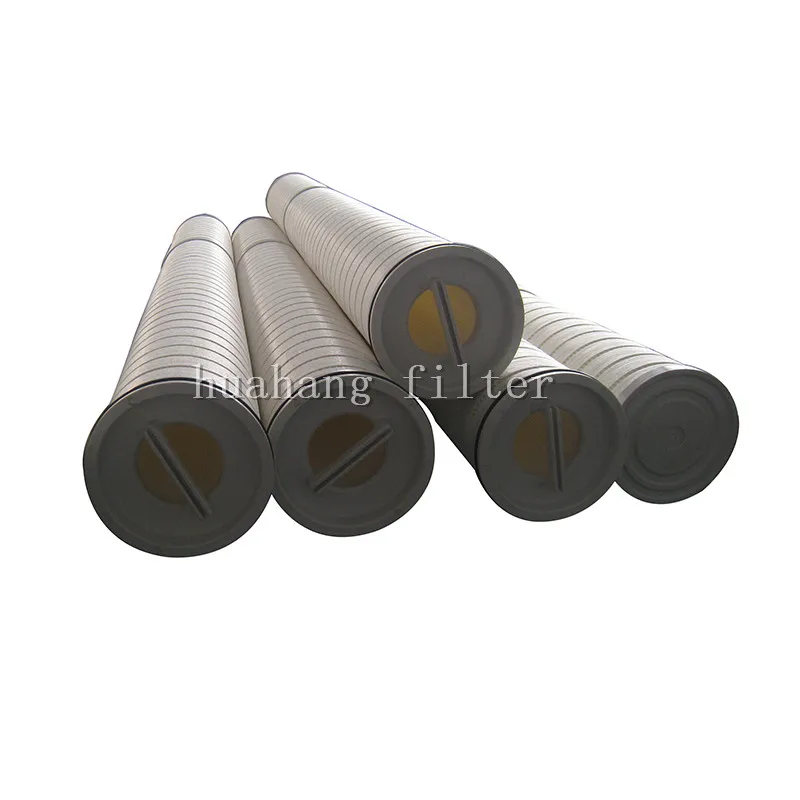

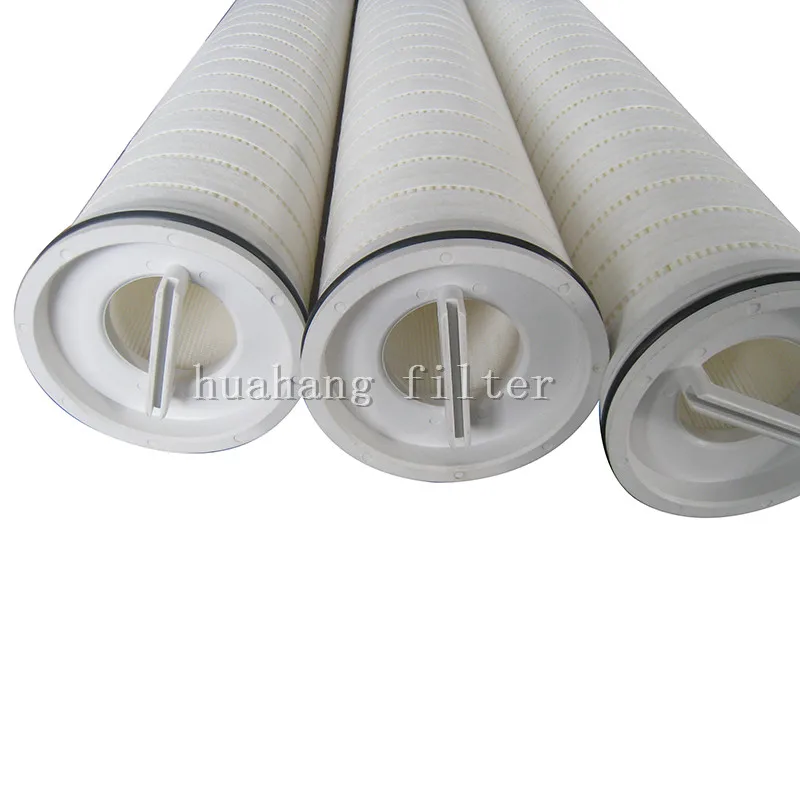

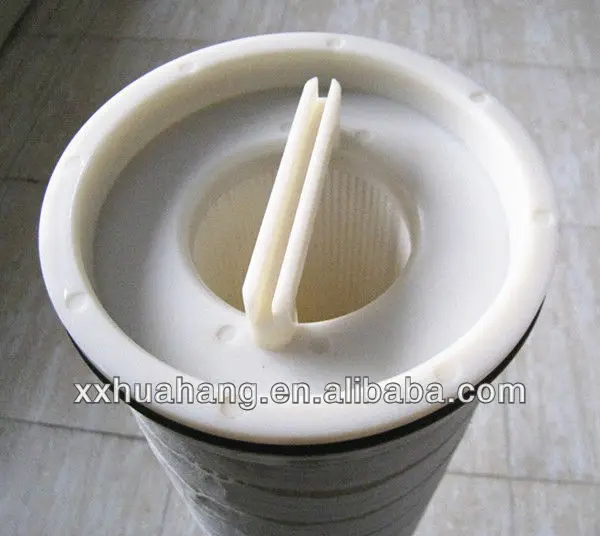

The end caps and handle

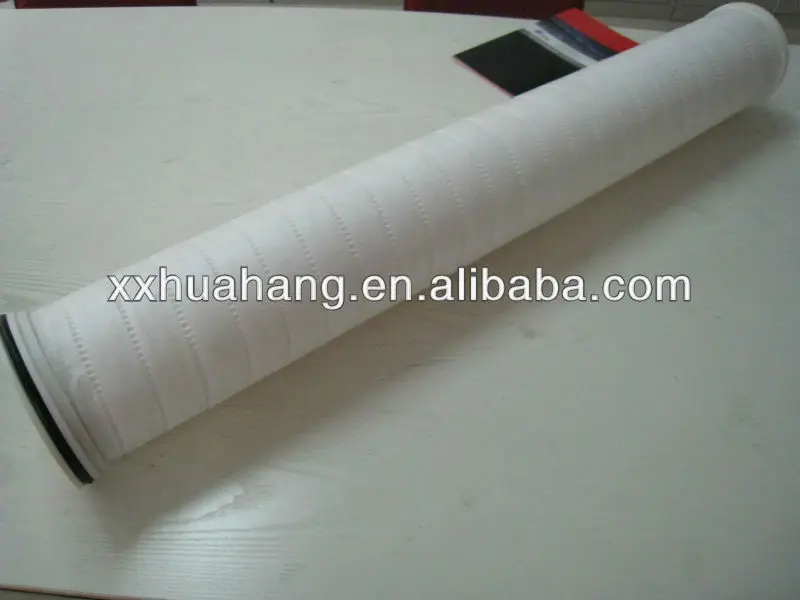

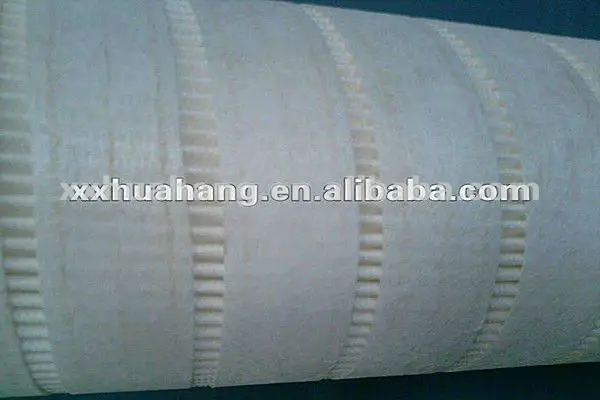

The multi folded filter layers

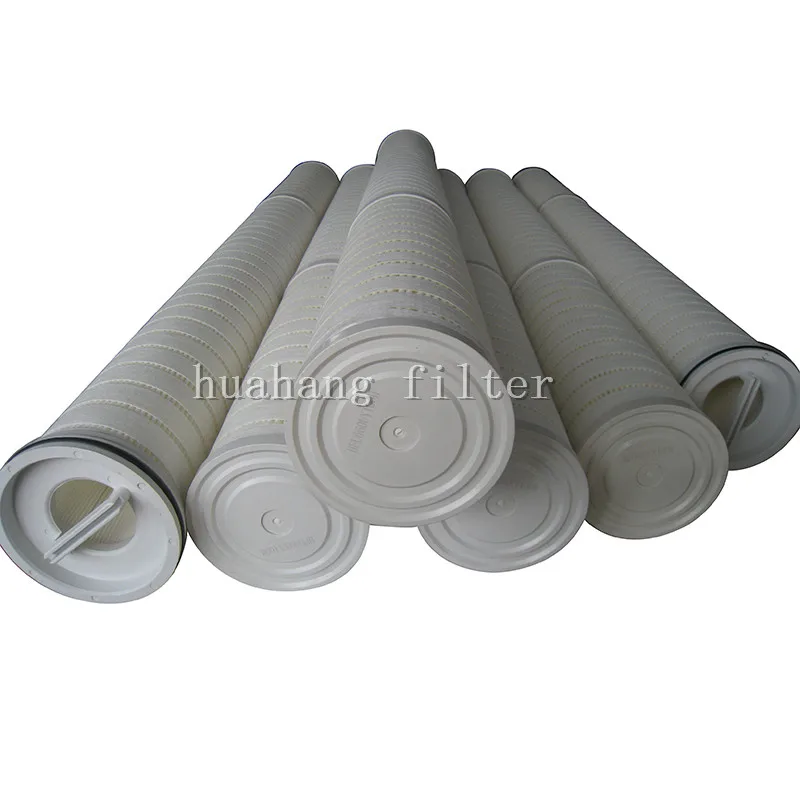

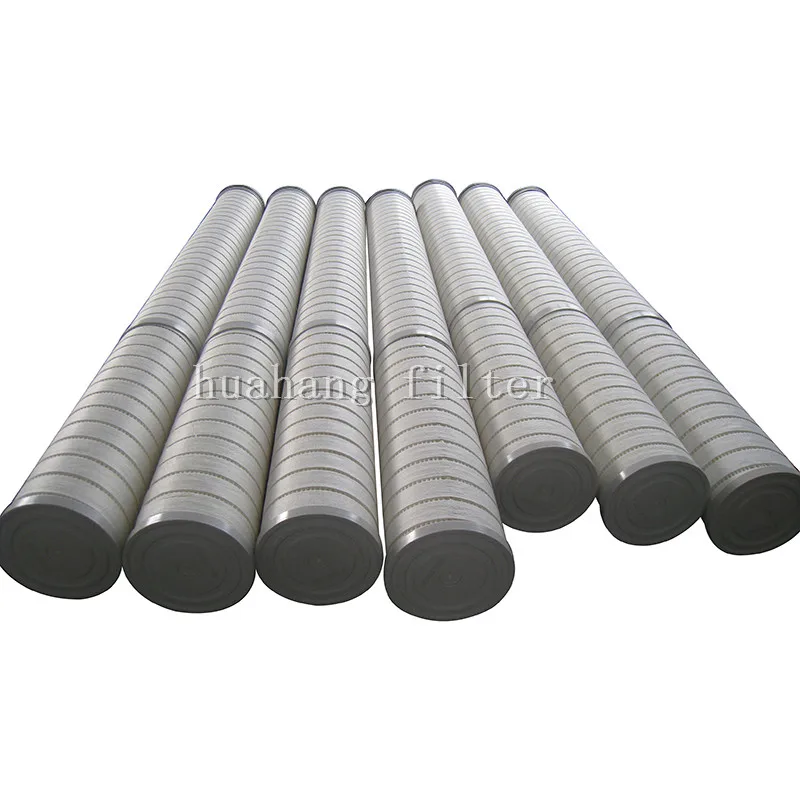

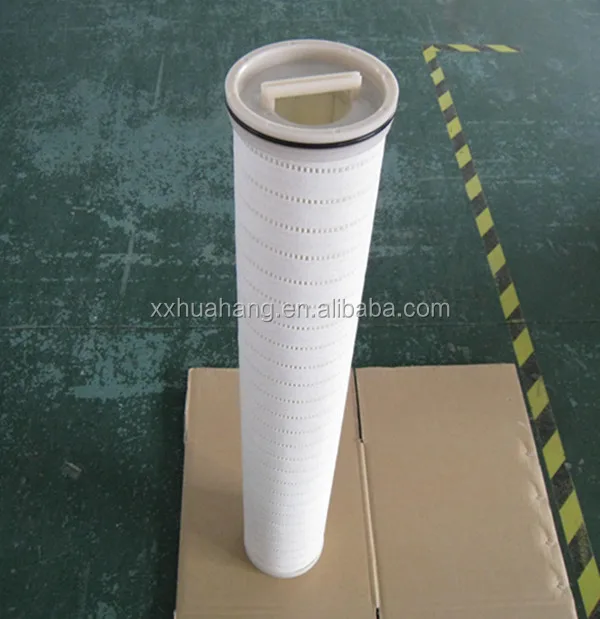

The whole display
