50 л, 100 л, 150 л, 200 л, 300 л, встроенная тепловая труба высокого давления, Солнечный гейзер
- Category: >>>
- Supplier: Haining Qiruite Imp& Exp Co. Ltd.
Share on (62525789101):
Product Overview
Description
Quickly Key points
Quickly Specification of Heat Pipe High Pressure Solar Water Heater | ||||||||
Inner tank material | Food grade stainless steel SUS304-2B | Outer tank material | galvanized steel | |||||
Insulation material | Insulation material | Bracket material | galvanized steel | |||||
Bracket Type | Flat roof/Pitched roof | Bracket angle | 0/20/27/37/45° | |||||
Work pressure | 0.6Mpa(6bar) | Heat Preservation | 72 hours | |||||
Circulation type | Indirect / Closed Loop (Active) | Warranty | 5 years | |||||
Application | Hotel/Commercial/Household | Solar collector type | Vacuum Tube | |||||
Solar Keymark EN12976 Certified Integrated High Pressure Solar Water Heater(Indirect/Closed Loop)
(Output capacity: 80L/100L/120L/150L/180L/200L/240L/250L/300L/360L)
(With/Without Reflector)
Quality solar water heater
A Home Comfort solar water heater system that utilise the free energy from the sun.
1)direct heating, high efficiency
2)pressurized hot water
3)Non-Freeze in winter
4)CE, SOLAR KEYMARK EN12976 certified solar water heater system
5)Factory price
6)Factory audited by SGS.
(With/Without Reflector)
Quality solar water heater
A Home Comfort solar water heater system that utilise the free energy from the sun.
1)direct heating, high efficiency
2)pressurized hot water
3)Non-Freeze in winter
4)CE, SOLAR KEYMARK EN12976 certified solar water heater system
5)Factory price
6)Factory audited by SGS.
Heat Pipe High Pressure Vacuum Tube Solar Water Heater Features
1)Highly efficient absorber of high performance with daily average efficiency over 50%.
2)Start quickly, heat pipe transfers the heat energy into the storage tank in one direction.
3)With stand pressure of 6 bar, can be connected directly with tap water.
4)No water inside the vacuum tubes, the system can still work even with several tubes breakage.
5)Highly efficient insulation with polyurethane foam.
6)Simple structure, easy to assemble and install.
7)Can be used all year around in the cold climate.
8)Can be used together with auxiliary electric heater.
9) Stable and reliable performance.
10) Environmental protection and energy saving.
11) The pressurized hot water will make your bath more comfortable.
2)Start quickly, heat pipe transfers the heat energy into the storage tank in one direction.
3)With stand pressure of 6 bar, can be connected directly with tap water.
4)No water inside the vacuum tubes, the system can still work even with several tubes breakage.
5)Highly efficient insulation with polyurethane foam.
6)Simple structure, easy to assemble and install.
7)Can be used all year around in the cold climate.
8)Can be used together with auxiliary electric heater.
9) Stable and reliable performance.
10) Environmental protection and energy saving.
11) The pressurized hot water will make your bath more comfortable.

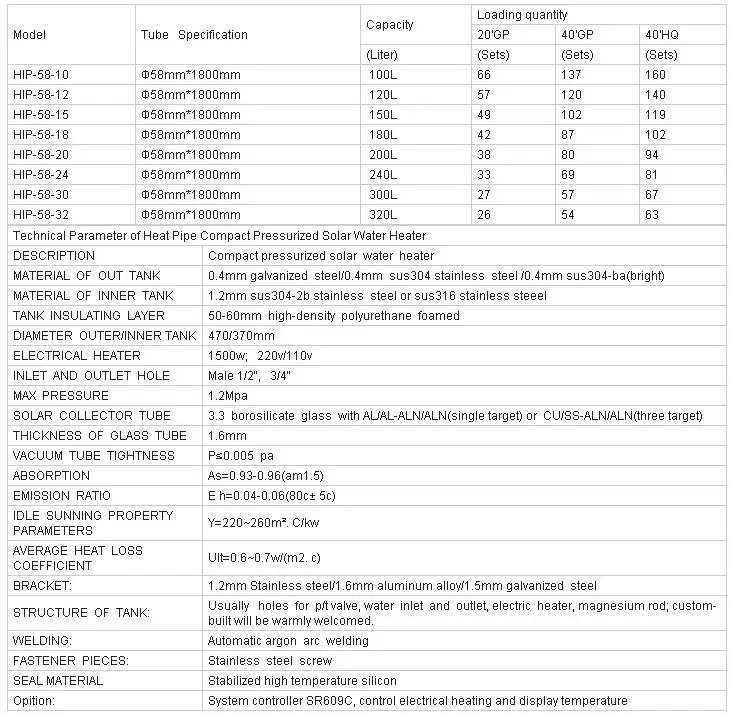

Product Paramenters

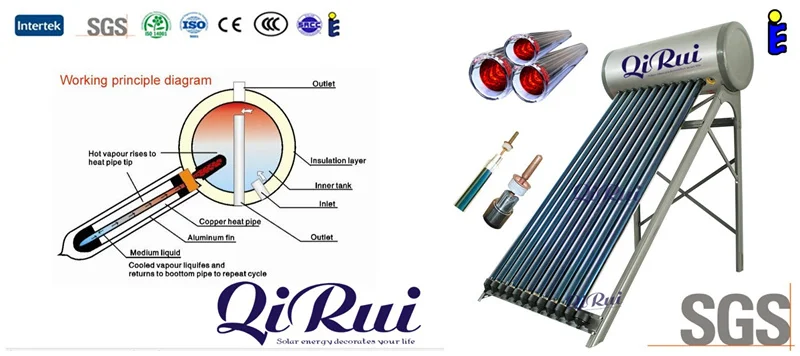

Heat Pipe High Pressure Vacuum Tube Solar Water Heater Work Principle:
① Vacuum tubes absorb solar energy and transmit the heat to heat pipe (in tube) by the aluminum fin, the liquid in the heat pipe
changes in to vapor which rises to the condenser. Then the conducts to the water inside the tank and the vapor inside the pipe becomes liquid, return to the base of the heat pipe and is heated again.
② Through a thermosyphon effect (in which hot water rises), hot water circulates between the water at top and the water at bottom in tank, the water in tank had been heated then.
③ There is sun and is stored in an insulated tank.
changes in to vapor which rises to the condenser. Then the conducts to the water inside the tank and the vapor inside the pipe becomes liquid, return to the base of the heat pipe and is heated again.
② Through a thermosyphon effect (in which hot water rises), hot water circulates between the water at top and the water at bottom in tank, the water in tank had been heated then.
③ There is sun and is stored in an insulated tank.
Certifications&Exhibition
Product packaging & Shipping
Container Loading
Professional and experienced team, full loading every container, Save time, Save space, Save money for customers.
Contact Mr. Alex
Contact us
Our factory located at No. 19, Chuangye road, Huangwan Town, Haining city, Jiaxing city, Zhejiang province, China.
All thecustomers' visitation will be warmly welcomed, Including the trading company in China, let us build the long-term win-win business relationship together.
More details, please contact with us directly(Trading company in China will be welcomed also).
Mr. Alex Yang
Skype:alexsolarled
Mobile Phone/WhatsApp/WeChat:+8618858353113
Skype:alexsolarled
Mobile Phone/WhatsApp/WeChat:+8618858353113
QQ:524183190
www.qr-solar.cn
www.qr-solar.cn
Company Profile
FAQ
1, Minimum order quantity
1 unit.
2, Guarantee Time
5 years.
3, Brand/LOGO
We can print your brand/LOGO on water tanks, cartons.
4, OEM/ODM service?
Sure
5, Port in China
A, Shanghai/Ningbo by ship.
B, Yiwu
C, Urumchi
D, Guangzhou
6, Delivery time
A, sample order in 7 days
B, 20 feet/40 feet container in 12 days.
7, Trading company or factory?
A, Factory, yes! Since 2001, Produce solar water heaters, solar collectors,
B, Factory, yes! Since 2018, add production line for producing PVT solar panels.
C, Factory, yes! Since 2018, Investment a PU cornice moulding factory, been one of owner.
D, Trading company, yes! Base on our long time working, our team grown up and have rich experiences in production, inspection, export and transportation, we can offer the multiple solutions for customers from different countries.
8, Inquiries, visitation request from China Trading company ok?
Your inquiries and visitation will be warmly welcomed, just call Alex @+8618858353113 for arranging the convenient time. I hope our experiences will contribute to your business, and looking forward to built long-term win-win business relationship with you.
1 unit.
2, Guarantee Time
5 years.
3, Brand/LOGO
We can print your brand/LOGO on water tanks, cartons.
4, OEM/ODM service?
Sure
5, Port in China
A, Shanghai/Ningbo by ship.
B, Yiwu
C, Urumchi
D, Guangzhou
6, Delivery time
A, sample order in 7 days
B, 20 feet/40 feet container in 12 days.
7, Trading company or factory?
A, Factory, yes! Since 2001, Produce solar water heaters, solar collectors,
B, Factory, yes! Since 2018, add production line for producing PVT solar panels.
C, Factory, yes! Since 2018, Investment a PU cornice moulding factory, been one of owner.
D, Trading company, yes! Base on our long time working, our team grown up and have rich experiences in production, inspection, export and transportation, we can offer the multiple solutions for customers from different countries.
8, Inquiries, visitation request from China Trading company ok?
Your inquiries and visitation will be warmly welcomed, just call Alex @+8618858353113 for arranging the convenient time. I hope our experiences will contribute to your business, and looking forward to built long-term win-win business relationship with you.
Integrated Solar Water Heater Perfect combine with Pitched roof and Flat roof.
