CHNAMG Permanent suspended magnets for iron removal
- Category: >>>
- Supplier: Qijin Magnet Co. Ltd.
Share on (62525868720):
Product Overview
Description
Company Information
QIJIN MAGNET CO.,LTD is a high-tech enterprise devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as Mexico, the Philippines, Indonesia, India, etc.Our magnetic separators have been exported to more than 40 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.Our major products are wet permanent drum magnetic separator, dry permanent drum magnetic separator, over band magnetic separator and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.Any question regarding our products, please contact us without hesitation.
Product Description

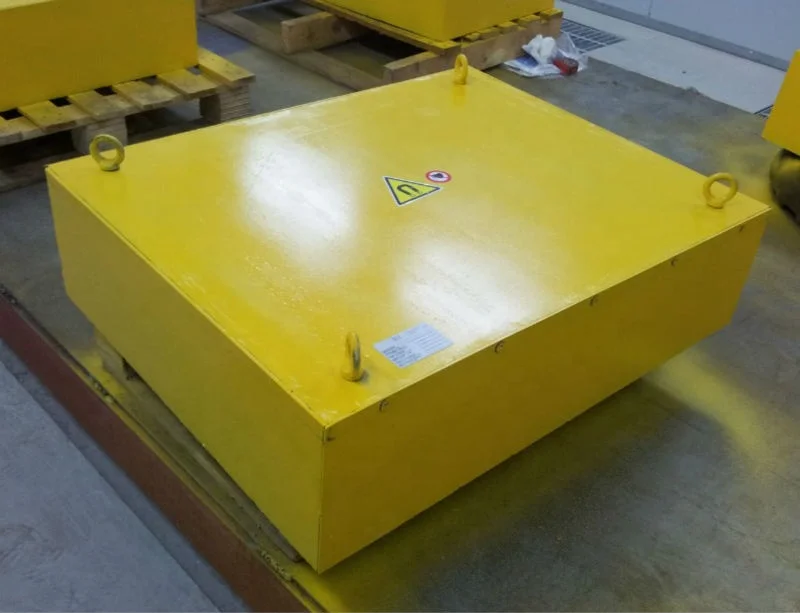

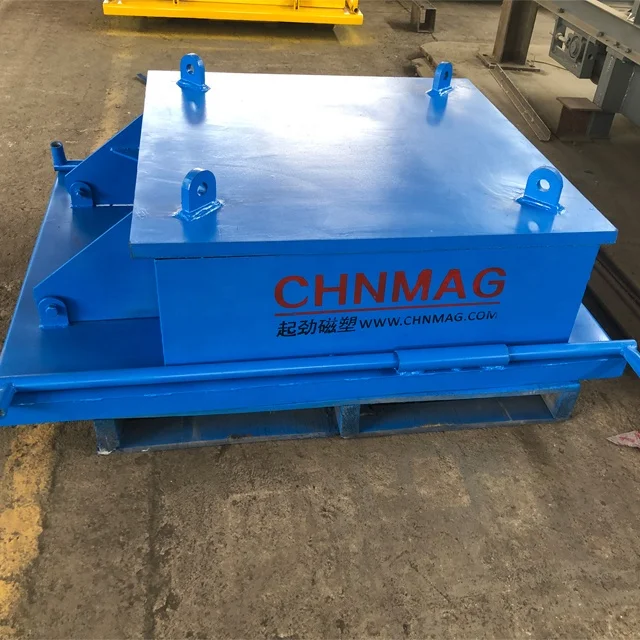

Suspension Magnet
It can remove 0.1~30kg iron materials with more than 10 years service time of inner permanent magnet. When lots of iron materials are attracted onto the bottom of suspened magnet, use non magnetic scraper or gloves to remove them manually. It is suitable for continuous working and low iron-content situation. Besides the current type for 500mm - 1400mm width belt, we could also manufacture according to your specific needs. Ferrite magnetic system and Rare Earth magnetic system are available.
Applications
1. Removal of ferrous materials in mining operations.
2. Separation of ferrous contamination in quarries.
3. Magnetic extraction of ferrous particles in wood processing.
4. Recover ferrous metal in waste management process.
Specification
Type | Belt Width (mm) | Suspension Height (mm) | Rated Height Magnetic Force | Pulling Capacity | Size (mm) | Weight Kg | Magnetic System | ||
L | W | H | |||||||
QJRCDK-50 | 500 | 170 |
45mT
| 0.1-30kg | 598 | 488 | 209 | 350 |
Ferrite
|
QJRCDK-65 | 650 | 180 | 728 | 573 | 219 | 450 | |||
QJRCDK-80 | 800 | 180 | 828 | 658 | 219 | 600 | |||
QJRCDK-100 | 1000 | 200 | 1028 | 658 | 219 | 750 | |||

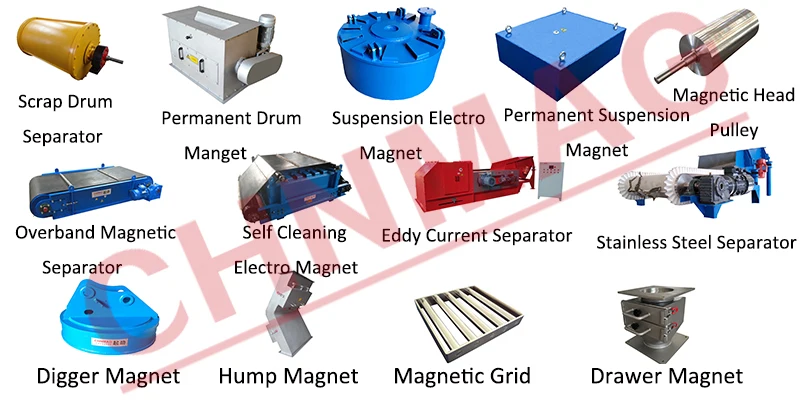

More related magnetic separators
Packaging & Shipping
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we will take a test on every equipement before delivery.
2.Guaranteed
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
