Product Overview
Description

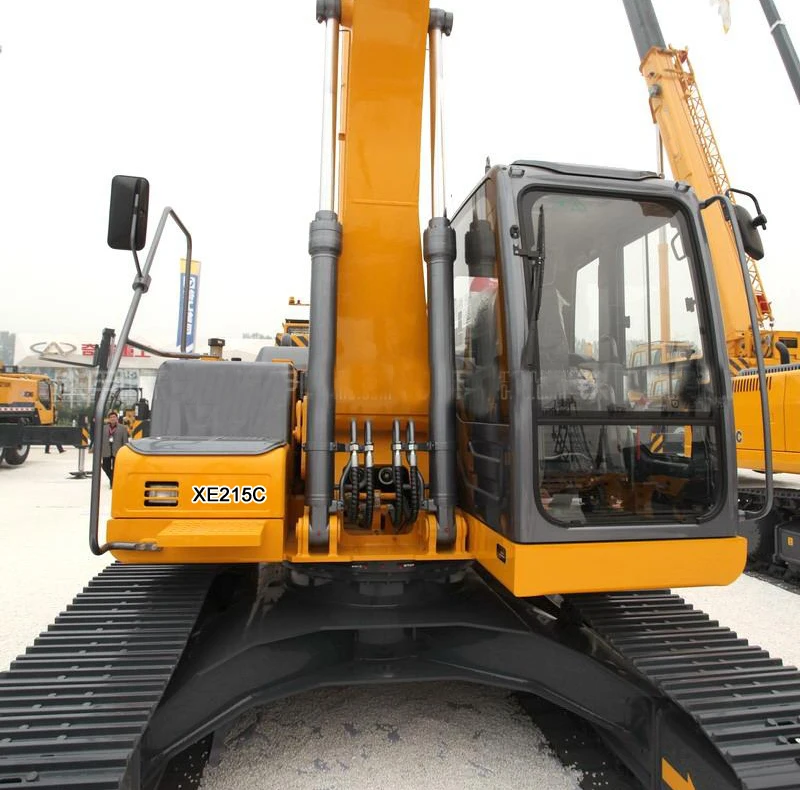

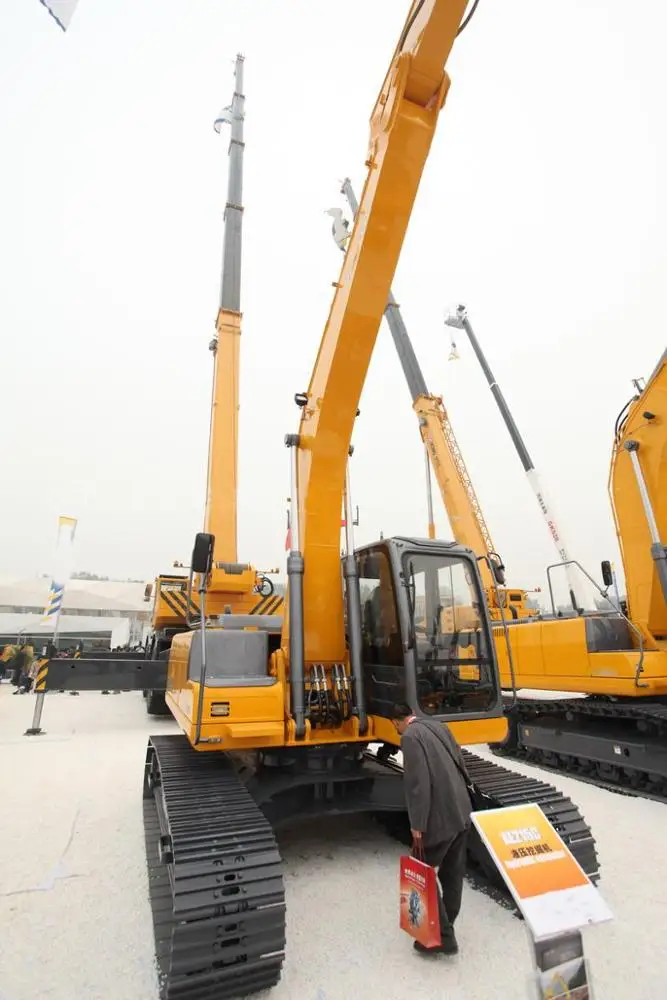

China Construction Equipment Dealers XE215C XCM Midi Excavator for Sale
Main parameters:
Bucket capacity 0.93CBM (standard)
Operating weight:21450kgs
Max digging height:9640mm
Max digging reach: 9925mm
Main configuration
ISUZU BB-6BG1TRP engine ,106.5/1950 kw/rpm,
Hydraulic system

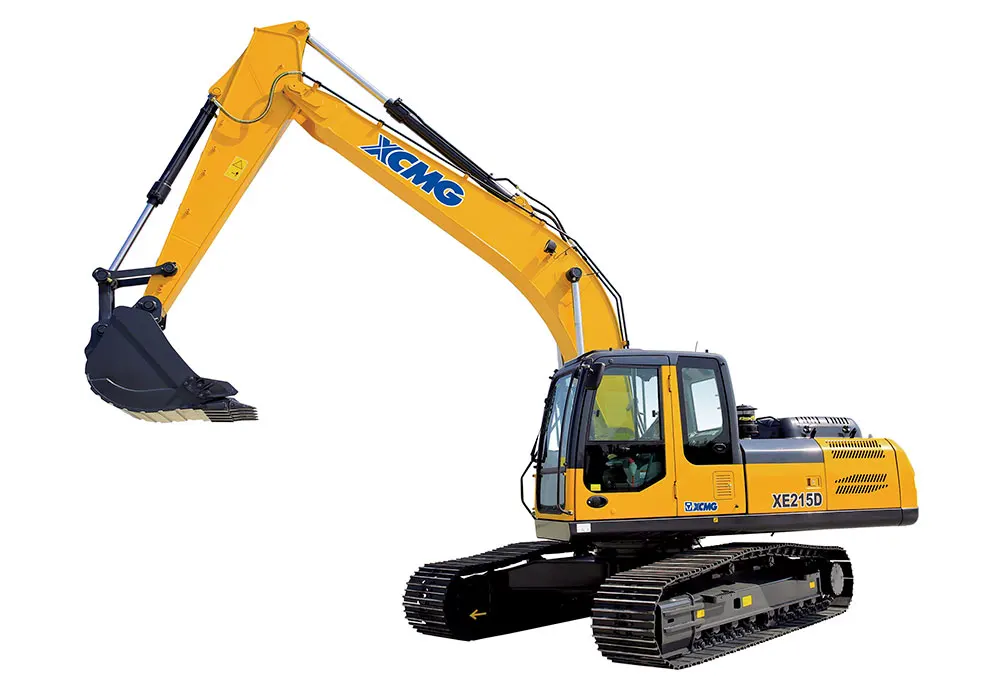

XCM XE215C is the most popular model of China 21t excavator,Now XE215C is upgrading to new model XE215D equipped with EURO III engine with electric injector, new model will have high performance.
OUR SERVICE
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.
Model | Unit | XE215C | |
Operating weight | kg | 21450 | |
Standard bucket capacity | m³ | 0.93 | |
Engine | Engine Model | / | ISUZU BB-6BG1TRP |
Direct injection | / | √ | |
Four strokes | / | √ | |
Water cooling | / | √ | |
Turbo charged | / | √ | |
Air to air intercooler | / | × | |
No. of cylinders | / | 6 | |
Rated power/speed | kw/rpm | ||
Max. torque/speed | N.m | 551/1600 | |
Displacement | L | 6.494 | |
The main performance | Travel speed | km/h | 5.5/3.3 |
Swing speed | r/min | 13.3 | |
Max. gradeability | / | ≥35 | |
Ground pressure | kPa | 45.5 | |
Max.Bucket digging force | kN | 138 | |
Max.arm crowd force | kN | 103 | |
Max.traction force | kN | 184 | |
Hydraulic system | Main pump | / | 2 Plunger pump |
Rate flow of main pump | L/min | 2×206 | |
Max pressure of prime relief valve | MPa | 31.5/34.4 | |
Max pressure of travel system | MPa | 34.3 | |
Max pressure of swing system | MPa | 28 | |
Max pressure of pilot system | MPa | 3.9 | |
