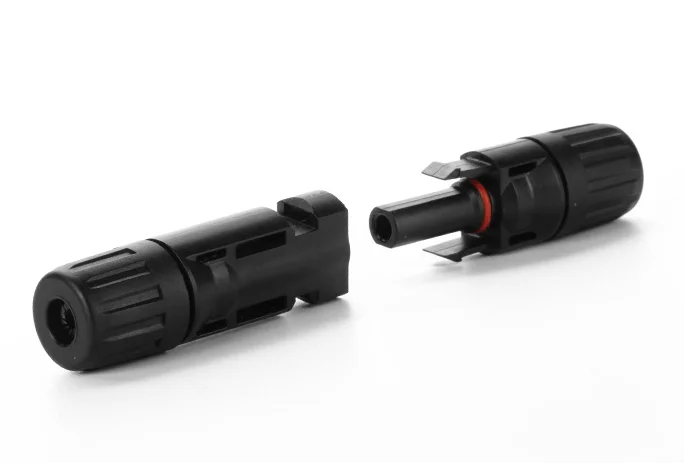

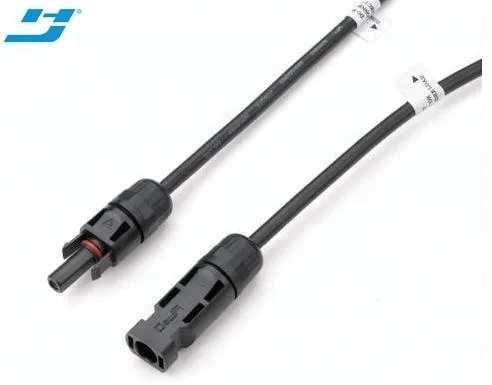

Solar Connector MC 4 30A Photovoltaic connector solar male and female plug
- Category: >>>
- Supplier: Zhongshan Hejia Electrical Industrial Co. Ltd.
Share on (62526147135):
Product Overview
Description
Product Description
Description of solar connector:
1. Simple on-site processing;
2. Mutiple plugging and unplugging cycles;
3. High current carrying capacity;
4. TUV and CE approved
5. Competive price.
Structure of PV Junction Box

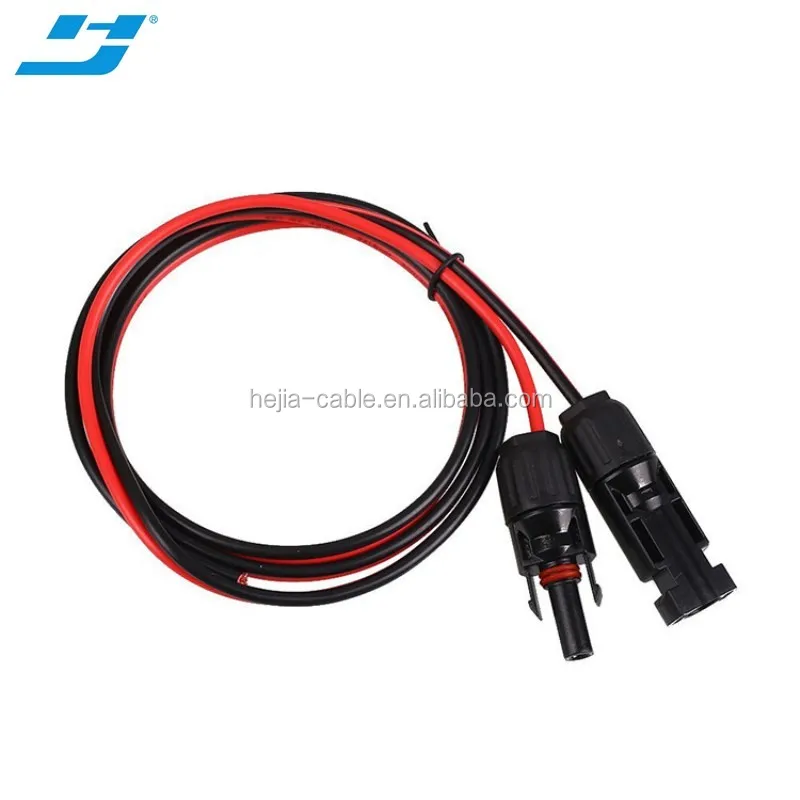

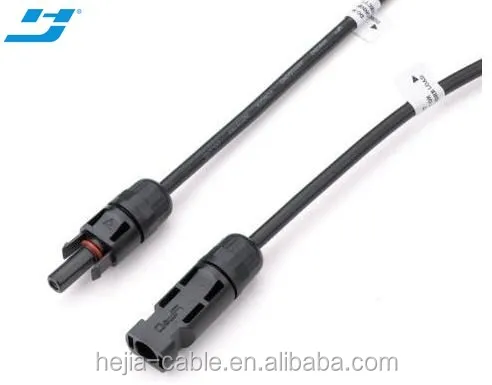

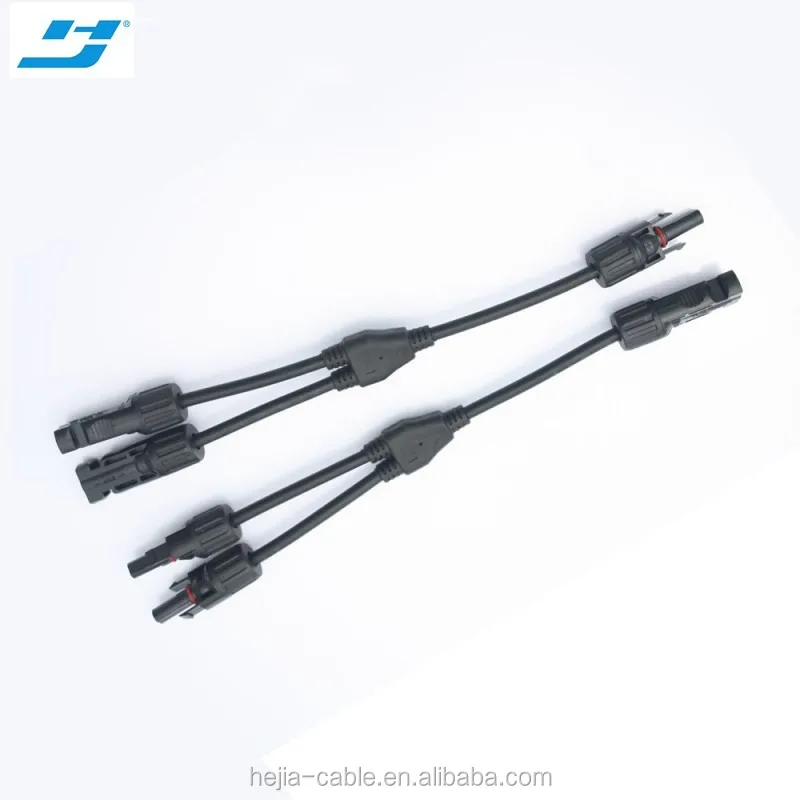

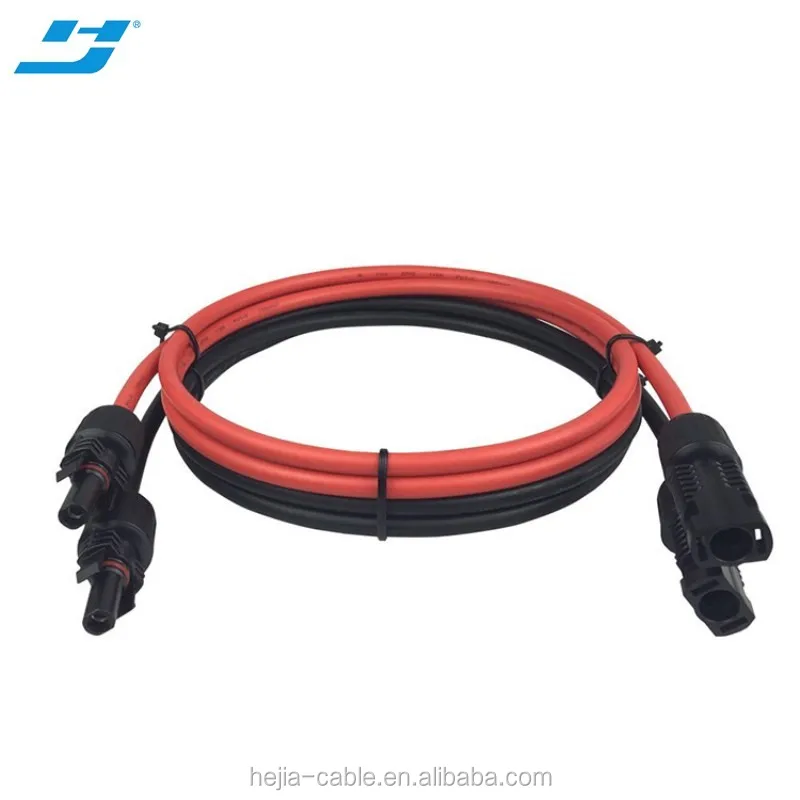

PV Cable with Connector

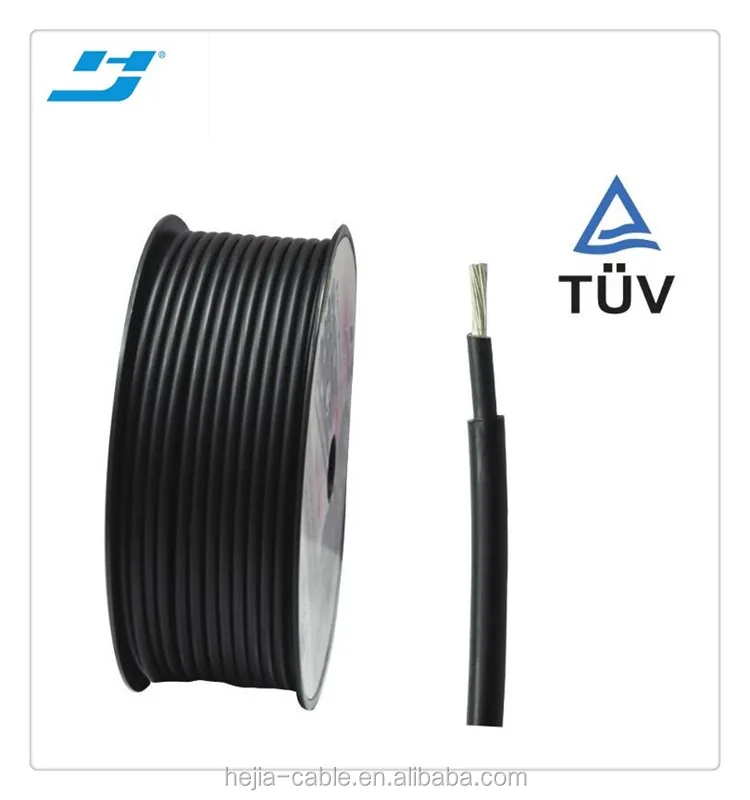

Hejia PV cable
Hejia Solar cable
Advantages of Solar Connector
1. Simple, quick, safe and effective filed assembly.
2. Develop independently, innovative design, have independent intellectual property rights, adaptive to MC4 connector directly.
3. High mechanical endurance.
4. High current and voltage carrying.
5. Low transition resistance.

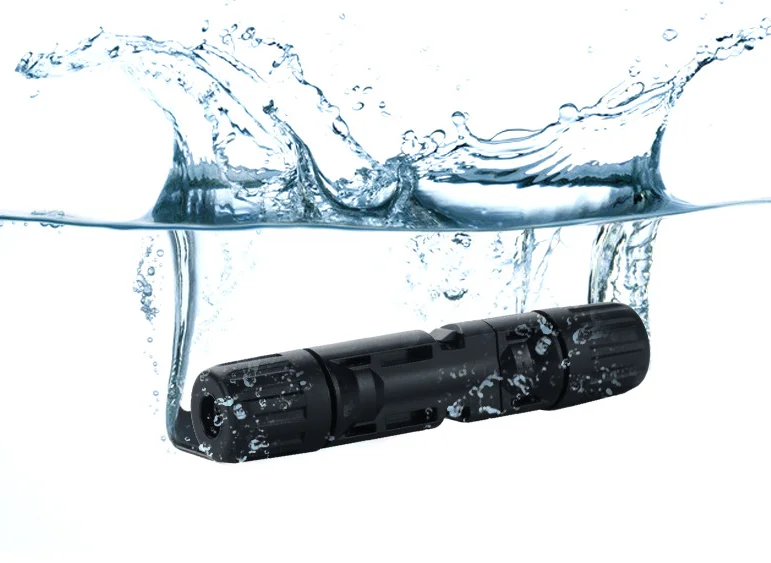

6. Innovative sealed, waterproof, dust resistance design: IP67
7. UV resistant for long-time outdoor application.

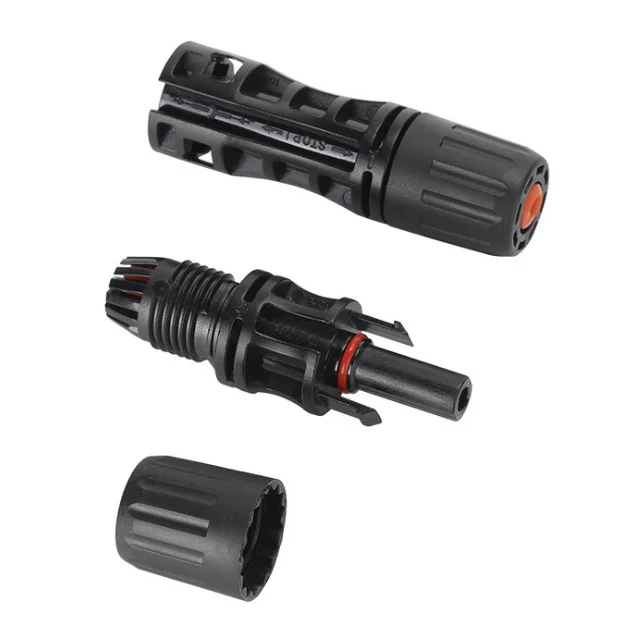

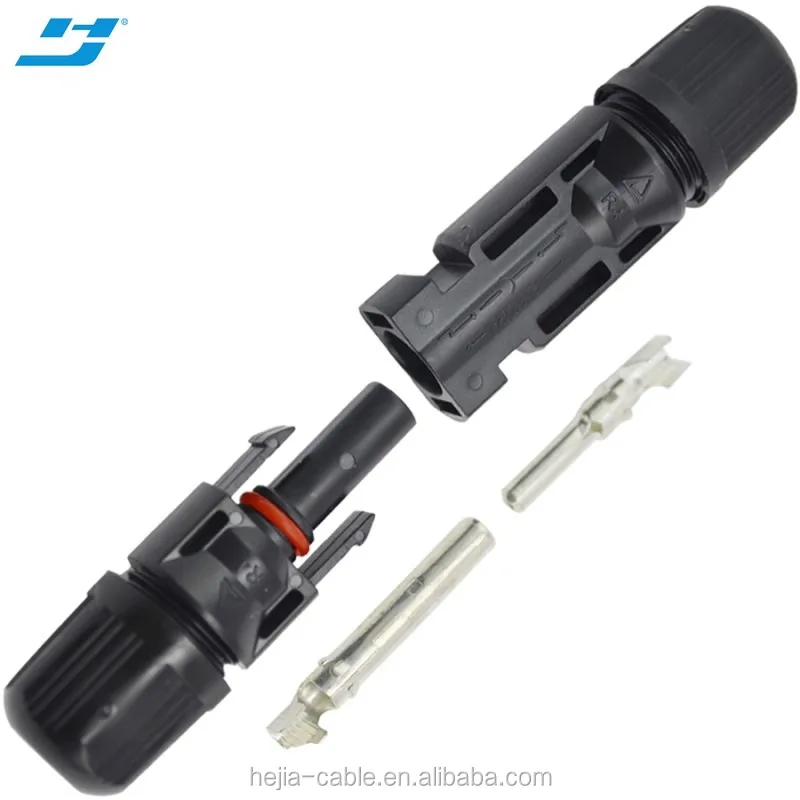

Assemble the cable and connector
Push the crimped contact into the socket resp.Plug insulator until it engages.
Pull lightly on the lead to check that the metal part has engaged.
Screw on the cable gland, hand-light, with the tools PV-STX, tightening torque about:2.2Nm.

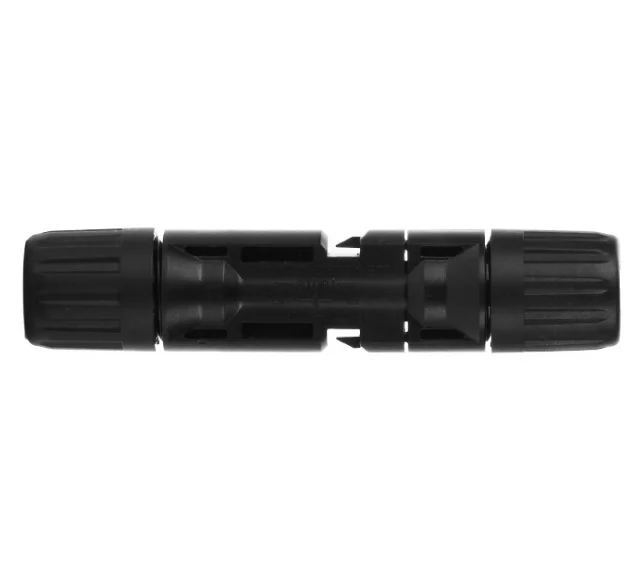

Plugging
Mount the connector together until they engage.
Check correct engagement by Pulling on the coupling.
Unplugging
Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling
Related Products
PV Cable

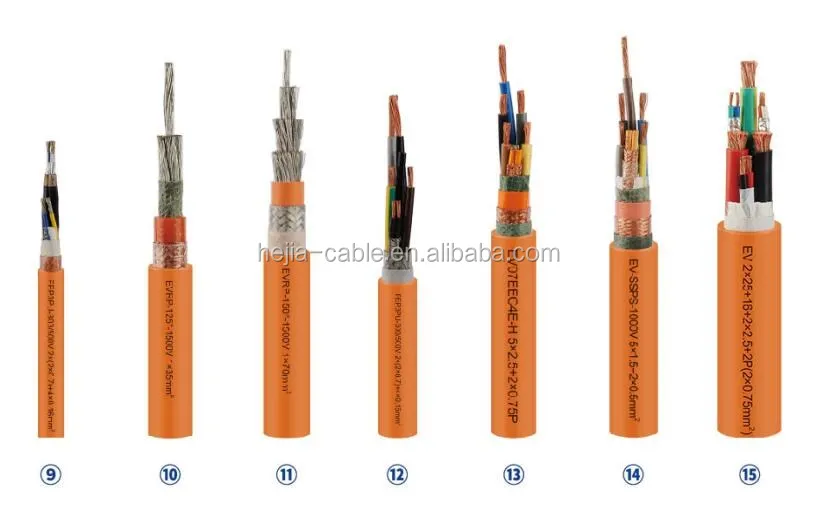

EV Cable

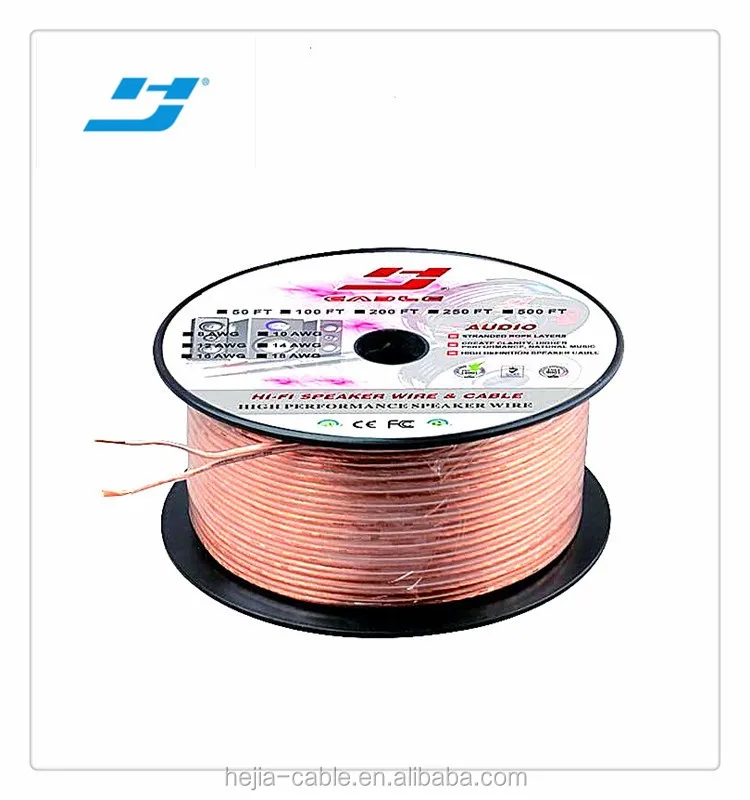

Speaker Cable

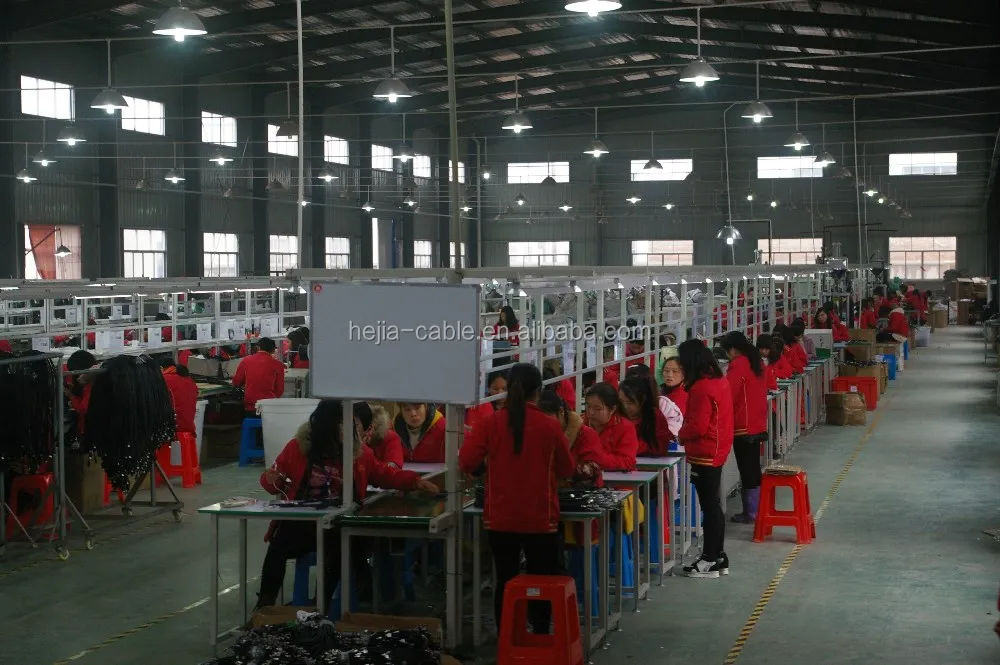

Our Company

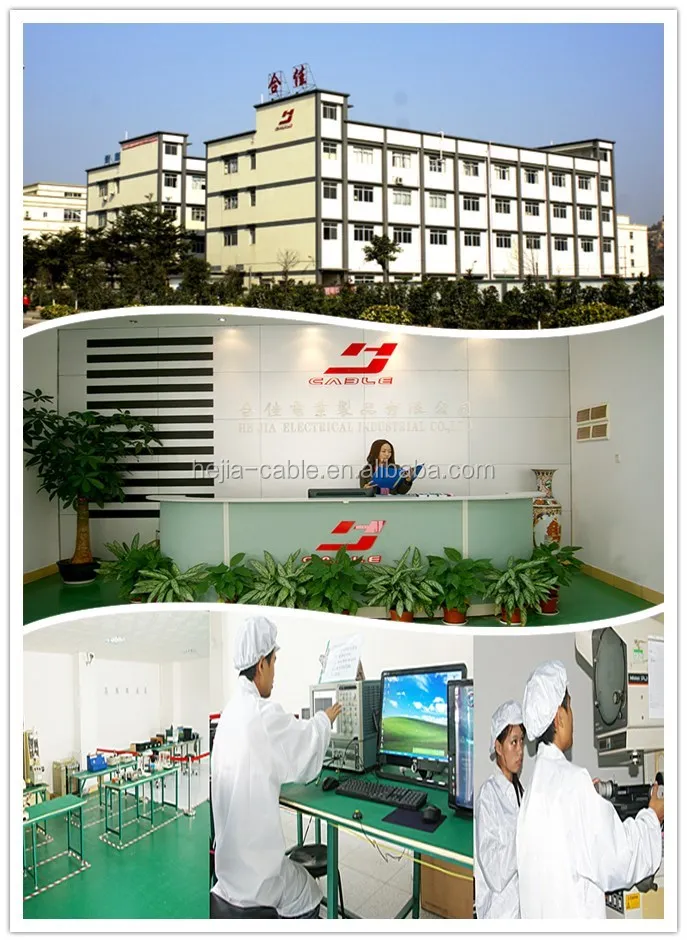

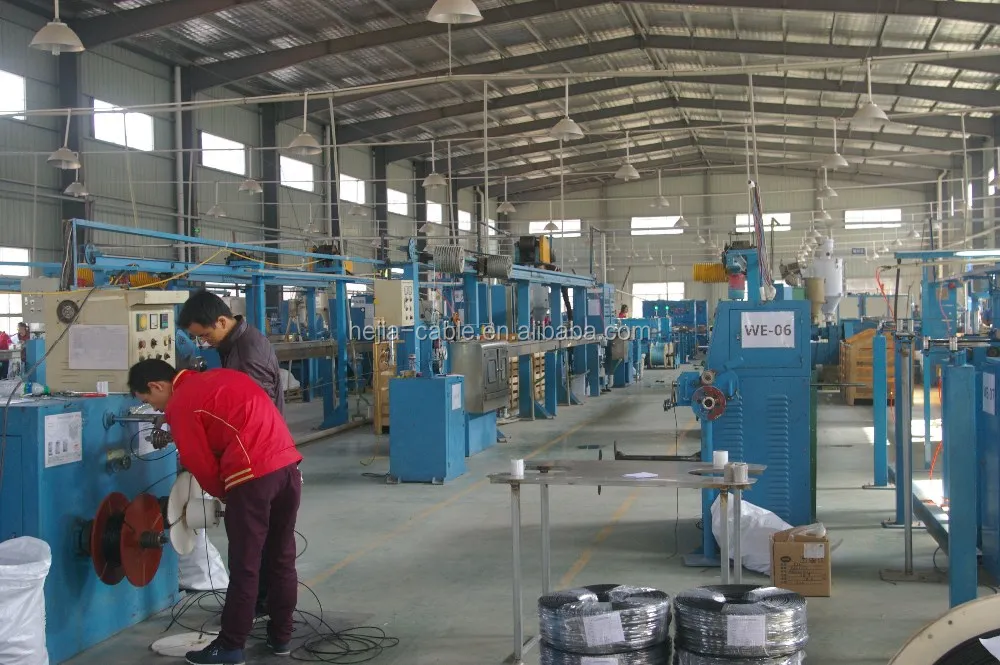

Hejia Group was founded in 2003 which located in Zhongshan city Guangdong province of China, is in the line of R&D, manufacturing and sales of cables (Vechicle charge cable, Solar cable, EV cable, Speaker cable, HDMI cable) and satellite accessories, extending switch accessories products, of high-tech enterprises for domestic and international market. In the year of 2013, Hejia group set up a subsidiary Jiangxi Hejia Technology Co. Ltd in Shangrao city, Jiangxi province.

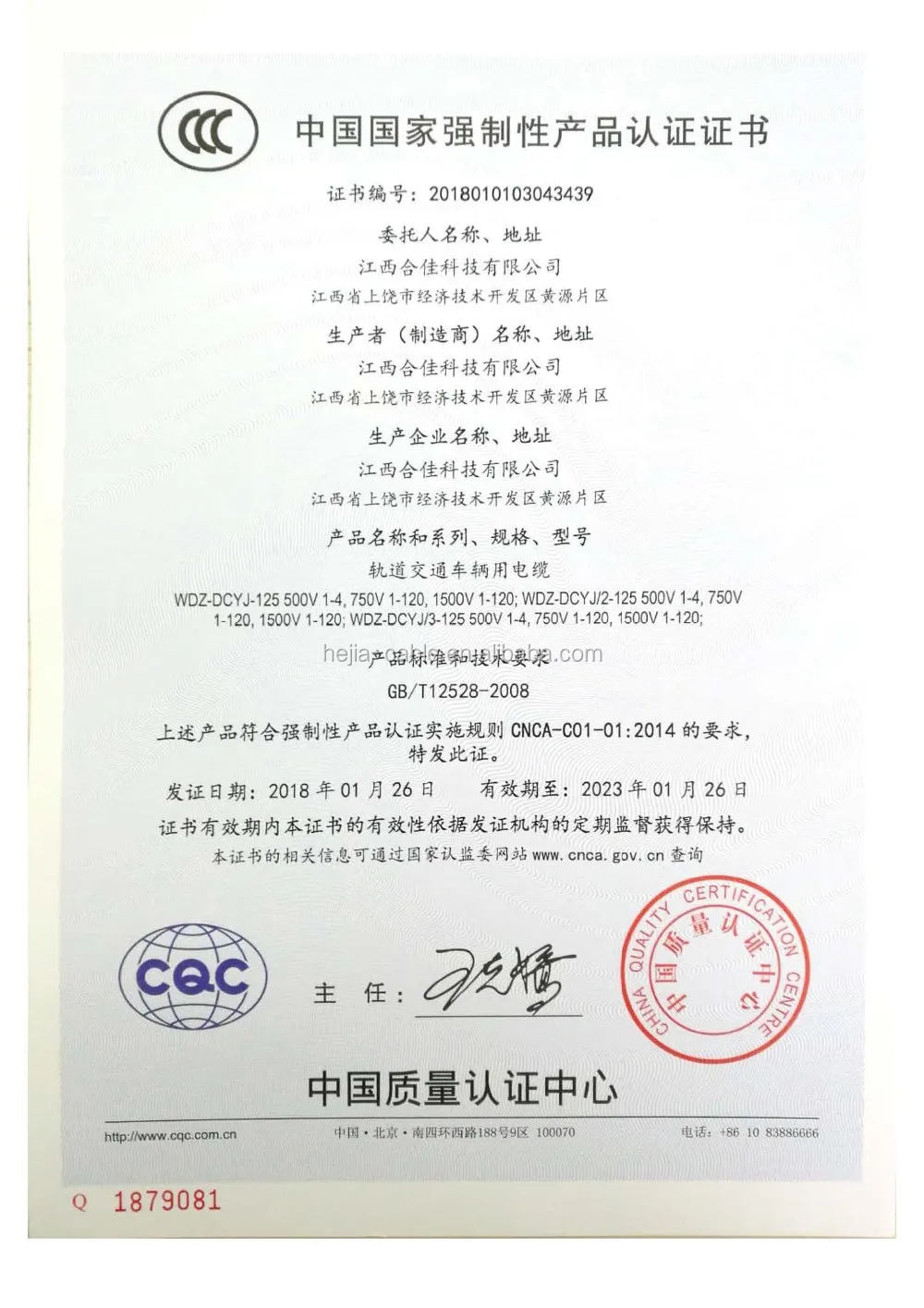

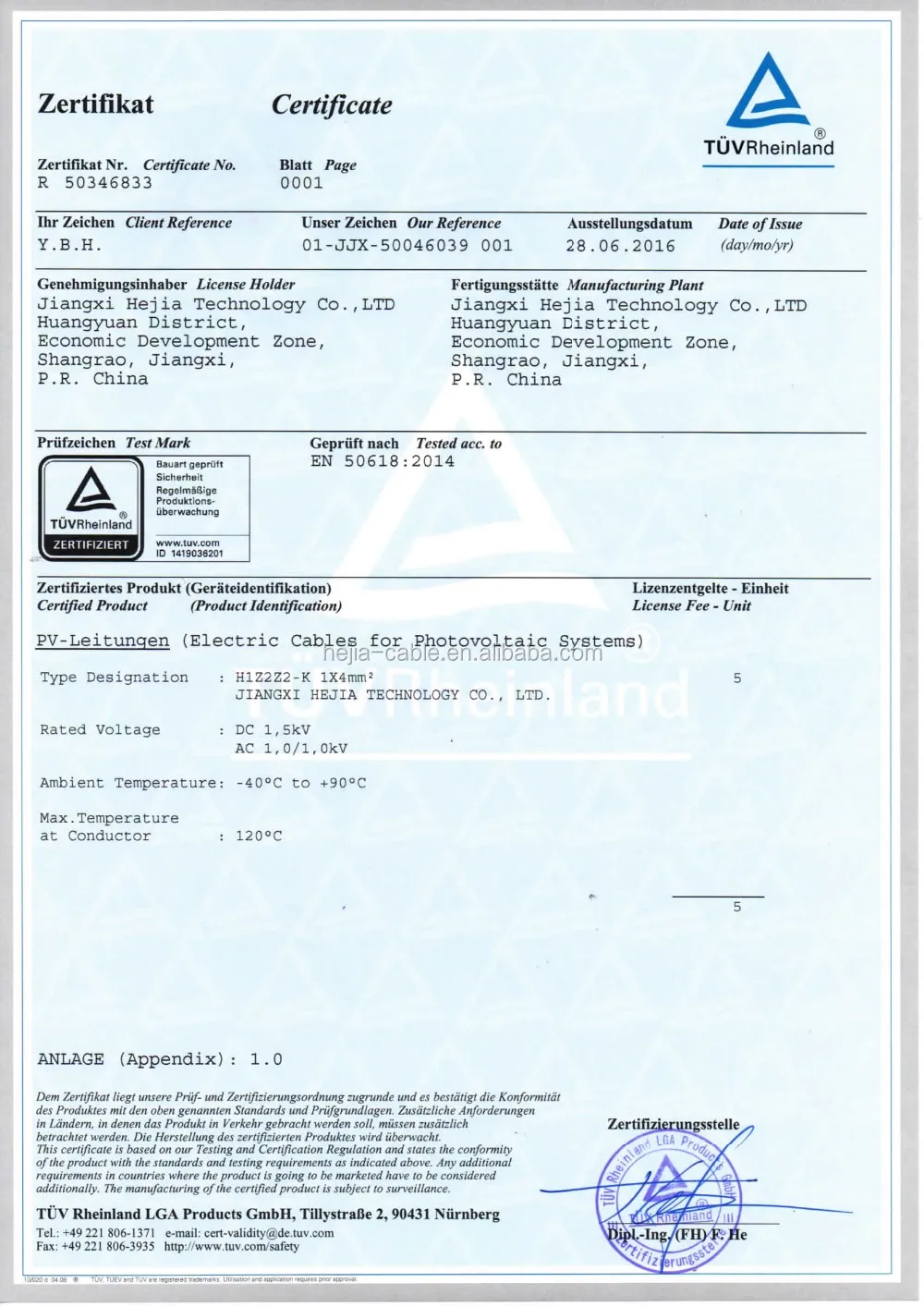

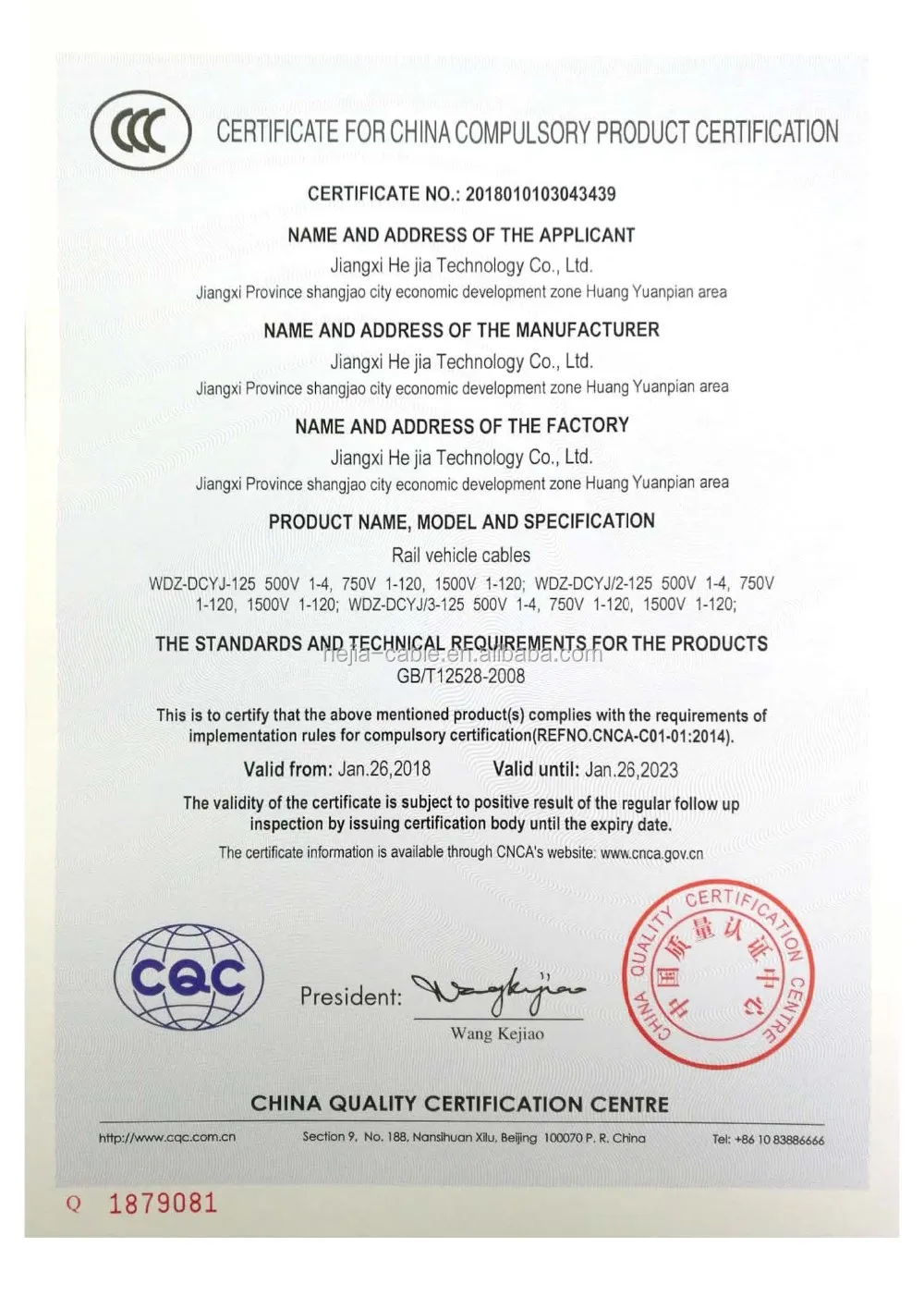

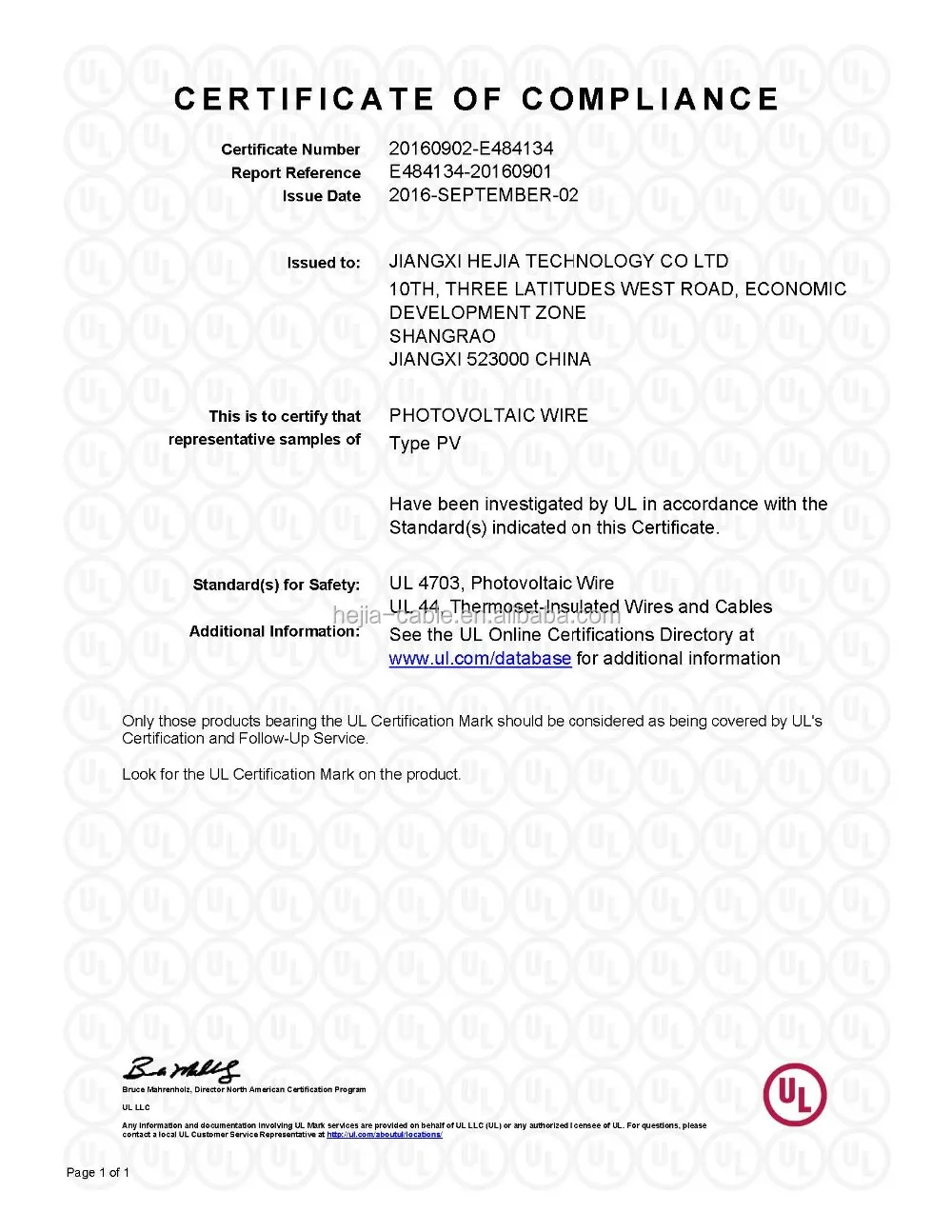

Certifications

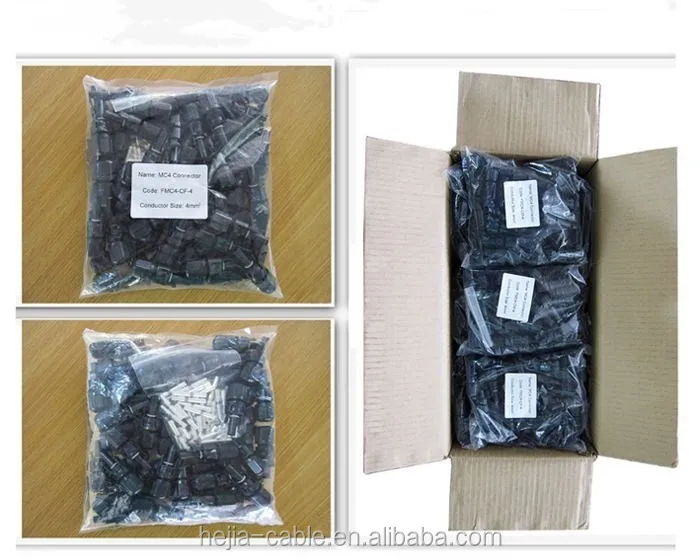

Packing & Delivery
FAQ
Q: Can I customize items I like, such as to print our own logo or to alter the design?
A: Yes, we offer OEM/ODM service. Please contact us to check with details.
Q: Can you offer samples?
A: Yes, the sample fee will be 1.5 to 2 times the mass production.
Q: Can I visit your company and factory in China?
A: Sure, we are more than happy to receive you in Zhongshan or Shangrao and show you around our workplace.
