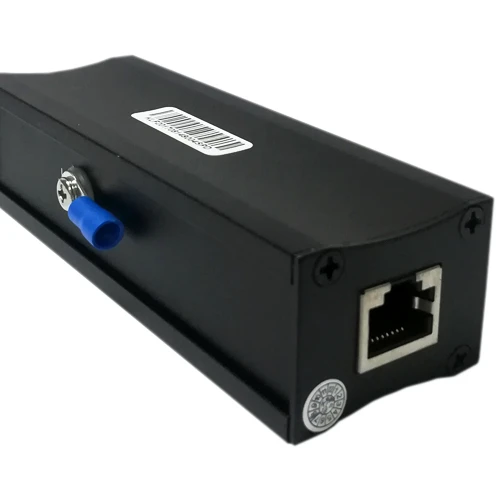

1000M Speed RJ45 Communication Protection Gigabit Ethernet POE Surge Protector

Share on (62526177865):


Price:

Quantity:


Product Overview

Description

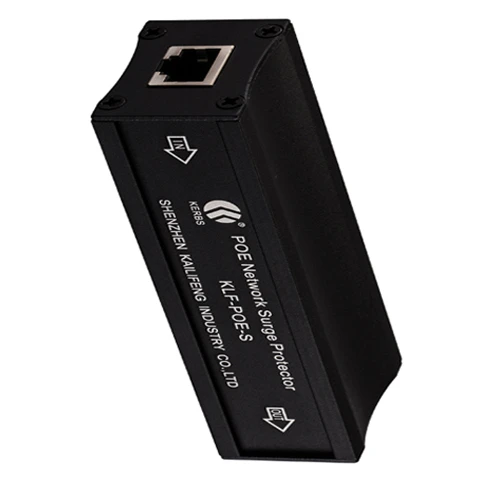

1000M Speed RJ45 Communication Protection Gigabit Ethernet POE Surge Protector

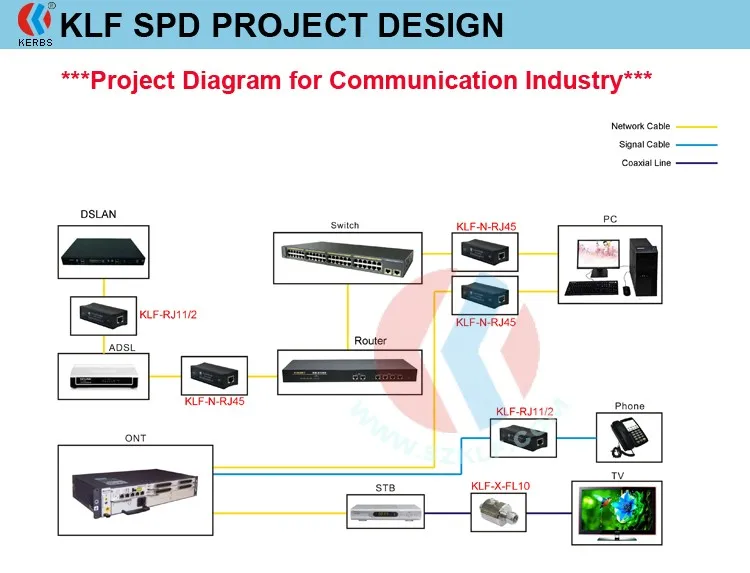

CPE Diagram.jpg



Product Description

 SPD parameter.jpg

Network Lightning Protector Type

KLF-N-RJ45

Working Voltage5V

Rated Current

300mA

Nominal Discharge Current(8/20μs) (In)

5KA

Max. Discharge Current (8/20μs) (Imax.)

10KA

Voltage Protection Level(Up)

≤15V

Response Time

≤20ns

Interface Model

RJ45

Insertion Loss

<0.2dB

Transmission Rate

100/1000M

Network Lightning Protector Working Environment

Temperature -40°C~+80°C; Relative humidity<95%

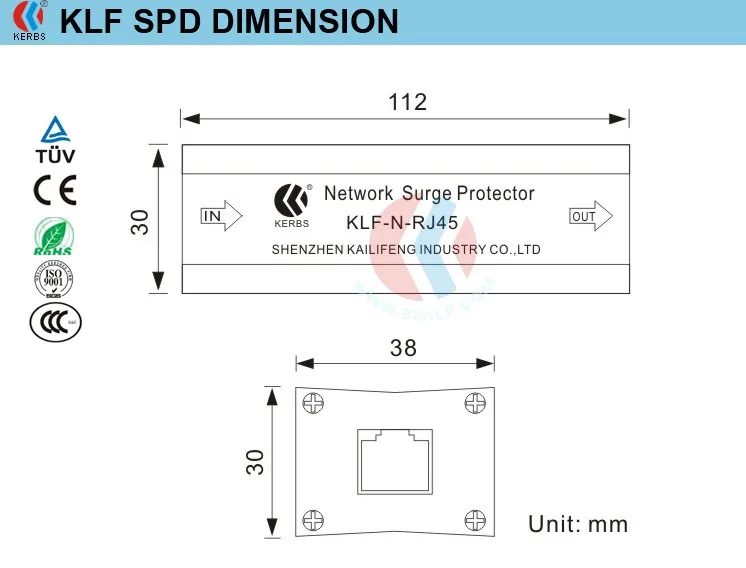

Network Lightning Protector Dimension(L×W×H)

112×38×30mm

Network Lightning Protector Weight

0.14kg

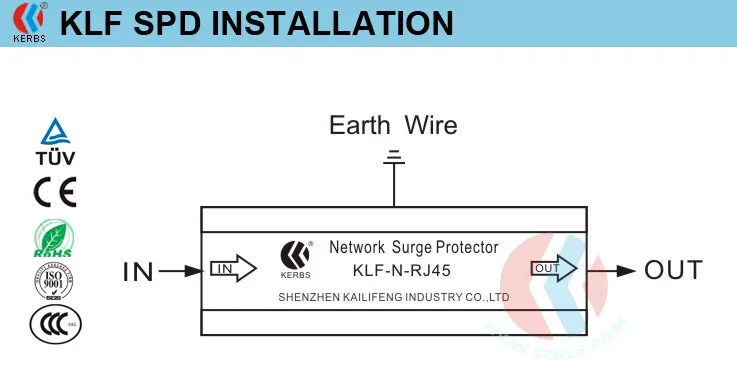

Installation of network lightning protector:  Apply to lightning protection of the web server, router, network switch, HUB, computer network,100/1000M ethernet, IP telephone.



KLF-N-RJ45.2 (1).jpgKLF-N-RJ45.jpgKLF-N-RJ45.11.jpg

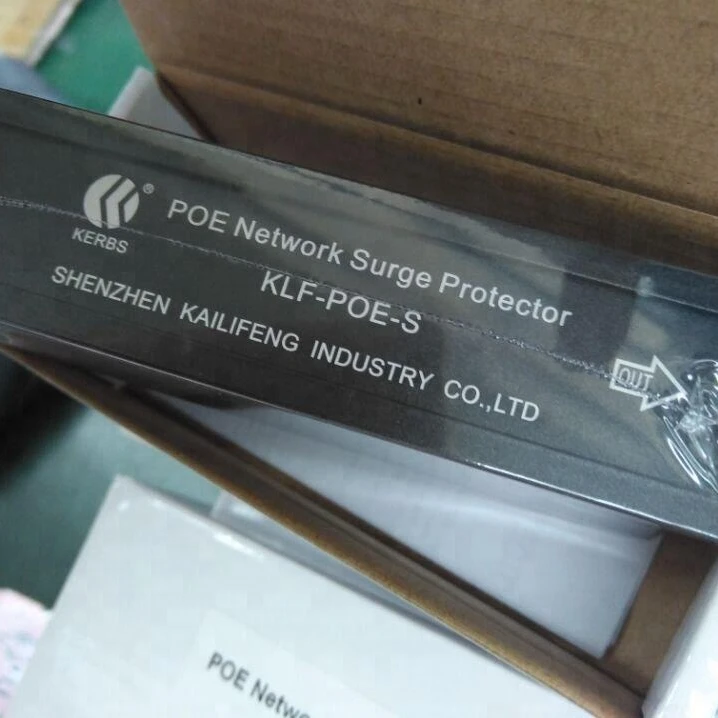

Packaging & Shipping

KLF-N-RJ45.2 (2).1.jpg



Company Information






Our Services



WHY CHOOSE US-amy.jpg


FAQ



1.What kind of damage caused by lightning?

Lightning strikes the ground over 25 million times each year. It exceeds one hundred million volts and brings catastrophic damage to whatever it hits. Thousands of houses burn down, and millions of machines break down every year due to lightning strikes, which cased loss more than billions of dollars, even life lost.

If we get use of surge protector, we could keep lightning away, life and dollars save.



2.Does network lightning protector attract lightning?

Lightning protection does not attract or repel lightning. Like water in a pipe, it provides it a safe path to ground and away from your home, family and expensive electronics.



3. Can I get a sample before the order because I really don't know your network lightning protector quality?

Of course!

We also think sample order is the best way to build the trust.



4. I am not familiar with network lightning protector, so I need your technical service and best quote which could help me to finish my project.

NO PROBLEM!

Our R&D team is experienced, we have helped many customers to finish their projects.

So just tell us your requirements, then everything we will solve perfectly for you.



5. How about delivery time of network lightning protector?

 For sample order 1-2days, and for batch order of standard SPD we promise delivery in 7- 15days.



6. How's the warranty time of network lightning protector?

We provide 5years warranty for our SPDs.

What’s more, in the first year, any failed products caused by quality problem will be replaced by us freely, also cost on us.

And in the warrany time, we provide maintenance-free service.
