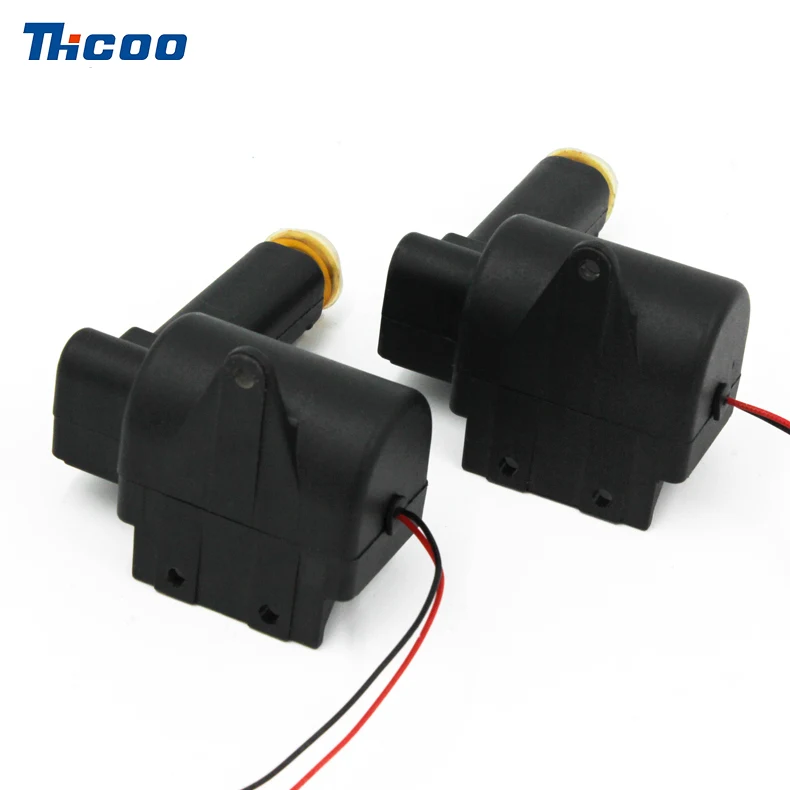

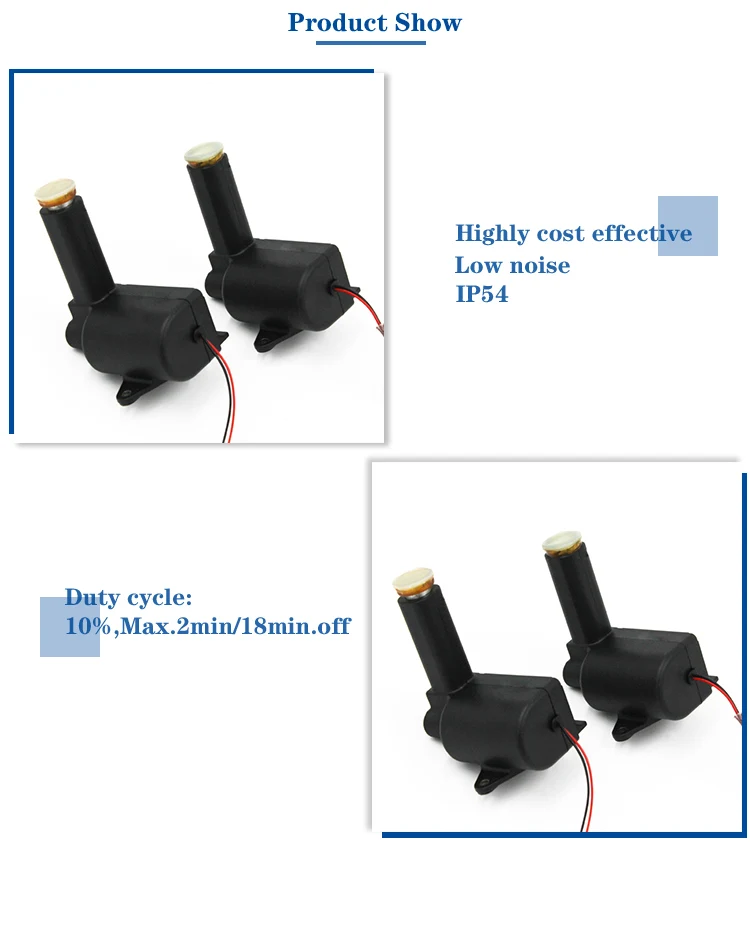

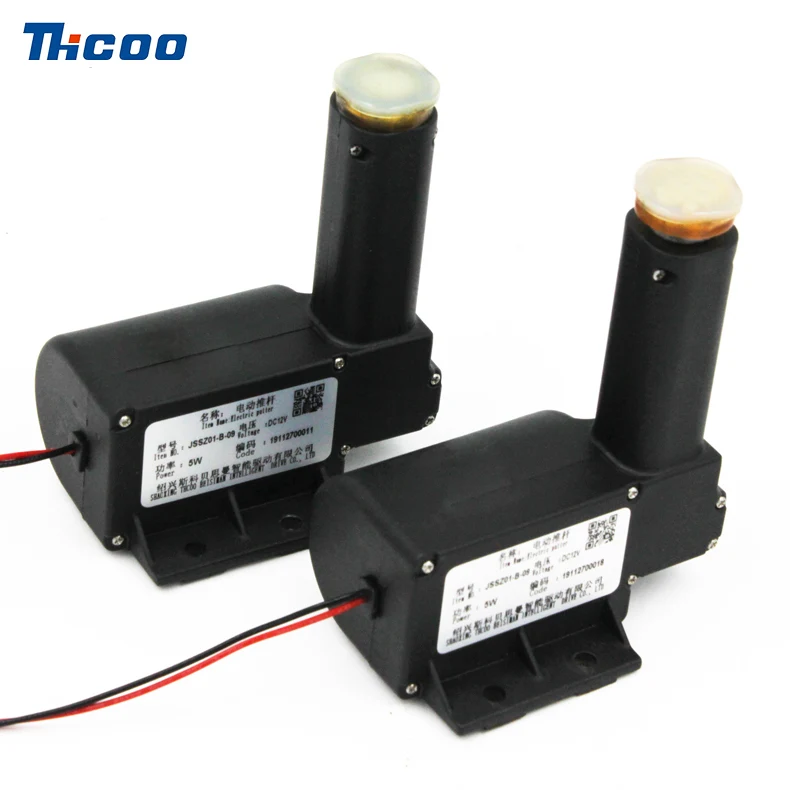

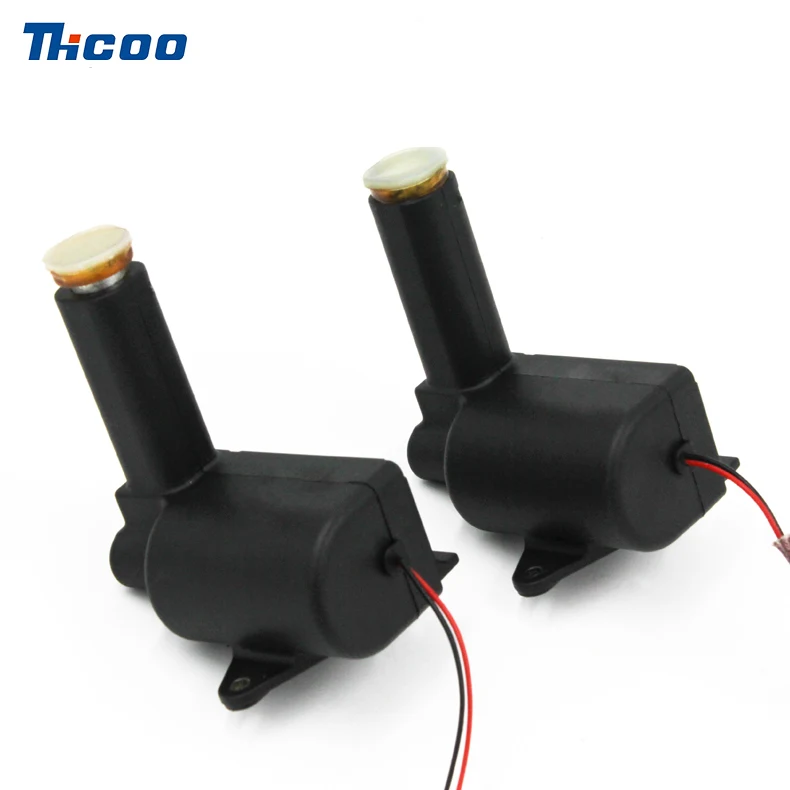

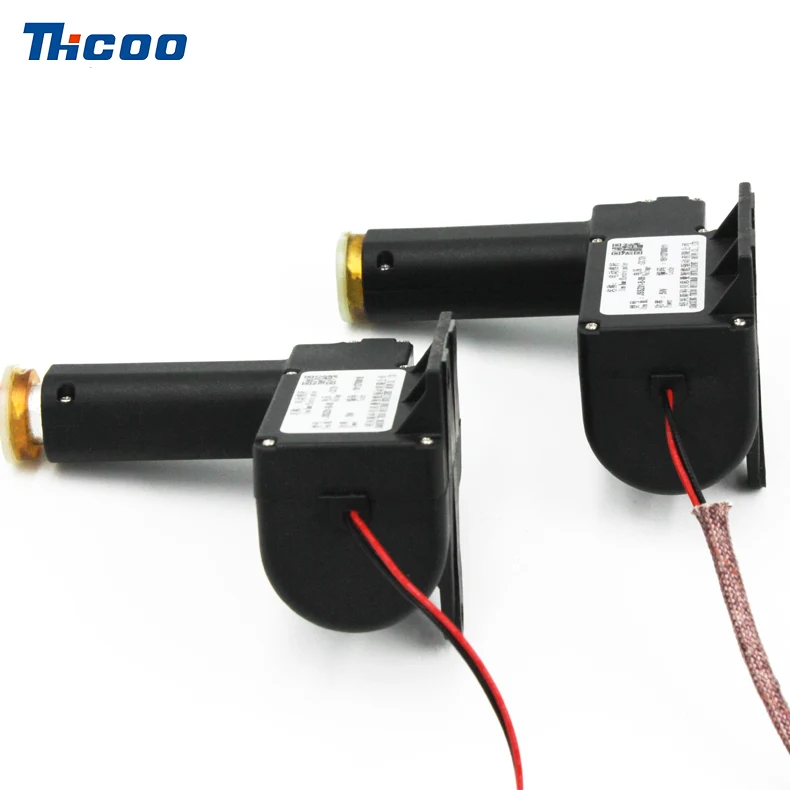

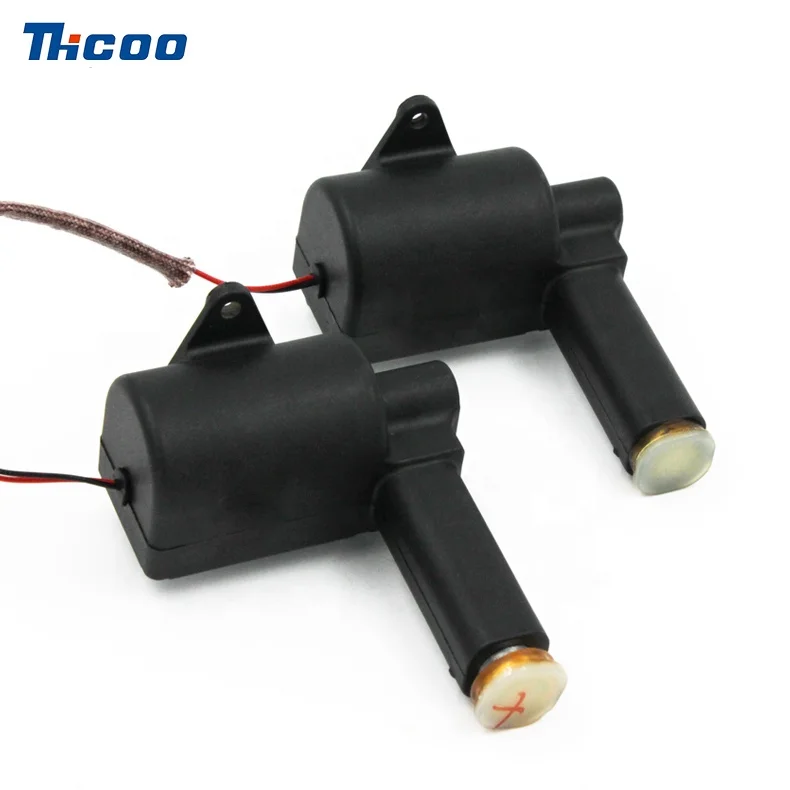

Small 32mm 30N Electric Gear dc Motor Mini Linear Actuators 12 Volts

Product Overview

Description



Input Voltage	12V
Max Load	10-100N/22lb
No load speed	5-10mm/s
Stroke	Customized
Limit switch	Without
Protection Class	IP54

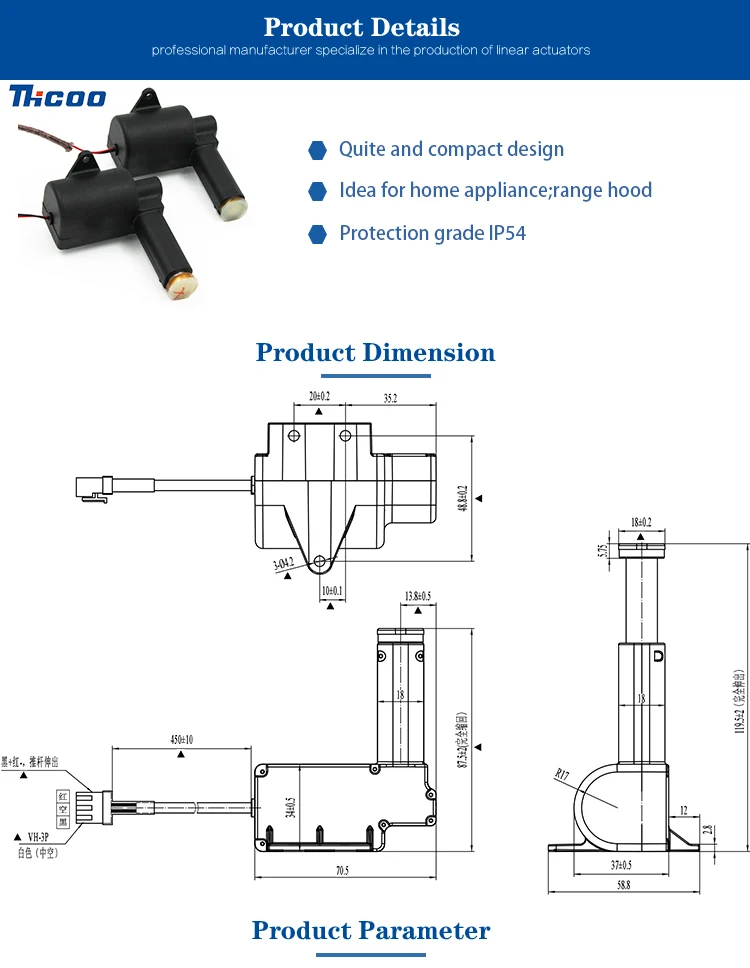

Min dimension	S+105+L(adapting piece)
Noise	Under 40DB
OEM	YES
Material	Aluminum
Duty Circle	10%
Working Temperature	0ºC to 80ºC
Color	Black
Installation Dimension	S-10mm can be customized
Inner Pipe	Aluminum Alloy
Adapting Piece	Steel(optional type;A,B,C,D,E;Accept customized)
Standard	CE/RoHS













 Q:May I have a sample order before bulk one?
 A: Of course, we can provide a sample for you.

 Q:What should I do if the stroke I want is not same as in the picture?
 A:Pls contact us,we can customize any stroke and no MOQ.

 Q:Does your product have Hall feedback?
 A:Yes,they can built in hall sensor.

 Q:This item do not seem to meet my requirements. Do you have any other products?
 A:Plstell us the load,speed you needed and more details to get right product and best price.

 Q:How do I place an order?
 A:Pls tell me your email/phone number/delivery address,we will send you the trade assurance order to you for your payment.

 Q:What is the trade assurance order?
 A:It is a guarantee provided by Alibaba for buyers and sellers.If there is a problem, Alibaba can help us solve it.
