Cylinder Honing Machine 3MB9817
- Category: Honing Machines >>>
- Supplier: Xian Amco Machine Tools Co. Ltd.
Share on (62526334182):
Product Overview
Description
Product Description

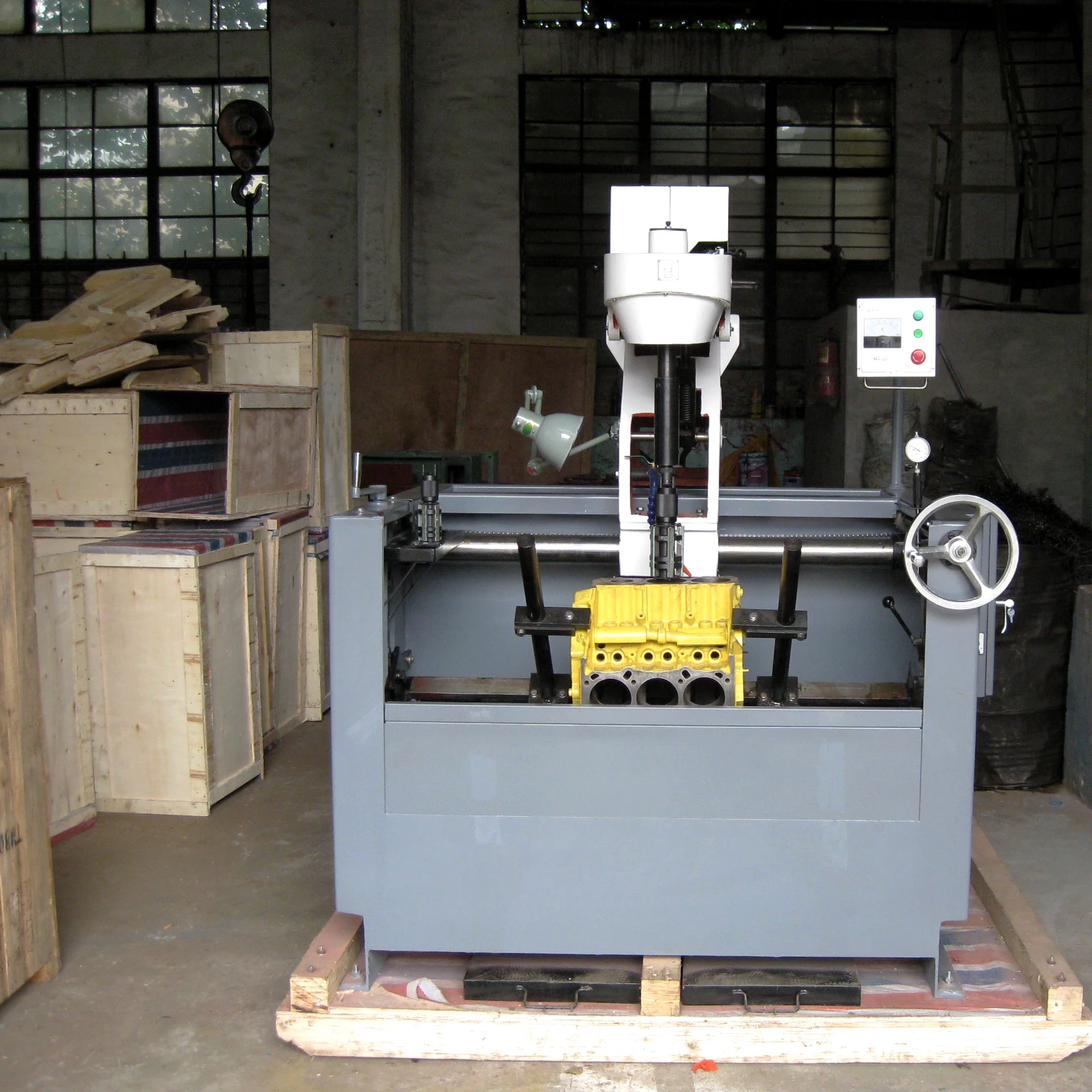

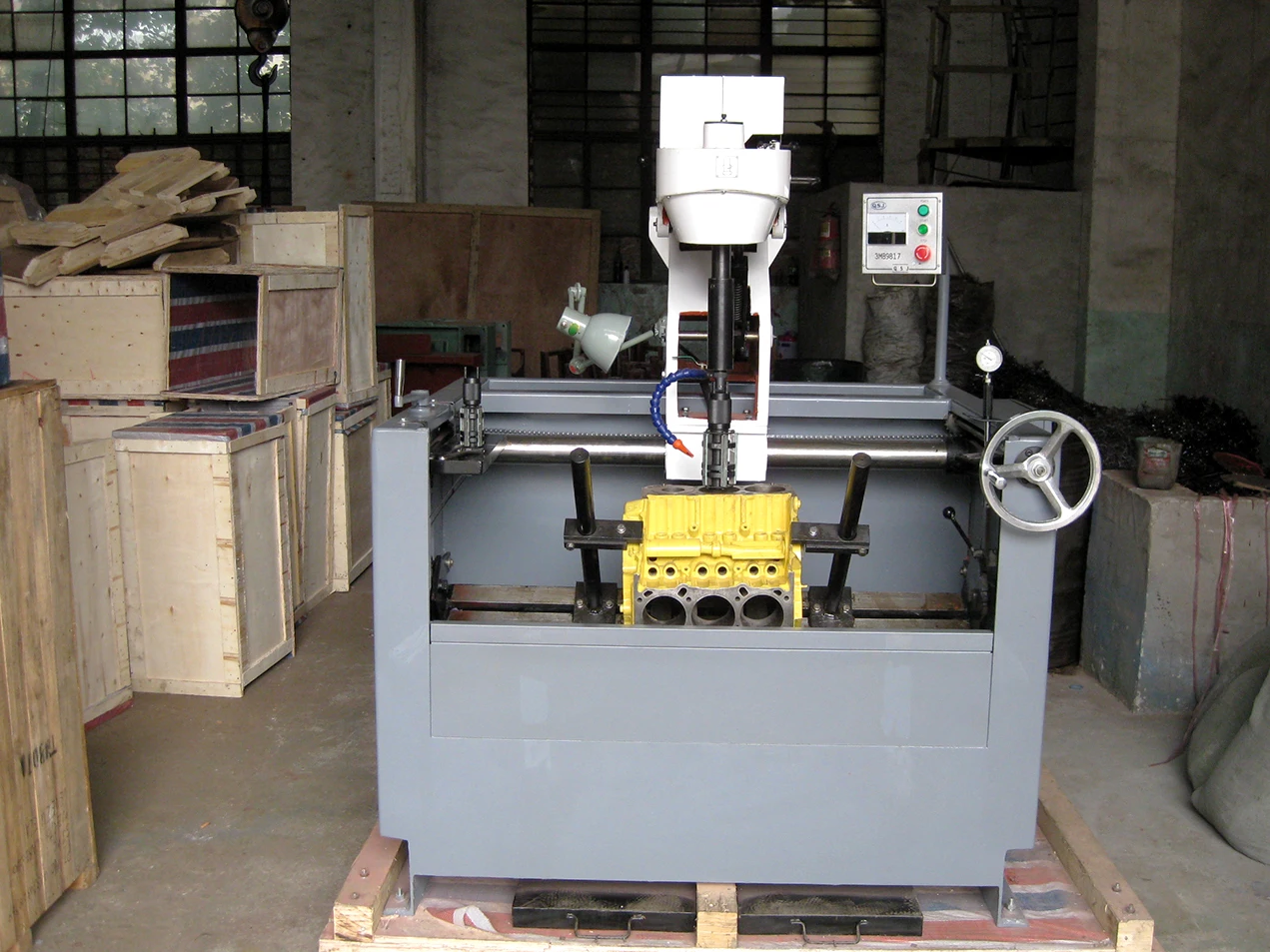

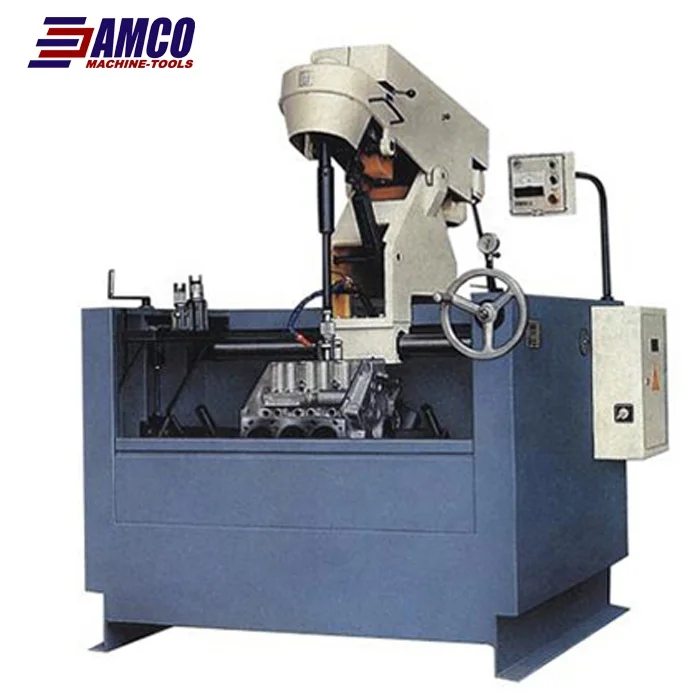

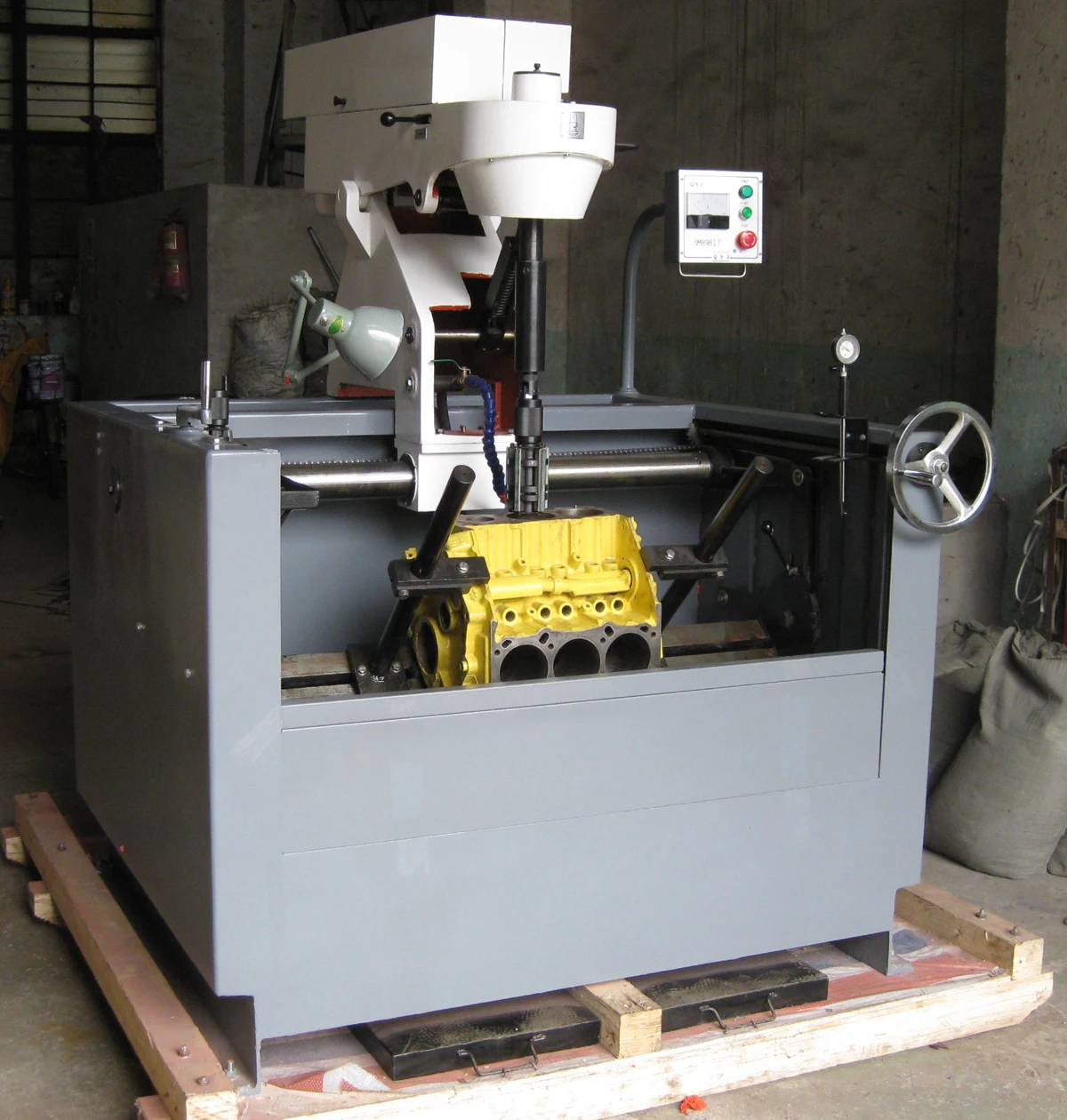

Cylinder Honing Machine 3MB9817
3MB9817 is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles ,motorcycles and tractors , and also for other machine element holes.
-The machine table can shift of the fixture change 0 degree, 30 degree and 45 degree
-The machine table is easily up and down manually 0-180mm..
-Reverse precision 0-0.4mm
-Select mesh-wire degree 0-90 or non-mesh-wire
|
Model |
3MB9817 |
3MB9808 |
|
Max. diameter of hole honed |
25-170 mm |
25-82mm |
|
Max depth of hole honed |
320 mm |
200mm |
|
Spindle speed |
120, 160, 225, 290 rpm |
200; 280rpm |
|
Stroke |
35, 44, 65 s/min |
19;27 s/min |
|
Power of main motor |
1.5 kw |
0.55kw |
