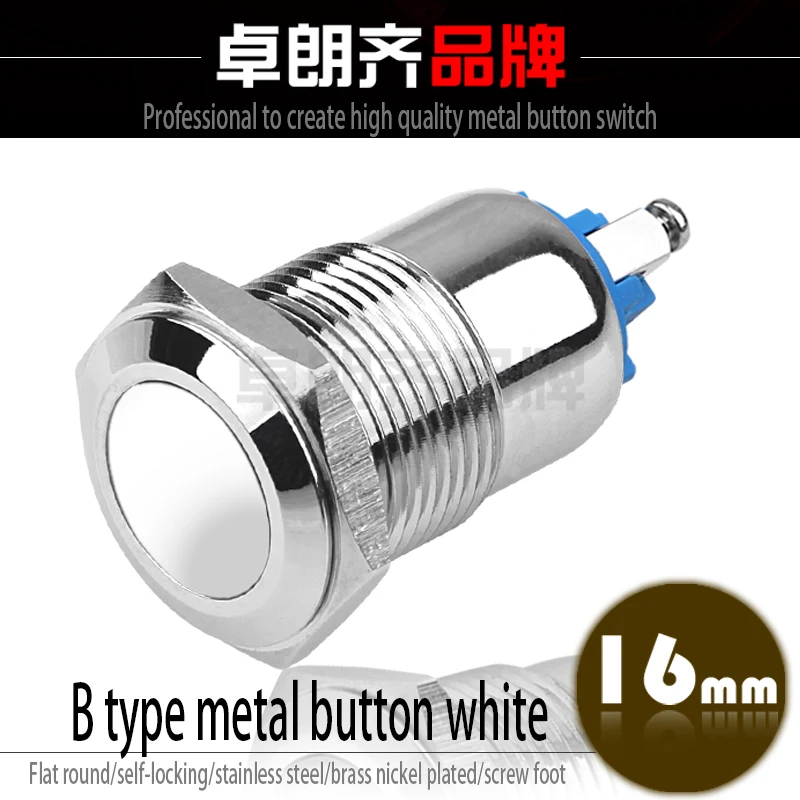

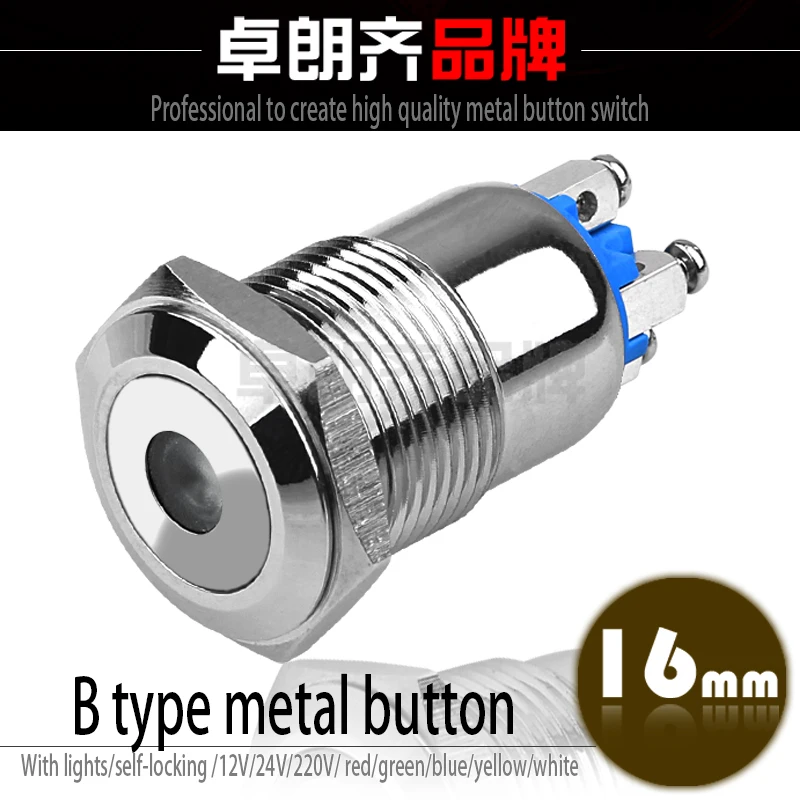

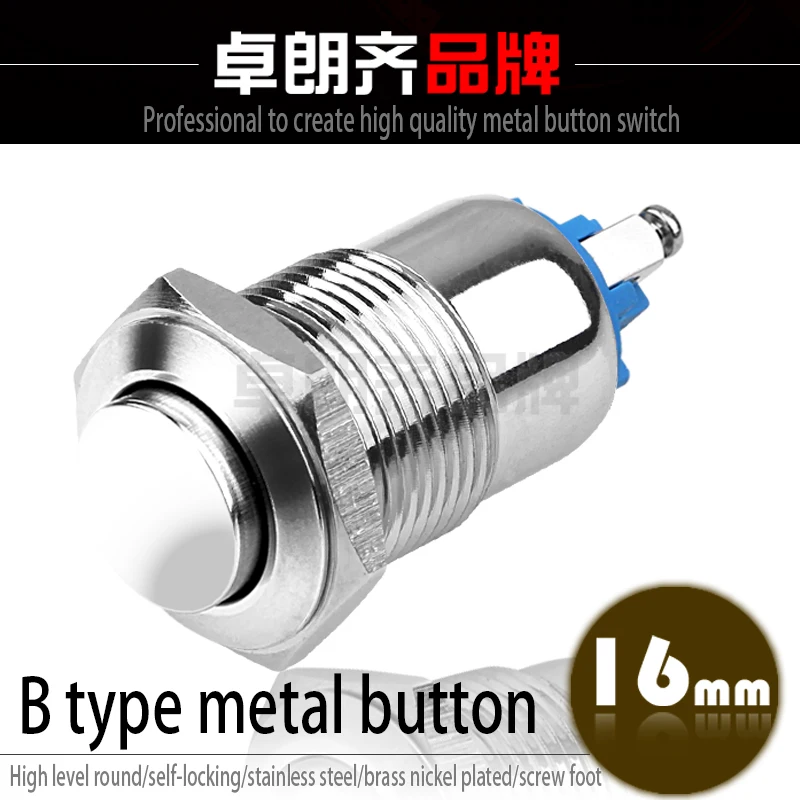

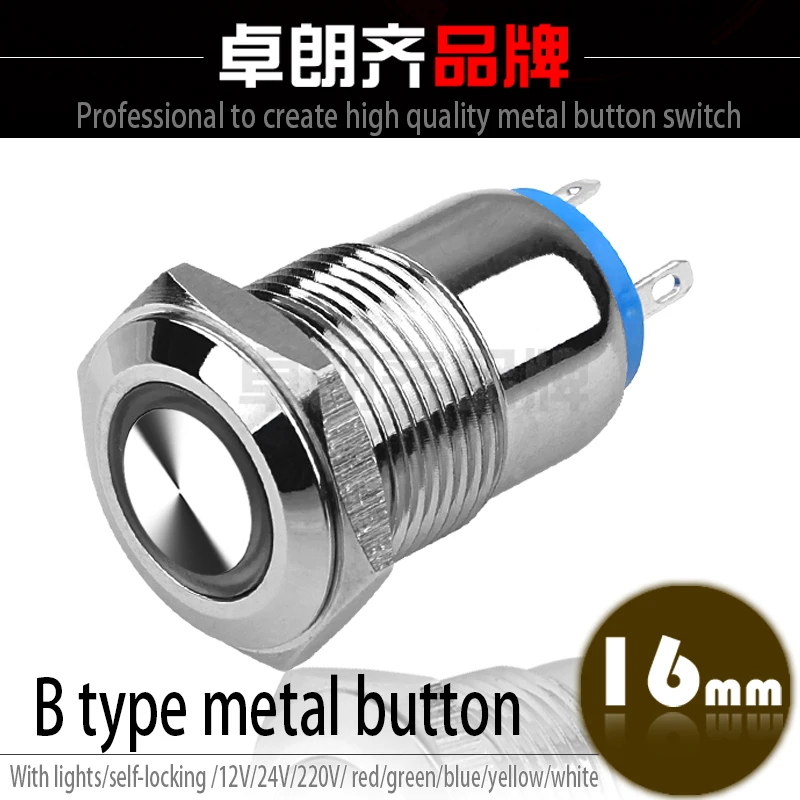

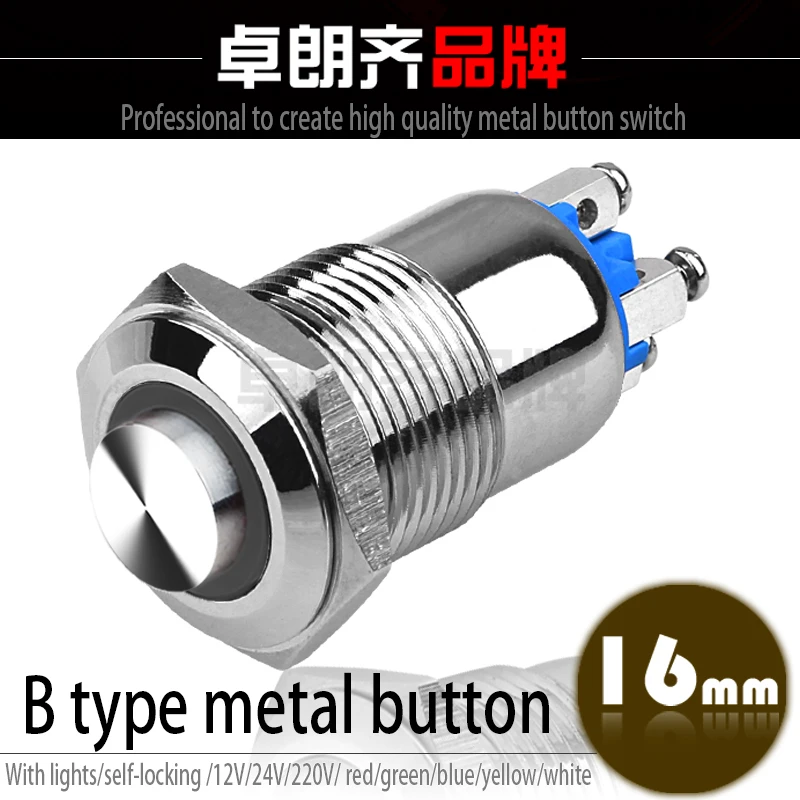

Power Symbol 16MM 12V/24V LED Momentary Horn Button Metal Switch
- Category: >>>
- Supplier: Zhejiang Zhuolangqi Electric Co. Ltd.
Share on (62526439434):
Product Overview
Description
Product Description

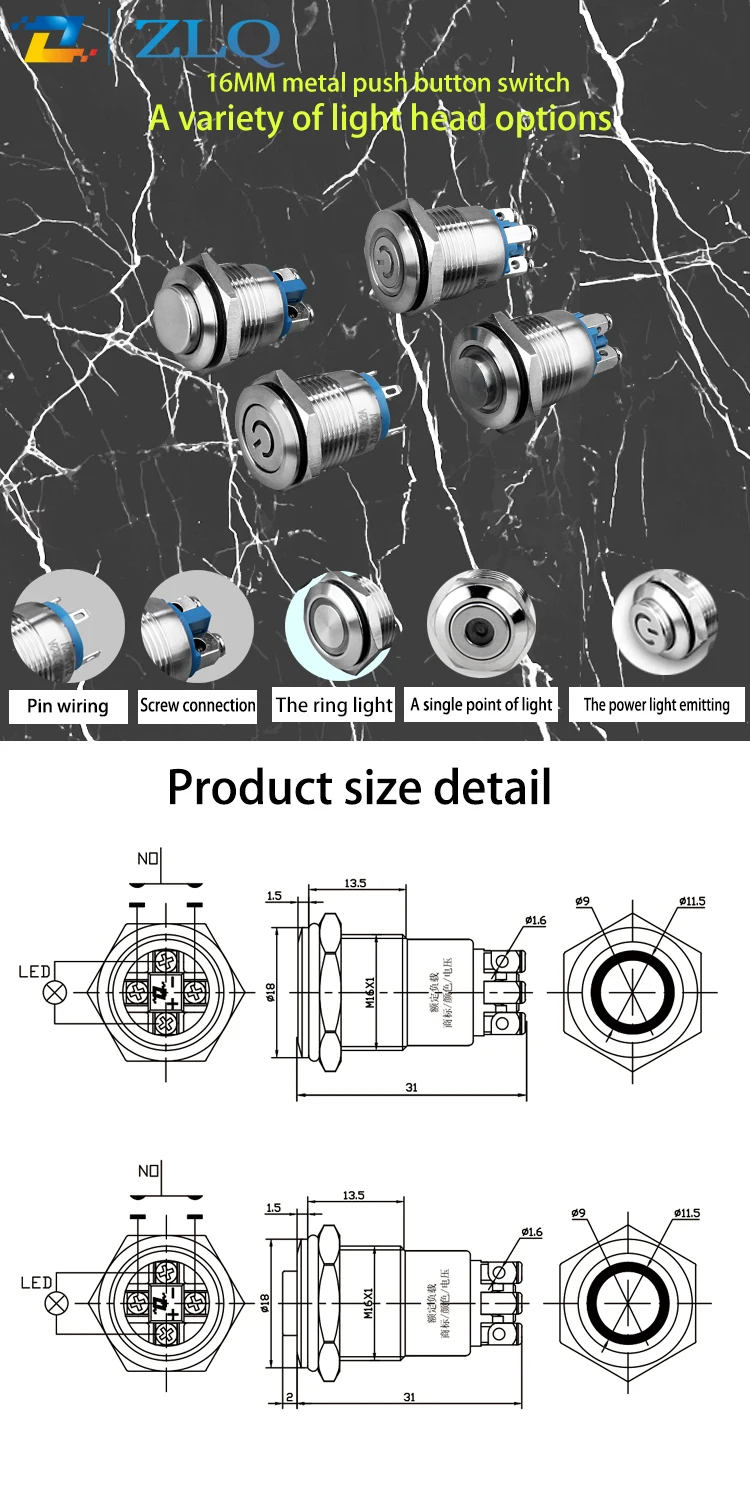

Mounting hole diameter: Φ16mm
Head shape: Flat round
Switch function: 1NO(1 Normally open)
Operation type: Since the lock
Type of illumination: Ring
Luminous color: R G B O W Y P
Luminous voltage: 3V 5V 6V 12V 24V 36V 48V AC110V AC220V
shell material: nickel-plated brass /Stainless steel/Titanium plating
Switch rating: 3A/DC36V
Protection level: IP67 IK09
| Project | Parameter | Project | Parameter |
| Switch type | slow moving doubie contact | Explosion-proof grade | Ik09for metal) |
| contact resistance | ≤50mΩ | Operating pressure | About 2.5~4.5N |
| Insulation resistance | ≥ 1000MΩ | Operating limits | Connect about 2.6mm, total stroke about 3.3mm |
| Dielectric strength | 2000vAC | Nut torque | 5 ~14N.m |
| The environment temperature | -20°c~+50°c | The shell | Stainless steel/ brass nickel plated |
| Electrical life | More than 50000 times | The keys | Stainless steel/ brass nickel plated |
| Mechanical life | More than 200000 times | base | Engineering plastics |
| Waterproof level | IP67 | contact | Gold-plated/gold |
Our Services

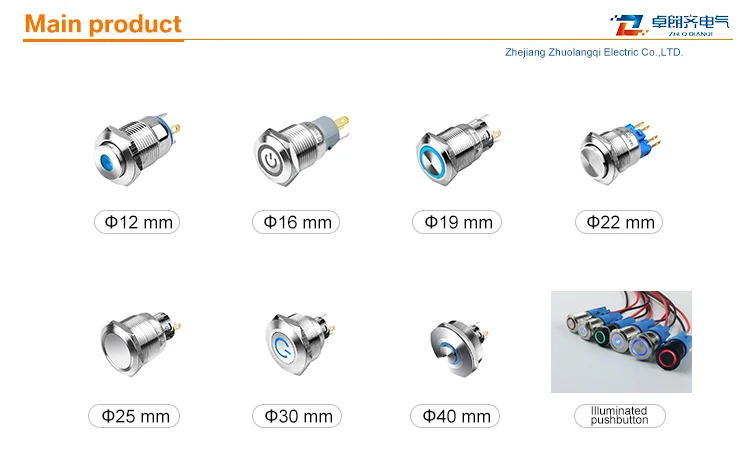

Main products
