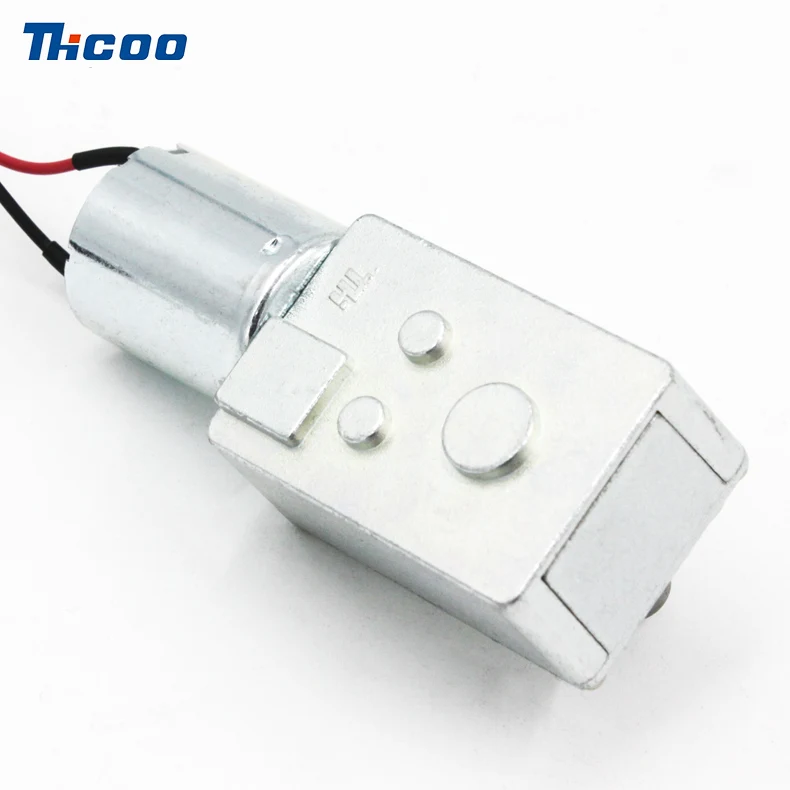

12v DC 46mm Micro Worm Gear Motor 3 50 rpm Gear Reducer Motor Geared Motor Reversible
- Category: >>>
- Supplier: Shaoxing Thcoo Beisiman Intelligent Drive Co. Ltd.
Share on (62526523570):
Product Overview
Description
Main Product | DC Rrducer Motor, Linear actautor, Controller, View more |
Advantage | Professional R&D team,advanced design concept,strict quality control and considerate after service |
OEM | Accepted |
Delivery Time | Within 15 days |
Product Description
We offer Customized Speed service.
5V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
12V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
24V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
12V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
24V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
Product Paramenters
Type | Voltage | No Load | Stall | Reducer | ||||||
Trigger | Rated | Speed | Current | Torque | Current | Ratio | ||||
SKM-01 | < 1.5V | 5V | 2.0rpm | <25mA | 40kg.cm | <500mA | 1500 | |||
SKM-01 | < 1.5V | 12V | 2.0rpm | <25mA | 40kg.cm | <500mA | 1500 | |||
SKM-02 | < 1.3V | 5V | 2.5rpm | <30mA | 50kg.cm | <650mA | 1440 | |||
SKM-02 | < 1.3V | 12V | 2.5rpm | <30mA | 50kg.cm | <650mA | 1440 | |||
SKM-03 | < 1.2V | 5V | 2.7rpm | <30mA | 55kg.cm | <750mA | 1630 | |||
SKM-03 | < 1.2V | 12V | 2.7rpm | <30mA | 55kg.cm | <750mA | 1630 | |||
SKM-04 | < 1.2V | 5V | 3.0rpm | <40mA | 60kg.cm | <1200mA | 1666 | |||
SKM-04 | < 1.2V | 12V | 3.0rpm | <40mA | 60kg.cm | <1200mA | 1666 | |||
SKM-B-01 | < 1.5V | <400mA | 3.0rpm | 90mA | 100kg.cm | <2500mA | 1000 | |||

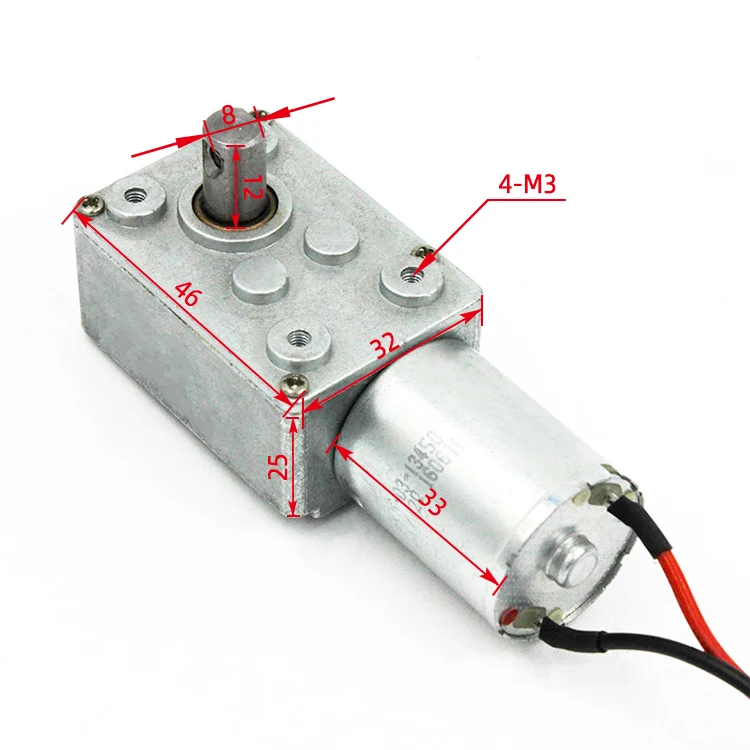

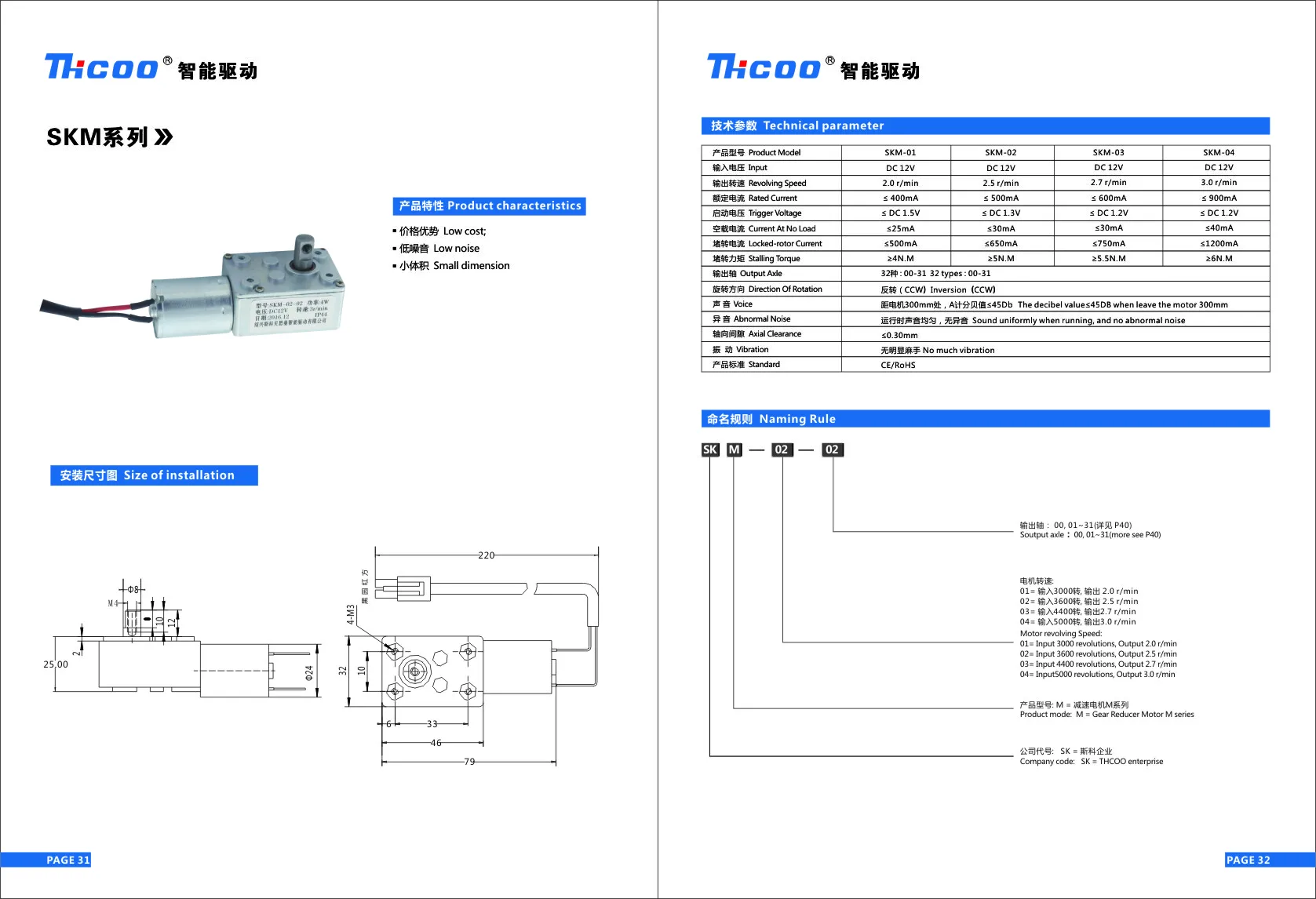

Drawing

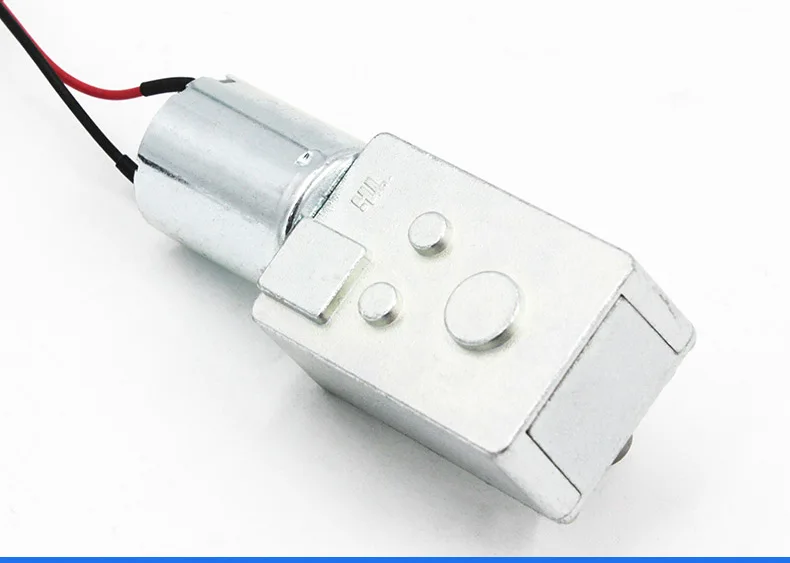

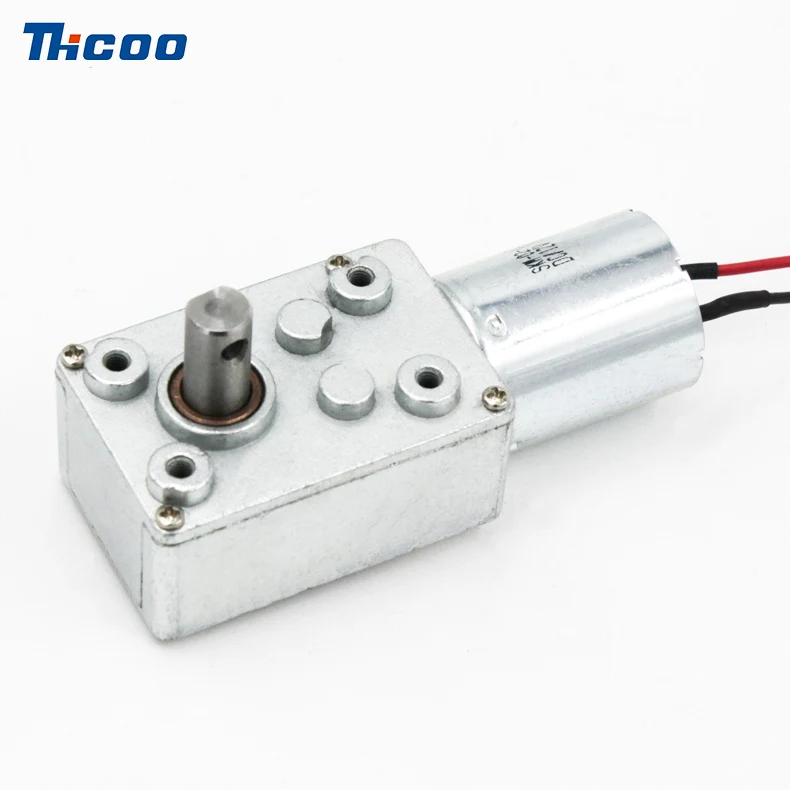

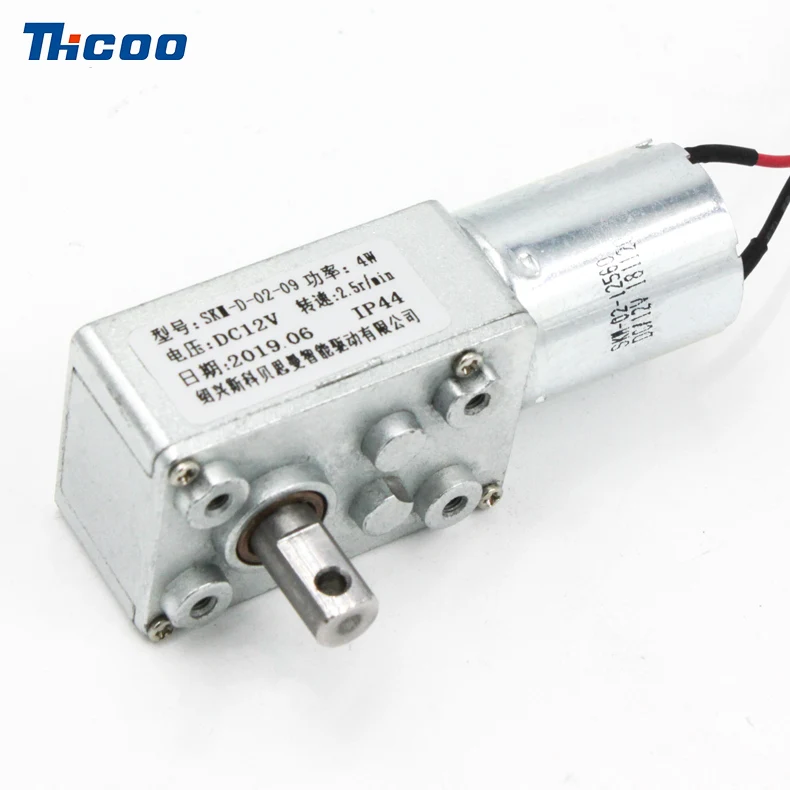

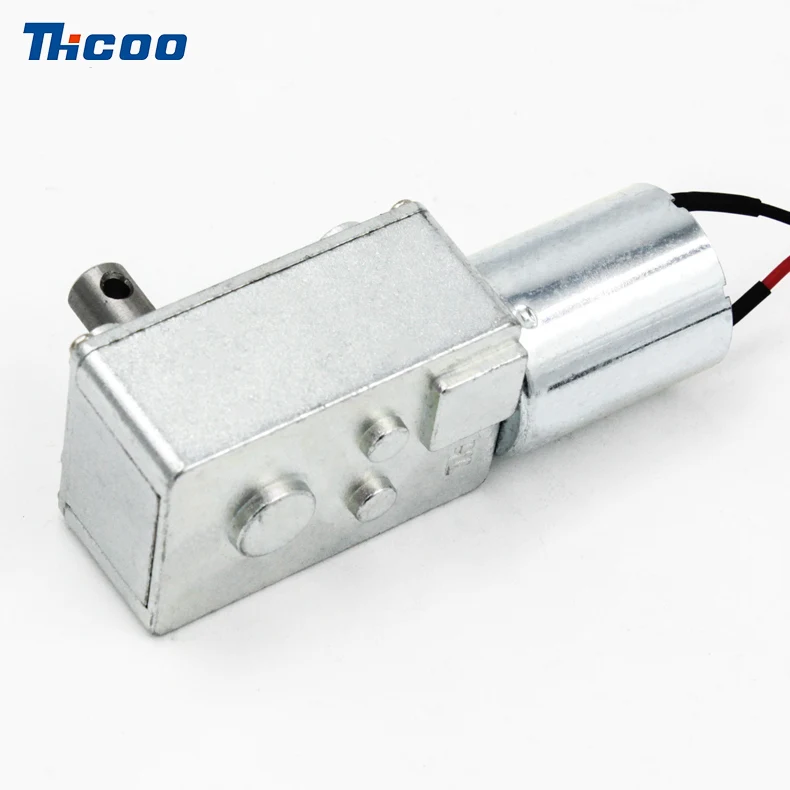

Product Show
FAQ
Q1: What is the material of the gear?
A1: The motor gears are made of metal. If you need other materials, you can contact us.
Q2: How to change rotation direction?
A2: Please change wiring polarity to change rotation direction.
Q3: How to change speed?
A3: You can buy our below speed controller, to change speed from 0-10rpm.
Q4: What do "self locking" mean?
A4: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.
Q5: What happens when a voltage of 18V is connected to a 12V motor or an 18V motor?
A5: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect his speed and torque, and will not even run.
If you have any question and problem in using, please contact us first. We will try our best to resolve the problem.
A1: The motor gears are made of metal. If you need other materials, you can contact us.
Q2: How to change rotation direction?
A2: Please change wiring polarity to change rotation direction.
Q3: How to change speed?
A3: You can buy our below speed controller, to change speed from 0-10rpm.
Q4: What do "self locking" mean?
A4: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.
Q5: What happens when a voltage of 18V is connected to a 12V motor or an 18V motor?
A5: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect his speed and torque, and will not even run.
If you have any question and problem in using, please contact us first. We will try our best to resolve the problem.
