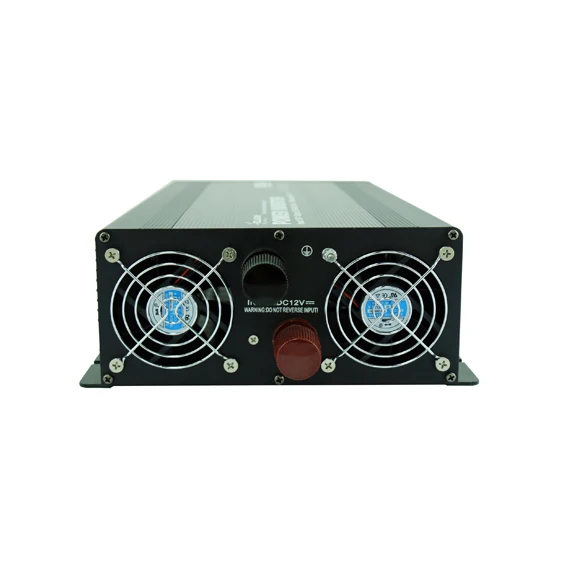

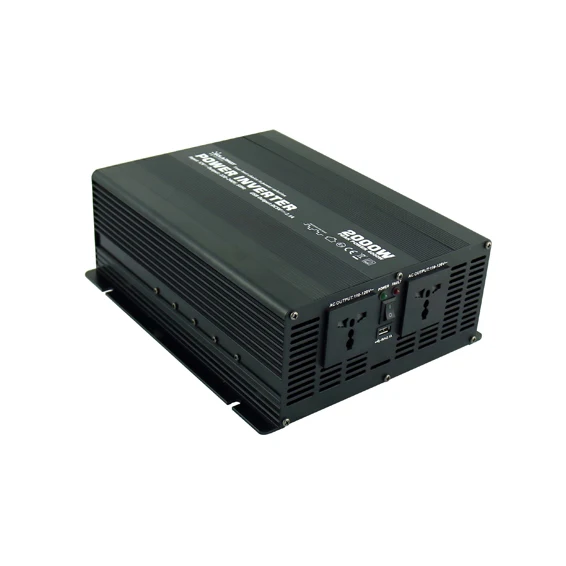

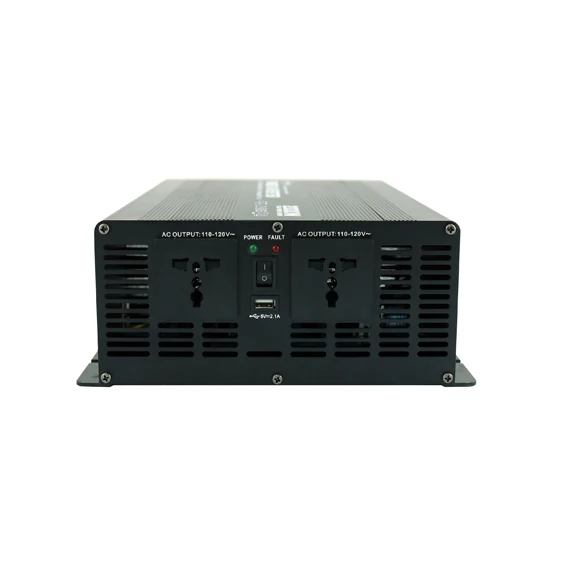

Widely used 110 220v high frequency car off-grid inverter
US $70.50-$80.00
Dc 12v/24/48v Номинальная мощность 2000 Вт пиковая мощность 4000 Вт Модифицированная синус инвертор 12vdc 220vac инверсор де onda изменение
- Category: Inverters >>>
- Supplier: Jiaxing Solarway New Energy Co. Ltd.
Share on (62526528531):
Product Overview
Description
Dc 12/24/48v rated power 2000w peak power 4000w modified sine inverter 12vdc 220vac Inversor de onda modificado
Company Information
Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark certification
We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
Technical Parameters
| MODEL | NM2K-112 | NM2K-124 | NM2K-148 | NM2K-212 | NM2K-224 | NM2K-248 | |
| Output | AC Voltage | 100/110/120VAC | 220/230/240VAC | ||||
| Rated Power | 2000W | ||||||
| Surge Power | Load 120~150%(3min.);4000W(3sec.;resistive) | ||||||
| Waveform | Modified Sine Wave | ||||||
| USB port | 5V 2.1A | 5V 2.1A | ------ | 5V 2.1A | 5V 2.1A | ------ | |
| Input | DC Voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC |
| Voltage Range | 10.5~15VDC | 21~30VDC | 42~60VDC | 10.5~15VDC | 21~30VDC | 42~60VDC | |
| Efficiency(Typ.) | 89%~93% | ||||||
| Remote Control | Function(optional) | ||||||
| Protection | BAT.Low Alarm | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC |
| BAT.LOW Shutdown | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC | |
| Over Load | Shut down output voltage, restart to recover | ||||||
| Over Voltage | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC | |
| Over Temperature | Shut down output voltage, recover automatically after temperature goes down | ||||||
| Output Short | Shut down output voltage, restart to recover | ||||||
| DC Input Reverse Polarity | By fuse | ||||||
| Earth Fault | Shut off o/p when the load has electrical leakage | ||||||
| Soft Start | Yes,3~5 Seconds | ||||||
FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.
2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.
Our products could pass different labor testing according to different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
