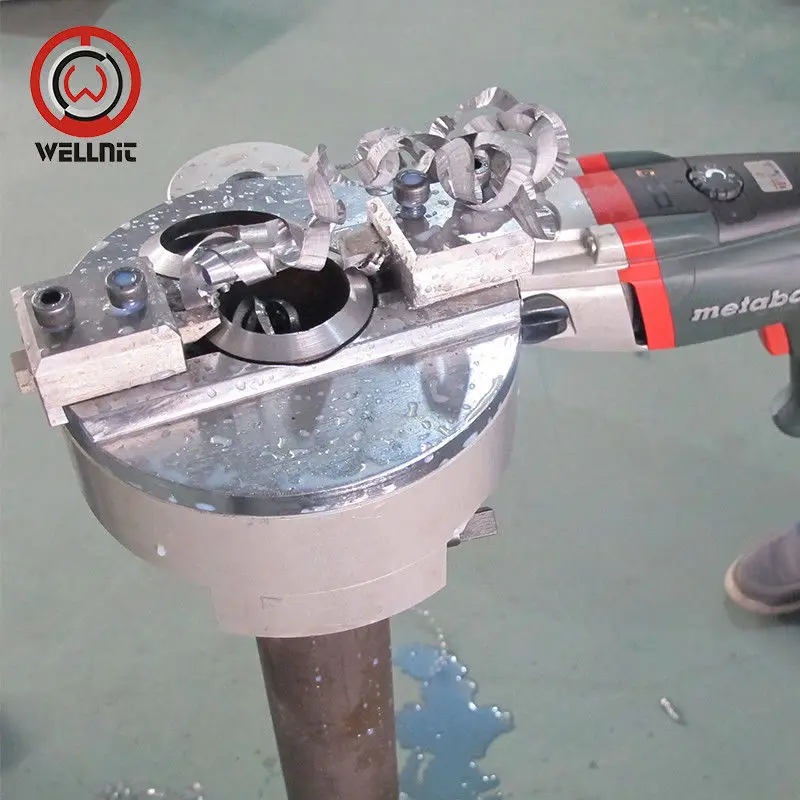

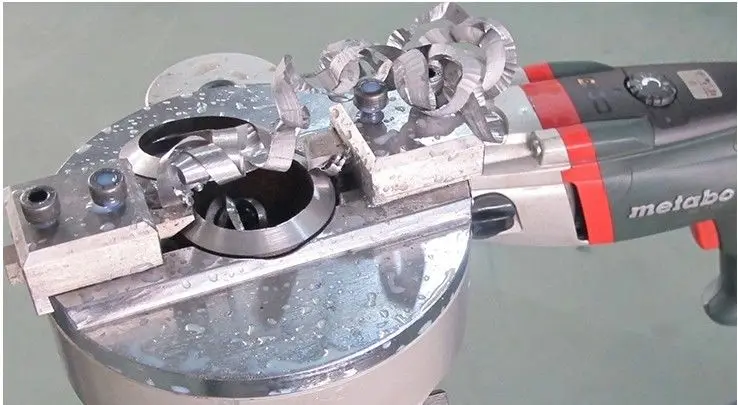

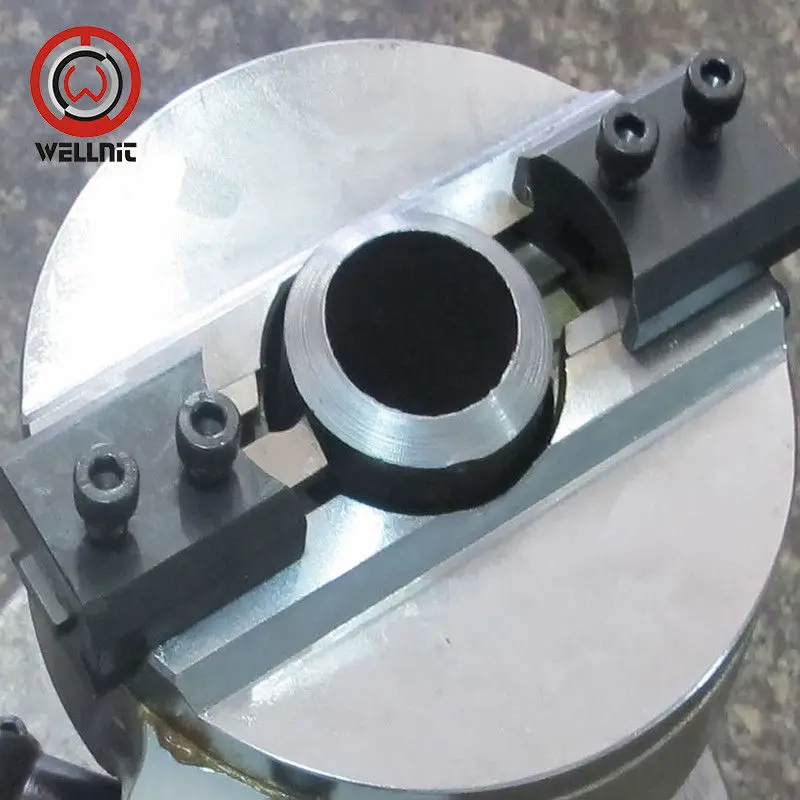

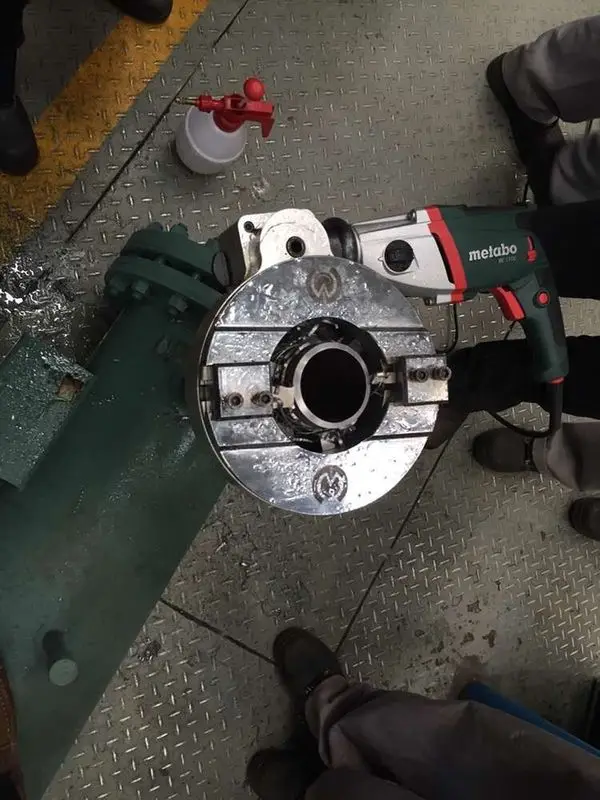

Electric Motor Cam type Self centering Portable Pipe Cutting And Beveling Machine

Product Overview

Description

Cam-type Portable Hand Pipe Beveling Machine







Production Description



Portable Small Pipe Cutting And Beveling Machine

This series adopt high strength and precision structure , apply for cut and bevel work for different pipe , especially for batch working of cutting and beveling , get the high efficiency.

There are the following advantages:

• Adjustable speed


• Self-centering , no need adjust the concentricity and perpendicularity manually.


• Easy set-up , operation and maintain


• Cutting and beveling finished at the same time , high working effective


• Cold working , no spark , won't make the material affected





Technical parameter

Model	Working range	Thickness	Speed	Weight
SCB-63	Dia. 14~63mm	≤12mm	30~120r/min	13 Kgs
SCB-114	Dia. 57~114mm	≤12mm	30~120r/min	16 Kgs

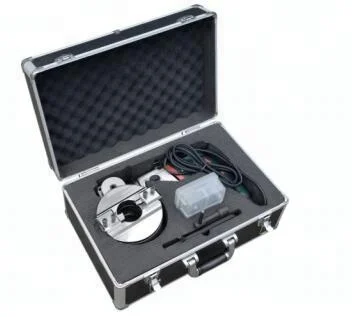

Packing show







 Order Guide

Before you place order to us, please let us know the following information:

•


  Choose the right Model





•


  Confirm your electric power supply ( Voltage, frequency and phase)





•


  Confirm the beveling angel required





•


  Confirm the welding joint required (U, V, Double V or Compound preparation)





•


  Advise your pipe material ( Carbon steel, stainless steel or others)





•


  Other special demands about machine





•


  The spare parts needed





•


  If the pipe wall thickness more than 30mm, inform us in advance (Important)
